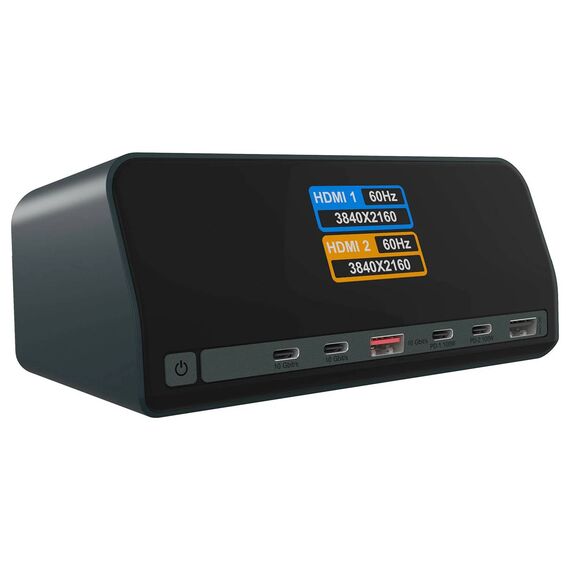

ICY BOX Heart Dock 2300 IB-DK2300-CH USB-C Dock, Dual HDMI 4K60 with DP 1.4 DSC, TFT Display, Gigabit LAN, PD 100W
Brand:
Icy Box
ICY BOX Heart Dock 2300 IB-DK2300-CH USB-C Dock, Dual HDMI 4K60 with DP 1.4 DSC, TFT Display, Gigabit LAN, PD 100W
€127.52 inc. VAT
IB-DK2300-CH
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
A USB-C workspace with visible connection status
Dual HDMI10Gbps USBGigabit LANTFT status

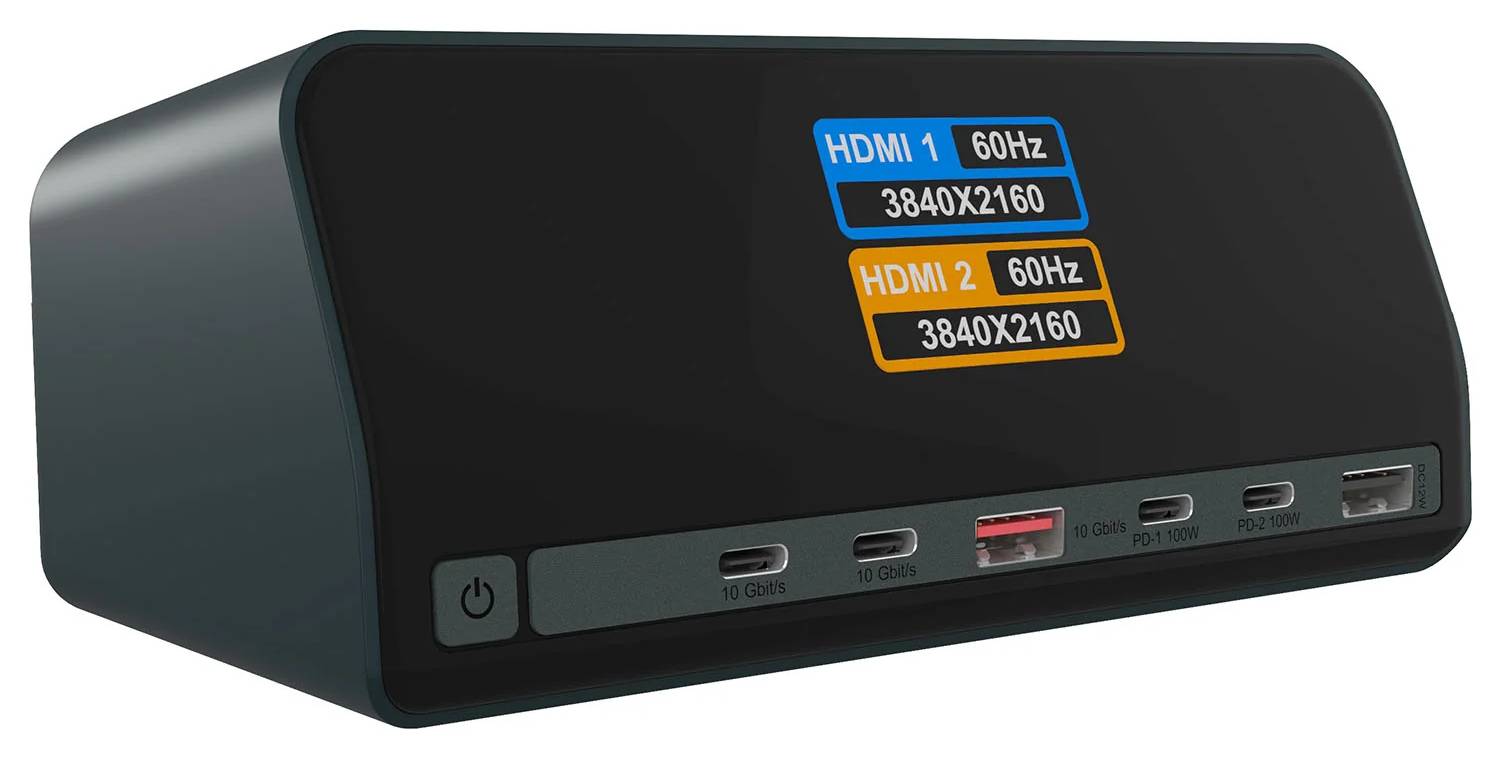

Heart Dock 2300 connects a compatible USB-C computer to HDMI displays, USB peripherals and a wired network while providing charging options. The built-in TFT screen shows power usage and display status. The package contains one dock, a 100cm USB-C host cable, an AC power cord and a manual. Your computer, screens and HDMI cables are separate. Dual 4K60 requires the supported Windows DP 1.4 DSC/MST configuration shown below.
Before you order:
Check your computer’s USB-C video, DP version, DSC/MST support and charging requirements. A USB-C connector alone does not establish video support. macOS is listed with SST output; do not plan two independent extended desktops from the two HDMI ports. Charging figures are up-to port ratings, not a promise that every port delivers its maximum simultaneously.
What It Means in Practice
- Connect the dock to AC power and the computer using the included USB-C cable, then attach HDMI screens, USB devices and Ethernet. For two 4K60 Windows screens, confirm DP 1.4, DSC and MST support before purchase. A DP 1.2 host has lower output limits.
- Use the dedicated charging ports for compatible devices and the data ports for peripherals. The TFT readout helps you see connection and power status without opening software; it does not change the host computer’s capabilities.
What Will Not Work
- A data-only USB-C port cannot provide the required display signal.
- Do not expect two independent macOS external desktops from the listed SST configuration.
- Do not select this listing on the assumption of verified 4K120 operation; the detailed supported configurations published here stop at 4K60.
Key Features
Conditional dual-display workspace
Two rear HDMI outputs provide the configurations listed in the manufacturer matrix. Windows DP 1.4 with DSC/MST supports dual 4K60; other host capabilities have different limits.
Separate data and charging connections
Front USB-A/C data ports operate at up to 10Gbps, with a rear 480Mbps USB-A port. Dedicated USB-C charging ports are rated up to 100W each, and the dedicated USB-A charger up to 12W.
Visible status and wired networking
The TFT LCD reports power use and display status. Gigabit Ethernet provides a 10/100/1000Mbps wired network connection.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Choose this dock after checking the host’s display capabilities, not just the USB-C socket. It is useful when you want both desk connectivity and a visible status readout. Match the matrix to the laptop and check charging needs before ordering. Check your laptop and docking requirements
Buyer’s Guide
✓
Buy it if
Your verified USB-C host fits the matrix and you want HDMI, USB, LAN and a TFT status display.✕
Skip it if
You need confirmed 4K120 or two independent macOS external desktops through MST.→
Also consider
A dock selected specifically for your host and display workflow if these output conditions do not fit.Provide the exact laptop model, operating system, monitor resolutions and charger requirements.
Features - Icy Box - IB-DK2300-CH
Colour
grey
Interface
- USB3.2,
- USB Type-C,
- USB2.0,
- Ethernet
Port Speed
- 1 Gbps
More Details
Product Code
04:593152
EAN Code
4250078175537
Manufacturer
Icy Box
