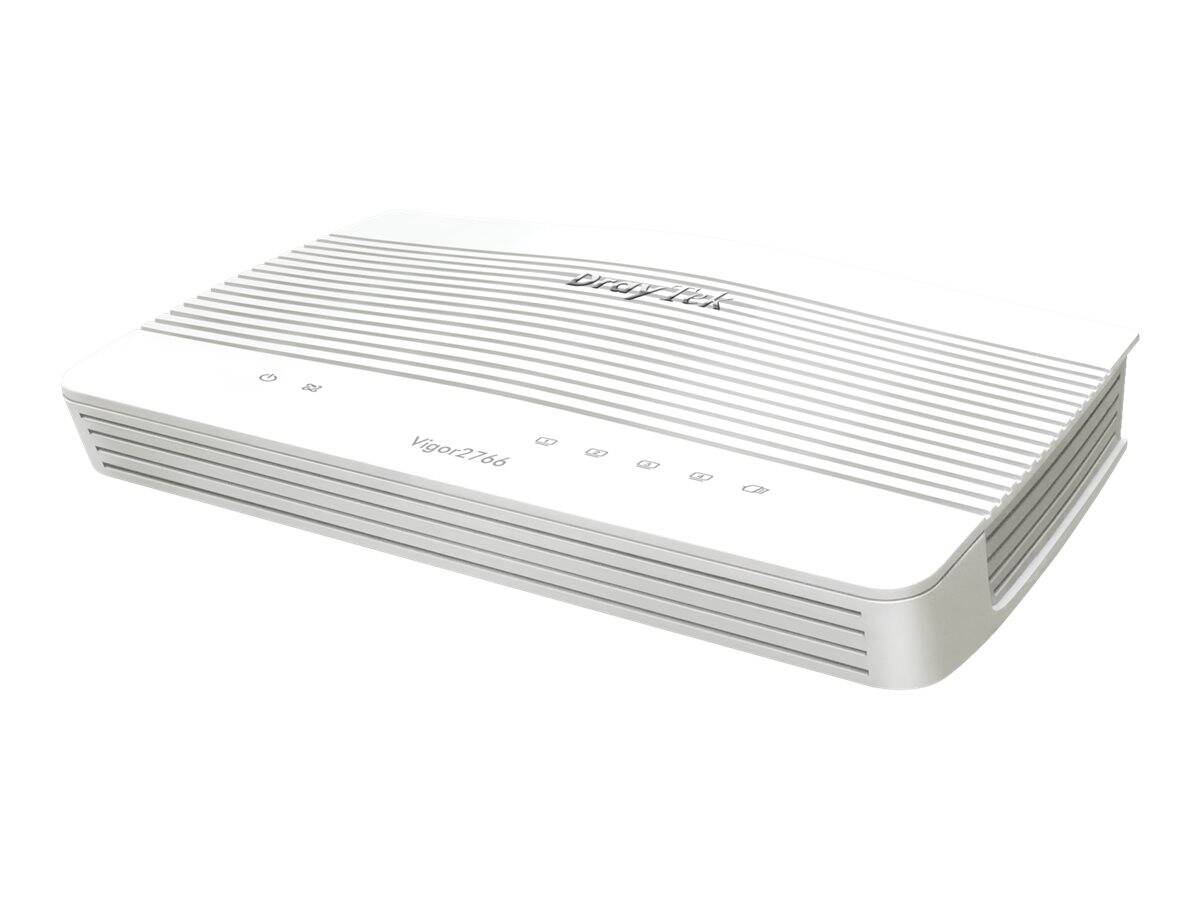

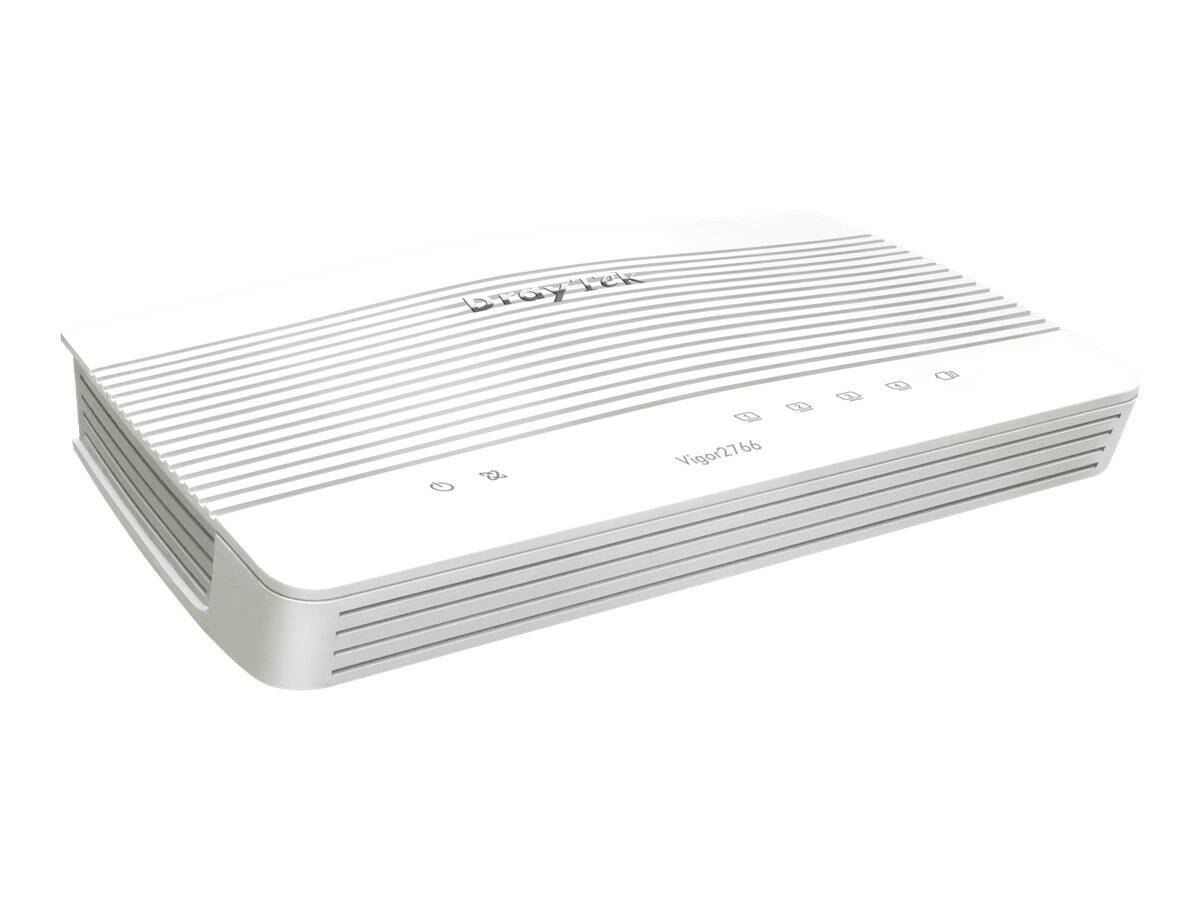

Draytek Vigor 2766 - Router - DSL modem - 4-port switch - GigE - WAN ports: 2 - wall-mountable | V2766-DE-AT-CH
Please sign in so that we can notify you about a reply
Product Features
- G.Fast, VDSL and Ethernet router
Connect the Vigor 2766 to Ultrafast G.Fast and Superfast VDSL2 FTTC with integrated DSL modem. Or connect to VirginMedia Cable and Ultrafast FTTP with Ethernet WAN. - Quality of service with App QoS
Prioritize essential services easily with DrayTek's App QoS system and Auto-VoIP prioritization. Customise QoS for your network with four QoS priority queues. - Packed with rich feature set
Configure DrayTek's rich feature set to fit your network with Route Policy, Quality of Service, VPN Matcher, DrayDDNS and more. - Powerful SoHo VPN router
Connect remote locations with 2 VPN tunnels for Remote Dial-In User Teleworker and Dial-Out LAN to LAN VPN. Up to 200Mbps IPsec performance, with SSL and OpenVPN support. - 4 Gigabit LAN Ports with VLANs
Attach Computers, Servers and Network Attached Storage. Use VLANs to provide a fully separated Guest network, with up to 4 LAN subnets. - VigorACS central management
Use the VigorACS central management platform to manage, monitor and configure the Vigor 2766 series routers remotely across multiple locations.
Special Fetures
- High speed DSL & Gigabit CPE with flexible application
- Get the best quality and overall performance from your Internet connection
- Convenient and powerful DrayTek router features for hassle-free networking
- Securely access resources remotely: connect to VPN services for secure browsing
- Improve quality of service for private and guest data traffic
- Save time and money: easily provision, monitor and manage remote sites without on-site IT or dedicated staff
Product Specification
| Device Type | Router - 4-port switch (integrated) |
| Enclosure Type | Desktop, wall-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | NAT throughput (with G.fast): 1.3 Gbps ¦ NAT throughput (with VDSL2 35b): 300 Mbps ¦ NAT throughput (with VDSL2): 100 Mbps ¦ NAT throughput without hardware acceleration: 700 Mpps ¦ NAT throughput with hardware acceleration: 950 Mbps ¦ VPN throughput (SSL): 80 Mbps ¦ VPN throughput (256-bit AES IPSec): 200 Mbps |
| Capacity | Concurrent VPN tunnels: 2 ¦ NAT sessions: 50000 ¦ VLANs supported: 8 |
| Network / Transport Protocol | PPTP, L2TP, IPSec, PPPoE, PPPoA, FTP, DHCP, Bonjour, DDNS, DHCPv6, RTSP, IPv4, IPv6 |
| Routing Protocol | MPOA, static IPv4 routing, static IPv6 routing, policy-based routing (PBR) |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, TR-069 |
| Encryption Algorithm | DES, Triple DES, MPPE, SSL, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2, 256-bit SHA, IKEv1 |
| Authentication Method | X.509 certificates, XAUTH authentication |
| Features | Firewall protection, ARP support, IGMP snooping, Syslog support, DoS attack prevention, content filtering, ALG support, port mirroring, E-mail alert, URL filtering, firmware upgradable, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), WAN failover, DHCP server, SMS alert, bandwidth control, port triggering, Stateful Packet Inspection Firewall (SPIF), anti-spoofing protection, IP-MAC binding, tagged VLAN, Type of Service (ToS), DiffServ Code Point (DSCP) support, Inter-VLAN Routing, G.INP, DMZ support, port-based VLAN, flow monitoring, multiple PVC support, DynDNS, DNSSEC support, DHCP over IPSec, OpenVPN client, Brute Force Protection |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, ANSI T1.413i2 |
| Communications | |
| Type | DSL modem |
| Digital Signaling Protocol | ADSL, VDSL, ADSL2, ADSL2+, VDSL2, G.fast |
| Protocols & Specifications | ITU G.997.1, ITU G.992.1 (G.DMT) Annex A, ITU G.993.1, ITU G.992.2 (G.Lite) Annex A, ITU G.992.3 (G.DMT.bis) Annex A, ITU G.992.5 (G.DMT.plus) Annex A, ITU G.993.2 Annex A |
| Max Transfer Rate | 300 Mbps |
| IP Telephony | |
| VoIP Protocols | H.323, SIP |
| Expansion / Connectivity | |

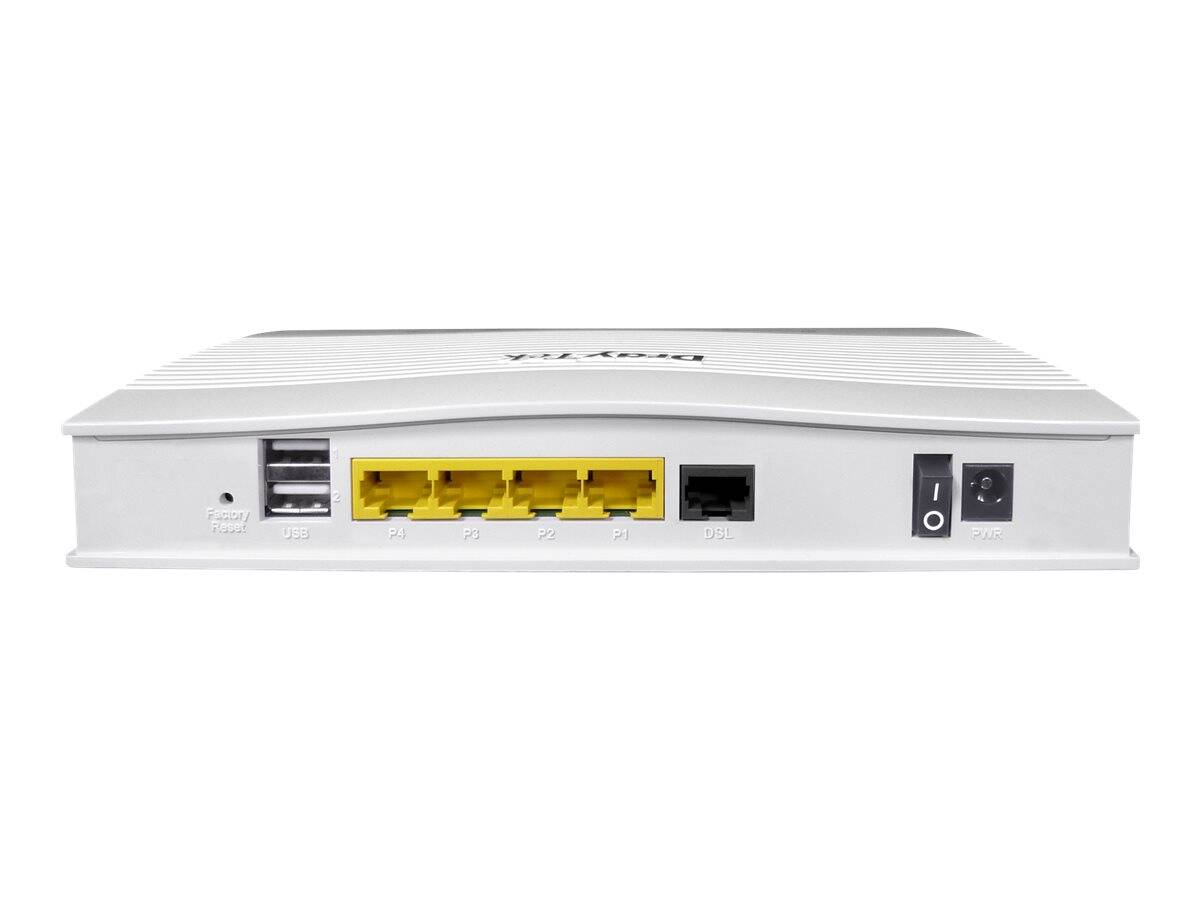

| Interfaces | LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN: 1 x VDSL2 / ADSL2+ - RJ-11 ¦ WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 2.0: 2 x 4 pin USB Type A |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 200-240 V |
| Miscellaneous | |
| Included Accessories | Wall mounting kit |
| Cables Included | 1 x network cable - 2 m |
| Dimensions & Weight | |
| Width | 20.7 cm |
| Depth | 13.1 cm |
| Height | 3.9 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Draytek - V2766-DE-AT-CH
More Details
Product Code
04:383285
EAN Code
4710484744074
Manufacturer
Draytek
