DrayTek Vigor 2865-B Annex B VDSL2 Gigabit VPN Router

Brand:
Draytek

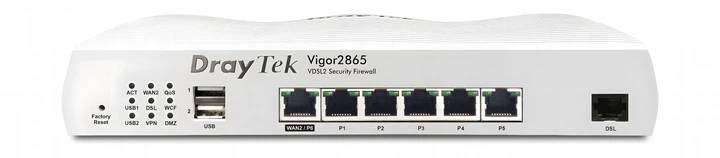

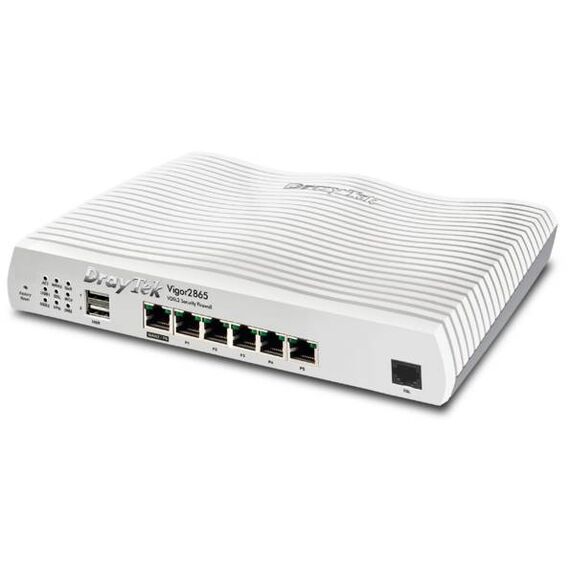

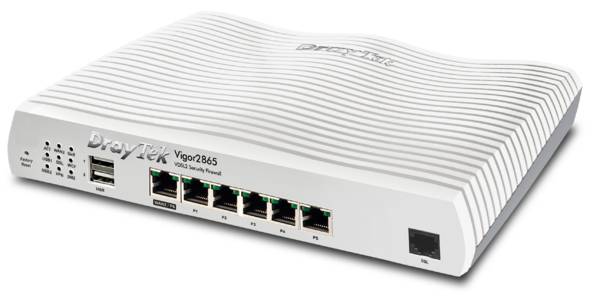

White DrayTek Vigor 2865 wired Annex B router with five Gigabit LAN ports and configurable WAN2/P6
DrayTek Vigor 2865-B Annex B VDSL2 Gigabit VPN Router
€332.39 inc. VAT
Buy
V2865-B-DE-AT-CH
€279.32 €310.36
€332.39 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
04:328748
EAN Code
4712909129671
Manufacturer
Draytek
Quick Specs
WAN
Annex B DSL + Ethernet
Ethernet
6× Gigabit total
VPN
Up to 32 tunnels
Model
Non-Wi-Fi DE/AT/CH
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Annex B DSL and dual-WAN routing for small offices

VDSL2 profile 35b / ADSL2+6× Gigabit Ethernet totalUp to 32 VPN tunnelsNon-Wi-Fi / DE/AT/CH

The DrayTek Vigor 2865-B is a wired security router with an integrated Annex B DSL modem and configurable Ethernet WAN. Five fixed Gigabit LAN ports and a sixth Gigabit WAN2/P6 port support a flexible office layout. VPN, VLAN, routing and firewall controls provide options for suitable business networks, without built-in Wi-Fi or mobile broadband.

Best For: Small offices and wired networks needing compatible Annex B DSL, Ethernet WAN load balancing/failover and remote-access VPN.
Before you order: This is the DE/AT/CH Annex B SKU V2865-B-DE-AT-CH. Check the ISP line technology, Annex/profile, firmware, credentials, DSL cable and power plug before ordering for Cyprus. The Annex B DSL socket is physically RJ45 but is not an Ethernet LAN port. WAN2/P6 changes between Ethernet WAN and LAN. Wi-Fi, LTE and analogue phone functions belong to other variants.

What's in the Box

  • Vigor 2865 wired router, destination-specific power adapter and quick start guide.
  • Ethernet and appropriate Annex DSL cable are listed in the series wired guide; verify the exact regional lead and plug supplied.
  • USB cellular modem, SIM/service, external wireless access point and separately licensed services are not included by this listing.

What It Means in Practice

  • Connect the compatible Annex B DSL service to the DSL socket using the correct regional lead and configure ISP authentication.
  • Use WAN2/P6 for a separate Ethernet broadband connection or configure it as an additional Gigabit LAN port.
  • Set supported load-balancing or failover policies when using DSL and Ethernet WAN services; both require suitable live subscriptions.
  • Segment devices using supported 802.1Q VLANs and subnets, and apply appropriate firewall rules.
  • Configure supported VPN protocols for authorised users; USB modem, printer or storage functions require compatible external devices.

What Will Not Work

  • No built-in Wi-Fi, cellular modem, SIM slot, analogue FXS telephone ports or PoE is specified.
  • All Ethernet ports are Gigabit, not 2.5GbE. The separate DSL connector must not be counted as Ethernet.
  • Vigor 2865 is not the G.fast 2866 model. Regional Annex/ISP compatibility is not universal.
  • Web-category filtering and some central services require separate subscriptions or licences; inclusion is not promised.

Key Features


DSL plus Ethernet WAN
VDSL2 profile 35b/ADSL2+ and configurable Gigabit Ethernet WAN support suitable broadband and failover layouts.

Six Gigabit network ports
Five fixed LAN ports plus WAN2/P6 configured as LAN or WAN; separate DSL and two USB 2.0 ports.

VPN and network separation
Up to 32 simultaneous VPN tunnels, 16 VLANs and eight subnets support segmented business networks.

Managed office connectivity
SPI firewall, bandwidth controls, QoS and supported VigorAP/VigorSwitch management help administer the network.

Technical Specifications

Exact SKU / EANV2865-B-DE-AT-CH / 4712909129671
Model / regionVigor 2865-B, Annex B, DE/AT/CH; non-wireless
DSL interfaceAnnex B RJ45 modem connector; VDSL2 profile 35b / ADSL2+ subject to line and firmware
Fixed LAN5× RJ45 10/100/1000 Mbps
Configurable LAN/WAN1× Gigabit RJ45 WAN2/P6; six Ethernet ports total
USB2× USB 2.0
VPN capacityUp to 32 concurrent tunnels; up to 16 OpenVPN/SSL tunnels
VPN protocolsIPsec, IKEv2, OpenVPN, SSL and WireGuard subject to supported firmware
SegmentationUp to 16 VLANs / 8 subnets; 802.1Q and port-based VLAN
Routing / controlsIPv4/IPv6, routing policies, load balancing/failover, firewall and QoS
ManagementWeb interface, SSH, SNMP and supported central management
Dimensions241×166×46 mm, width × depth × height
Power inputDC 12 V / 2 A, external adapter
InstallationSheltered indoor use; follow +5–40°C safety guidance and ventilation requirements
ConditionNew

Frequently Asked Questions

Does it have six Ethernet ports?
Yes. Five are fixed LAN ports and WAN2/P6 is selectable as LAN or WAN. The separate Annex B DSL socket is not Ethernet.
Does this version include Wi-Fi or LTE?
No. This base wired model is distinct from ac, ax, Vac and LTE versions.
Is Annex B suitable for every DSL line?
No. Confirm the provider’s line technology, Annex/profile, firmware and required cable before ordering.
Does it support G.fast?
G.fast belongs to the separate 2866 range; it is not claimed for this Vigor 2865-B.
Are extra WAN or security services included?
Internet subscriptions, USB modem/SIM and paid filtering or management services are separate unless explicitly supplied.
Singular Expert Insight

Count Ethernet ports by function rather than socket shape: the Annex B DSL connection uses RJ45 but is electrically a DSL interface. Decide whether WAN2/P6 is needed for backup broadband or a sixth LAN device, then test failover and VPN policies with the actual provider services. Match regional firmware and line requirements before installation.

Buyer’s Guide

✓ Buy it if You need a wired Annex B DSL router with configurable Ethernet WAN, VPN and network segmentation.
✕ Skip it if You need built-in Wi-Fi, mobile broadband, G.fast or multi-gigabit Ethernet.
→ Also consider Annex and ISP compatibility, exact DSL lead and plug, WAN subscriptions, VPN firmware and separate service licences.
