Zebra DS3608-XR Corded Extended Range 1D/2D USB Scanner Kit with Shielded USB Cable, Industrial Green

Brand:
Zebra

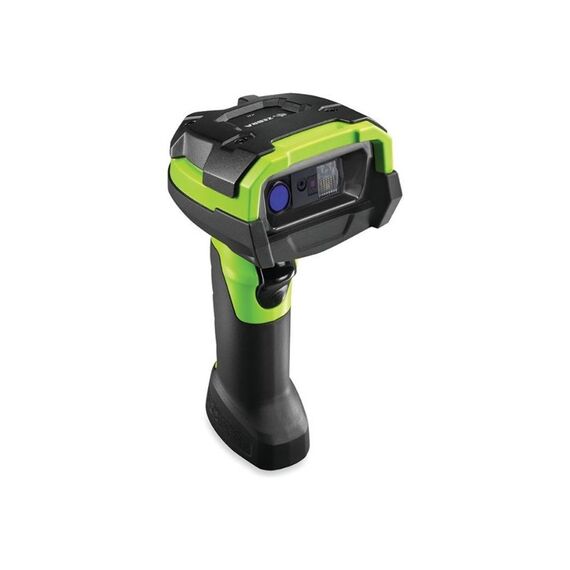

Zebra DS3608 XR Industrial Green Corded Extended Range 1D 2D Barcode Scanner USB Kit
Zebra DS3608-XR Corded Extended Range 1D/2D USB Scanner Kit with Shielded USB Cable, Industrial Green
€641.65 inc. VAT
Buy
DS3608-XR3U4602ZVW
€539.20
€641.65 inc. VAT
Ships from EU stock: 26 item(s)
+ −
Add to wish list Ask a question
Product Code
CL05106
EAN Code
4805388883636
Manufacturer
Zebra

Quick Specs

Capture
Extended Range 1D / 2D
Included cable
CBA-U46-S07ZAR USB
Imaging
Near + far sensors
Sealing
IP65 / IP68
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Corded near and far capture for 1D and 2D labels

1D / 2D Extended RangeUSB cable kitDual imagersIP65 / IP68

The industrial-green DS3608-XR3U4602ZVW combines a corded Extended Range 1D/2D scanner with a CBA-U46-S07ZAR shielded USB cable. Its near and far imagers capture supported codes on labels and screens, including suitably large warehouse labels at long distances. Connect the kit to a compatible USB host and receiving application; the application handles stock or production records. There is no Bluetooth radio or battery in this DS3608 corded model.

Before you order:
A 32 m reading limit applies to the specified large Code 39 symbol and test conditions, not every barcode. USB is the supplied host arrangement; other interfaces and industrial Ethernet need appropriate separate cables/accessories.

What's in the Box

  • 1 × DS3608-XR corded scanner, Industrial Green, with vibration.
  • CBA-U46-S07ZAR shielded USB cable. Host and receiving application are separate.

What It Means in Practice

  • Connect the supplied shielded USB cable to the compatible host and scanner; configure the required USB input mode and test the power arrangement.
  • For example, read a nearby QR label and a suitably large distant rack barcode without changing scanners. The host application associates each decoded code with the required record.
  • Test your actual code density, contrast and ambient light at the required distance. Cable reach still limits where the operator can stand.

What Will Not Work

  • No cordless Bluetooth movement or standalone inventory software. Cable reach limits operator movement even when optics read distant labels.
  • A large-symbol maximum is not the range for small QR or dense labels. Verify the symbol-specific table and actual conditions.

Key Features


Dual near and far imaging
Near 1280 × 800 and far 1920 × 1080 imagers with IntelliFocus support the listed 1D/2D ranges.

Corded host integration
USB, RS-232 and keyboard wedge are available through the corresponding cable.

Industrial protection
Current Zebra specifications provide IP65/IP68 sealing, 3 m room-temperature drops and 7,500 tumbles.

Operator feedback and management
Vibration, beeper, LEDs and Direct Decode Indicator support confirmation; Zebra tools configure and manage the scanner.

Technical Specifications

EXACT CONFIGURATION
MPN DS3608-XR3U4602ZVW
EAN 4805388883636
Package 1 × DS3608-XR corded scanner; CBA-U46-S07ZAR shielded USB cable
Colour Industrial Green / Black
Host interfaces USB; RS-232; keyboard wedge, using the appropriate cable
Industrial network option Network Connect accessories support EtherNet/IP, PROFINET, Modbus TCP and standard TCP/IP; no built-in Ethernet socket
OPTICS AND DECODING
Near sensor 1280 × 800 pixels
Far sensor 1920 × 1080 pixels
Near field of view 42.1° H × 27° V
Far field of view 14° H × 7.9° V
Aimer 520 nm green laser
Illumination 2 × warm-white LEDs, 2700 K
Minimum contrast 25% reflective difference
Skew / pitch / roll ±60° / ±60° / ±360°
Image capture Basic
1D symbologies Code 39 / 128 / 93; Codabar/NW7; Code 11; MSI Plessey; UPC/EAN; Interleaved 2 of 5; Korean 3 of 5; GS1 DataBar; Base 32 (Italian Pharma)
2D symbologies PDF417; MicroPDF417; Composite; TLC-39; Aztec; Data Matrix; MaxiCode; QR; MicroQR; Han Xin; Postal Codes
Additional decoding Digimarc; IUID field parsing, application-dependent
TYPICAL DECODE RANGES
UPC-A, 13 mil 3.3 cm–3.7 m
Code 128, 10 mil 5.6 cm–2.6 m
Code 128, 15 mil 5.3 cm–4.1 m
Code 128, 40 mil Far 10.5 m; near depends on barcode width
Code 128, 100 mil Far 26.7 m; near depends on barcode width
Code 39, 5 mil 3.3 cm–1.4 m
Code 39, 7.5 mil 3.3 cm–2.2 m
Code 39, 20 mil 5.1 cm–5.5 m
Code 39, 40 mil Far 12.5 m; near depends on barcode width
Code 39, 55 mil reflective Far 18.6 m; near depends on barcode width
Code 39, 100 mil Far 32 m; near depends on barcode width
Data Matrix, 10 mil 3.3 cm–1.7 m
Data Matrix, 100 mil Far 15.9 m; near depends on barcode width
Data Matrix, 200 mil Far 30.5 m; near depends on barcode width
QR, 10 mil 3.3 cm–1.4 m
Range conditions Typical; printing resolution, contrast, ambient light and barcode width dependent
POWER AND PHYSICAL
Host-powered voltage 4.5–5.5 VDC
External supply voltage 11.4–12.6 VDC
Operating current Near 360 mA / far 450 mA RMS typical
Standby current 100 mA RMS typical
Dimensions 18.5 × 7.6 × 13.2 cm (H × W × D)
Weight 308 g
Feedback Direct Decode Indicator; LEDs; beeper; vibration
ENVIRONMENT AND SUPPORT
Operating temperature −30–50 °C
Storage temperature −40–70 °C
Humidity 5–95% RH, non-condensing
Sealing IP65 / IP68
Drop resistance Multiple 3 m drops onto concrete at room temperature; 2.4 m across −30–50 °C
Tumble test 7,500 tumbles from 1 m
ESD ±25 kV air; ±10 kV direct / indirect
Ambient light 0–107,639 lux
Freezer transitions Heated holder accessory recommended to reduce condensation on scan window
Management and processing 123Scan; Scanner SDK; SMS; Remote Diagnostics; IoT Connector; Label Parse+; MDF up to 20 barcodes, configuration required
Manufacturer warranty 36 months from shipment, subject to Zebra terms

Frequently Asked Questions

What does the USB kit include?
One DS3608-XR corded scanner and a CBA-U46-S07ZAR shielded USB cable. Host and receiving application are separate.
Does it read QR and Data Matrix?
Yes. It supports the listed 1D/2D codes. Distances vary with symbol size and conditions.
Is it wireless?
No. DS3608-XR is corded; DS3678-XR is the cordless family member.
Singular Expert Insight
Choose this USB kit for industrial near/far 1D/2D capture. Test your real QR, carton and rack labels, and check that cable reach suits the workstation. Compare scanners: Barcode scanners at Singular

Buyer’s Guide

✓

Buy it if

 you need rugged corded 1D/2D near/far capture with a USB cable included.
✕

Skip it if

 you need cordless freedom or a standalone mobile computer.
→

Also consider

 a verified cordless XR configuration if moving beyond cable reach is essential.
Confirm host interface, power, label distances and accessories with Singular.
