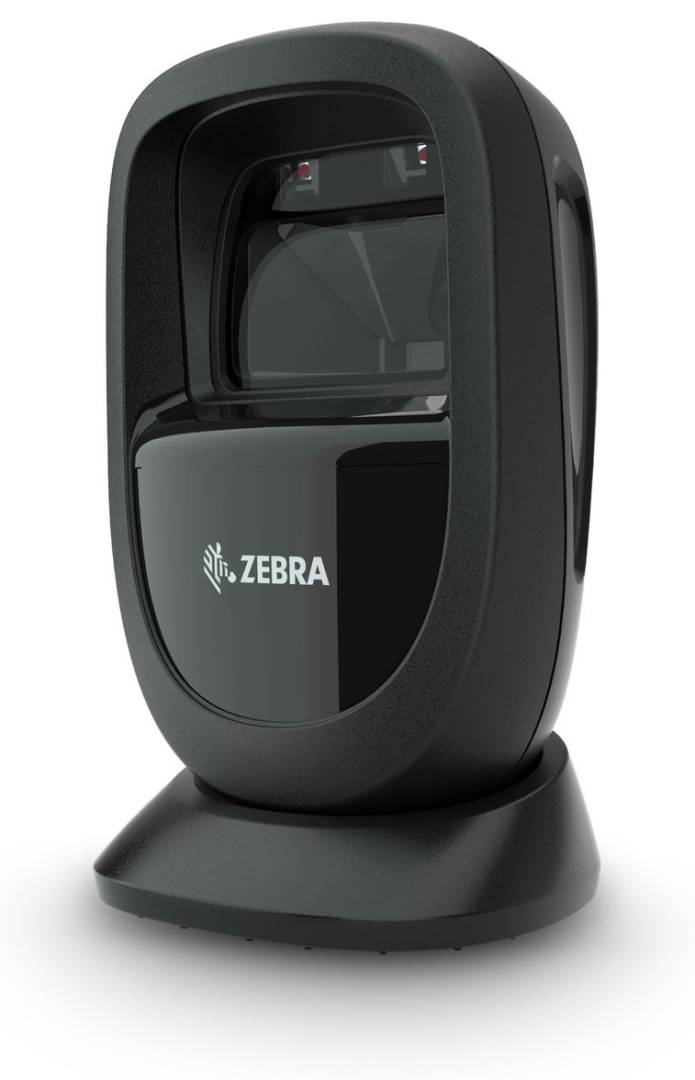

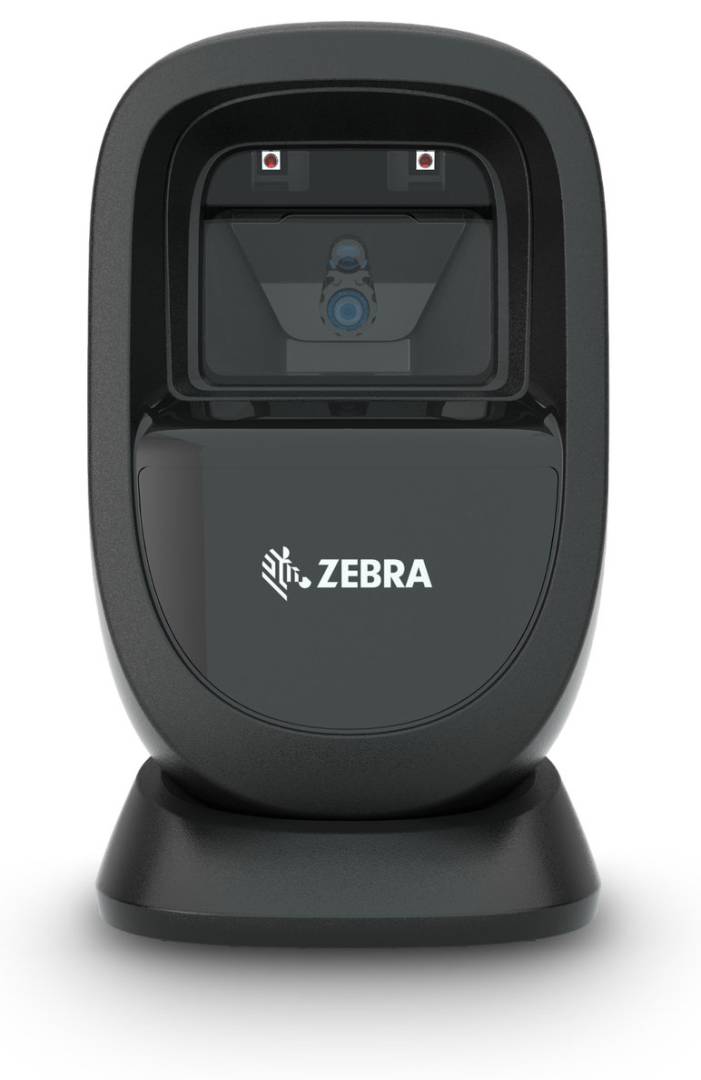

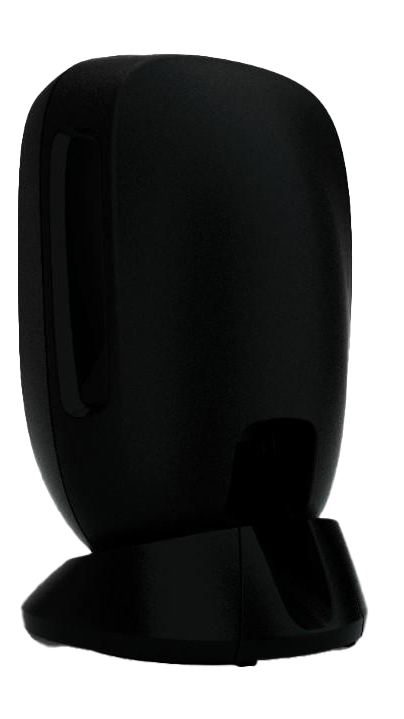

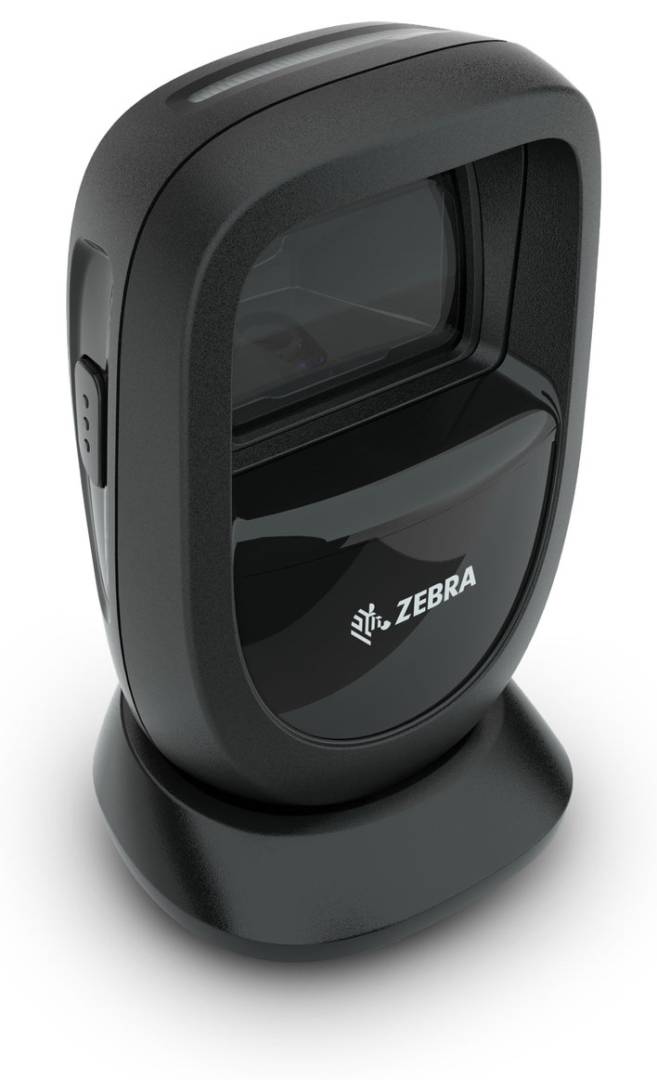

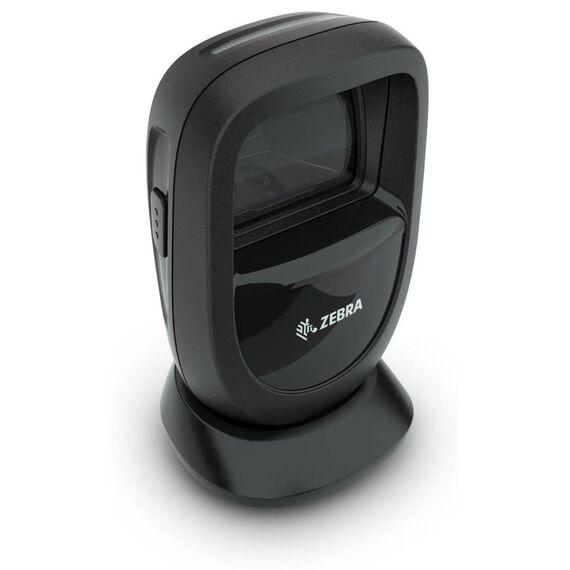

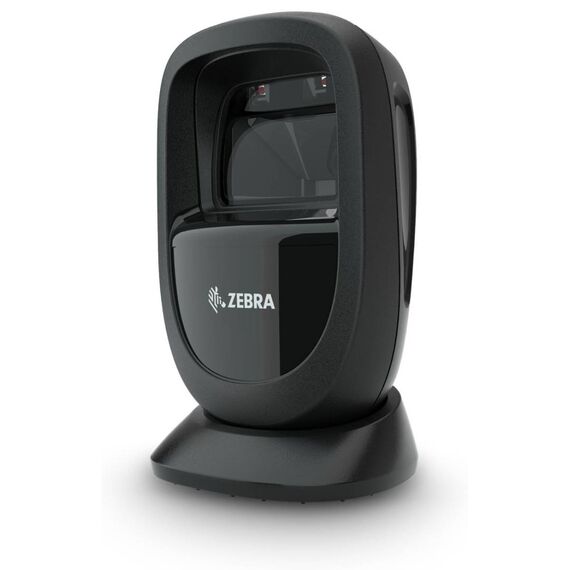

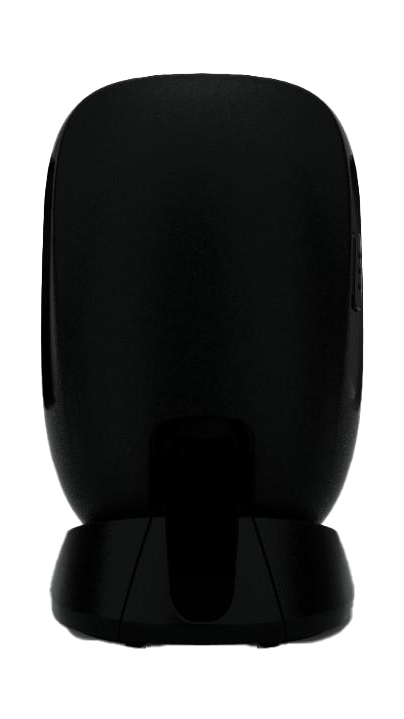

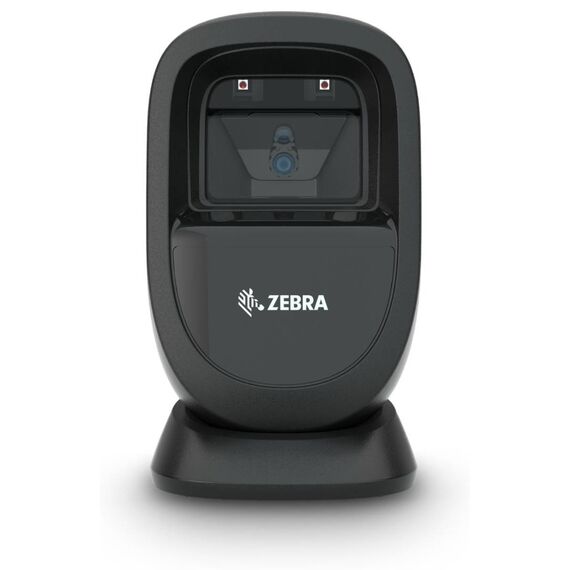

Zebra DS9308-SR 1D/2D Presentation Scanner USB Kit, Shielded Cable, Midnight Black

Brand:
Zebra
Zebra DS9308 Midnight Black Standard Range Presentation Scanner USB Kit
Zebra DS9308-SR 1D/2D Presentation Scanner USB Kit, Shielded Cable, Midnight Black
€315.46 inc. VAT
Buy
DS9308-SR4U2100AZW
€265.09
€315.46 inc. VAT
Ships from EU stock: 17 item(s)
+ −
Add to wish list Ask a question
Product Code
V36D068
EAN Code
5704174215257
Manufacturer
Zebra

Quick Specs

Variant
Standard Range · Midnight Black
Reading
1D / 2D · labels and screens
Counter use
Tilting presentation base
Package
Scanner + shielded USB cable
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Hands-free counter scanning with the USB cable supplied

1D / 2DStandard RangeMidnight BlackUSB cable included

This Midnight Black DS9308-SR USB kit combines the presentation scanner, integral tilting base and CBA-U21-S07ZBR shielded USB cable. Connect it to the compatible USB host and configure the receiving POS or ticket application. Present a printed label or phone-screen barcode to the scan window; the application performs its own lookup or validation. Unlike the scanner-only black SKU, the USB host cable is included.

Before you order:
DS9308-SR4U2100AZW is the black USB kit: DS9308-SR00004ZZWW plus shielded CBA-U21-S07ZBR. Other supported interfaces require their own suitable cables. Optional multi-mount/locking brackets are separate. Digimarc is not promised without verifying the specific enabled model.

What's in the Box

  • DS9308-SR00004ZZWW Midnight Black scanner with integral tilting base
  • CBA-U21-S07ZBR shielded USB host cable

What Will Not Work

  • No wireless Bluetooth connection; this is a wired USB kit.
  • No POS database or ticket-validation service is included.

Key Features


Aim the window at your workflow
Adjust the ratcheting base for the counter position. Presentation scanning supports hands-free use; the optional mounting brackets serve installations that need additional restraint.

Useful range rather than a universal distance
Typical UPC 13 mil range is 0–22.4 cm and QR 20 mil is 0–19.1 cm. Barcode size, contrast and lighting affect the usable distance.

Printed labels and screens
The 1280 × 800 imager reads 1D/2D codes, including DotCode and Dotted DataMatrix. Configure decoding and data formatting for the receiving application.

Technical Specifications

Identity & setup
MPN DS9308-SR4U2100AZW
EAN 5704174215257
Colour / engine Midnight Black / Standard Range
Package DS9308-SR00004ZZWW scanner with integral base; CBA-U21-S07ZBR shielded USB cable
Host interfaces USB2.0 Full Speed, RS232, Keyboard Wedge, TGCS(IBM)46XX over RS485
Keyboard / management Over 90 international keyboards; 123Scan, Scanner SDK, SMS, WMI
Mounting options Integral ratcheting base; optional multi-mount / locking-mount brackets
Dimensions H × W × D 14.5 × 8.6 × 8.3 cm
Weight 318 g
Imaging & decoding
Sensor 1280 × 800 pixels
Presentation swipe speed Up to 305 cm/s for 13 mil UPC in optimized mode
Aimer / illumination Circular amber LED 617 nm / Hyper Red LED660 nm
Field of view 52° H × 33° V nominal
Minimum contrast 15%
Skew / pitch / roll ±60° / ±60° / 360°
Feedback Good-decode and rear LEDs; adjustable beeper tone/volume
1D codes Code39, Code128, Code93, Codabar/NW7, Code11, MSI Plessey, UPC/EAN, I2of5, Korean3of5, GS1 DataBar, Base32 Italian Pharma
2D codes PDF417, MicroPDF417, Composite, TLC39, Aztec, Data Matrix, MaxiCode, QR, Micro QR, Han Xin, Postal, securPharm, DotCode, Dotted DataMatrix
OCR / Digimarc OCR-A, OCR-B, MICR, US Currency configuration dependent; Digimarc on specific models only
Minimum element Code39 / Code128 3 mil; Data Matrix / QR 5 mil
Image output BMP, JPEG, TIFF; 109 PPI on A6 4.1 × 5.8 inch document
Typical reading ranges
Range conditions Depend on print resolution, contrast, barcode width and ambient light
Code39 3 mil 0–6.35 cm
Code39 5 mil 0–12.7 cm
Code39 20 mil 0–27.9 cm
Code128 3 mil 0–5.1 cm
Code128 5 mil 0–10.2 cm
PDF417 6.7 mil 0–10.2 cm
UPC 13 mil (100%) 0–22.4 cm
Data Matrix 10 mil 0–11.4 cm
QR 20 mil 0–19.1 cm
Power & durability
Input 4.5–5.5 V DC, host or external supply
Operating current at 5 V Presentation335 mA / Trigger350 mA
Idle current at 5 V Presentation135 mA / Trigger75 mA
Protection IP52
Drops / tumbles Multiple 1.5 m drops to concrete; 1,000 tumbles at 0.5 m
Operating / storage 0–50 °C / −40–70 °C
Humidity 5–95% RH, non-condensing
ESD ±15 kV air / ±8 kV indirect
Ambient light 0–107,700 lux
EAS support Compatible with Checkpoint deactivation system; system integration required
Compliance RoHS, REACH, EN50581, IEC63000; IEC/EN62368-1, UL/IEC/CAN/CSA60950-1; IEC/EN62471; FCC15B, ICES003, EN55032/55024/55035, VCCI, SABS
Manufacturer term 3 years from shipment; Zebra hardware warranty terms apply

Frequently Asked Questions

What is added over the scanner-only SKU?
The CBA-U21-S07ZBR shielded USB cable. The black SR scanner and its integral base are the same documented configuration.
Is an additional stand required for counter use?
The scanner has its own tilting base. Multi-mount and locking brackets are optional for installations needing additional restraint.
Does every DS9308 read Digimarc?
The current manufacturer sheet limits Digimarc to specific models. Confirm the required licensed/configured variant before ordering for that workflow.
Singular Expert Insight
Choose this kit for a new USB counter position because the documented host cable is already included. Choose scanner-only when replacing a unit while retaining a verified compatible cable. Neither choice changes the SR optics; the practical difference is installation completeness. Compare scanner-only and USB kits

Buyer’s Guide

✓

Buy it if

 You need a black USB counter reader with the host cable supplied.
✕

Skip it if

 You need cordless operation or a non-USB cable included.
→

Also consider

 The scanner-only black SR when reusing a compatible cable, or white SR when the counter finish matters.
Confirm host port, cable, application data format and actual barcode samples before installation.

Features - Zebra - DS9308-SR4U2100AZW

Colour
black
Interface
  • USB2.0
More Details
Product Code
V36D068
EAN Code
5704174215257
Manufacturer
Zebra
