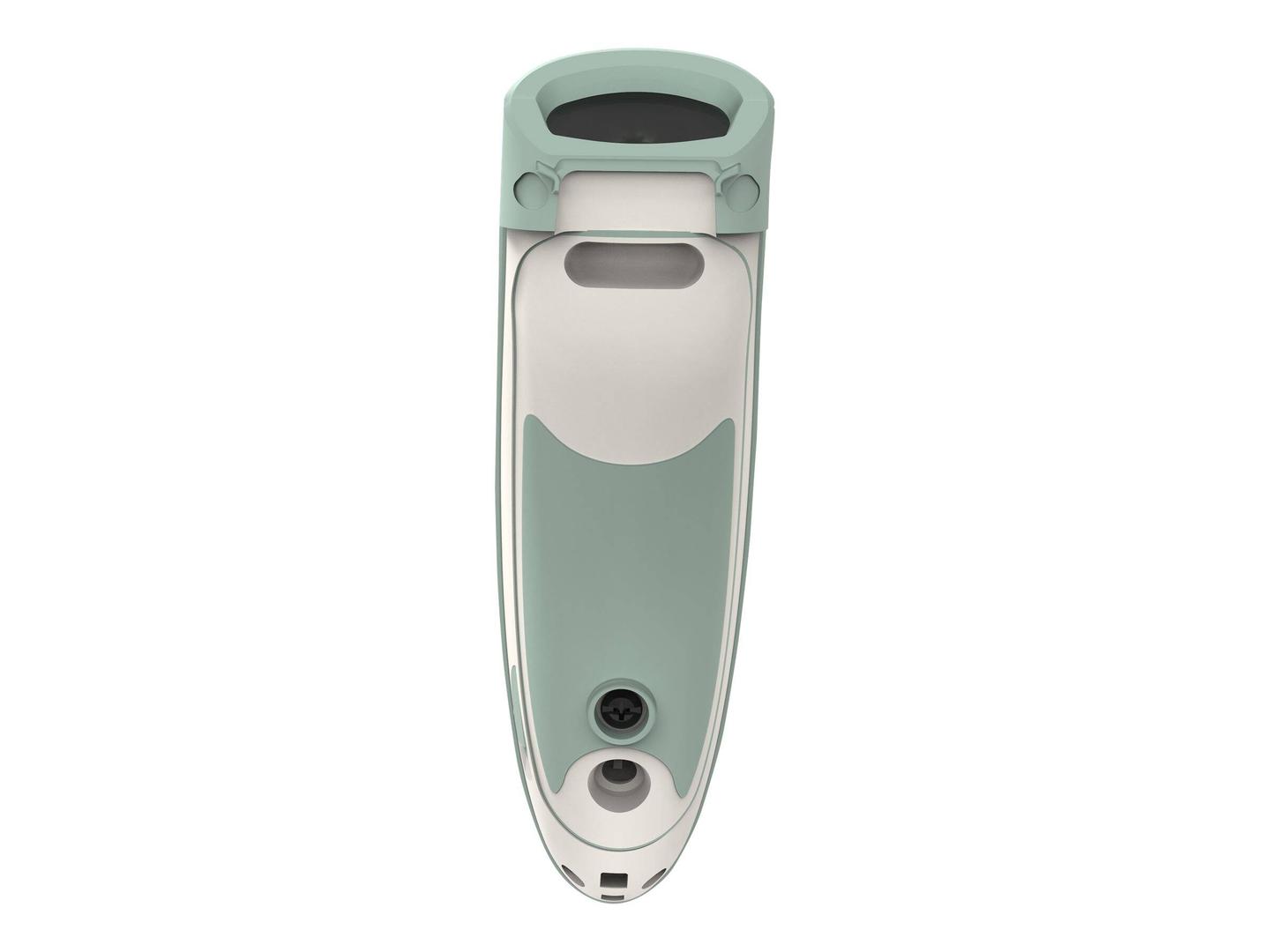

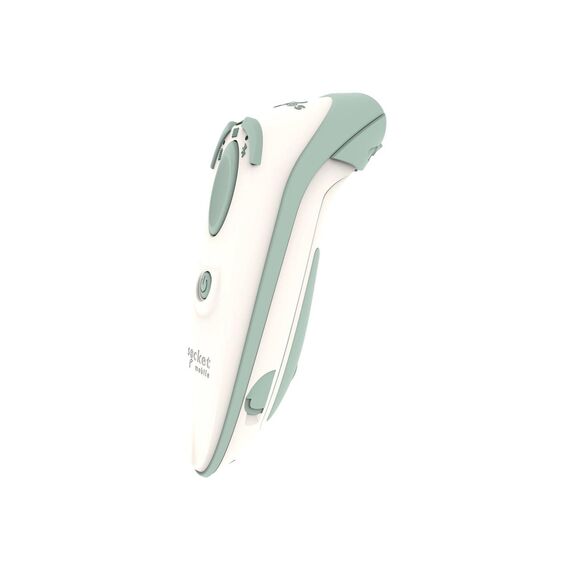

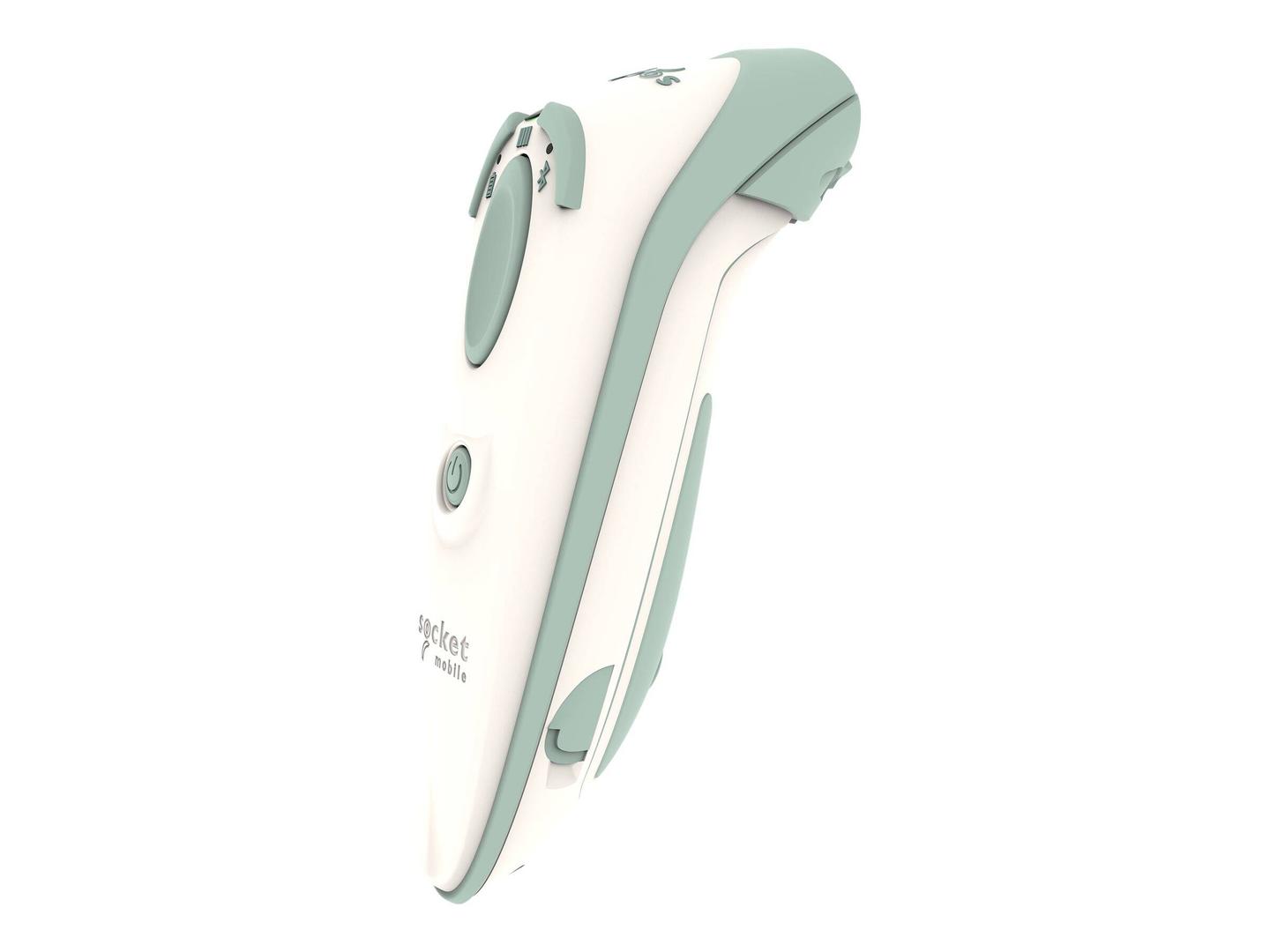

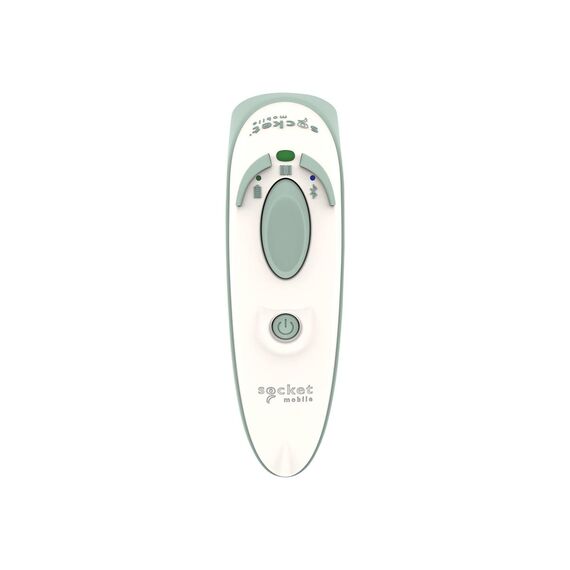

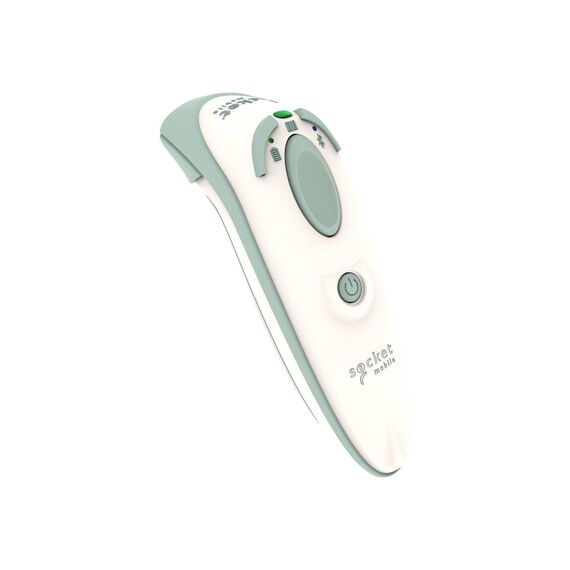

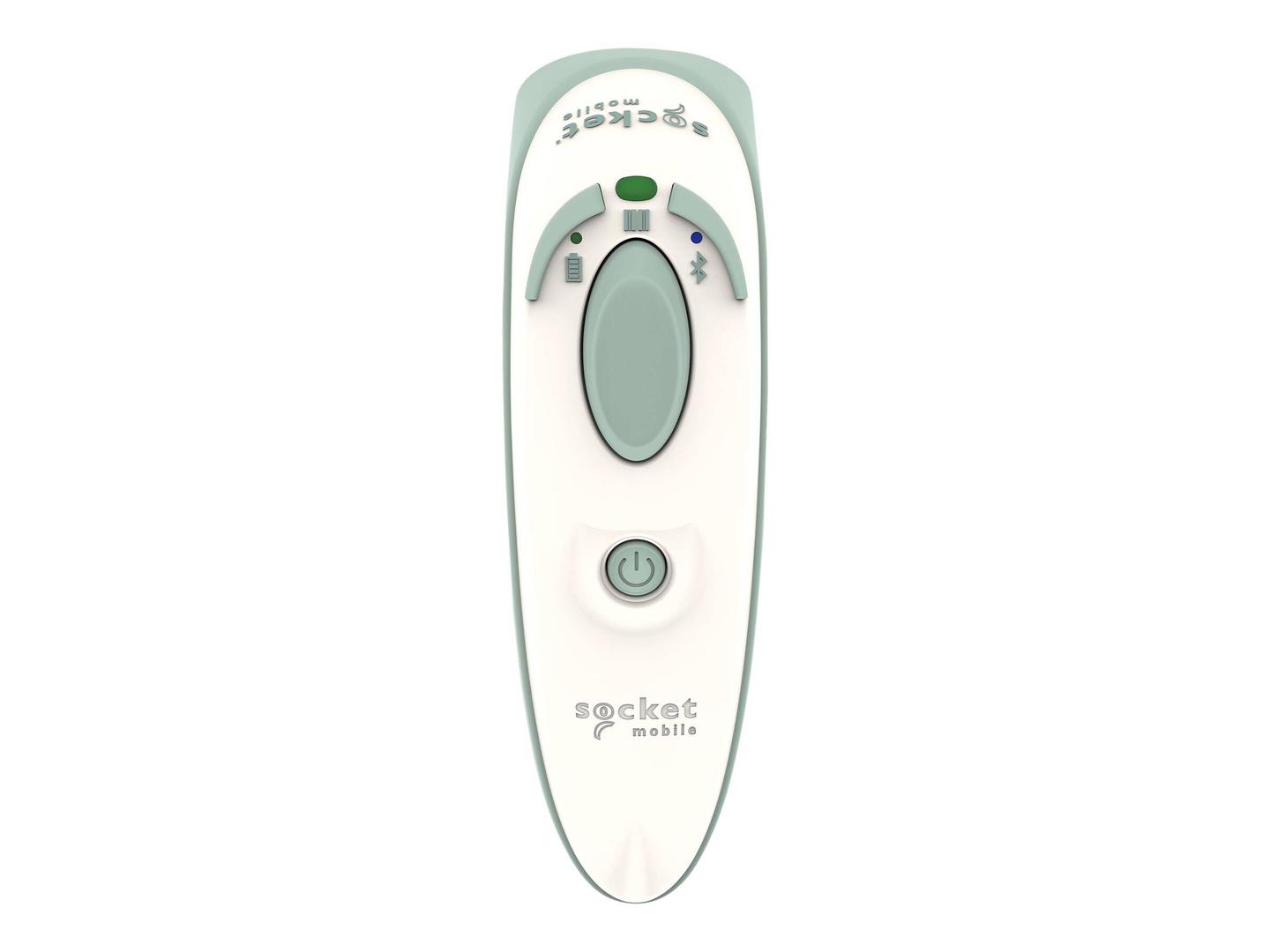

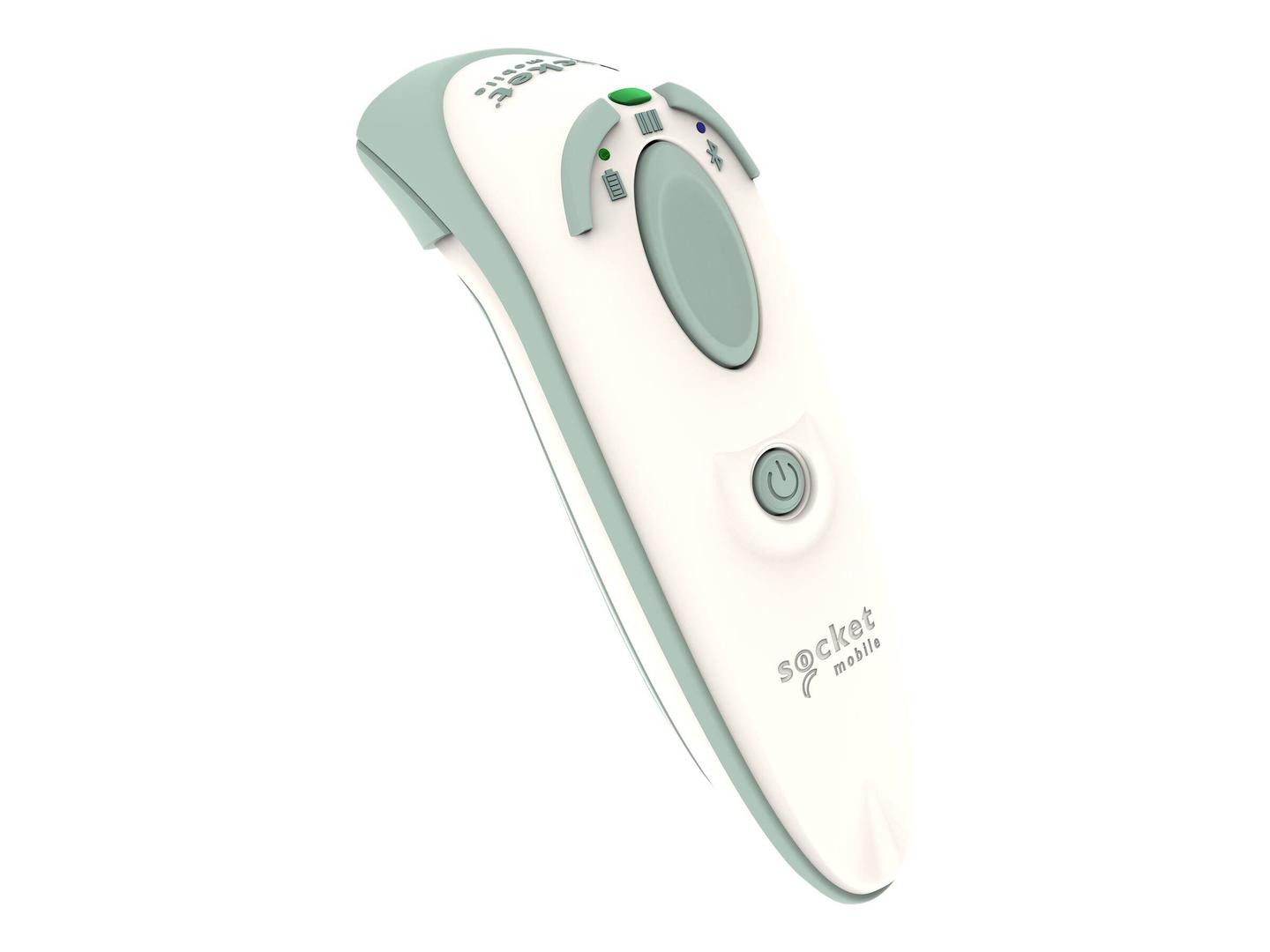

Socket Mobile DuraScan D745 Healthcare 1D/2D Bluetooth Scanner with USB Charging Cable, White/Pale Green

Brand:
SOCKET MOBILE
Socket Mobile DuraScan D745 White Pale Green Healthcare Bluetooth Barcode Scanner Cable Only
Socket Mobile DuraScan D745 Healthcare 1D/2D Bluetooth Scanner with USB Charging Cable, White/Pale Green
€645.4 inc. VAT
Buy
CX3859-2890
€542.35
€645.40 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
Product Code
CG84716
EAN Code
0758497120069
Manufacturer
SOCKET MOBILE
Features
Bluetooth, Wireless

Quick Specs

Capture
1D/2D, QR, Data Matrix
Connection
Bluetooth 2.1 + EDR
Housing
Healthcare; IP54
Package
Charging cable; no cradle
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Healthcare scanning with a charging cable

1D / 2D / OCRBluetoothIP54Cable only

The white/pale-green DuraScan D745 reads supported linear and 2D barcodes and sends the decoded data by Bluetooth to a compatible iOS, Android or Windows device. CX3859-2890 is the Cable Only configuration: one scanner with battery, wrist strap, USB-A charging cable and starter guide. A charging cradle is sold separately. The receiving application performs the record lookup or entry.

Before you order:
The supplied USB cable charges the scanner; it is not a wired barcode-data connection. OCR needs the appropriate configuration and application integration. Scanning a code does not authenticate a document or make a clinical decision.

What's in the Box

  • 1 × D745 scanner with battery; wrist strap; barrel-jack to USB-A charging cable; Get Started Guide.
  • Charging cradle, host device and application are separate.

What It Means in Practice

  • Charge the scanner, pair it with the compatible host and select the required HID or application mode.
  • For example, scan an item label into the focused field of a compatible stock application. The application identifies or records the item.
  • Follow Socket’s cleaning instructions and verify the disinfectant and contact time before use. Test actual label sizes and app integration.

What Will Not Work

  • No standalone records system, native Wi-Fi or USB barcode-data operation.
  • IP54 does not mean immersion-proof or sterilizable. Battery figures and reading ranges depend on the stated conditions.

Key Features


Healthcare housing
Medical-grade housing supports cleaning with compatible disinfectants, following manufacturer instructions.

1D, 2D and OCR
A 1280 × 960 imager supports listed barcode formats; OCR requires configuration and application support.

Bluetooth host modes
Use HID keyboard input or integrate an application through the supported SDK and host mode.

Replaceable battery
The included 1400 mAh battery can be replaced; charging takes approximately six hours.

Technical Specifications

CONFIGURATION
MPN CX3859-2890
EAN 0758497120069
Configuration D745 Cable Only; White / Pale Green
Included 1 scanner with battery; wrist strap; barrel-jack to USB-A charging cable; Get Started Guide
Separate Charging cradle; host device and application
CAPTURE
Sensor 1280 × 960 pixels
Field of view 44.5° horizontal × 33.5° vertical
Print contrast 20–25%
1D symbologies Bookland EAN; Codabar; Code 128 / 39 / 93; EAN/JAN-13 / 8; GS1-128; GS1 DataBar Expanded / Limited / Omnidirectional; Interleaved 2 of 5; ISBT 128; Trioptic; UPC-A / UPC-E
Additional 1D Code 11; Matrix 2 of 5; MSI
2D symbologies Aztec; Composite; Data Matrix / GS1 Data Matrix; QR / GS1 QR; Han Xin; MaxiCode; MicroPDF417; MicroQR; PDF417
Postal codes Australia Post; Japan Post; Mailmark; Netherlands KIX; UK Postal; US Planet / Postnet; USPS 4CB / Intelligent Mail
OCR MICR E13B; OCR-A; OCR-B — enable and integrate with receiving application
TYPICAL READING RANGES
Code 39, 5 mil 6.1–24.1 cm
Code 128, 5 mil 7.1–22.9 cm
PDF417, 6.67 mil 6.1–20.3 cm
Data Matrix, 10 mil 7.4–21.6 cm
UPC-A, 100% 4.6–49.5 cm
QR, 15 mil 3–29.2 cm
QR, 20 mil 3–35.6 cm
Range conditions Typical; depends on symbol size, symbology and media
WIRELESS AND SOFTWARE
Bluetooth Class 2; Bluetooth 2.1 + EDR; 56-bit encryption
Wireless range Up to 10 m; depends on host and environment
Host modes Basic HID keyboard; Application SPP; iOS Application (MFi)
Platforms iOS; Android; Windows 11
Application integration CaptureSDK 2.0.29 or later; application-specific integration required
USB cable Charging only; scanned data is transferred by Bluetooth
BATTERY AND CONSTRUCTION
Battery Replaceable Li-ion polymer; 1400 mAh; 3.7 V; included
Charging time Approximately 6 hours
Battery life 500 charge cycles; standby over 20 hours
Active-use examples 85,000 scans / 9 h at 2 scans/s; 7,000 scans / 19 h at 1 scan per 4 s
Dimensions 5.2 × 1.5 × 1.7 in (L × W × D)
Housing Medical-grade, disinfectant-compatible housing
Ingress rating IP54
Tumble test 2,500 cycles from 1 m onto metal plate; IEC 60068
Trigger durability 5 million actuations
Operating temperature 0–45 °C
Storage temperature −40–70 °C
Charging caution Charging above 40 °C may cause charging issues
Humidity test condition 95% at 60 °C, non-condensing
Ambient light 0–100,000 lux
Manufacturer warranty 1 year, subject to manufacturer terms

Frequently Asked Questions

Is a charging cradle included?
No. CX3859-2890 is Cable Only. A USB-A charging cable, battery, wrist strap and starter guide are included.
Does USB carry scanned data?
No. The cable charges the scanner; barcode data is sent by Bluetooth to the host.
Can it read QR codes and OCR?
It supports QR and the listed OCR formats. OCR requires configuration and integration with the receiving application.
Singular Expert Insight
Choose this cable configuration if you want direct cable charging without a desktop cradle. Check the application mode, cleaning procedure and real label sizes before deployment. Compare alternatives: Barcode scanners at Singular

Buyer’s Guide

✓

Buy it if

 you need healthcare 1D/2D Bluetooth scanning with cable charging.
✕

Skip it if

 you require a bundled cradle, wired USB data or independent software.
→

Also consider

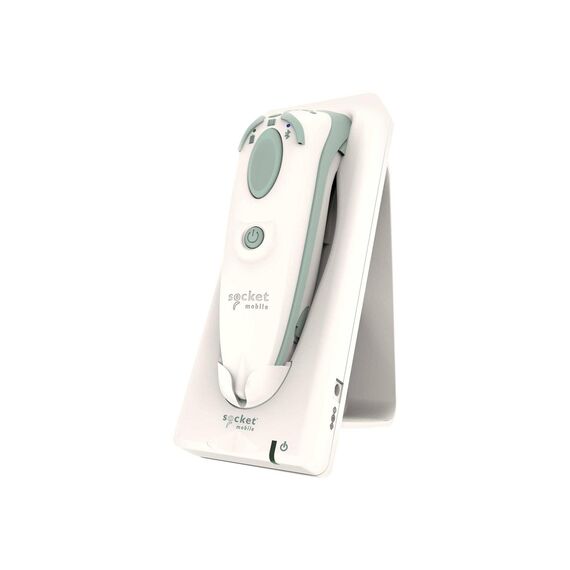

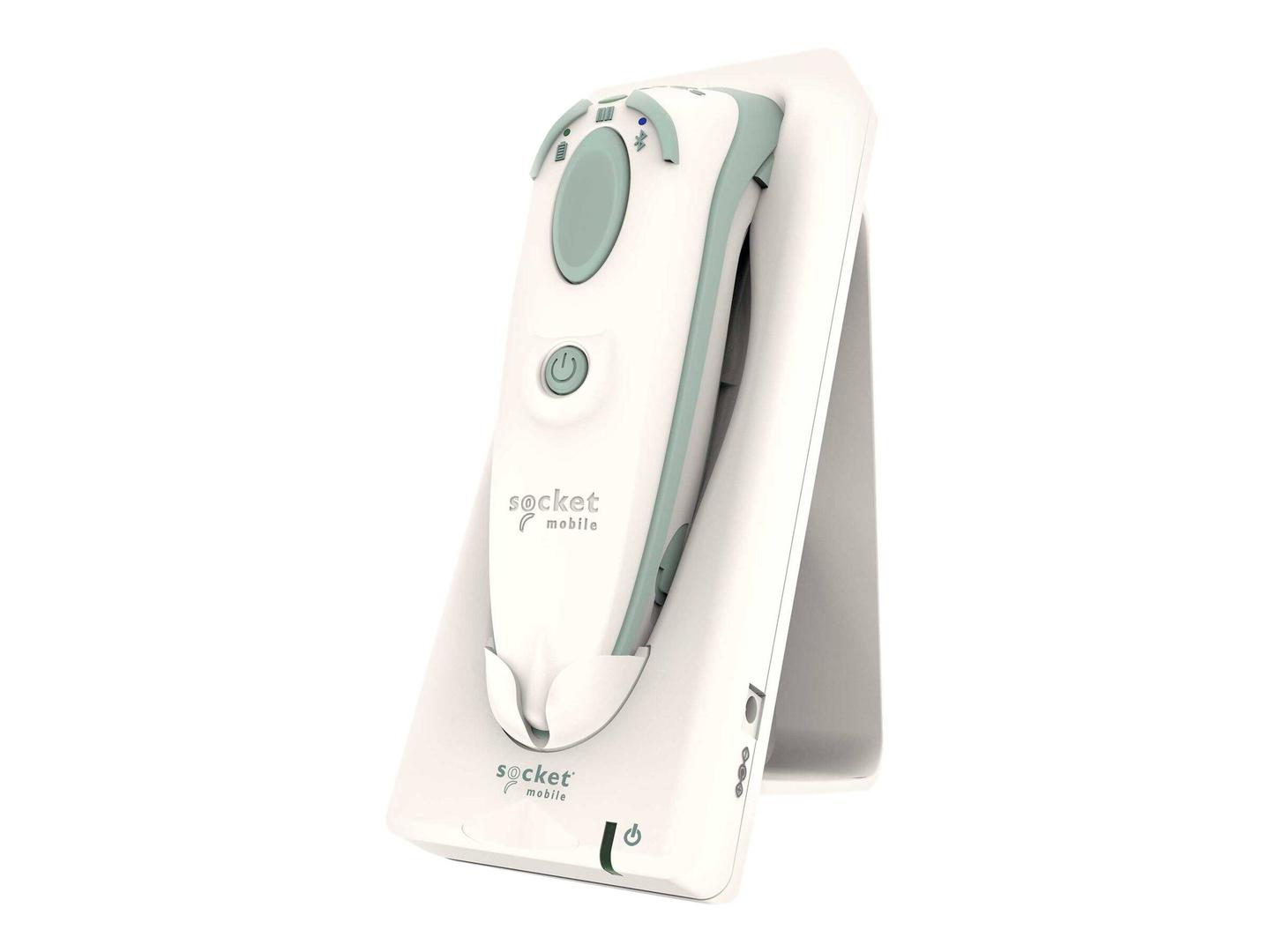

 the separately listed D745 cradle configuration if a desktop charging position is needed.
Confirm the host, application integration and cleaning procedure with Singular.
