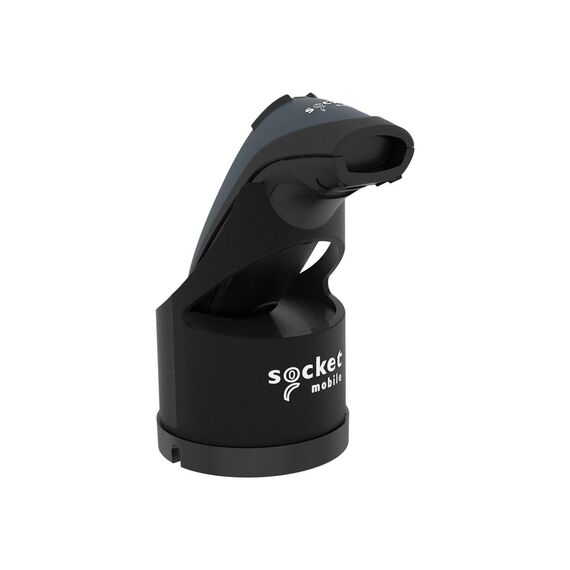

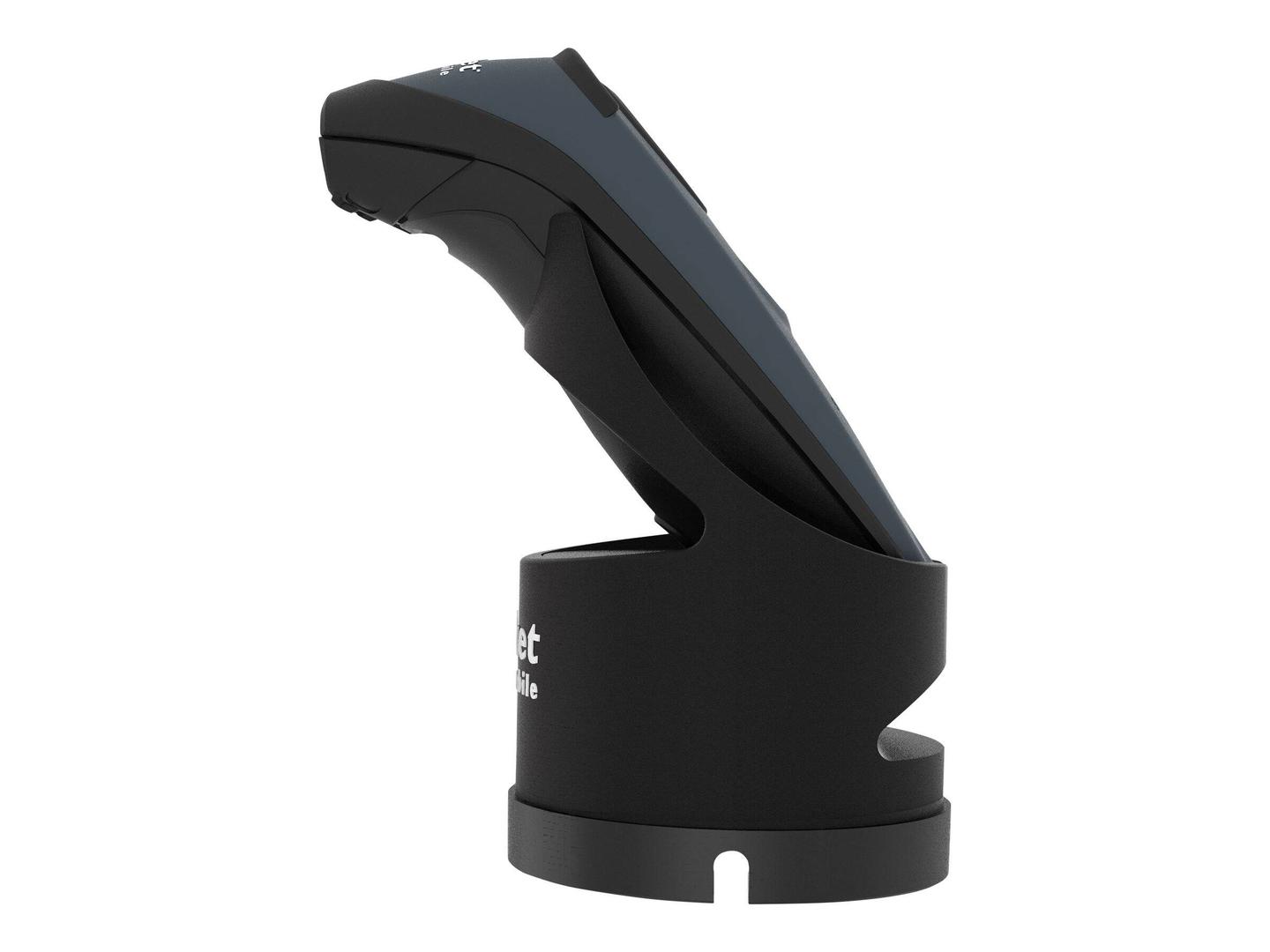

Socket Mobile DuraScan D760 Gray Bluetooth 1D/2D and Passport MRZ Reader Kit with Charging Dock

Brand:
SOCKET MOBILE
Socket Mobile DuraScan D760 Gray Bluetooth Barcode Passport Reader with Charging Dock
Socket Mobile DuraScan D760 Gray Bluetooth 1D/2D and Passport MRZ Reader Kit with Charging Dock
€918.92 inc. VAT
Buy
CX3478-1946
€772.20
€918.92 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
Product Code
Y340512
EAN Code
0758497114426
Manufacturer
SOCKET MOBILE
Features
Bluetooth, Wireless

Quick Specs

Capture
1D / 2D / OCR / MRZ
Connection
Bluetooth 2.1 + EDR
Included
Charging dock
Protection
IP54
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

One pocket reader for barcodes and passport MRZ

1D / 2DOCR / MRZBluetooth ClassicCharging dock

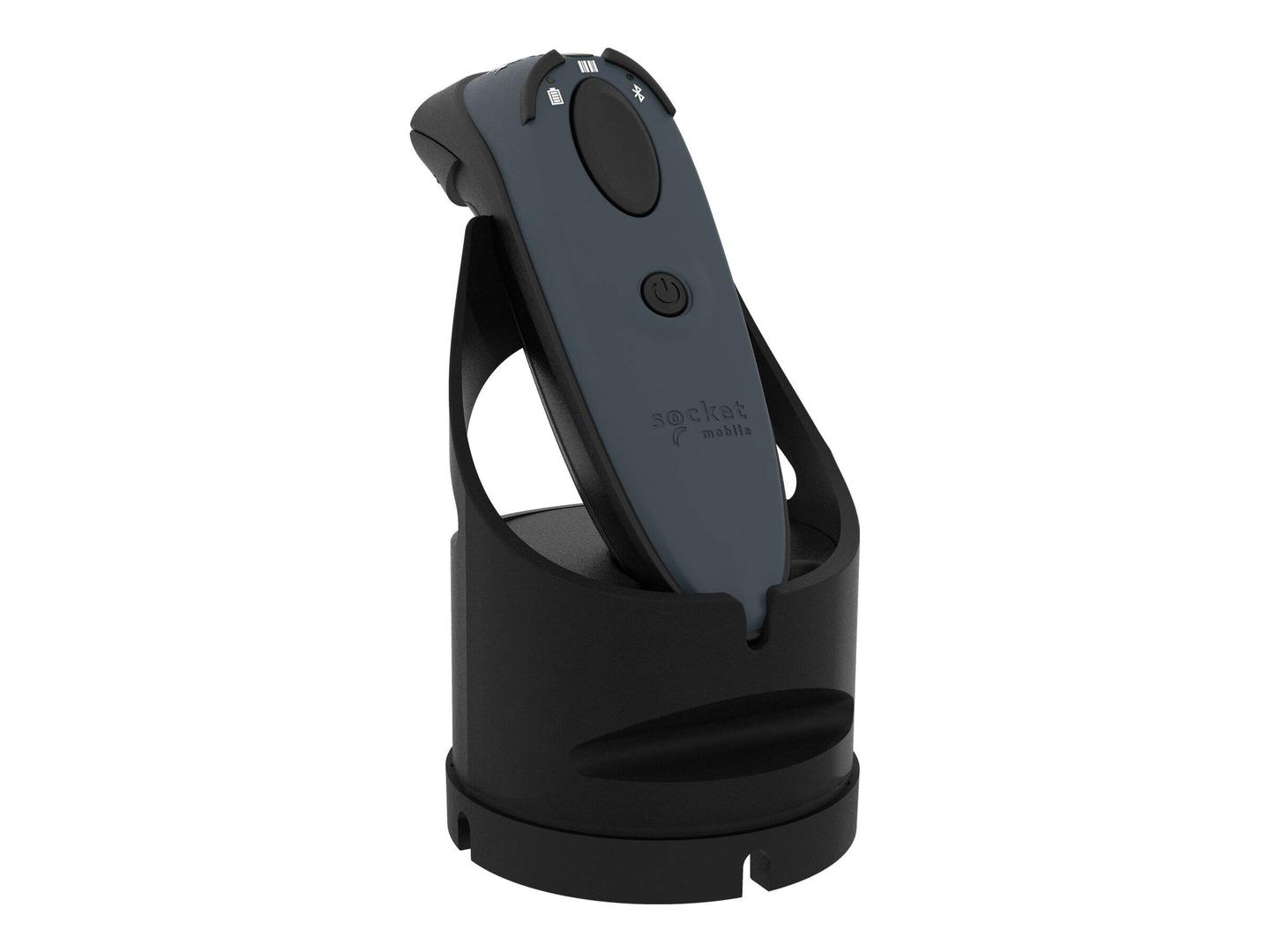

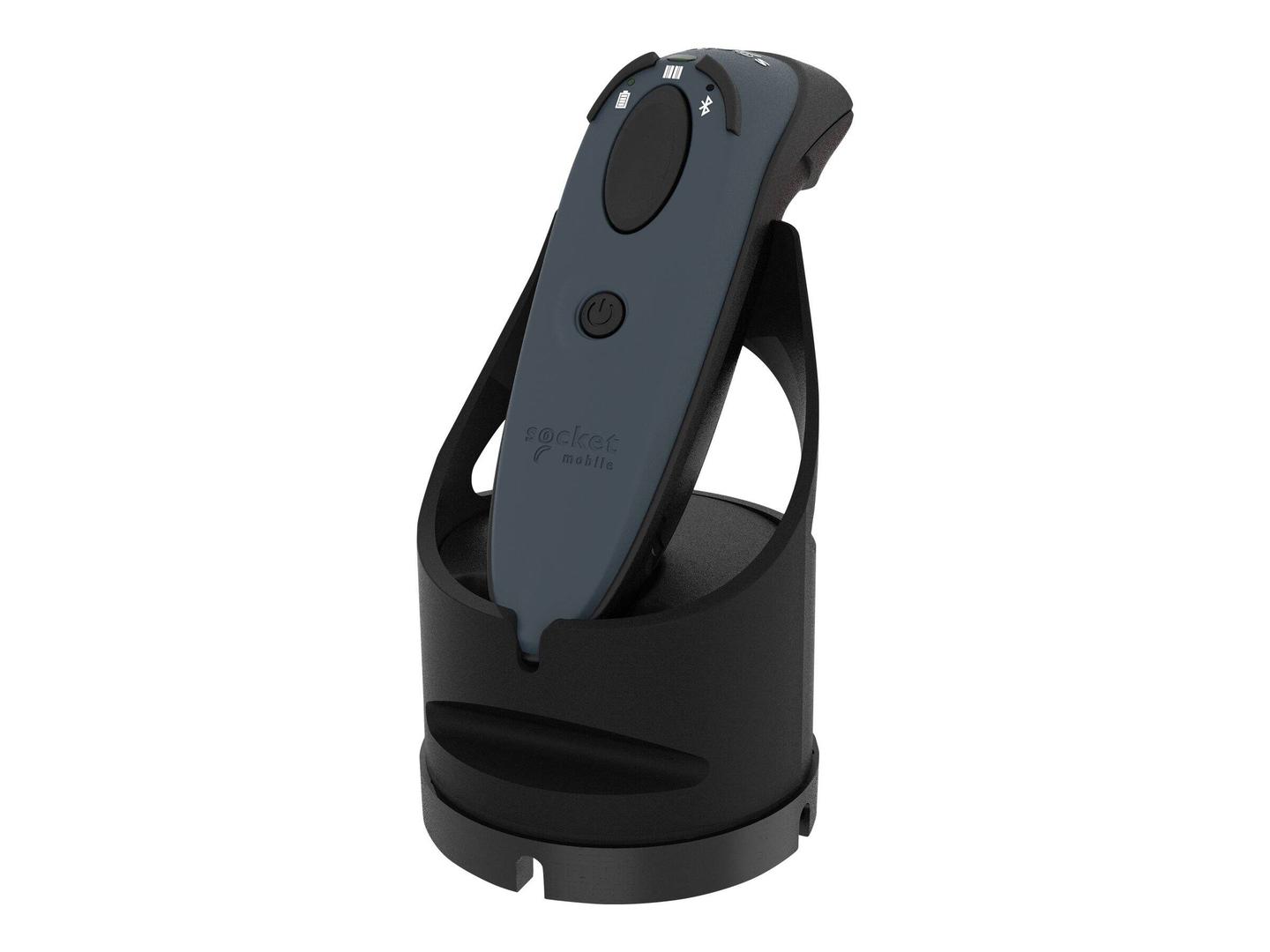

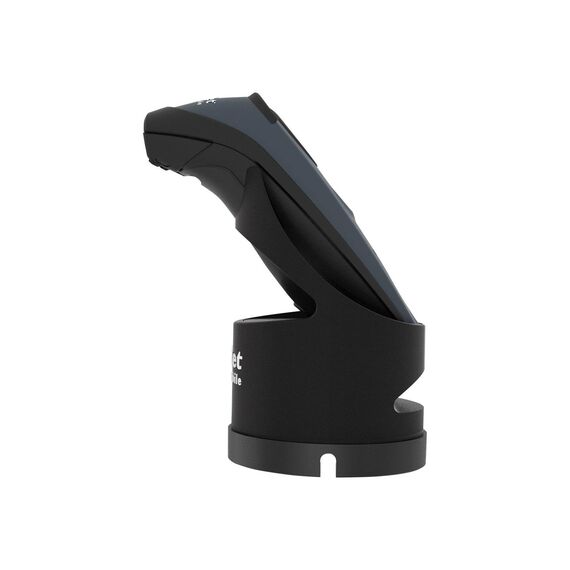

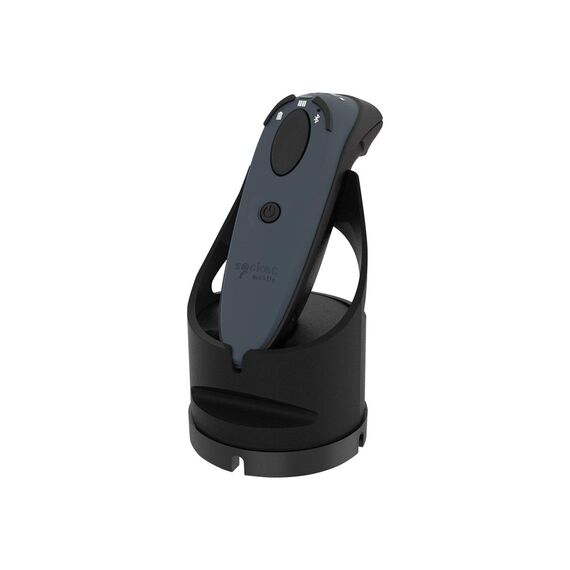

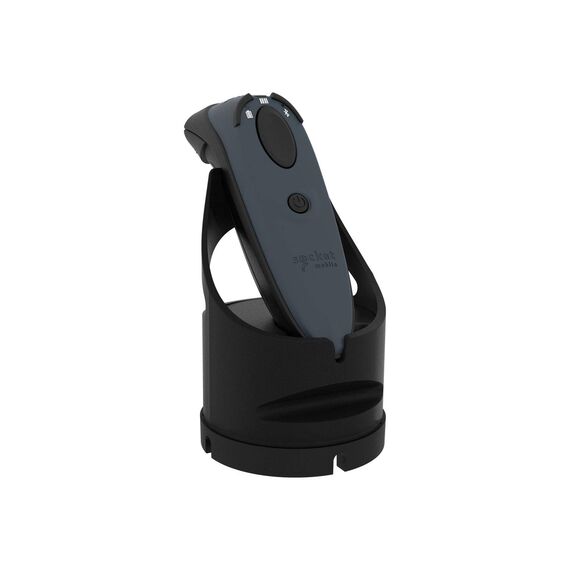

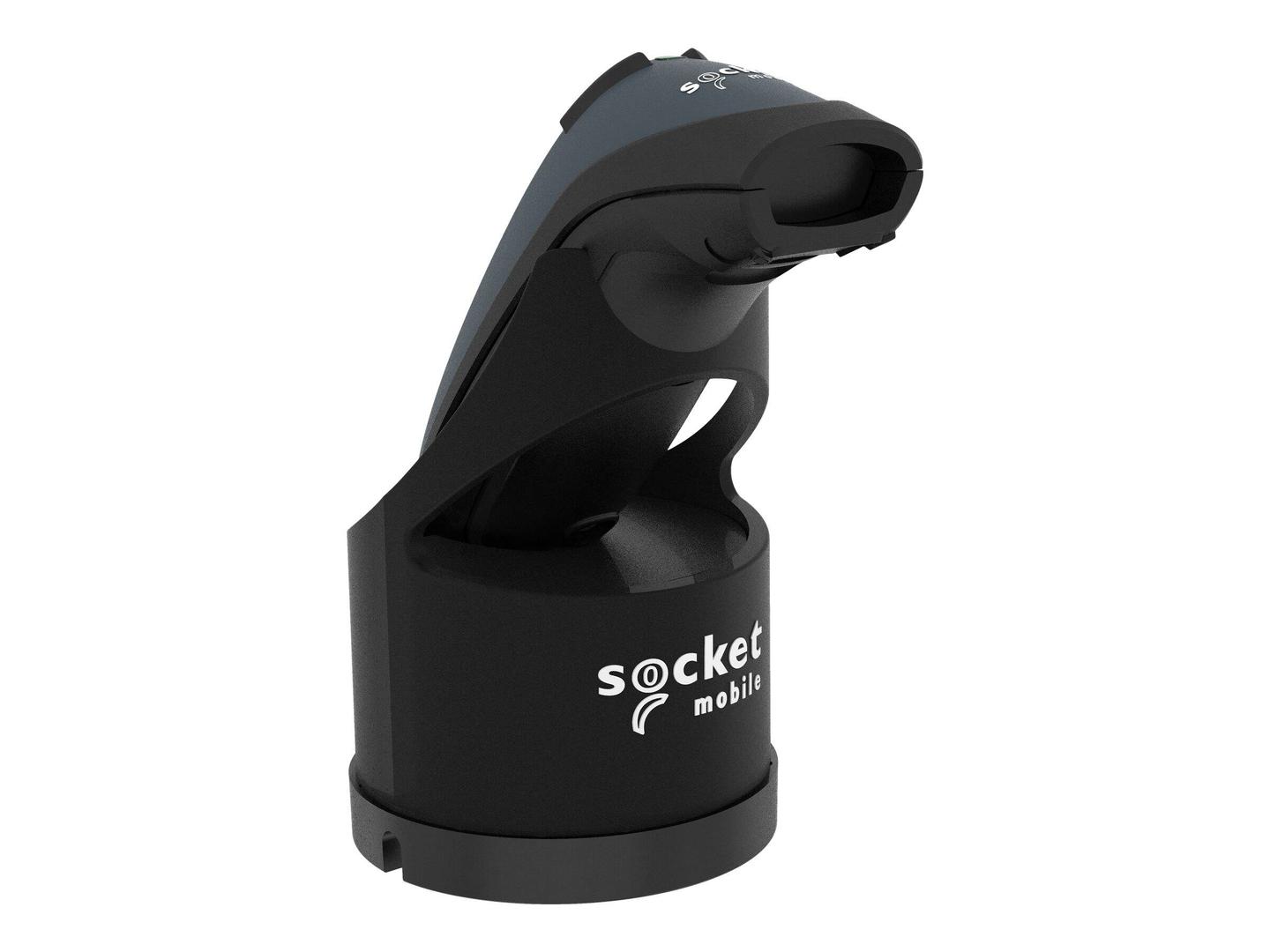

The gray CX3478-1946 kit contains one DuraScan D760 Bluetooth reader with replaceable battery, charging dock, USB charging cable, wrist strap and insert. It sends decoded barcode and passport MRZ/OCR data to a compatible phone, tablet or computer application. Pair the reader, configure the input profile and place the cursor in the receiving field, or use a CaptureSDK-enabled application for integrated data handling. The dock charges the reader; it does not replace the host or its software.

Before you order:
This is the charging-dock bundle, distinct from the cable-only reader and charging-stand bundle. Confirm application support for passport fields and the required data format. Reading an MRZ does not authenticate a passport or perform an identity check.

What's in the Box

  • 1 × gray D760 reader with replaceable battery.

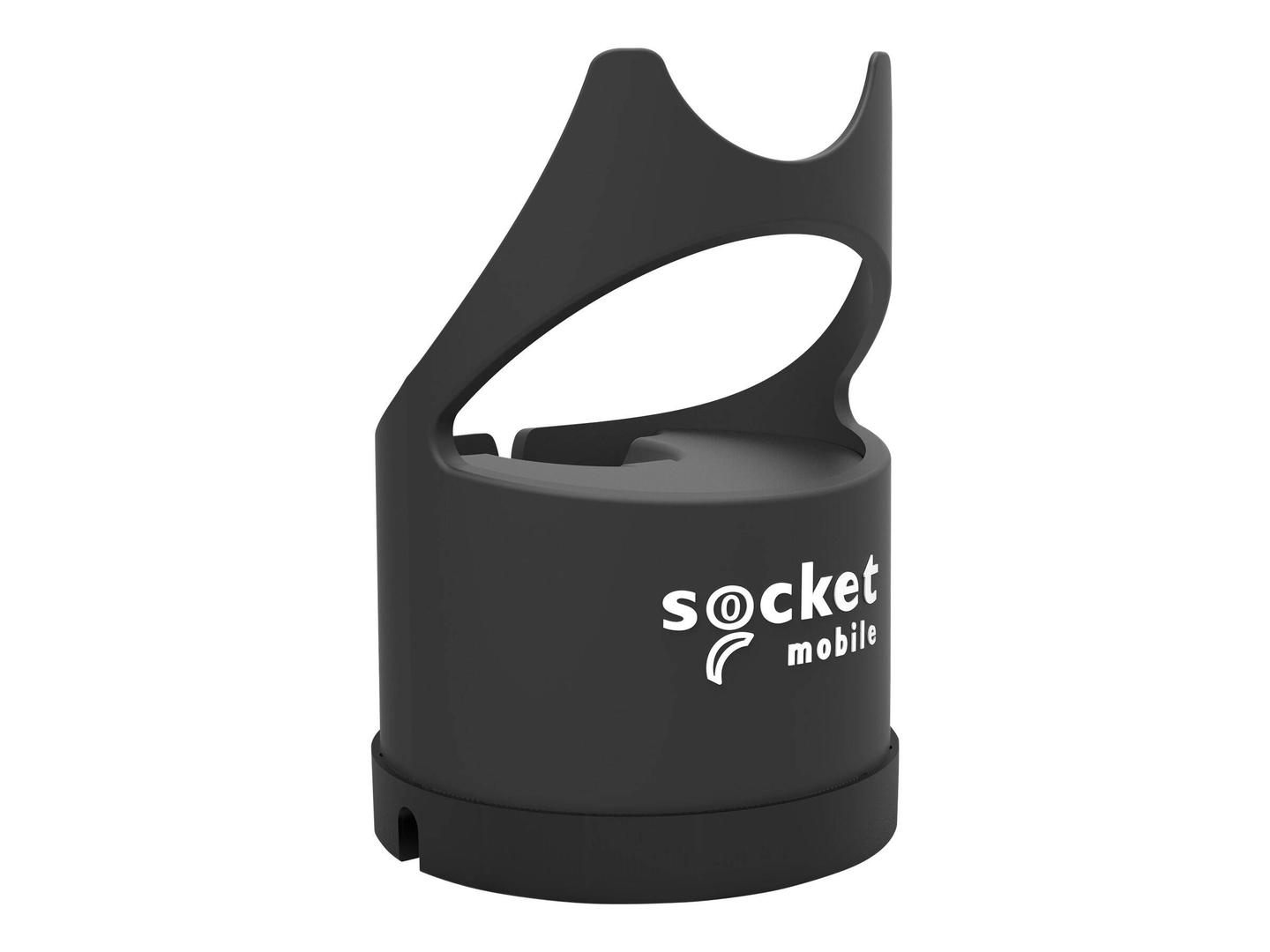

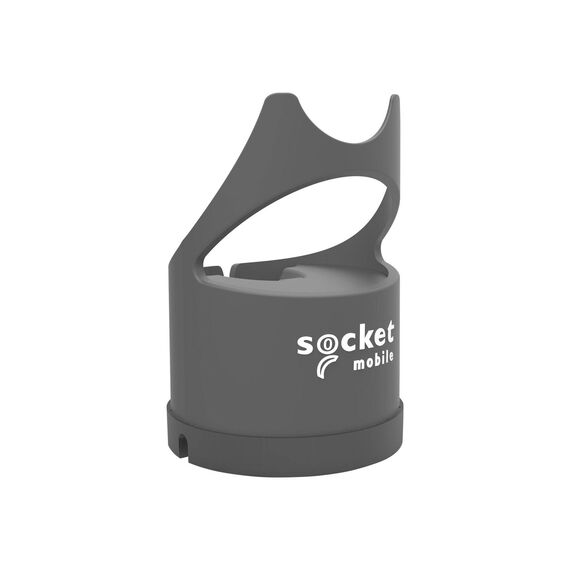

  • Charging dock and USB charging cable.
  • Wrist strap and insert. Compatible host/application and suitable USB power source required separately.

What It Means in Practice

  • For a hotel workflow, select the passport field in the compatible application and read the MRZ. The application maps the received data to the guest record.
  • The same reader captures product barcodes and screen-based tickets; configure enabled symbologies for your workflow.
  • Return the reader to its dock between uses. Auto presentation mode requires configuration.

What Will Not Work

  • No independent guest database or passport-authentication software is included.
  • IP54 protects against dust and splashes, not immersion. Bluetooth range and battery runtime depend on actual use.

Key Features


Barcode and document capture
Read 1D/2D labels, screens and supported OCR/MRZ with one device.

Application integration
HID, SPP and iOS application profiles support different receiving workflows.

Replaceable battery
The 1400 mAh battery can be replaced rather than retiring the reader.

Durable mobile housing
IP54 and six 2 m concrete-drop tests support mobile counter work.

Technical Specifications

EXACT CONFIGURATION
MPN CX3478-1946
EAN 0758497114426
Colour Gray
Included 1 × D760 reader with battery; charging dock; USB charging cable; wrist strap; insert
Required separately Compatible Bluetooth host, receiving application and suitable USB power source
READING PERFORMANCE
Sensor 1280 × 960 pixels
Field of view 44.5° H × 33.5° V
Print contrast 20–25%, manufacturer reference
Default 1D Bookland EAN; Codabar; Code 128/39/93; EAN/JAN 13/8; GS1-128; GS1 DataBar Expanded/Limited/Omnidirectional; Interleaved 2 of 5; ISBT 128 UDI; Trioptic; UPC A/E
Default 2D Aztec; Composite; Data Matrix; DotCode; GS1 Data Matrix/QR; Han Xin; MaxiCode; MicroPDF417; MicroQR; PDF417; QR
Default OCR OCR A / OCR B
Additional enabled types Code 11; Matrix 2 of 5; MSI; MICR E13B; Australia Post; Japan Postal; Mailmark; Netherlands KIX; UK Postal; US Planet/Postnet; USPS 4CB/Intelligent Mail
Media Printed and on-screen barcodes; passport MRZ/OCR
TYPICAL DECODE RANGES
Code 128, 5 mil 5.8–24.9 cm
PDF417, 5 mil 7.6–20.1 cm
PDF417, 6.67 mil 6.3–25.7 cm
Data Matrix, 10 mil 5.3–27.8 cm
UPC A, 100% Far limit 63.2 cm
Code 128, 15 mil 6.1–70.6 cm
Code 39, 20 mil Far limit 91.7 cm
QR, 20 mil 2.8–44.5 cm
Range conditions Barcode size, symbology and label media dependent; test actual documents
WIRELESS AND POWER
Radio Bluetooth Classic 2.1 + EDR, Class 2
Radio range Up to 10 m, host/environment dependent
Profiles Basic HID; Application SPP; iOS Application
Data encryption 56 bit
Platforms Apple iOS (MFi); Android; Windows 11
Application integration CaptureSDK 2.0.29 or later; latest compatible version recommended
Battery 1 × replaceable Li-ion polymer, 1400 mAh, 3.7 V
Battery weight / life 35 g; 500 charge-discharge cycles
Standby Over 20 h, manufacturer reference; usage dependent
PHYSICAL AND ENVIRONMENT
Dimensions (manufacturer drawing) 5.2 × 1.5 × 1.7 in (height × width × depth)
Feedback Data/battery LEDs and audible tones
Trigger life 5 million actuations
Presentation mode Auto scanning when configured in a dock or stand
Sealing IP54
Drop test 6 × 2 m onto concrete, one per side
Tumble test 2,500 cycles from 1 m onto metal plate
Operating / storage temperature 0–45 °C / −40–70 °C
Charging temperature note Charging above 40 °C may cause issues
Humidity 95% at 60 °C, non-condensing
Ambient light 0–100,000 lux
Manufacturer warranty 1 year; extensions optional

Frequently Asked Questions

Is the charging dock included?
Yes. CX3478-1946 is the gray reader and charging-dock bundle.
Does it verify passport authenticity?
It reads supported MRZ/OCR data. Authentication and record checks are functions of separate software.
Can it work with a phone?
It supports Apple iOS, Android and compatible applications. Confirm the required profile and integration.
Singular Expert Insight
Choose D760 when barcode and passport-data capture are both required. Test real documents in your application before deployment. Compare readers: Barcode scanners at Singular

Buyer’s Guide

✓

Buy it if

 you need mobile 1D/2D and passport MRZ capture with a charging dock.
✕

Skip it if

 you need standalone passport authentication or immersion resistance.
→

Also consider

 the cable-only or charging-stand D760 configuration if your charging workflow differs.
Confirm host, CaptureSDK application and USB power with Singular.
