DYMO XTL All-Purpose Vinyl Labels — 19 mm x 7 m, Black on White
19 mm x 7 mBlack on WhitePermanent acrylic adhesive-40 °C to +60 °C

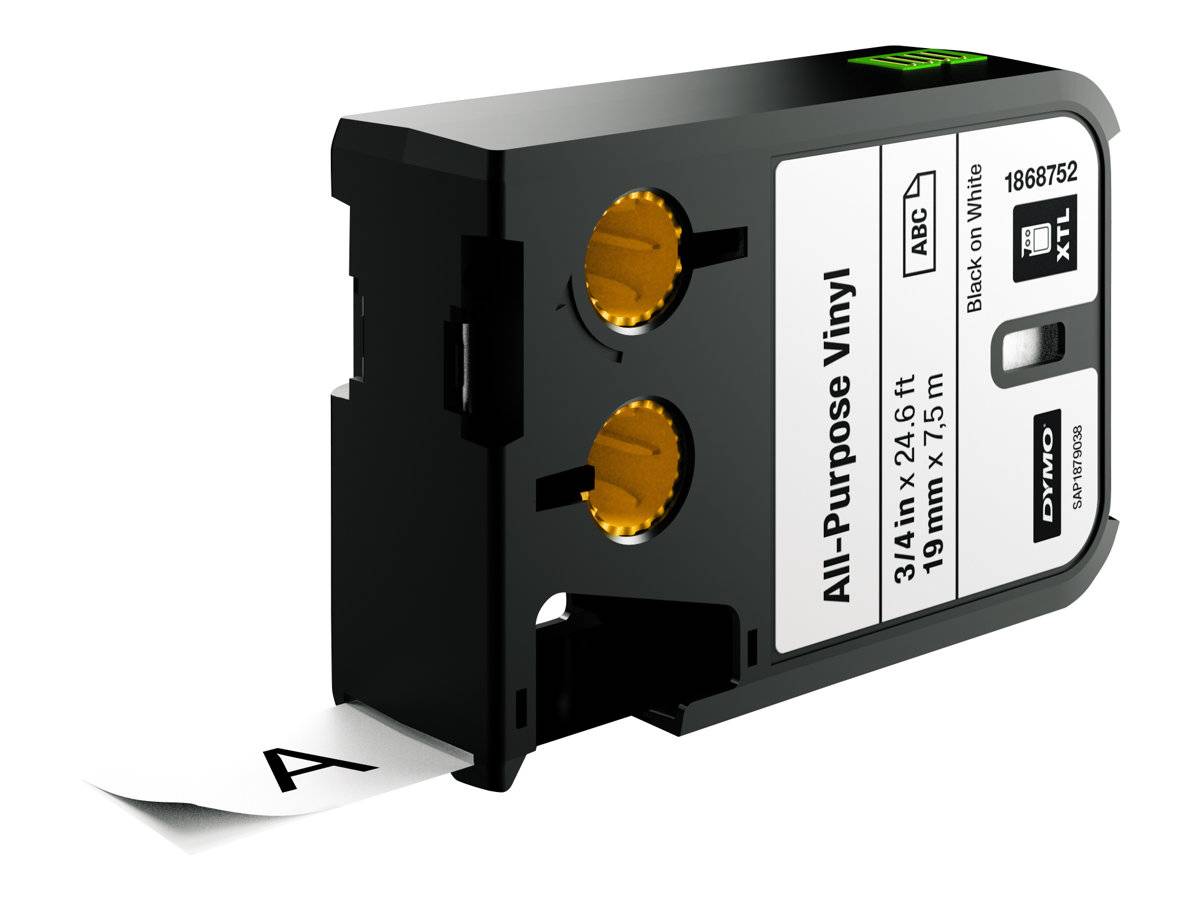

The DYMO 1868752 is a 7 m continuous roll of 19 mm XTL all-purpose vinyl labels, printed black on white, with a permanent acrylic adhesive for the DYMO XTL 300 and XTL 500 industrial label makers. It is aimed at facilities, electrical and maintenance teams labelling assets, panels, enclosures and safety points indoors or outdoors.
Halogen-free vinyl conforms to slightly curved and textured surfaces where paper labels lift, and DYMO rates it from -40 °C to +60 °C with resistance to moisture, chemicals and UV. The vinyl is UL Recognized as a component to UL969 and the split-back liner peels cleanly.
Before you order: XTL and RHINO are separate cartridge systems. This cartridge fits the DYMO XTL 300 and XTL 500 only — not Rhino 4200, 5200 or 6000+, LabelManager or LabelWriter.
What's in the Box
- 1 DYMO XTL all-purpose vinyl label cartridge, 19 mm x 7 m continuous, black on white
What It Means in Practice
- Label equipment, panels, enclosures and pipework that sit outdoors, in cold stores or near cleaning chemicals.
- Continuous tape: the printer cuts each label to the length you set.
- The permanent acrylic adhesive is meant to stay; removing it later can leave residue.
- DYMO makes the same vinyl in other colours, so labels can follow OSHA, ANSI and ISO safety colour conventions.
What Will Not Work
- Not for DYMO Rhino, LabelManager or LabelWriter machines.
- Not a wire-marking sleeve — for conductors use heat-shrink tube, as a vinyl wrap on cable can eventually peel.
- Not removable — choose a removable label for temporary marking.
Key Features
Conforms and stays
Halogen-free vinyl with permanent acrylic adhesive (800 gm/cm² tack) holds on curved and textured surfaces.
Indoor or outdoor
Rated -40 °C to +60 °C, resistant to moisture, chemicals and UV; no visible effect after 30 days of UV exposure in DYMO testing.
UL Recognized
Component to UL969 (file MH48389), REACH and RoHS compliant.
Clean application
Split-back liner for easy peeling, even with gloves.
Technical Specifications
| Identification |
| Part Number |
1868752 |
| EAN/GTIN |
0071701001313 |
| Brand |
DYMO |
| Series |
XTL All-Purpose Vinyl |
| Tape |
| Width |
19 mm |
| Length |
7 m, continuous |
| Rolls per box |
1 |
| Print |
Black on white |
| Material |
Vinyl, halogen-free, thermal transfer topcoat |
| Adhesive |
Permanent acrylic, 800 gm/cm² tack (ASTM D 2979) |
| Total thickness |
178 µm ±10% |
| Liner |
Split-back |
| Print technology |
Thermal transfer |
| Environment |
| Service temperature |
-40 °C to +60 °C |
| Resistance |
Moisture, chemicals, UV; indoor and outdoor |
| Shelf life |
2 years at 21 °C / 50% RH |
| Approvals & Compatibility |
| UL |
UL Recognized component to UL969, file MH48389 |
| Compliance |
REACH, RoHS |
| Fits |
DYMO XTL 300, XTL 500 |
| Warranty |
| Warranty |
1-Year Warranty (Singular) |
| Manufacturer Term |
No separate manufacturer warranty term is published for this consumable — any defect is handled through Singular |
Frequently Asked Questions
Will this fit my DYMO Rhino?
No. Rhino label makers take RHINO cartridges; this is an XTL cartridge for XTL 300 and XTL 500.
Can I use it outdoors?
Yes. DYMO rates it for indoor and outdoor use from -40 °C to +60 °C with moisture, chemical and UV resistance.
Does the XTL 300 take 19 mm?
Yes. The XTL 300 accepts cartridges up to 24 mm, and this is 19 mm.
Singular Expert Insight · Buyer's Guide
Vinyl is the everyday industrial label because it flexes onto curved surfaces and its acrylic adhesive holds when the surface is warm, wet or oily. Use it for asset, panel and safety labels, and switch to heat-shrink when marking conductors. For other label media see our
labels and label media range.
✓ Buy it if you run a DYMO XTL 300 or XTL 500 and need durable 19 mm black-on-white vinyl labels for equipment, panels or safety marking.
✕ Skip it if your label maker is a DYMO Rhino, LabelManager or LabelWriter.
→ Also consider DYMO XTL heat-shrink tube for wire marking, or XTL vinyl in another width or colour.
Tell us your label maker model and what you are labelling, and we will confirm the right cartridge before you order.
