DYMO Rhino 5200 Industrial Label Maker Hard Case Kit — ABC, 19 mm IND Tape, EU Plug
180 dpi Thermal Transfer6–19 mm RHINO IND TapeABC Keyboard + Hot KeysHard Case, Li-ion, EU Adapter

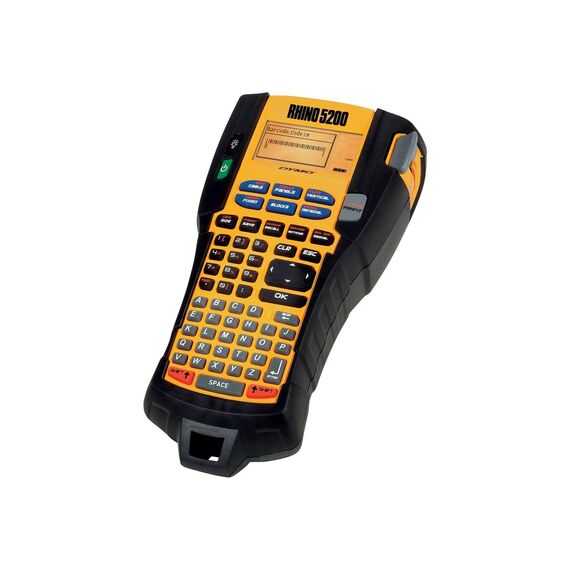

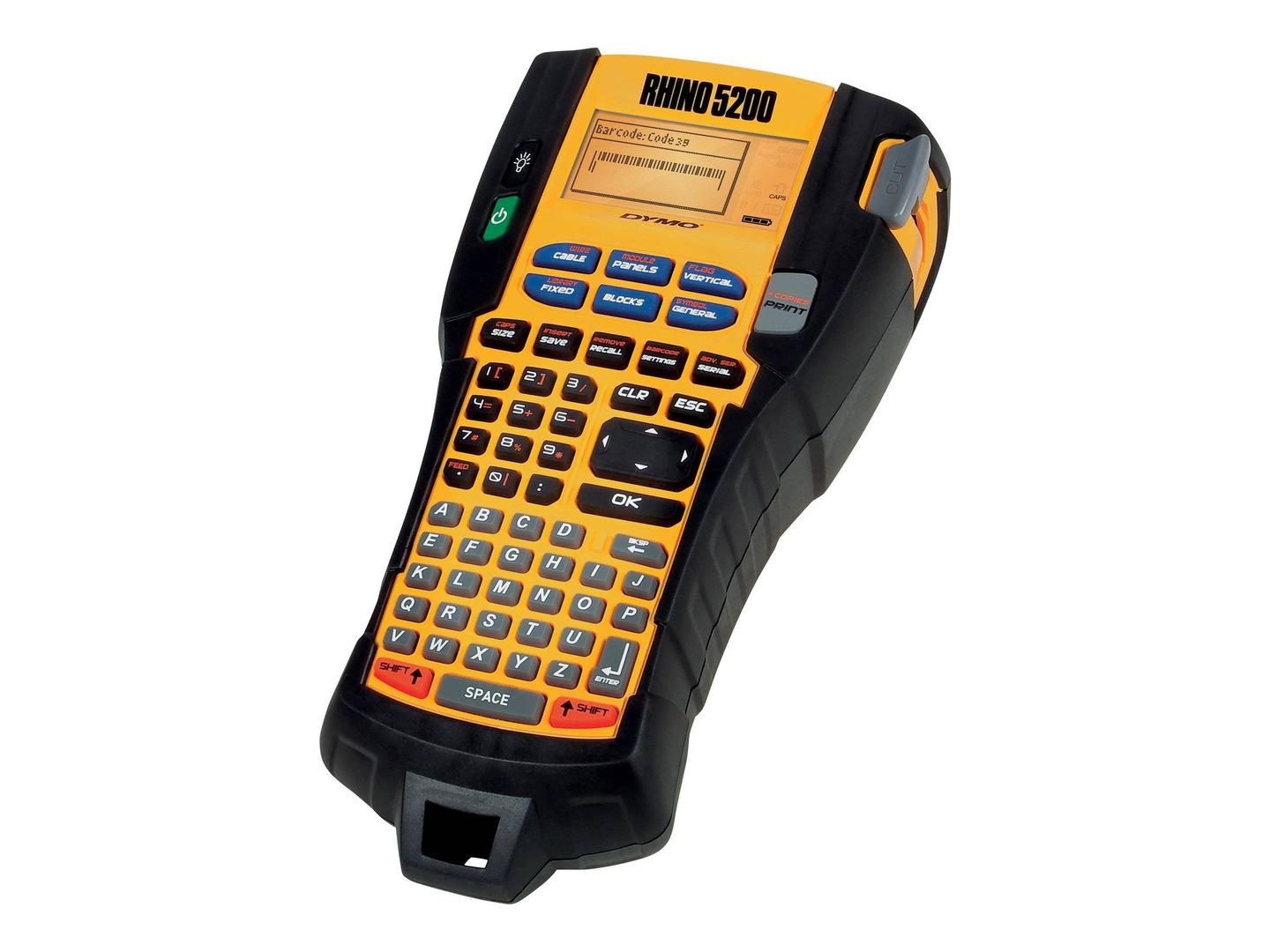

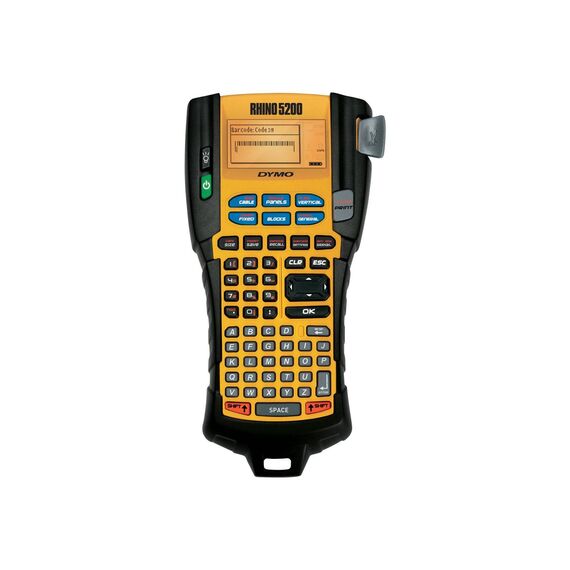

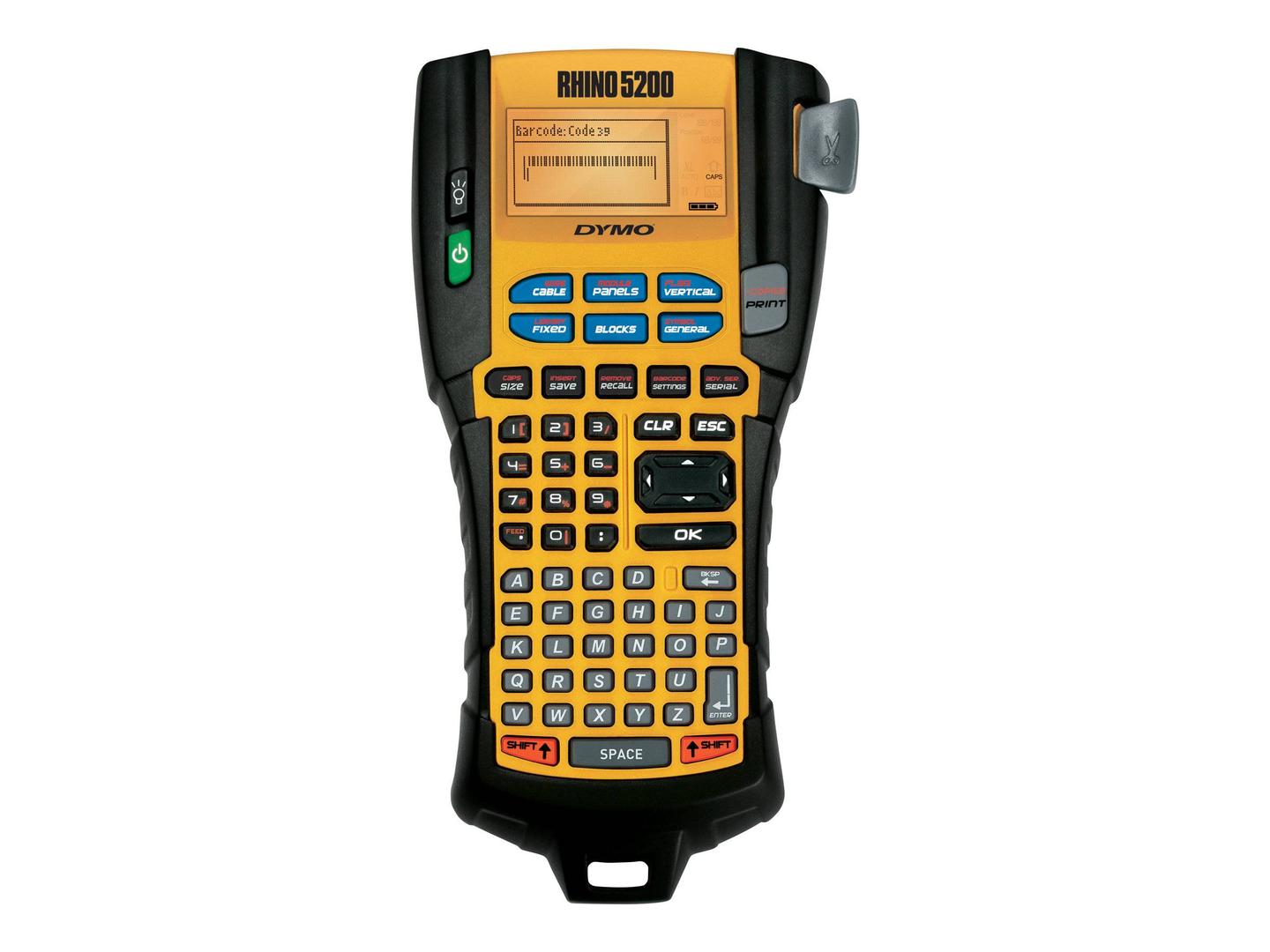

The DYMO Rhino 5200 is a rugged handheld industrial label maker that prints 180 dpi thermal-transfer labels onto 6, 9, 12 and 19 mm DYMO RHINO IND cartridges, built for electricians, network installers and maintenance engineers who need labels that survive the environment they are fitted in. This entry is part number S0841400 — the hard case kit, supplied with the rechargeable Li-ion battery pack, the mains adapter, two starter cartridges and a durable carrying case.
Dedicated hot keys cover the label types industrial work actually needs: general, wire and cable wrap, flag, fixed length, patch panel, electrical panel, terminal block, 110-block, module and vertical. More than 100 industry symbols, fractions and punctuation marks are pre-loaded, Code 39 and Code 128 barcodes print on 19 mm tape, and the layout follows key ANSI and TIA/EIA-606 structured-cabling conventions. A two-line backlit display, integrated rubber bumper and manual cutter finish a tool made for site work. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:
The Rhino 5200 accepts DYMO RHINO IND cartridges only — IND vinyl, permanent polyester, flexible nylon, heat-shrink tube and non-adhesive tag, in 6, 9, 12 and 19 mm. D1 cassettes for LabelManager machines are not supported. The Rhino 5200 is a standalone device with no USB port and no PC software, so labels are composed on the keypad. This kit includes the rechargeable Li-ion pack and mains adapter; the unit also runs on 6 × AA alkalines. The bundled mains adapter on this part number has a two-pin EU plug, so in Cyprus (UK Type G sockets) you will need a plug adapter, or the UK-plug version, part number S0841390. Barcode printing requires 19 mm tape.
Best For
✓Electricians labelling breakers, panels and terminal blocks
✓Structured-cabling work to TIA/EIA-606 conventions
✓Patch panel, 110-block and module labelling
✓Wire and cable wrap marking with flexible nylon tape
✓Heat-shrink sleeve marking on wiring harnesses
✓Maintenance and facilities teams working away from a PC
Key Features
Ten Industrial Label Types on Hot Keys
General, wire and cable wrap, flag, fixed length, patch panel, electrical panel, terminal block, 110-block, module and vertical layouts are one keypress away, so repetitive cabling and panel work stops being a menu exercise.
IND Tape That Survives the Install
Prints on IND vinyl, permanent polyester, flexible nylon, non-adhesive tag and heat-shrink tube in 6 to 19 mm, so the same tool covers cable wrap, asset plates and shrink-sleeve marking without changing machines.
Barcodes and 100+ Industry Symbols
Code 39 and Code 128 barcodes print on 19 mm tape, and over 100 industry symbols, fractions and punctuation marks are already in memory alongside last-label recall and named label files.
Complete Kit With Hard Case and Li-ion

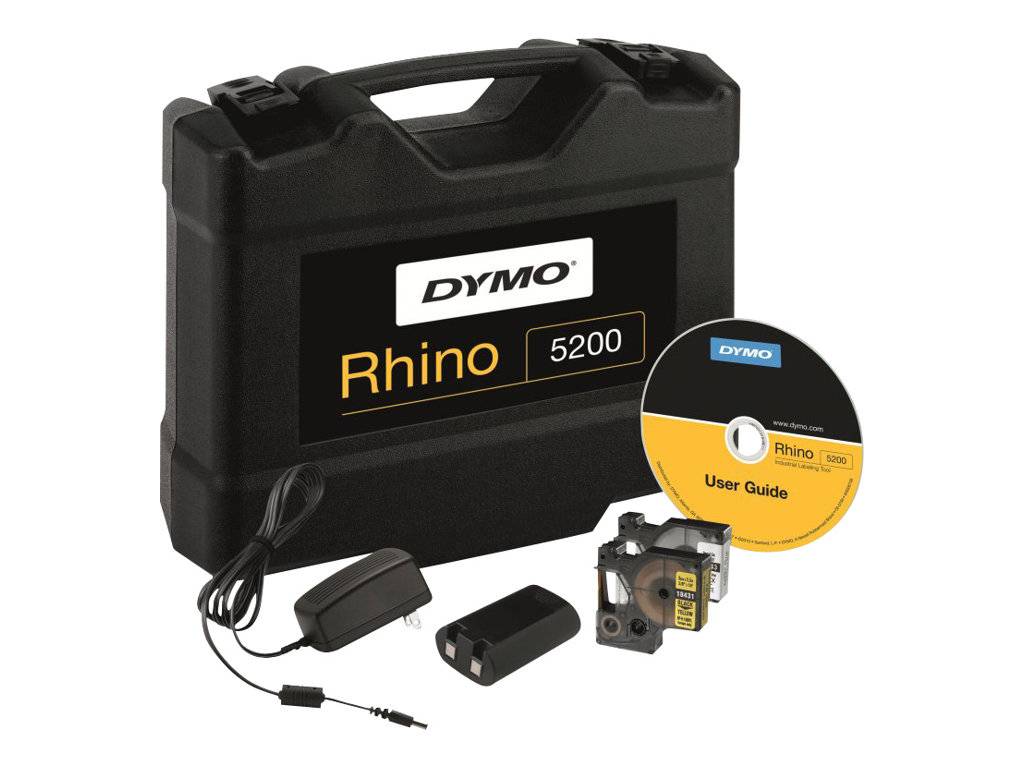

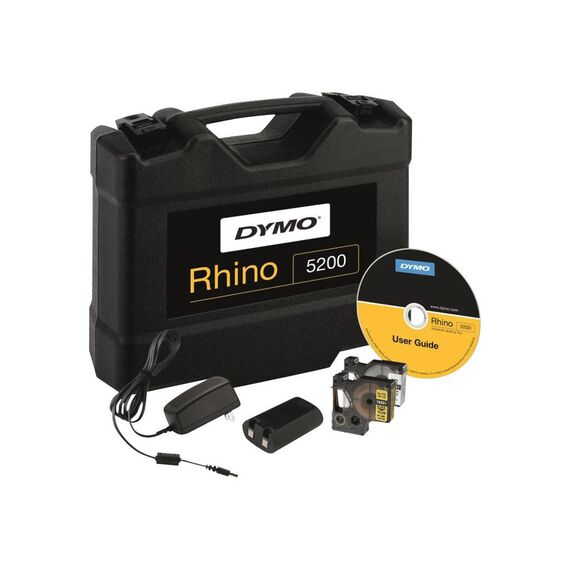

The kit adds the rechargeable Li-ion battery pack, the mains adapter with a EU plug, a 19 mm white flexible nylon cartridge, a 12 mm white vinyl cartridge and a hard carrying case, so the tool is ready for site work out of the box.
Technical Specifications
| Identification |
| Brand |
DYMO |
| Series |
RHINO Industrial |
| Model |
Rhino 5200 Hard Case Kit |
| Part Number |
S0841400 |
| MPN |
S0841400 |
| EAN / GTIN |
3501170841402 |
| Keyboard layout |
ABC |
| Colour |
Black |
| Printing |
| Technology |
Thermal transfer |
| Resolution |
180 dpi |
| Print speed |
10 mm/sec |
| Barcodes |
Code 39 and Code 128, on 19 mm tape only |
| Standards |
Meets key ANSI and TIA/EIA-606 structured-cabling conventions |
| Media |
| Tape system |
DYMO RHINO IND cartridges |
| Tape widths |
6, 9, 12 and 19 mm (1/4, 3/8, 1/2 and 3/4 inch) |
| Tape materials |
IND vinyl, permanent polyester, flexible nylon, heat-shrink tube, non-adhesive tag |
| Not compatible with |
D1 tape cassettes |
| Operation |
| Display |
2-line backlit LCD, adjustable contrast |
| Label-type hot keys |
General, wire and cable wrap, flag, fixed length, patch panel, electrical panel, terminal block, 110-block, module, vertical |
| Pre-loaded content |
100+ industry symbols, fractions and punctuation |
| Memory |
Last-label recall plus named label files |
| Cutter |
Manual cutter with dedicated Cut button |
| PC connectivity |
None — standalone device, no USB port or PC software |
| Power |
| Primary power |
6 × AA alkaline batteries |
| Rechargeable option |
DYMO Li-ion battery pack — included in this kit |
| Mains adapter |
Included, 110–240 V with EU plug |
| Batteries included |
Li-ion pack included; AA cells not included |
| Box Contents |
| Included |
Rhino 5200 label maker, hard carrying case, 19 mm white flexible nylon cartridge, 12 mm white vinyl cartridge, rechargeable Li-ion battery pack, mains adapter with EU plug, quick reference guide, user manual on CD-ROM |
| Physical |
| Dimensions |
234 × 124 × 64 mm |
| Weight |
0.8 kg excluding battery; approximately 2.5 kg for the complete kit |
| Build |
Integrated rubber bumper |
| Compliance |
RoHS and REACH compliant |
| Warranty |
| Warranty |
DYMO 2-year limited manufacturer warranty. Singular's direct warranty is 1 year; beyond that we assist you with the manufacturer's warranty process for its full duration. |
Frequently Asked Questions
Does the DYMO Rhino 5200 connect to a computer?
No. The Rhino 5200 is a standalone label maker: there is no USB port and no PC software, and every label is composed on its own ABC keypad and two-line display. Some distributor listings claim PC connectivity for this model — DYMO's own specification states it has none.
What tape does the DYMO Rhino 5200 use?
DYMO RHINO IND cartridges in 6, 9, 12 and 19 mm: IND vinyl, permanent polyester, flexible nylon, heat-shrink tube and non-adhesive tag. D1 cassettes for LabelManager machines will not fit. Code 39 and Code 128 barcodes require 19 mm tape.
What is in the Rhino 5200 hard case kit, and what plug does it have?
The kit contains the label maker, a hard carrying case, a 19 mm white flexible nylon cartridge, a 12 mm white vinyl cartridge, the rechargeable Li-ion battery pack, the mains adapter and the documentation. This part number ships the adapter with a EU plug. DYMO sells the same kit under two codes: S0841390 with a UK Type G plug and S0841400 with an EU plug.
How does the Rhino 5200 compare with the Rhino 4200?
Both are 180 dpi thermal-transfer IND handhelds with no PC link. The 5200 is the larger, more rugged unit with a two-line display, ten label-type hot keys including patch panel, terminal block and 110-block, and an ABC keyboard. The 4200 is lighter, has a QWERTY or QWERTZ keyboard and is faster at 15 mm/sec. Choose the 5200 for structured cabling and panel work, the 4200 for general field labelling.
Singular Expert Insight
The Rhino 5200 earns its place on structured-cabling and electrical jobs specifically because of its label-type hot keys — patch panel, terminal block, 110-block and vertical layouts are the ones that eat time when you improvise them, and having them as one keypress is the whole value. Take the kit rather than the bare unit unless you already own the Li-ion pack and adapter: buying those separately costs more than the kit premium, and the hard case matters if the tool lives in a van. If your labelling starts on a computer or runs from a spreadsheet, a PC-connected unit from our
label printers range is the right tool instead, and for volume barcode output look at a dedicated
barcode printer.
Buyer's Guide
Buy it if
You do structured cabling or electrical panel work, you want patch panel, terminal block and 110-block layouts on hot keys, and IND tape durability matters more than PC design tools. The kit form means battery, adapter and case are already in the box.
Skip it if
You need to design labels on a PC or print from a database — the Rhino 5200 has no USB port and no software.
Also consider
The bare Rhino 5200 (S0841480) if you already own the Li-ion pack and adapter, or the DYMO Rhino 4200 kit for a lighter QWERTY handheld at 15 mm/sec.
