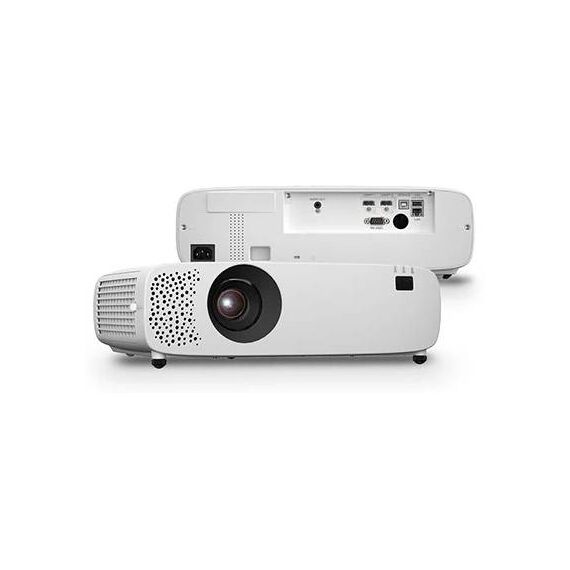

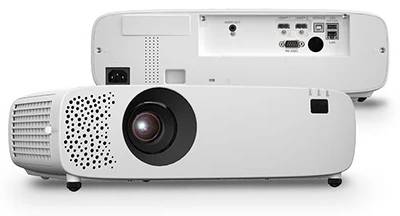

Sharp E501U 3LCD Laser Projector, WUXGA, 5000 Lumens

Brand:
Sharp
Sharp E501U WUXGA 5000 lm Laser Projector
Sharp E501U 3LCD Laser Projector, WUXGA, 5000 Lumens
€2586.01 inc. VAT
Buy
XPE501U
€2,173.12
€2,586.01 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
CR68169
EAN Code
4550556180122
Manufacturer
Sharp

Quick Specs

Native resolution
WUXGA, 1920 x 1200 pixels
Maximum input resolution
Up to 4K UHD, 3840 x 2160 at 30 Hz via HDMI
Supported screen size
30-300" diagonal
Built-in speaker
16 W mono
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

Sharp E501U WUXGA 3LCD Laser Projector

WUXGA, 1920 x 1200 pixels Up to 4K UHD, 3840 x 2160 at 30 Hz via HDMI 30-300" diagonal 16 W mono

The Sharp E501U is a professional 3LCD laser projector with native WUXGA resolution and 5000-lumen normal brightness. It accepts 4K UHD input via HDMI and supports screen sizes from 30 to 300", making it suitable for classrooms and small meeting spaces where flexible projection sizing is useful.

What's in the Box

  • Remote control
  • 2 AAA batteries
  • Power cord

What It Means in Practice

  • The 30–300-inch diagonal screen-size range and 0.9–10.7 m projection distance provide scope to plan different room and screen layouts; the manual 1.2× zoom and manual focus are used for adjustment.
  • Manual horizontal and vertical keystone correction is specified up to ±30° in each direction.
  • The projector supports floor or ceiling installation, with either front or rear projection orientation.
  • The USB Type-A port provides 5 V/1.5 A power; the USB Type-B port is specified for service.

What Will Not Work

  • Native projection resolution is WUXGA (1920 × 1200); 4K UHD is supported as an input up to 3840 × 2160 at 30 Hz via HDMI.
  • Zoom, focus and keystone correction are manual.
  • High-altitude fan mode is required above 1700 m.
  • The stated warranty and next-business-day exchange terms are a US specification; local coverage is not established by the supplied information.
Best For
✓ A fit for classrooms
✓ Small meeting spaces needing a professional projector with WUXGA native resolution
✓ 5000-lumen normal brightness
✓ A broad supported screen-size range

Key Features


3LCD colour processing
Three 0.64-inch LCD panels and 10-bit processing are specified, with approximately 1.07 billion colours.

Laser light source
The stated light-source life is 20,000 hours until brightness reaches 50%.

Flexible installation
Supports floor or ceiling placement, with front or rear projection orientation.

Built-in audio
A 16 W mono speaker is included in the projector.

Technical Specifications

Projection technology 3LCD
LCD panels 3 × 0.64"
Native resolution WUXGA, 1920 × 1200 | WUXGA, 1920 x 1200 pixels
Maximum input resolution Up to 4K UHD, 3840 × 2160 at 30 Hz via HDMI | Up to 4K UHD, 3840 x 2160 at 30 Hz via HDMI
Brightness 5000 lumens normal | 5300 centre lumens | 4000 lumens silent mode | 5300 center lumens
Contrast ratio Up to 5,000,000:1
Colour processing 10-bit | approximately 1.07 billion colours
Light source Laser diode with phosphor
Light-source life 20,000 hours until 50% brightness
Aspect ratio 16:10 | supports 4:3, 16:9 and 21:9
Supported screen size 30-300" diagonal
Projection distance 0.9-10.7 m
Throw ratio 1.35-1.64:1
Lens Manual 1.2× zoom | manual focus | F1.61-1.76 | focal length 19.1-23.0 mm | Manual 1.2x zoom
Keystone correction Manual | ±30° horizontal and vertical | ±30° horizontal and ±30° vertical, manual
Supported video signals 480i, 480p, 576i, 576p, 720p, 1080i, 1080p and 4K UHD
Supported PC signals VGA, XGA, WXGA, SXGA, UXGA and WUXGA
Digital video inputs 2 × HDMI with HDCP 1.4 | 2 x HDMI with HDCP 1.4
Audio input 1 × stereo mini jack | 1 x stereo mini jack
Audio output 1 × variable stereo mini jack | 1 x variable stereo mini jack
Built-in speaker 16 W mono
Control interfaces RS-232 via 9-pin D-Sub | IR | LAN | RS-232 via 9-pin D-Sub, IR and LAN
LAN 1 × RJ-45 | 10BASE-T/100BASE-TX | PJLink Class 1 | 1 x RJ-45, 10BASE-T/100BASE-TX
USB ports 1 × USB Type-A, USB 2.0 high-speed with 5 V/1.5 A power | 1 × USB Type-B service port | 1 x USB Type-A, USB 2.0 high-speed with 5 V/1.5 A power | 1 x USB Type-B service port
Installation orientation Floor/front, floor/rear, ceiling/front or ceiling/rear
Power supply 100-240 V AC, 50/60 Hz
Power consumption 330 W normal | 5.5 W sleep | 0.37 W standby
Fan noise 36 dB normal | 29 dB silent mode
Dimensions 390 × 128 × 294 mm (W × H × D), without lens and feet | 390 x 128 x 294 mm (W x H x D), without lens and feet
Net weight 5.0 kg
Operating temperature 0-45 °C
Operating humidity 20-80% non-condensing
Operating altitude 0-3000 m | high-altitude fan mode required above 1700 m
Storage temperature −10-50 °C | -10-50 °C
Storage humidity 10-85% non-condensing
Storage altitude 0-12,000 m above sea level
Regulatory compliance UL 62368-1 3rd edition | FCC Part 15 Class B | FDA Laser Notice 57 | Prop 65 | TPCH | UL 62368-1 3rd edition, FCC Part 15 Class B, FDA Laser Notice 57, Prop 65 and TPCH
Warranty Manufacturer specification states 5 years or 20,000 hours, whichever comes first, limited warranty with next-business-day exchange | this is a US specification and does not establish local warranty coverage. | 5 years or 20,000 hours, whichever comes first, limited warranty including next-business-day exchange (US specification)
LCD panel 0.64" LCD panels, 3 panels
Included accessories Remote control, 2 AAA batteries, power cord
Color processing 10-bit, approximately 1.07 billion colors
Optional accessory PRG-UNV universal ceiling mount
Product name Sharp E501U Professional LCD Laser Projector
Manufacturer Sharp
Model E501U
Manufacturer SKU / Order code XPE501U
Product type Professional LCD laser projector
Lens specifications F1.61-1.76 | focal length 19.1-23.0 mm
Horizontal synchronization range 15-100 kHz
Vertical synchronization range 24-85 Hz
UPC 074000705227
SKU / EAN XPE501U | 4550556180122

Frequently Asked Questions

Does it project in native 4K?
No. Its native resolution is WUXGA (1920 × 1200). It accepts input up to 4K UHD (3840 × 2160) at 30 Hz via HDMI.
What screen sizes does it support?
The specified diagonal screen-size range is 30 to 300 inches.
What is included?
The listed included items are a remote control, two AAA batteries and a power cord.
Is the listed warranty confirmed for Cyprus?
The supplied warranty information is explicitly a US specification. It does not confirm warranty coverage or service terms in Cyprus.
Singular Expert Insight
Its 3LCD laser design combines WUXGA native resolution with HDMI input support up to 4K UHD at 30 Hz, giving buyers flexibility to connect higher-resolution sources while projecting at the stated native resolution.

Buyer’s Guide

Buy it if
A fit for classrooms and small meeting spaces needing a professional projector with WUXGA native resolution, 5000-lumen normal brightness and a broad supported screen-size range.
Skip it if
4K UHD is the maximum supported input resolution, not the native projection resolution; the native resolution is WUXGA (1920 × 1200). Zoom, focus and keystone correction are manual. The stated five-year or 20,000-hour warranty with next-business-day exchange is identified as a US specification, so local warranty coverage is not confirmed here.
