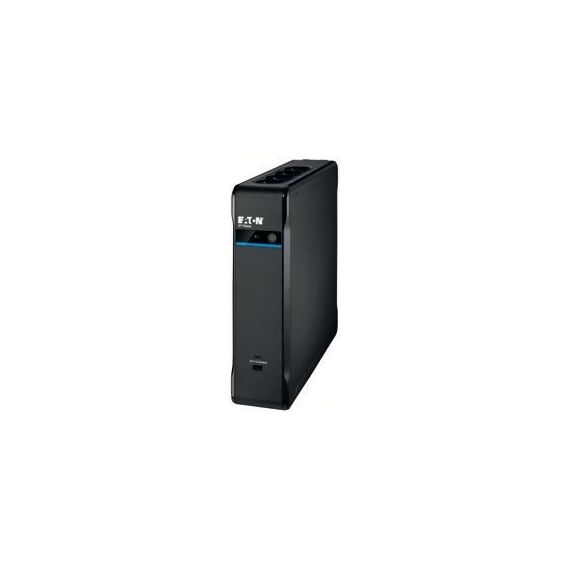

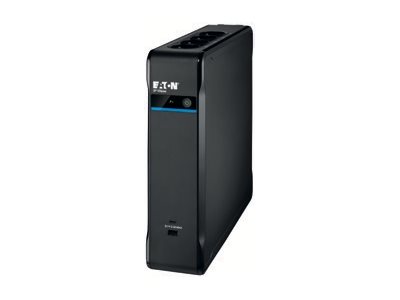

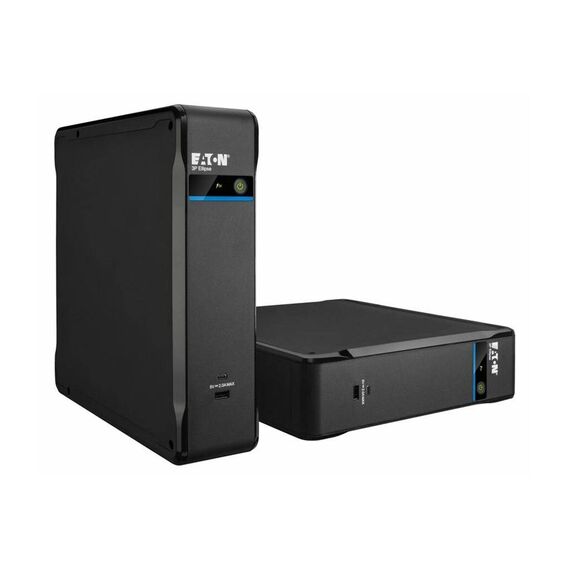

Eaton 3P Ellipse 1700 USB DIN/IT UPS AC 220-240 V 1040 Watt / 1700 VA / USB / output connectors: 8 | 3P1700UD
Brand: Eaton Power Quality
3P1700UD
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Product Features
- Efficient power capacity
With a power capacity of 1700 VA and output power of 1040 W, this UPS delivers reliable power for various devices. - Smart battery management
Features like automatic battery tests and a replaceable battery design ensure that the UPS remains functionally effective over time. - Versatile connectivity
Equipped with a total of 8 output connectors, the UPS provides flexible solutions for connecting different types of equipment. - Environmentally compliant
Designed in accordance with standards such as RoHS and REACH, this product meets key environmental regulations. - Reliable protection features
Includes circuit breaker protection and surge suppression to safeguard connected devices during power events.
Special Features
- Low sound emission at 25 dB for quiet operation
- Single replaceable battery enhancing convenience
- Multiple output connectors including 4-pin USB Type-A and 24-pin USB-C
- Remote management option via USB interface
- Robust power protection with surge suppression
Product Specification
| Device Type | UPS - external |
| Power Device | Power Device |
| UPS Technology | Off-line |
| Input Voltage | AC 220-240 V |
| Input Voltage Range | AC 184 - 264 V |
| Input Voltage Range (Adjustable) | AC 160 - 284 V |
| Frequency Required | 50/60 Hz |

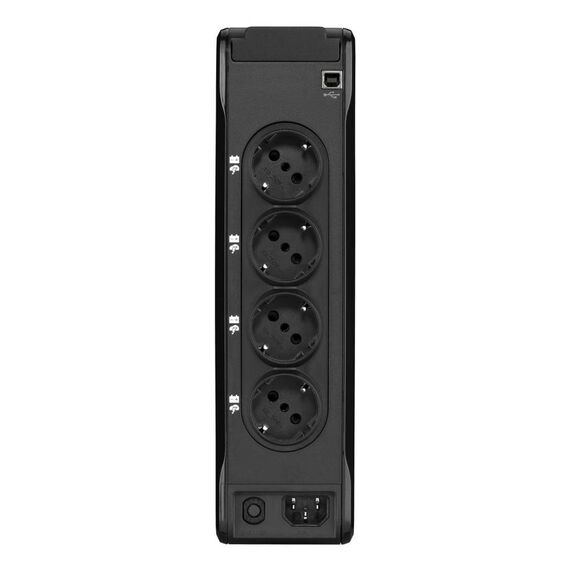

| Power Output Connectors Details | 4 x DIN (surge) 4 x DIN (UPS and surge) 1 x 4 pin USB Type A 1 x 24 pin USB-C |
| Output Voltage | AC 230 V |
| Power Capacity | 1040 Watt / 1700 VA |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
| Battery | Battery |
| Quantity | 1 |
| Networking | Networking |
| Remote Management Interface | USB |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x management (USB) - 4 pin USB Type B |
| Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
| Miscellaneous | Miscellaneous |
| Cables Included | AC input cable USB cable |
| Features | Replaceable battery, fanless, 10 A circuit breaker, cold-start function, automatic battery test, deep discharge protection, reset breaker |
| Compliant Standards | IEC 61643-11, IEC 62040-1, IEC 62040-2 C2, IEC 62040-3, RoHS, REACH, PEP Ecopassport, CM, UKCA, CB |
| Software / System Requirements | Software / System Requirements |
| Software Included | Eaton UPS Companion |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years Limited warranty - battery - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Sound Emission | 25 dB |
| Dimensions & Weight | Dimensions & Weight |
| Width | 8.1 cm |
| Depth | 30.5 cm |
| Height | 31.2 cm |
| Weight | 7.8 kg |
Features - Eaton Power Quality - 3P1700UD
More Details
Product Code
CO16865
EAN Code
3553340621437
Manufacturer
Eaton Power Quality
