Eaton Protection Box 6 Tel@ USB DIN Surge Protector, 6x Schuko, 2x USB 2.4 A, RJ11 Phone/DSL Protection, 1.5 m Cable | EU Schuko Plug
Brand:
Eaton Power Quality
Eaton Protection Box 6 Tel@ USB DIN Surge Protector, 6x Schuko, 2x USB 2.4 A, RJ11 Phone/DSL Protection, 1.5 m Cable | EU Schuko Plug
€61.19 inc. VAT
PB6TUD
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Eaton Protection Box 6 Tel@ USB DIN — Surge Protector with Phone/DSL Line Protection and USB
6x SchukoRJ11 phone/DSL protection2x USB 2.4 AIEC 61643-11

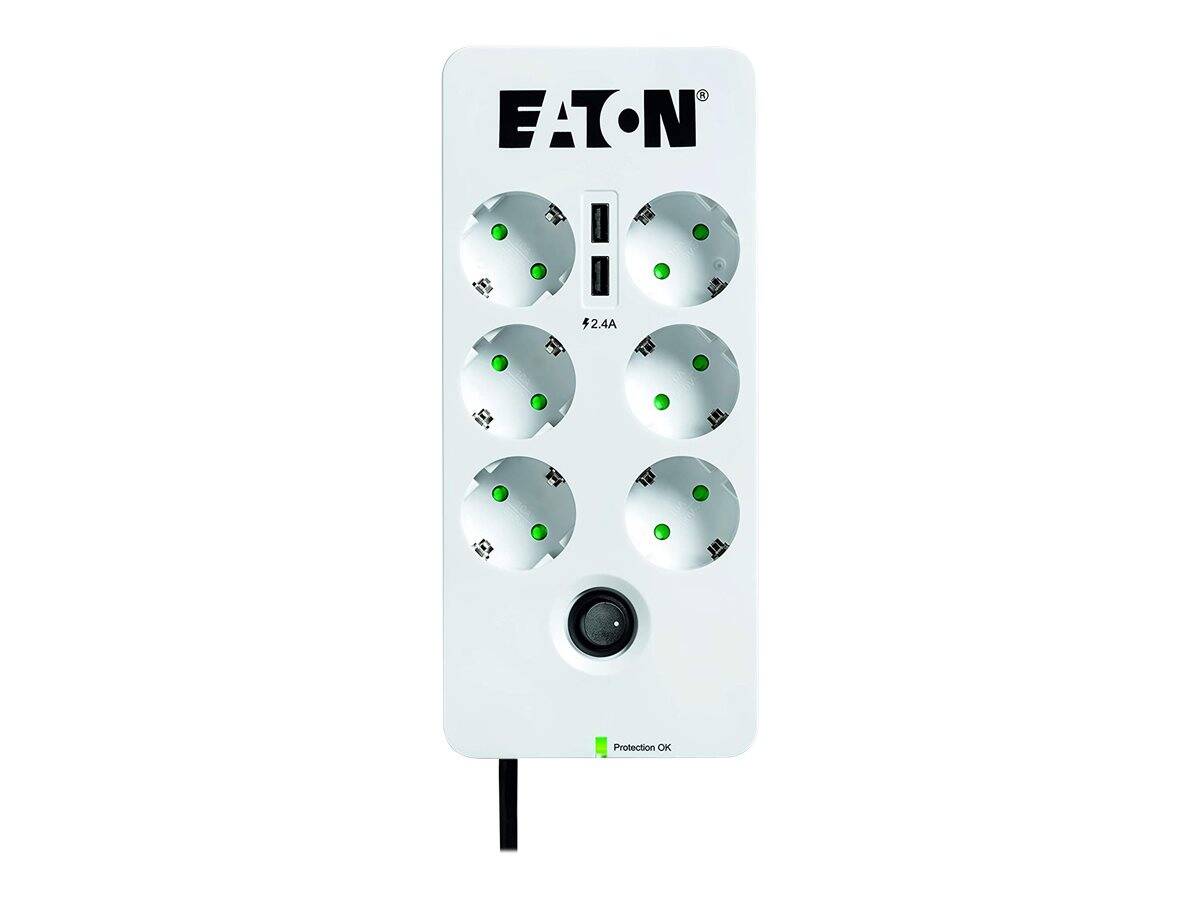

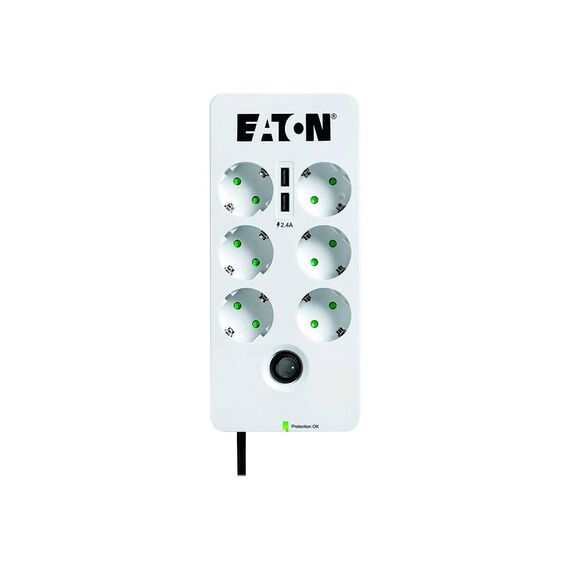

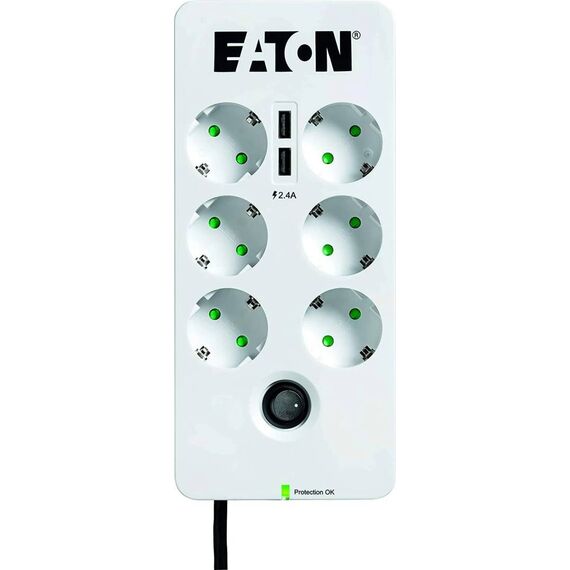

The Eaton Protection Box 6 Tel@ USB DIN (PB6TUD) is a six-socket Schuko surge protector that also protects a telephone/xDSL line and adds two USB charging ports. It is aimed at home offices and small businesses where a router, PC, monitor and phone line all need protection against surges arriving from either the mains or the telecom line.
Mains protection is tested to IEC/EN 61643-11 with a total rating of 18,000 A (three 6,000 A MOVs), a voltage protection level below 1.5 kV and a response time under 1 ns. The RJ11 line protection is rated 10,000 A. A 10 A circuit breaker guards against overload, the strip handles up to 10 A / 2500 W at 220–250 V, and it can be wall-mounted.
Before you order: Cyprus wall outlets are BS 1363 (Type G). This product has a Schuko (CEE 7/7) plug, so it needs a Schuko outlet or a properly rated Type G adapter; a fused 13 A adapter caps the total load at roughly 3,000 W. Line protection covers RJ11 telephone/xDSL lines only, not RJ45 Ethernet.
What's in the Box
- 1x Eaton Protection Box 6 Tel@ USB DIN with fixed 1.5 m cable and Schuko plug
- 1x RJ11 telephone/internet cable
- 1x quick guide
What It Means in Practice

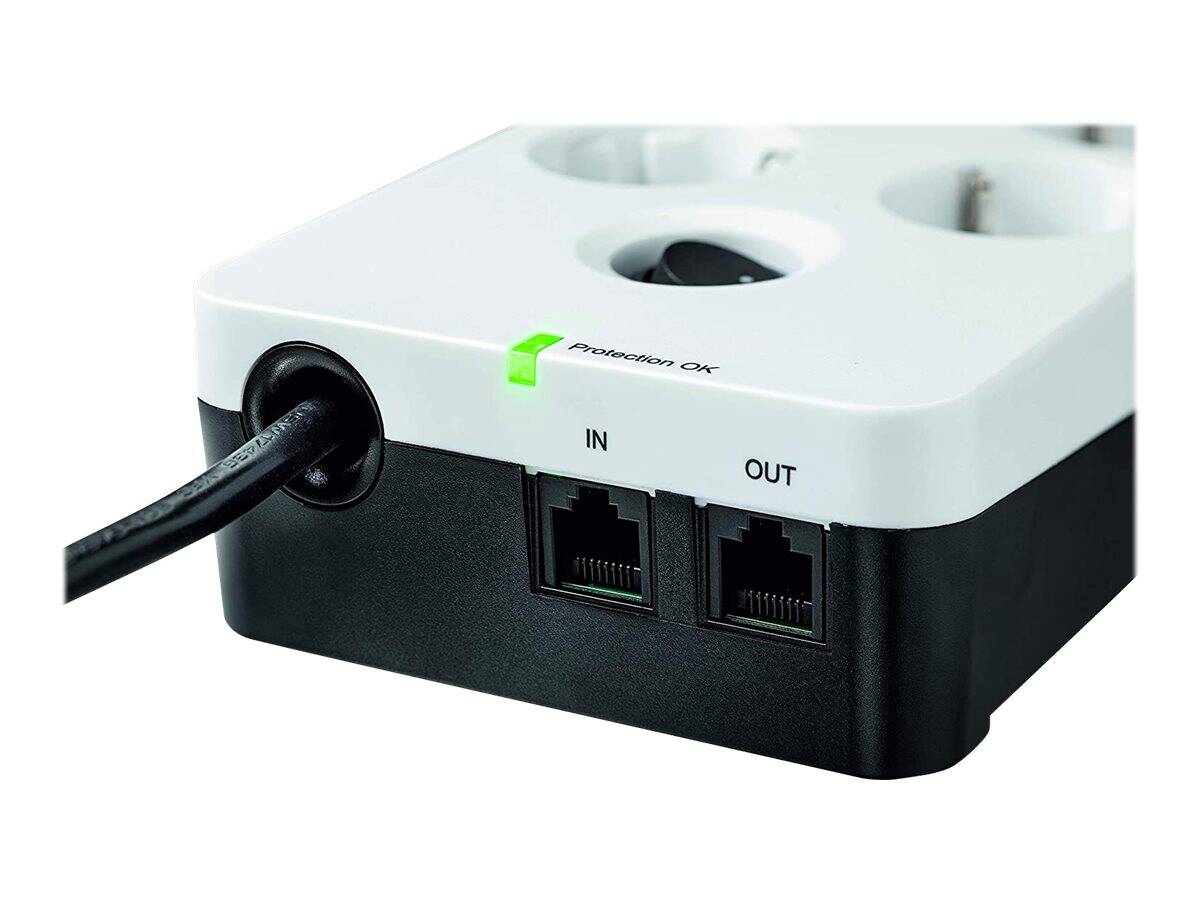

- Route the DSL line through the RJ11 in/out ports so surges on the phone line are diverted before they reach your modem.
- Plug the modem, PC and monitor into the protected sockets and charge a phone from the USB ports.
- The 10 A breaker trips if you overload it; reduce the load and reset.
- Keep the total under 2500 W — lower than many basic strips.
What Will Not Work
- Ethernet (RJ45) or coaxial line protection — only RJ11 is supported.
- Loads above 10 A / 2500 W, such as heaters or kettles.
- Fast laptop charging over USB — the two ports share 2.4 A.
- Direct use in a Cyprus Type G wall outlet without a Schuko outlet or rated adapter.
- Battery backup during power cuts — use a UPS.
Key Features
Mains surge protection
18,000 A total, Up < 1.5 kV, response < 1 ns, IEC/EN 61643-11.
Phone/DSL protection
RJ11 line protection rated 10,000 A.

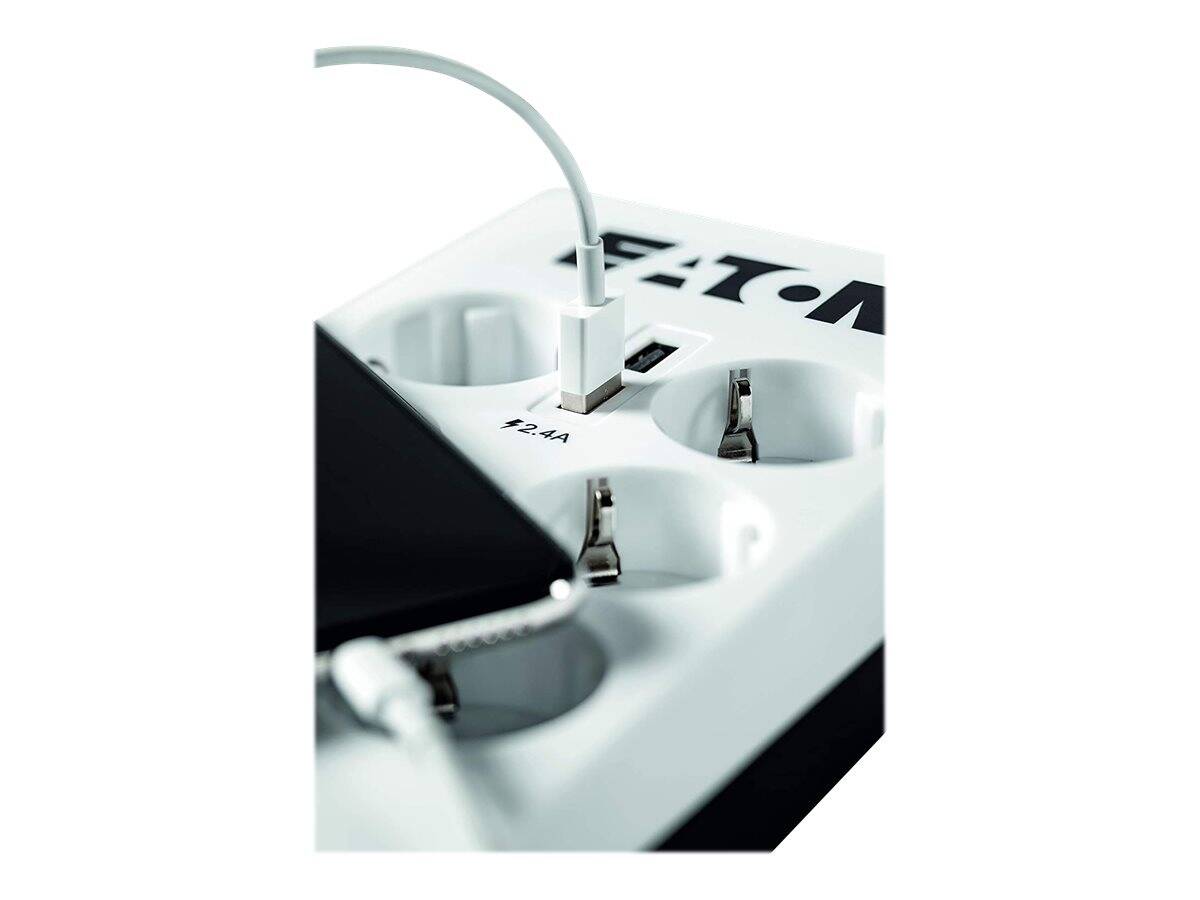

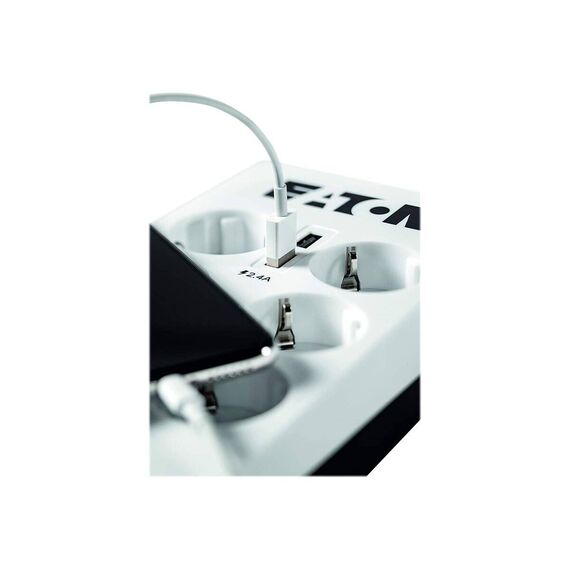

USB charging
Two USB ports, 2.4 A max.
10 A circuit breaker
Overload protection with reset.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Most surges that kill modems arrive over the phone line, which ordinary surge strips ignore. The Protection Box covers both mains and RJ11/DSL in one unit, which makes it a sensible choice for home offices on copper DSL lines. For other options see our power strips and extension leads range.
✓ Buy it if you want mains plus phone/DSL surge protection for a modem, PC and peripherals.
✕ Skip it if you need Ethernet or coax protection, high-wattage loads, or battery backup.
→ Also consider an Eaton UPS for backup power, or the Brennenstuhl Secure-Tec 19,500 A for mains-only protection.
Not sure if your line is RJ11 or RJ45? Tell us your internet provider and modem model and we will check.
Features - Eaton Power Quality - PB6TUD
More Details
Product Code
04:490864
EAN Code
3553340667237
Manufacturer
Eaton Power Quality
