Eight powered multi-gigabit ports with a faster uplink
8 × 2.5G PoE+1 × 10G SFP+100 W shared PoEFanless unmanaged

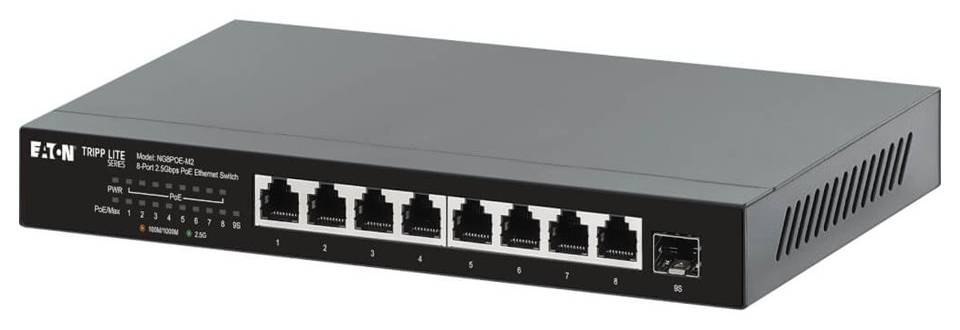

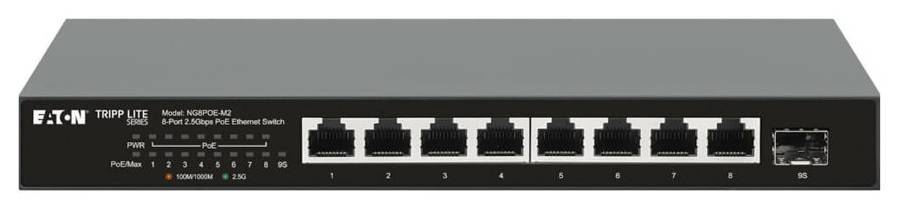

The Eaton Tripp Lite series NG8POE-M2 is an unmanaged switch with eight 2.5G RJ45 PoE+ ports and a separate 10G SFP+ uplink. It powers compatible devices within a shared 100 W budget and includes an external mains power supply. Fanless metal construction supports desktop or suitable wall placement without switch-management setup.
Best For: Small offices needing multi-gigabit wired access, modest PoE+ loads and a separately equipped SFP+ uplink.
Before you order: The 100 W PoE allowance is shared across all eight copper ports. Each supports up to 30 W, but eight 30 W devices exceed the total. Choose compatible SFP+ modules and fiber or a suitable DAC separately. Verify the local mains connection: the listed cords use NEMA 5-15P and Schuko plugs; a suitable Cyprus plug adapter may be required.
What's in the Box
- NG8POE-M2, external power supply, rubber mounting feet and owner’s manual.
- NEMA 5-15P-to-C13 and Schuko-to-C13 power cords, each 1.5 m.
- SFP+ module, fiber/DAC, Ethernet cables and any required local plug adapter are separate.
What It Means in Practice
- Connect compatible 100 Mbps, 1 Gbps or 2.5 Gbps devices to the eight copper ports.
- Supply suitable PoE/PoE+ devices within their individual requirements and the shared 100 W limit.
- Use the separate SFP+ uplink with compatible link hardware and a suitable remote endpoint.
- Connect without a local management interface; provide appropriate ventilation and mains power.
What Will Not Work
- Eight 30 W loads cannot be powered simultaneously within 100 W.
- This is not a managed VLAN switch or a PoE-powered input switch.
- The SFP+ cage does not provide PoE and no transceiver is included.
- Network performance depends on endpoints, cabling and storage; 10G uplink does not make each copper port 10G.
Key Features
Eight multi-gig ports
Eight RJ45 ports support compatible links up to 2.5 Gbps.
Shared PoE+ power
Up to 30 W per copper port, within 100 W combined output.
Separate faster uplink
One 10G SFP+ cage preserves all eight copper ports for devices.
Simple quiet hardware
Unmanaged operation, fanless metal housing and supplied external power supply.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Count the power load before counting PoE ports. Eight low-power devices may fit within 100 W, while several higher-power devices can exhaust that allowance earlier. The separate SFP+ uplink keeps the eight copper ports available, but compatible uplink hardware remains part of the installation plan.
Buyer’s Guide
✓ Buy it if You need eight 2.5G copper connections, compatible PoE+ loads within 100 W and a separate SFP+ uplink.
✕ Skip it if You need managed VLAN configuration, a larger total PoE budget or PoE-powered input.
→ Also consider Combined device power, uplink module and cabling, endpoint speeds and local mains plug.
Features - Eaton Power Quality - NG8POE-M2
Colour
black
Interface
- Ethernet
Standard
9-Port
Port Speed
- 2.5 Gbps,
- 10 Gbps
More Details
Product Code
04:577861
EAN Code
0037332287205
Manufacturer
Eaton Power Quality
