EFB ECOLAN K5516.0,15 Cat 6 S/FTP PiMF Patch Cable 0.15 m Orange LSZH Halogen-Free RJ45 250 MHz 4PPoE Ready

Brand:
EFB
EFBElektronik ECOLAN Patch cable RJ45 (M) to RJ45 K5516.0,15
EFB ECOLAN K5516.0,15 Cat 6 S/FTP PiMF Patch Cable 0.15 m Orange LSZH Halogen-Free RJ45 250 MHz 4PPoE Ready
€4.45 inc. VAT
Buy
K5516.0,15
€3.74
€4.45 inc. VAT
Ships from EU stock: 29 item(s)
+ −
Add to wish list Ask a question
Product Code
04:331239
EAN Code
4049759095550
Manufacturer
EFB
Quick Specs
Standard
Cat 6 (250 MHz)
Shielding
S/FTP PiMF
Length
0.15 m (15 cm)
PoE
4PPoE 802.3bt
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

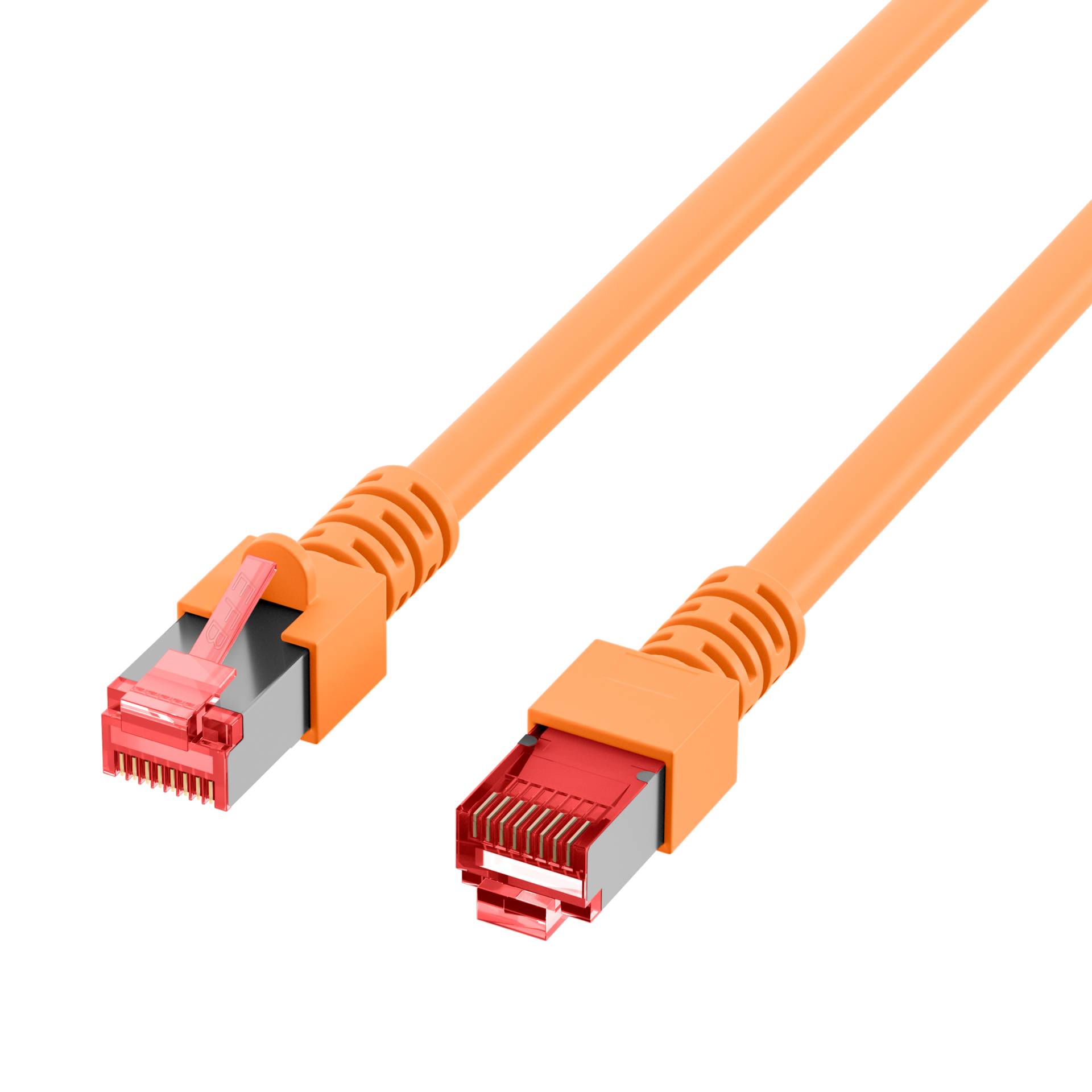

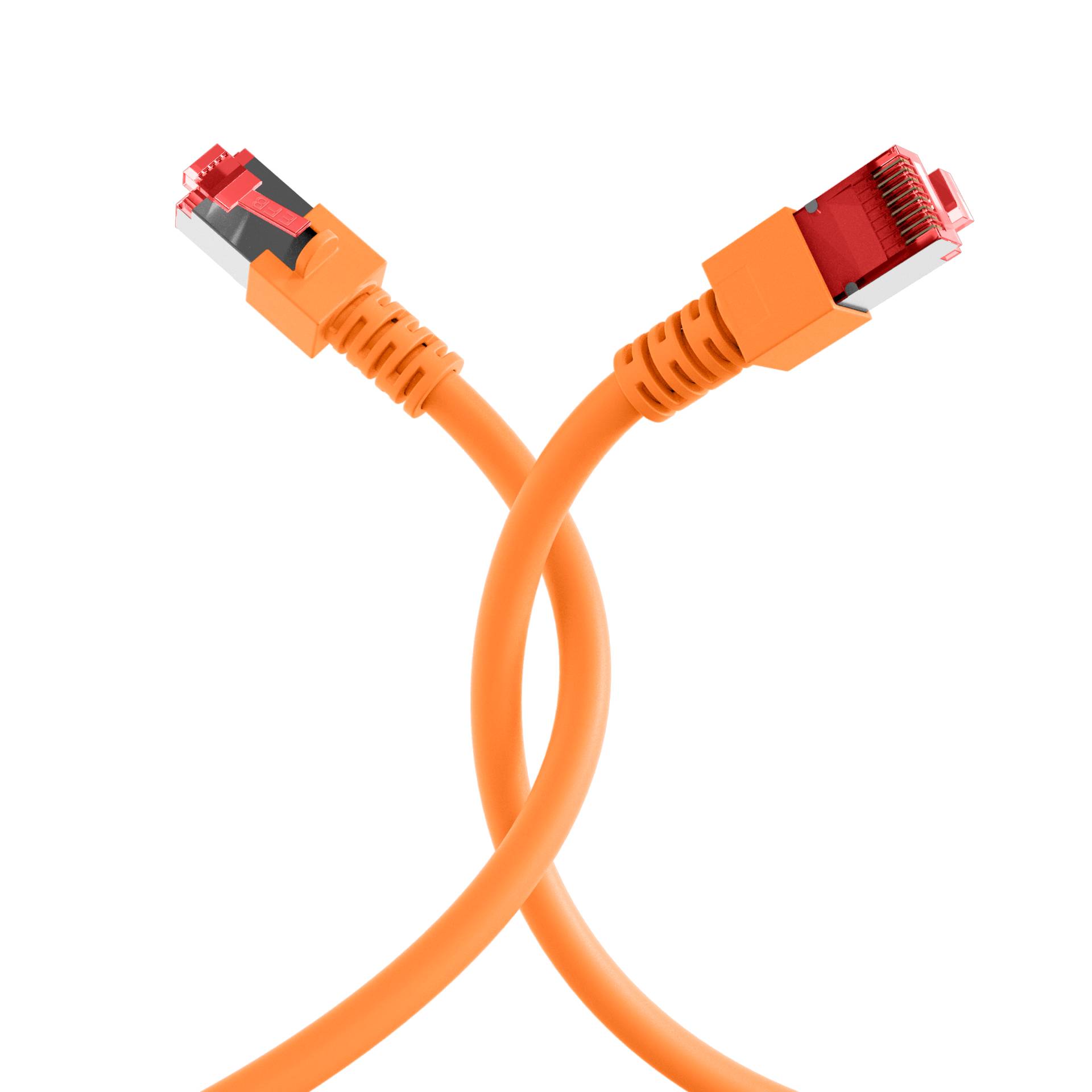

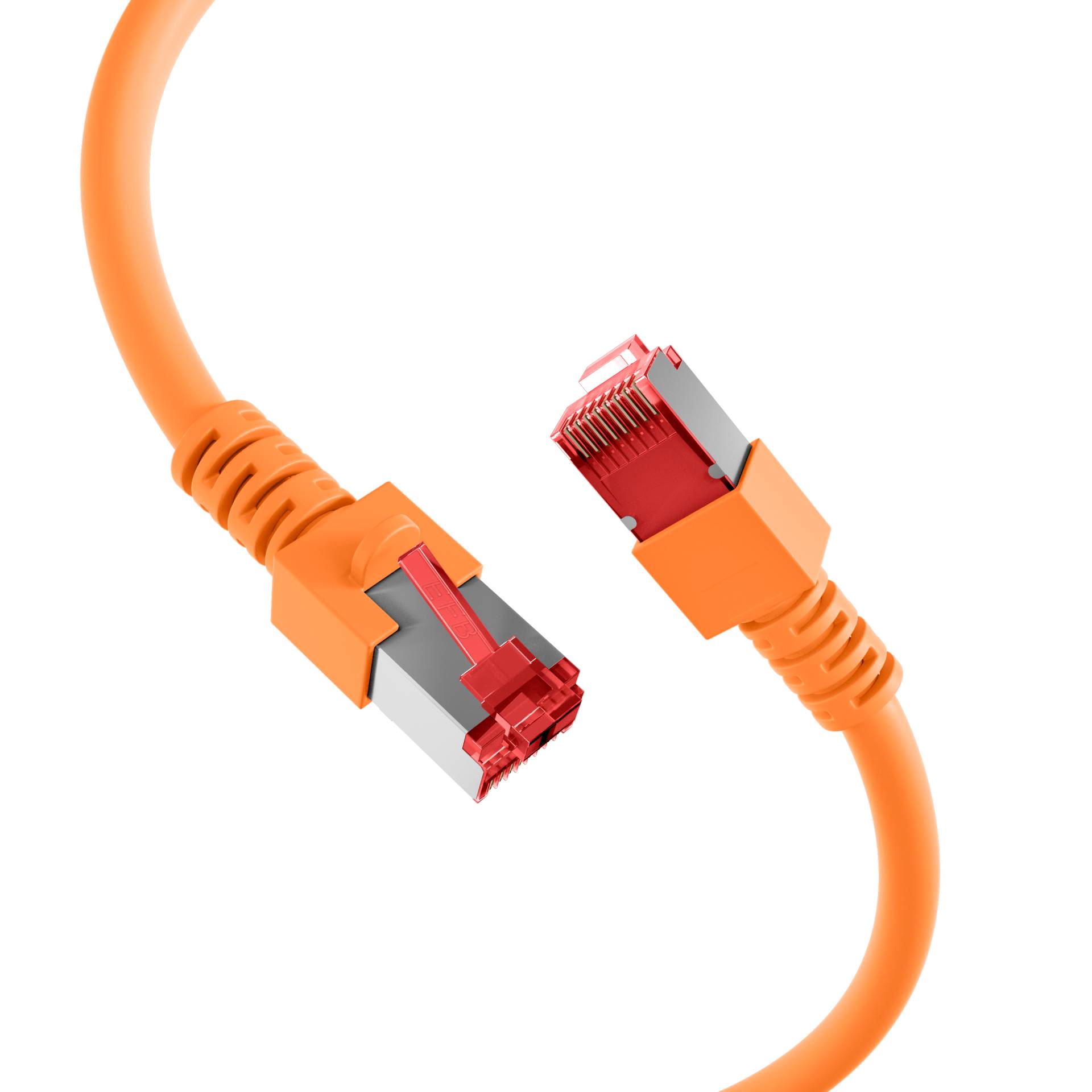

EFB ECOLAN Cat 6 S/FTP Patch Cable — 15 cm Orange

Cat 6 · 250 MHzS/FTP PiMFLSZH4PPoE ready15 cm
The EFB ECOLAN K5516.0,15 is a 15 cm orange Cat 6 S/FTP PiMF patch cable with an LSZH halogen-free jacket, made for ultra-short jumpers between a patch panel and a switch mounted directly above or below it. Part number K5516.0,15 uses AWG 27/7 copper, gold-plated RJ45 plugs with locking-lever protection and supports 4-pair PoE up to IEEE 802.3bt. Typically in stock with fast delivery across Cyprus.
Before you buy — compatibility note
At 15 cm this cord only reaches between ports in adjacent rack units — measure the distance between the panel and switch ports before ordering. It is a Cat 6 (250 MHz) cord: for 10GBASE-T links choose a Cat 6A cord such as the EFB K5525F superflex series.

Key Features


S/FTP PiMF double shielding
Foil around each pair plus an overall braid improves EMC reserve in racks with dense, parallel cable routing.

4PPoE ready
EFB rates the ECOLAN range for PoE, PoE+ and 4-pair PoE to IEEE 802.3bt, suitable for switch-to-panel jumpers feeding cameras and access points.

Locking-lever protection
Moulded anti-kink boot protects the latch from snagging and breaking during re-patching.

Technical Specifications

Identification
Part Number K5516.0,15
EAN / GTIN 4049759095550
MPN K5516.0,15
Brand EFB-Elektronik
Colour Orange
Performance
Category Cat 6 (Class E)
Bandwidth 250 MHz
Data Rate Up to 5 Gbit/s per EFB
PoE PoE / PoE+ / 4PPoE IEEE 802.3bt
Construction
Shielding S/FTP PiMF — foil per pair plus overall braid
Conductor Copper, AWG 27/7 stranded
Outer Diameter 6.2 mm
Jacket LSZH — halogen-free, IEC 60332-1 / 60754-2 / 61034
Bend Radius > 31 mm
Connectors & Standards
Connectors RJ45 male to RJ45 male, IEC 60603-7-5, gold-plated, 1:1 T568B
Mating Cycles ≥ 750
Standards EN 50173-1, ISO/IEC 11801, EN 50575, RoHS
Physical
Length 0.15 m (15 cm)
Operating Temperature −20 to +60 °C
Protection IP20, silicone-free

Frequently Asked Questions

Is the EFB K5516.0,15 long enough to connect a patch panel to a switch?
Only if the ports sit in adjacent rack units. 15 cm is intended for 1U-to-1U patching; for a 2U gap or more use the 0.25 m or 0.5 m version.
Does the K5516.0,15 support PoE?
Yes. EFB rates the ECOLAN Cat 6 S/FTP range for PoE, PoE+ and 4-pair PoE to IEEE 802.3bt, and at 15 cm voltage drop and heating are negligible.
Can I use the K5516.0,15 for 10 Gigabit Ethernet?
It is a Cat 6, 250 MHz cord, which EFB rates for up to 5 Gbit/s. For guaranteed 10GBASE-T choose a Cat 6A cord such as the EFB K5525F superflex series.
Singular Expert Insight
Ultra-short 15 cm jumpers are the cleanest way to patch a panel straight into network switches mounted in the next rack unit: no slack loops, no cable management arm. Orange makes it easy to flag a VLAN or uplink. If the same rack needs 10G ports, match it with the Cat 6A EFB K5525F superflex 15 cm cords.

Buyer's Guide

Buy it if
You patch 1U panels to 1U switches and want slack-free, colour-coded Cat 6 S/FTP jumpers with PoE support.
Skip it if
You need 10GBASE-T certainty or a reach beyond one rack unit.
Also consider
EFB K5525FBL.0,15 / K5525FRT.0,15 (Cat 6A superflex, 15 cm) or the ECOLAN K5516.1 at 1 m.
