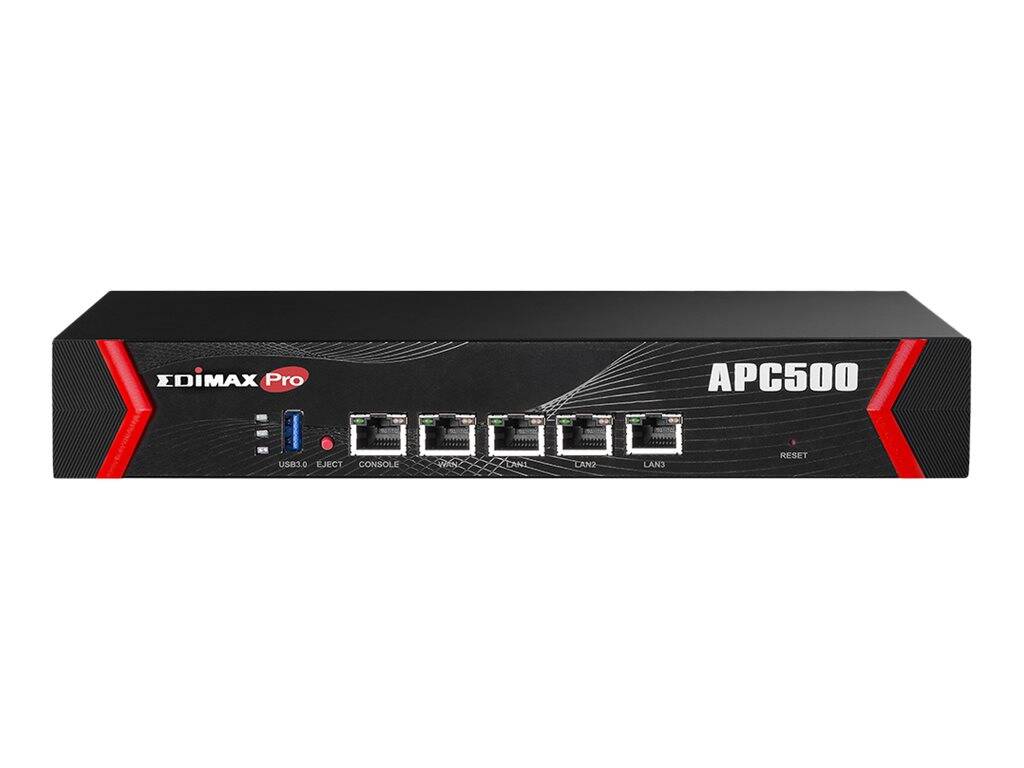

Edimax APC500 Wireless AP Controller - Network management device - 4 ports - GigE - DC power - rack-mountable | APC500
Please sign in so that we can notify you about a reply
Special Fetures
- Manage up to 30 Edimax Pro APs
- Suitable for SMB/SME environments
- Robust AP management
- Local or built-in RADIUS (AAA) support for user and guest accounts
- Batch setup/configuration
- Group firmware upgrade & restart
- Channel/RF power/load optimization
- Flexible WLAN groups
- Reliable standalone box to support SMB heavy usage
Product Specification
| Device Type | Network management device |
| Width | 17.8 cm |
| Depth | 26.5 cm |
| Height | 4.4 cm |
| Weight | 1 kg |
| Processor / Memory / Storage | |
| Flash Memory | 8 GB |
| Networking | |
| Form Factor | Rack-mountable |
| Ports Qty | 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | Manageable access points: 32 |
| Status Indicators | Power, system, link/activity |
| Features | VLAN support, Wireless Intrusion Detection System (WIDS), roaming function, rogue access point detection |
| Authentication Method | RADIUS |
| Expansion / Connectivity | |
| Interfaces | 4 x 1000Base-T - RJ-45 ¦ 1 x USB 3.0 - Type A ¦ 1 x management - RJ-45 |
| Miscellaneous | |
| Included Accessories | Rack mount kit, wall mounting kit |
| Cables Included | 1 x console cable ¦ 1 x network cable |
| Power | |
| Power Device | External power adapter |
| Voltage Required | DC 12 V |
| Power Consumption Operational | 8 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 90% (non-condensing) |
Features - Edimax - APC500
More Details
Product Code
04:188496
EAN Code
4717964701008
Manufacturer
Edimax
