Edimax GP-101ST — power a non-PoE device from a PoE+ port
IEEE 802.3at input5 / 9 / 12 V DCGigabitY-cable included

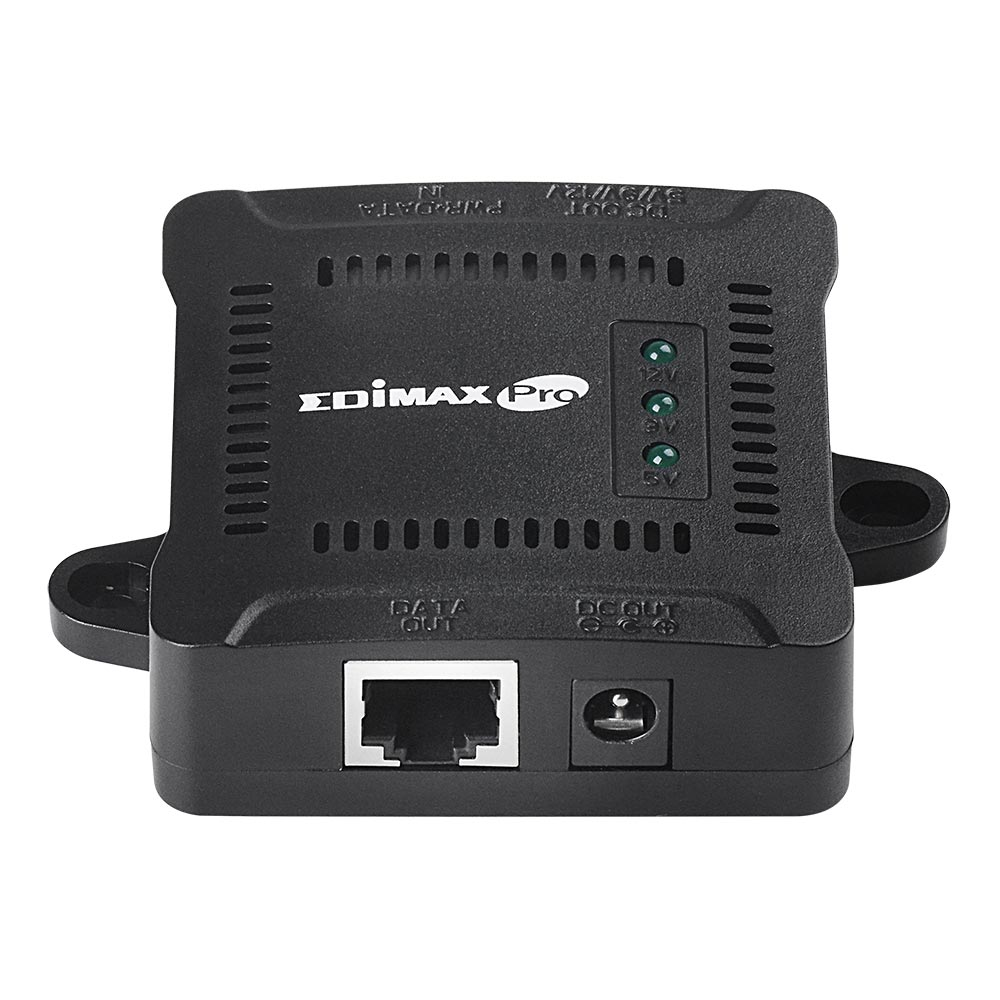

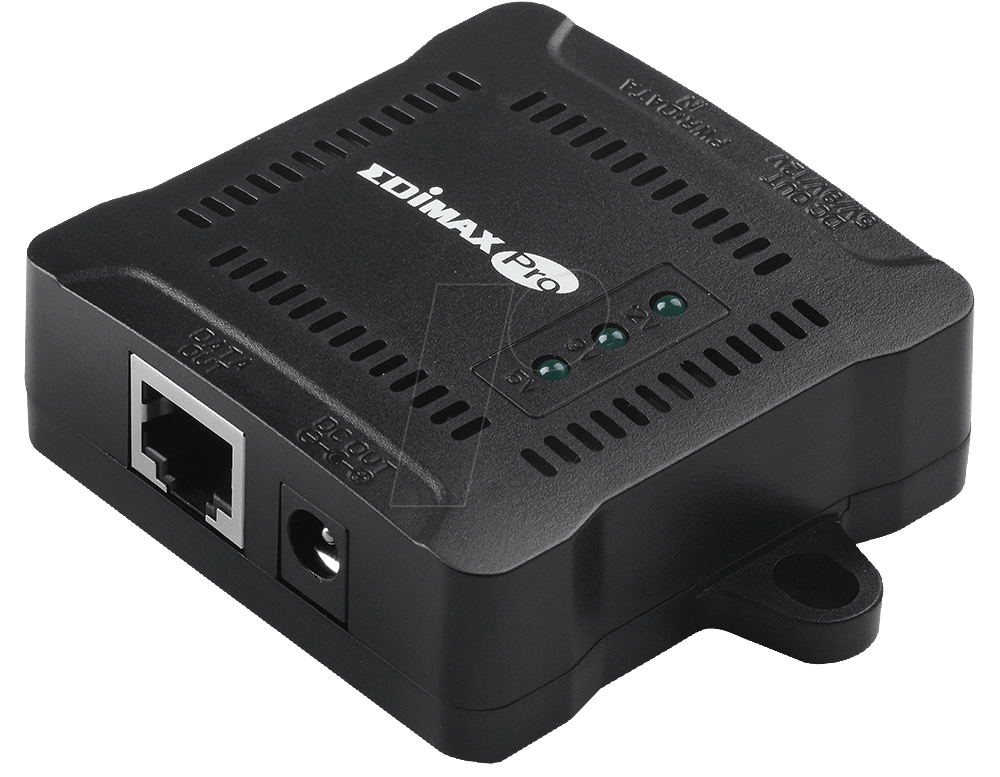

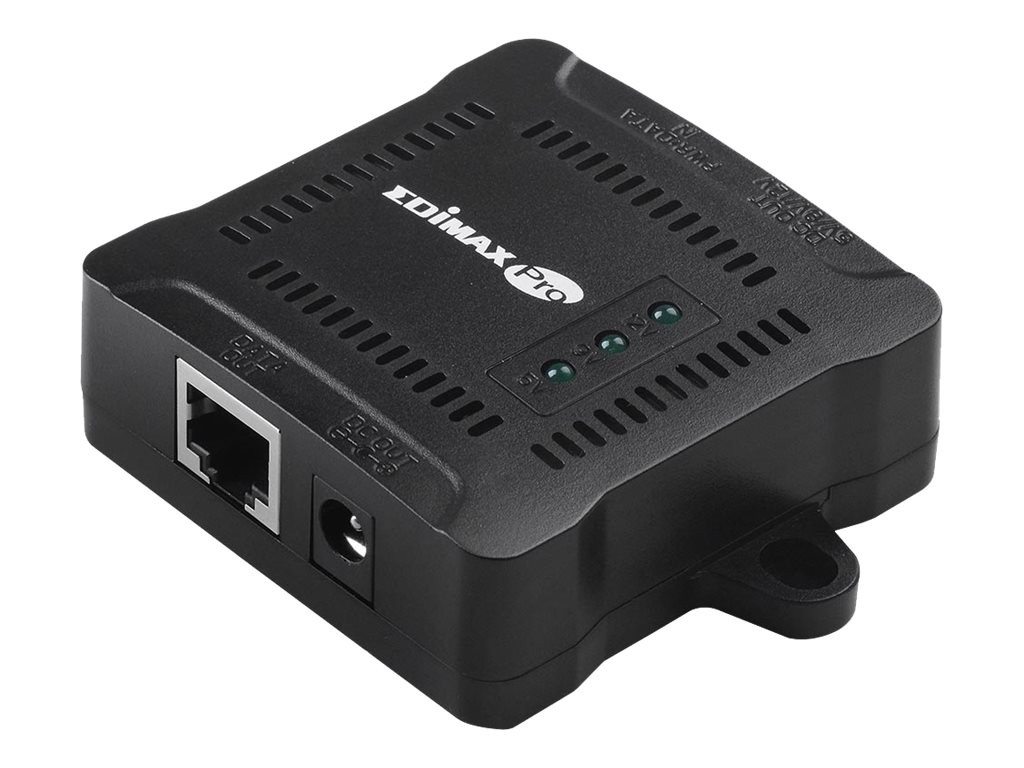

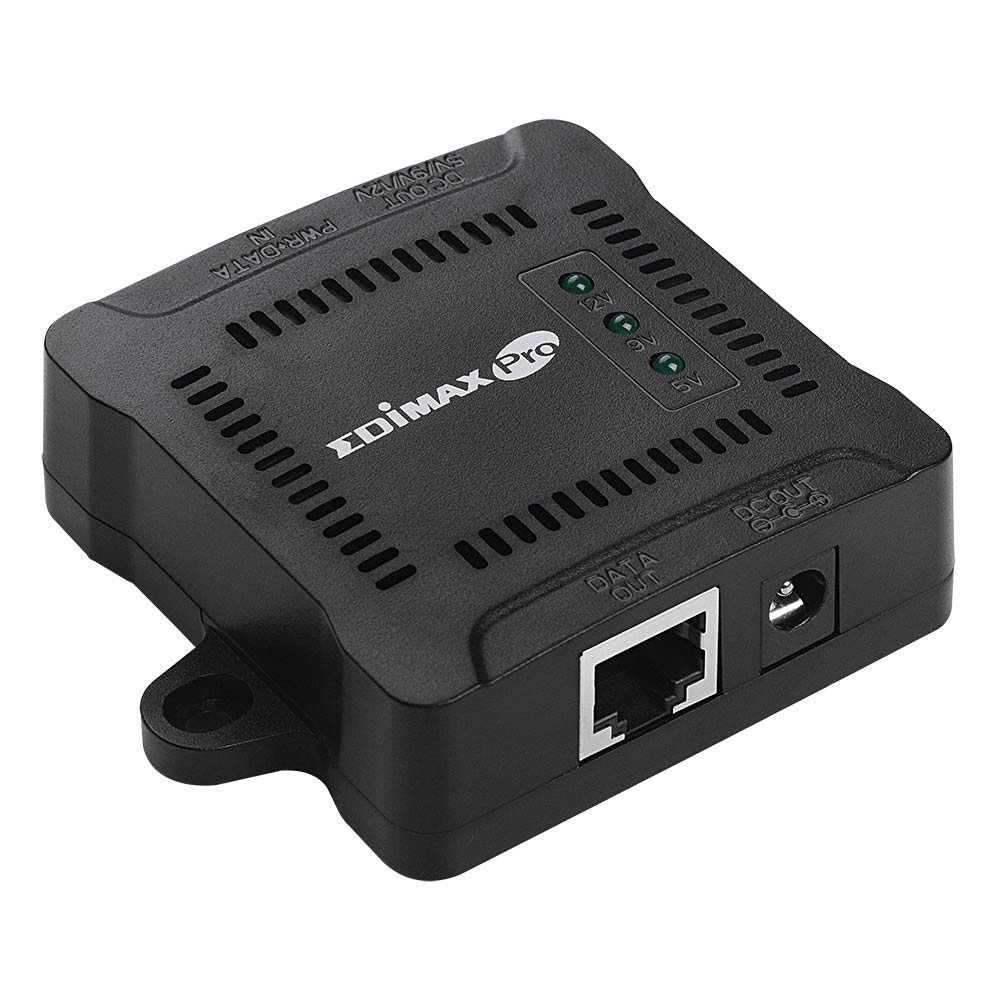

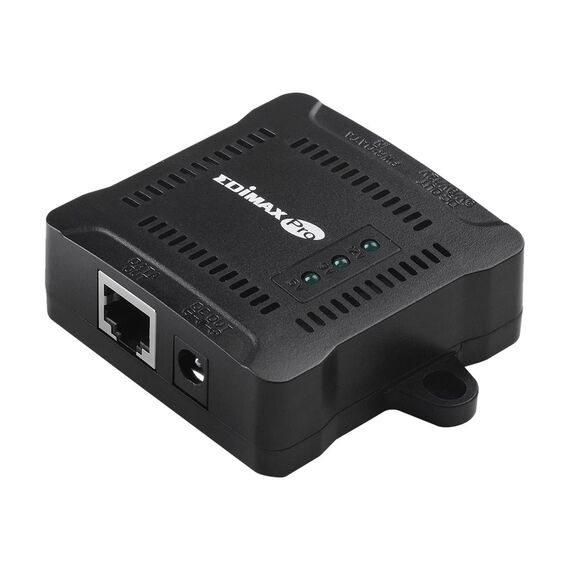

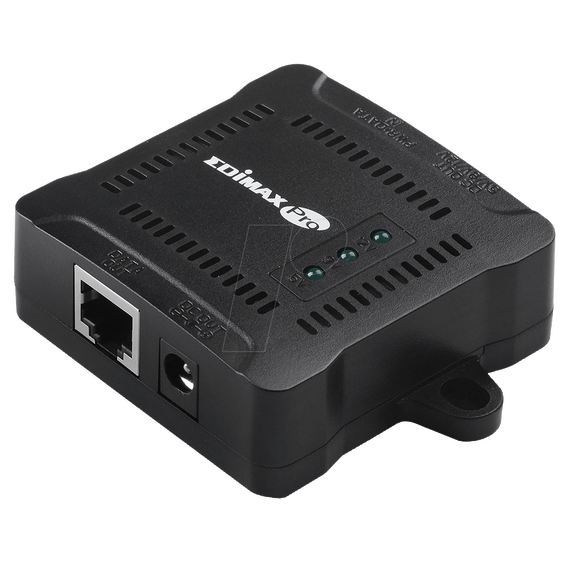

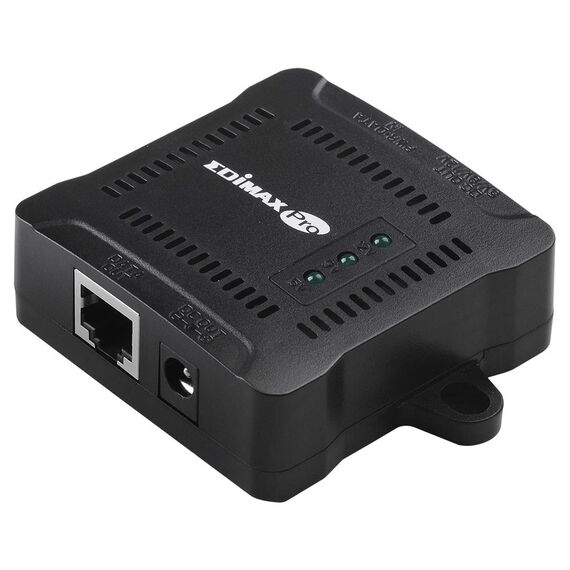

The Edimax GP-101ST is a Gigabit PoE+ splitter that takes IEEE 802.3at/af power from a PoE switch or injector and splits it into a DC output plus a Gigabit data port. It is the simple way to install a camera, access point, router or other network device that has no PoE input, using one Ethernet cable.

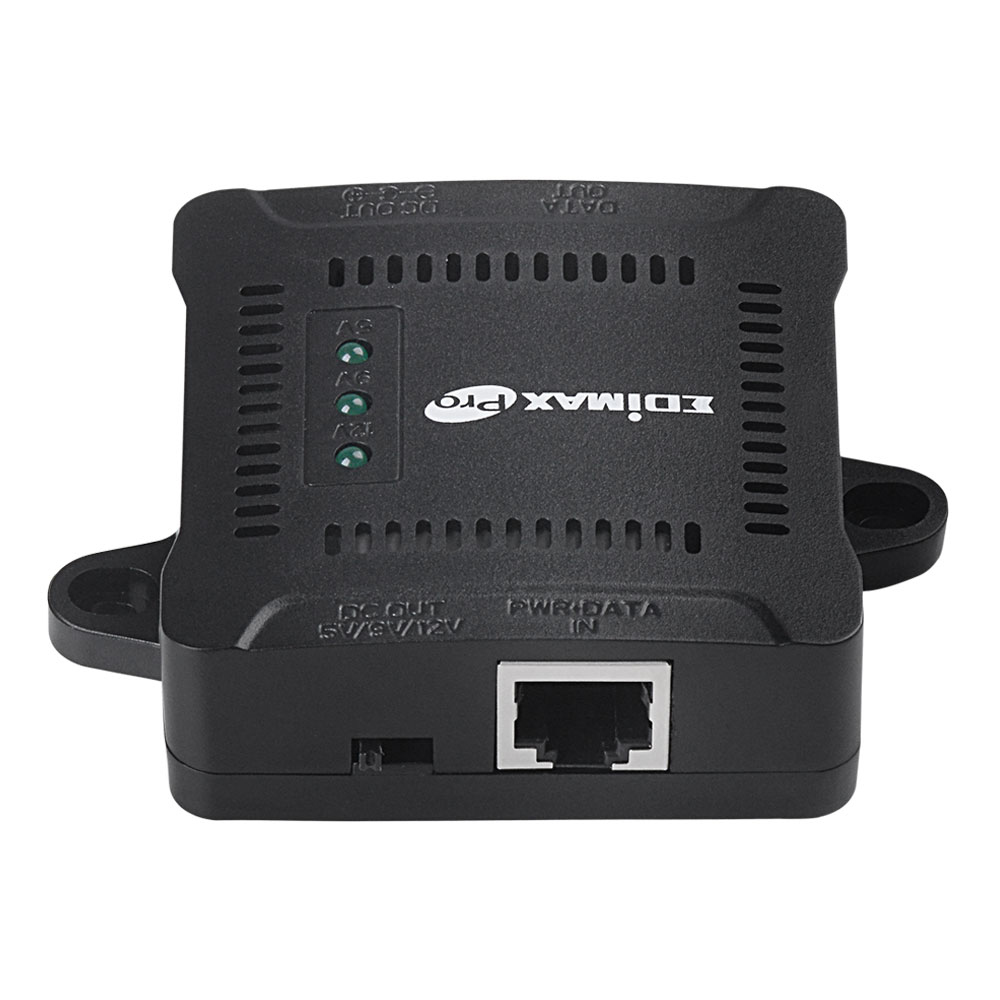

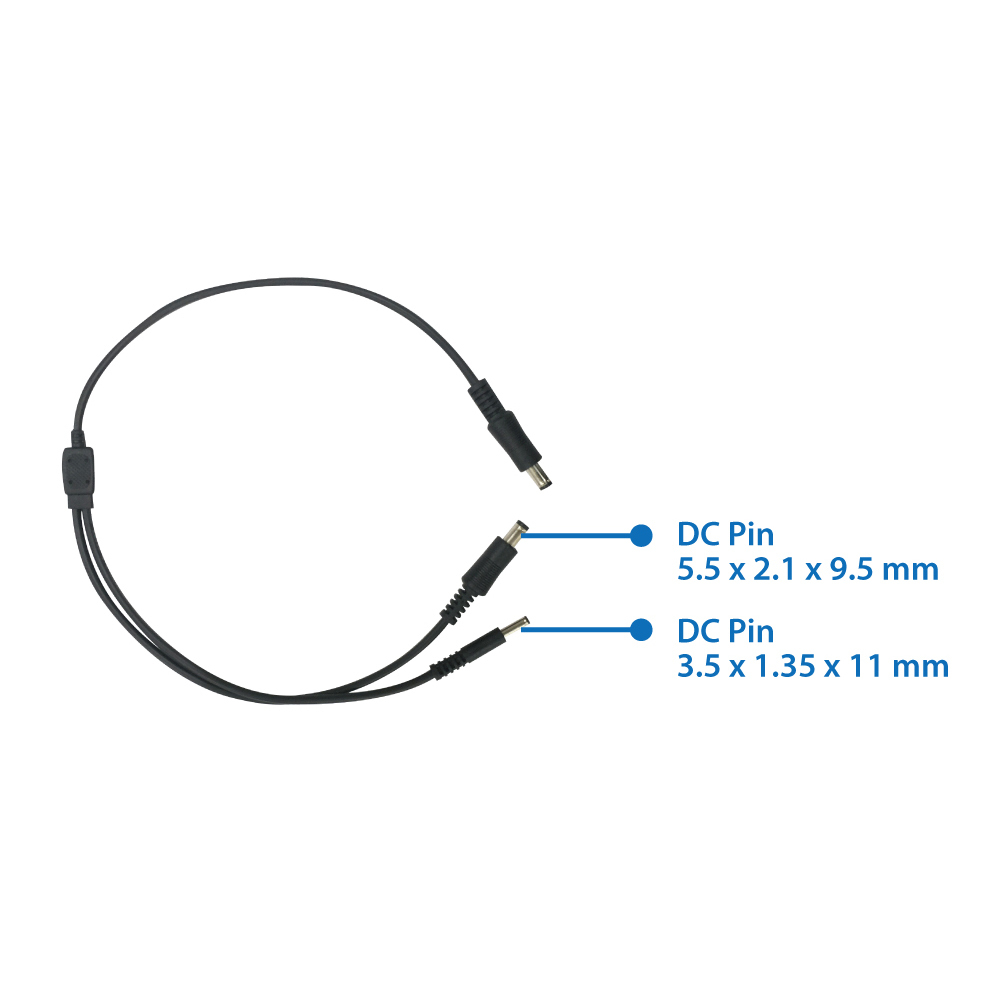

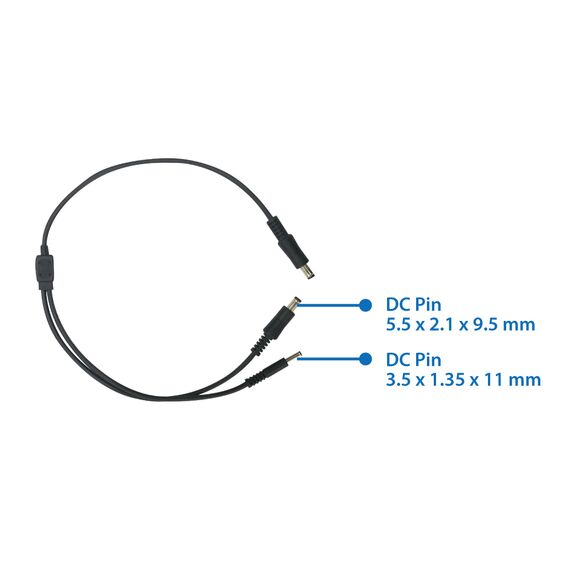

A slide switch selects 5 V, 9 V or 12 V DC, each at up to 2 A, and LEDs show the selected voltage. The included DC Y-cable carries two plug sizes — 5.5 × 2.1 mm and 3.5 × 1.35 mm — which cover most small network devices. The splitter accepts PoE on either Mode A or Mode B pairs.
Before you order: Select the correct voltage before connecting the device — a wrong setting can damage it. The maximum current is 2 A on every voltage, so a 12 V device that needs more than 24 W will not run.
What's in the Box
- GP-101ST PoE+ splitter
- DC Y-cable (5.5 × 2.1 mm and 3.5 × 1.35 mm plugs)
- Quick installation guide
What It Means in Practice
- One cable from the PoE switch replaces the power adapter and the socket at the device.
- The Y-cable means the plug size usually fits without an extra adapter.
- Works with 802.3af and 802.3at sources and with Mode A or Mode B power pairs.
- Small enough (63 × 64 × 23 mm, 65 g) to hide behind a camera or in a ceiling box.
What Will Not Work
- It does not output 24 V or 48 V.
- It does not create PoE — an 802.3af/at switch or injector is needed upstream.
- It does not pass PoE through to a PoE device.
- It is not weatherproof.
Key Features
Three voltages
5, 9 or 12 V DC by slide switch, up to 2 A.
Gigabit data
10/100/1000 Mbps data port.
Mode A and B
Accepts power on either pair set (1/2+, 3/6− or 4/5+, 7/8−).
Status LEDs
5 V / 9 V / 12 V, Power and AC indicators.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A PoE+ splitter saves running mains power to cameras and small devices that lack PoE. Check the device voltage, current and plug size before ordering. For cameras with built-in PoE, see our IP cameras.
✓ Buy it if you need 5, 9 or 12 V DC plus Gigabit data at a device that has no PoE input.
✕ Skip it if the device already takes PoE or needs 24 V / 48 V.
→ Also consider the Edimax GP-101IT PoE+ injector if your switch has no PoE.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
