Edimax Pro GS-5216PLC 18-Port Gigabit PoE+ Long Range Web Smart Switch, 16x PoE+ + 2x Combo SFP, 280W, Rackmount

Brand:
Edimax

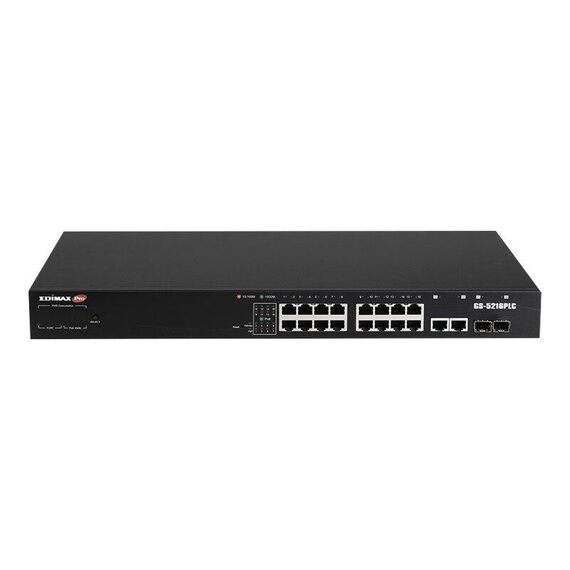

Edimax GS-5216PLC - Switch - smart - 16 x 10/100/1000 + 2 x combo
Edimax Pro GS-5216PLC 18-Port Gigabit PoE+ Long Range Web Smart Switch, 16x PoE+ + 2x Combo SFP, 280W, Rackmount
€293.24 inc. VAT
Buy
GS-5216PLC
€246.42 €273.80
€293.24 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
04:407499
EAN Code
4717964704252
Manufacturer
Edimax

Quick Specs

Type
Web Smart Long Range PoE+ switch
Ports
16x Gigabit PoE+ + 2x combo RJ45/SFP
PoE budget
280W (30W per port)
Compatibility
IEEE 802.3af/at, 19" rack or desktop
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Edimax Pro GS-5216PLC — 18-Port Gigabit PoE+ Long Range Web Smart Switch

16x Gigabit PoE+ · 280W2x combo RJ45/SFP uplinksSurveillance VLAN · 200 m PoE19" rack or desktop

The Edimax Pro GS-5216PLC is a Web Smart switch with sixteen Gigabit PoE+ ports and two Gigabit RJ45/SFP combo uplinks, built for IP surveillance and Wi-Fi deployments where a recorder or controller must power and manage up to sixteen cameras or access points.

It provides up to 30W per port (IEEE 802.3af/at) from a 280W budget, a long-range mode that carries PoE and data up to 200 m at 10 Mbps, one-click Surveillance VLAN with camera auto-discovery, and a front LED display showing the total PoE draw and per-port consumption.

Before you order: Combo uplinks: each of the two uplinks is either RJ45 or SFP, not both. SFP modules are not included. The switch has a fan in a hot-swappable fan tray, so it is not silent.

What's in the Box

  • GS-5216PLC switch
  • Rack-mount kit (as stated by Edimax; full package list not published)

What It Means in Practice

  • Sixteen cameras at up to 17W each fit within the 280W budget; fewer at full 30W.
  • Long-range mode reaches cameras up to 200 m away (10 Mbps), beyond the normal 100 m Ethernet limit.
  • Surveillance VLAN separates camera traffic automatically; PoE scheduling, priority and PD alive check keep cameras online.
  • The LED display shows the live PoE budget, so you can see headroom before adding a device.

What Will Not Work

  • The 280W budget does not allow 30W on all 16 ports at once.
  • No 10G uplinks — uplinks are Gigabit.
  • No PoE++ (802.3bt).
  • Not fanless.
  • Not a router: no Layer 3 routing listed.

Key Features


280W PoE+
16 ports up to 30W, backfeed protection, PD alive check, scheduling and priority.

Long Range PoE
Up to 200 m at 10 Mbps for distant cameras.

Surveillance-ready
One-click Surveillance VLAN with auto-discovery, Voice VLAN, IGMP v1/v2/v3 snooping.

Web Smart management
Web GUI, CLI, SNMP v1/v2c/v3, HTTPS/SSH, 802.1Q, ACL, QoS (8 queues), LACP, STP/RSTP/MSTP, dual firmware.

Technical Specifications

Identification
Part Number GS-5216PLC
Brand Edimax Pro
Type Web Smart Long Range PoE+ switch
Ports
PoE+ RJ45 16x 10/100/1000 Mbps
Uplinks 2x Gigabit combo RJ45/SFP
PoE standard IEEE 802.3af / 802.3at, Mode A
PoE per port Up to 30 W
PoE budget 280 W
Long range 200 m at 10 Mbps
Performance
Switching capacity 36 Gbps
Forwarding rate 26.7 Mpps
MAC address table 8K entries
Jumbo frames 9 KB
Buffer 4.1 Mb
Management
Interfaces Web GUI, CLI, SNMP v1/v2c/v3, HTTPS, SSH, Telnet
VLAN 802.1Q, Surveillance VLAN, Voice VLAN
QoS 8 queues
Redundancy STP/RSTP/MSTP, LACP/static trunk (8 groups)
Other IGMP v1/v2/v3, LLDP-MED, 802.1X, ACL, DHCP snooping, port mirroring, IPv4/IPv6
Power & physical

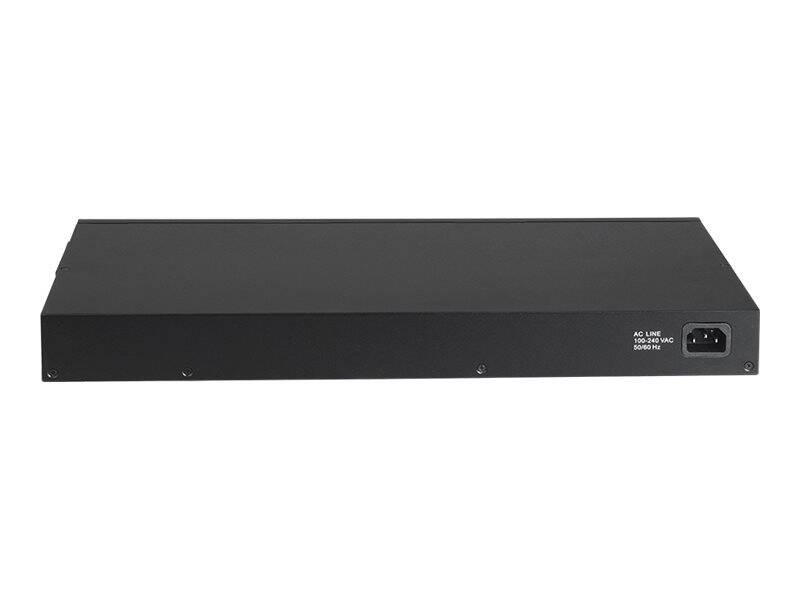

Power Internal, 100-240V AC

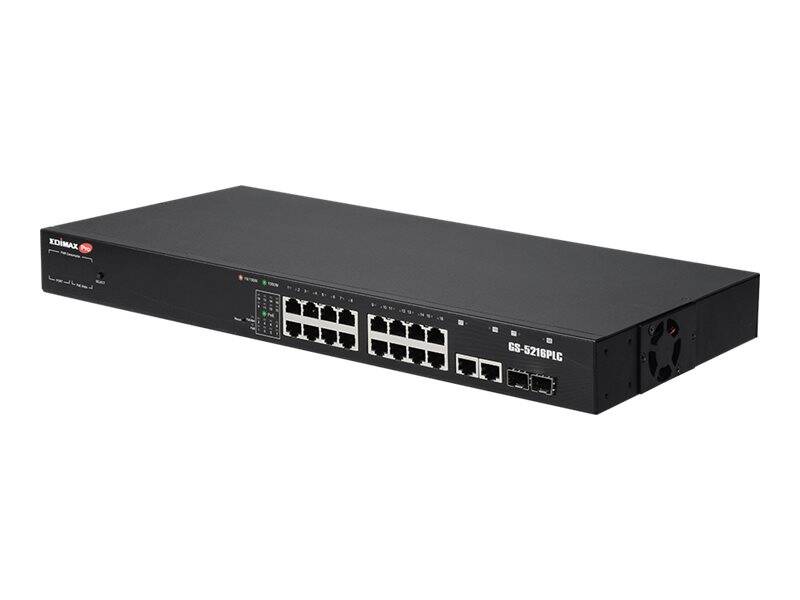

Cooling 1 fan, hot-swappable fan tray

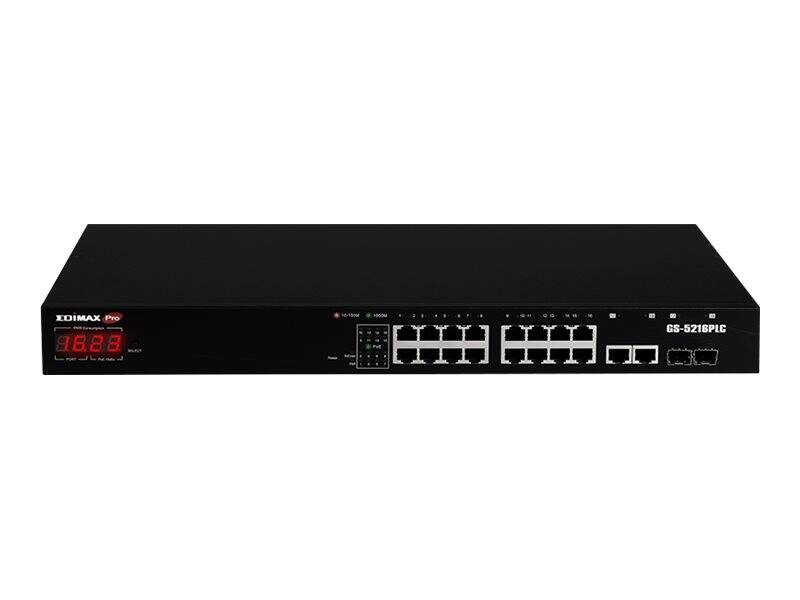

Display 4-digit LED: PoE budget and per-port draw
Housing Metal
Mounting 19" rack (kit included) or desktop
Dimensions 441 x 196 x 44 mm
Weight 3.03 kg
Operating temperature 0 to 50°C
Certifications FCC, CE, BSMI
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Manufacturer warranty term not published by Edimax — claims handled through Singular

Frequently Asked Questions

How far can a camera be from the switch?
Normally 100 m; in long-range mode up to 200 m at 10 Mbps, which is enough for most IP cameras.
Can I see how much PoE is used?
Yes — the front LED display shows total PoE draw and per-port consumption.
Does it work with any NVR?
It is a standard switch, so any IP camera system works; Surveillance VLAN simply makes separating camera traffic easier.
Singular Expert Insight · Buyer's Guide
The GS-5216PLC is designed around CCTV: sixteen PoE+ ports, long-range PoE, automatic Surveillance VLAN and a live PoE display make installs and troubleshooting faster. Check your total camera draw against the 280W budget. Compare with other network switches.
✓ Buy it if you are installing up to 16 PoE cameras or APs and want simple VLAN separation.
✕ Skip it if you need 30W on every port at once, 10G uplinks or a silent switch.
→ Also consider Edimax Pro GS-5208PLG V2 for 8 PoE+ ports, or TRENDnet TPE-1620WSF (370W).
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
