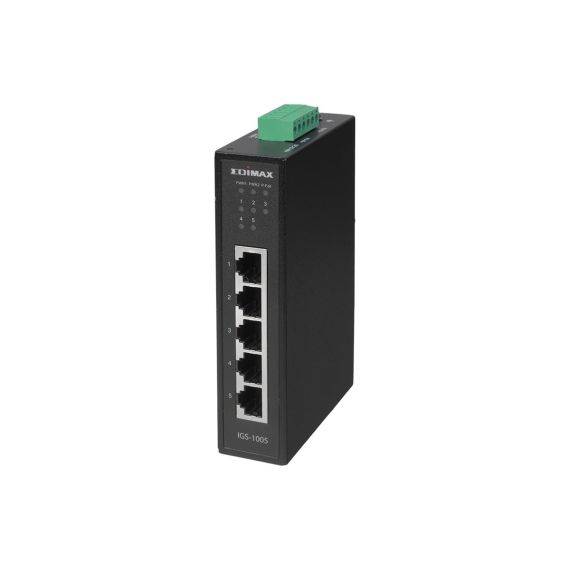

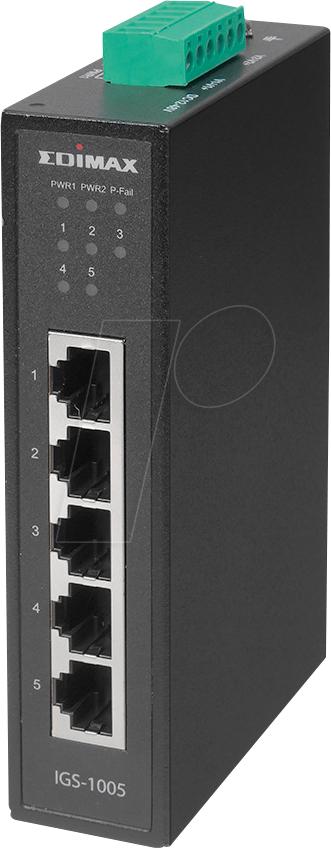

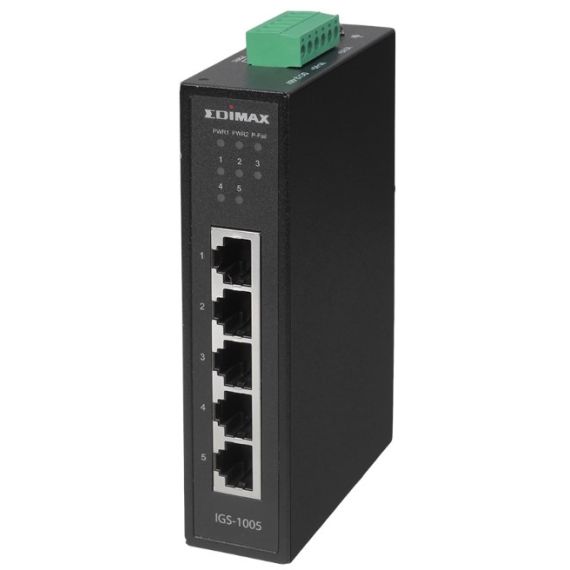

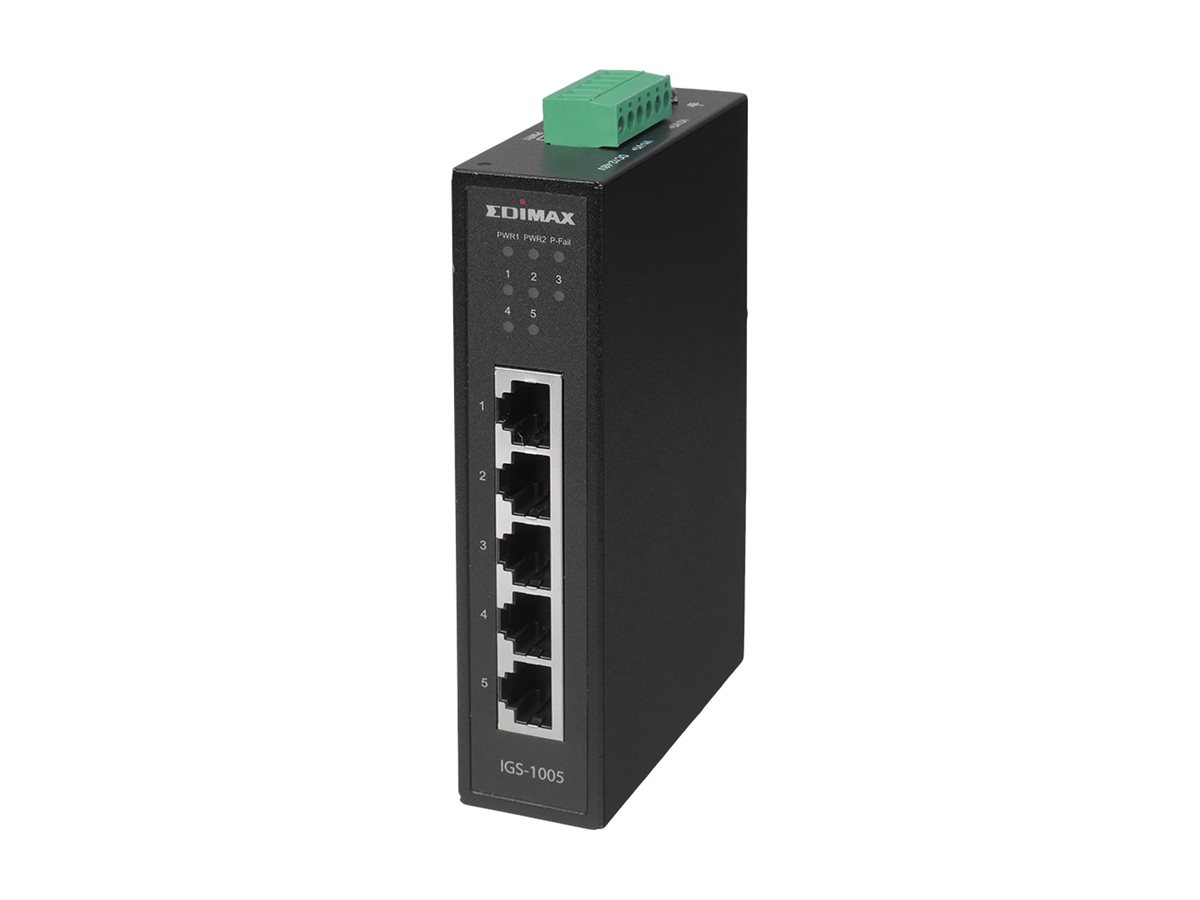

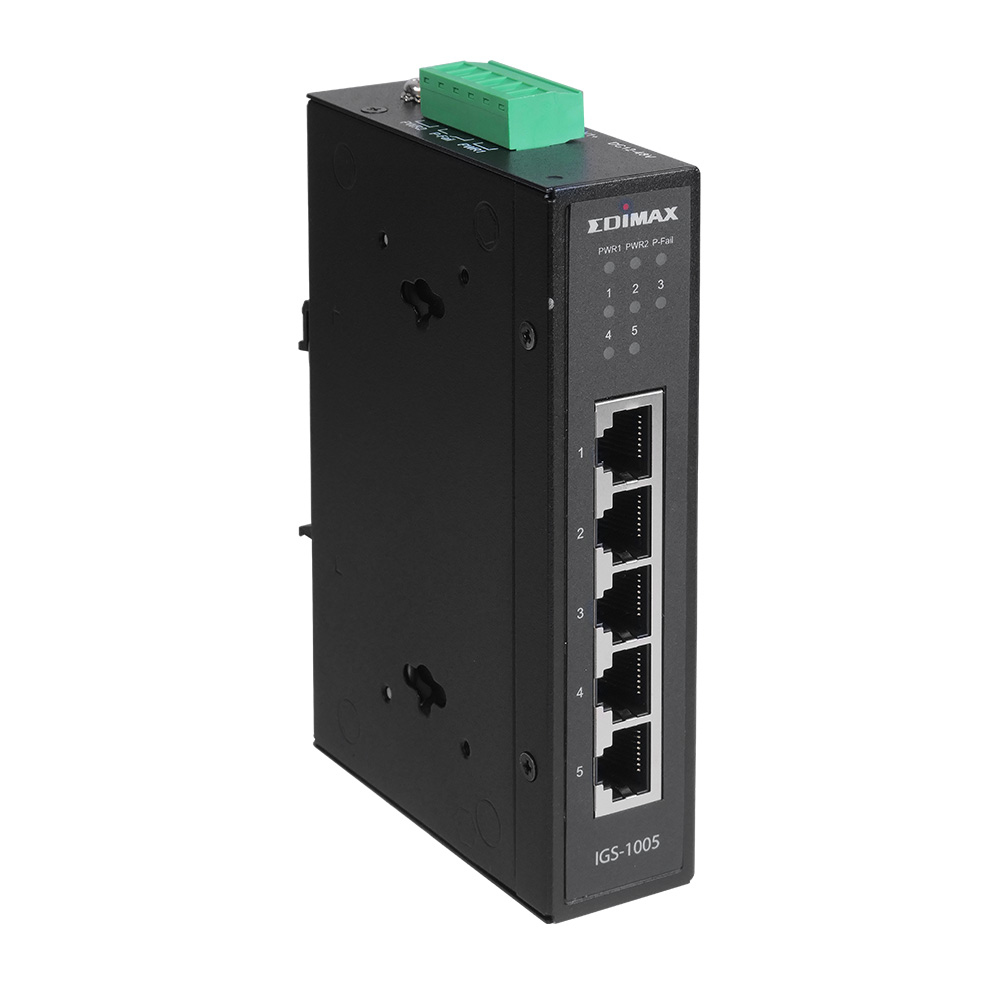

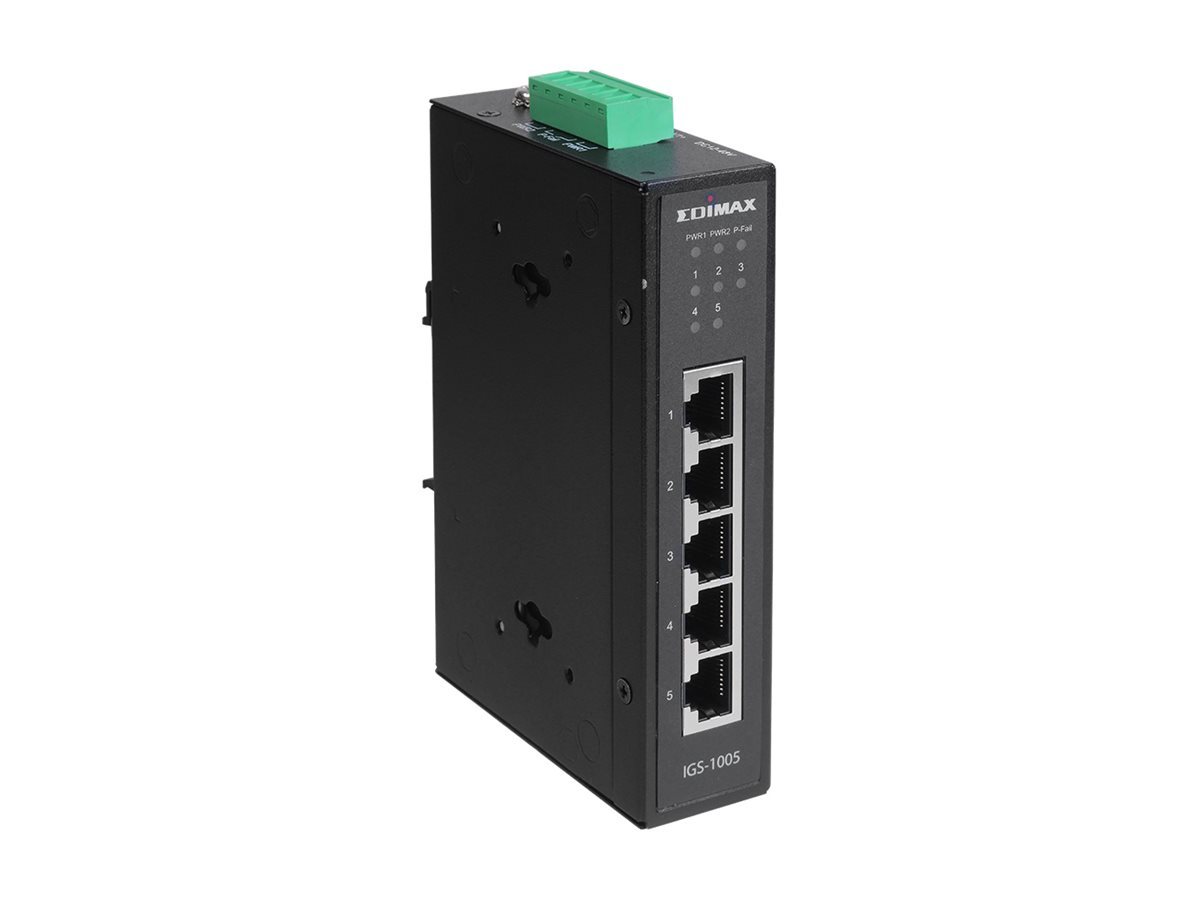

Edimax IGS-1005 / Switch / 5 x 10/100/1000 / DIN rail mountable, wall-mountable | IGS-1005
Edimax IGS-1005 / Switch / 5 x 10/100/1000 / DIN rail mountable, wall-mountable | IGS-1005
€148.02 inc. VAT
IGS-1005
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 5 ports |

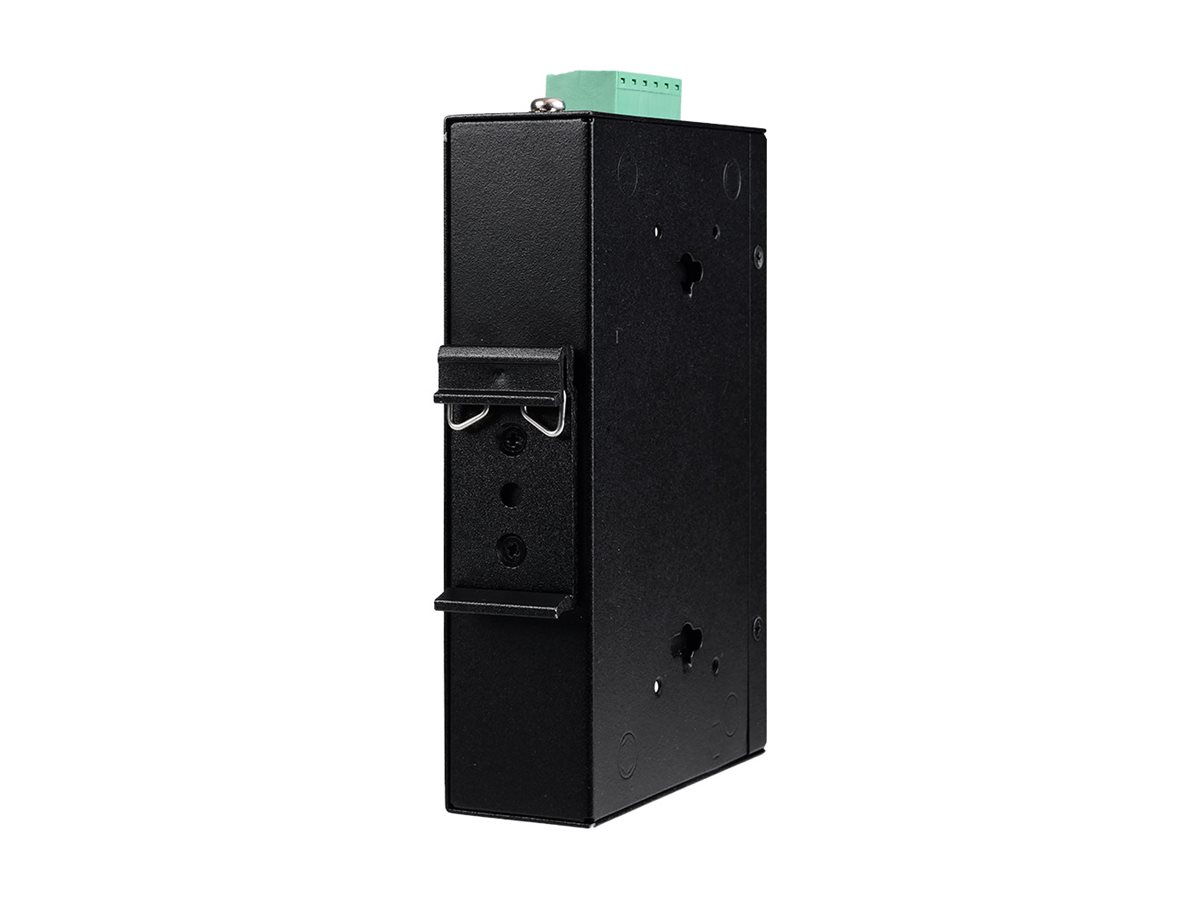

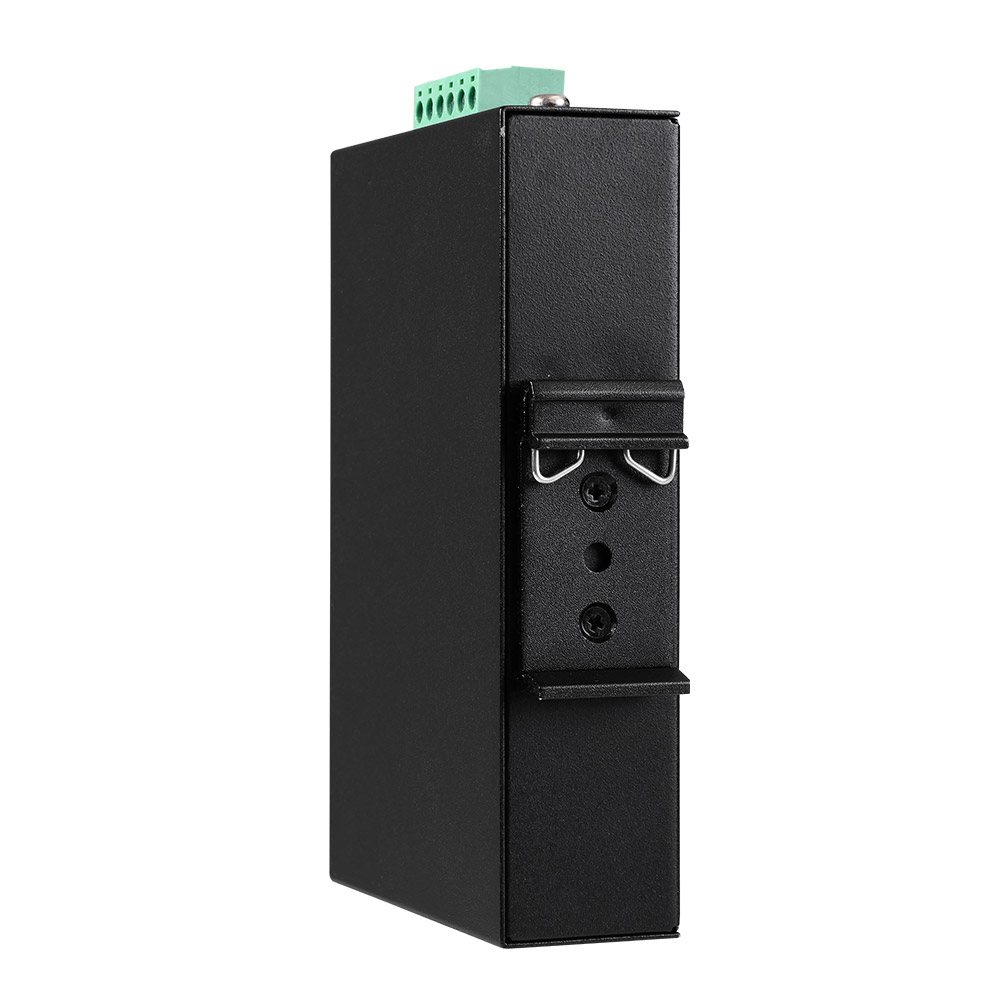

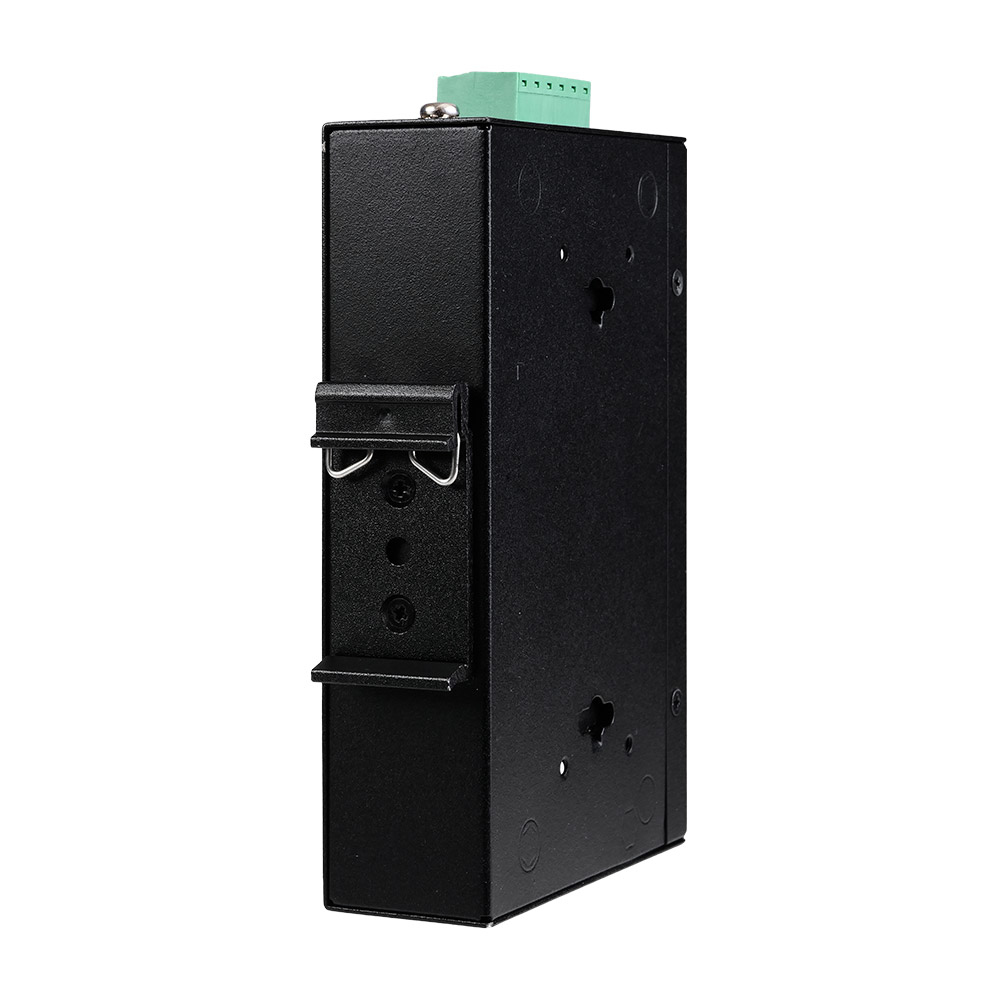

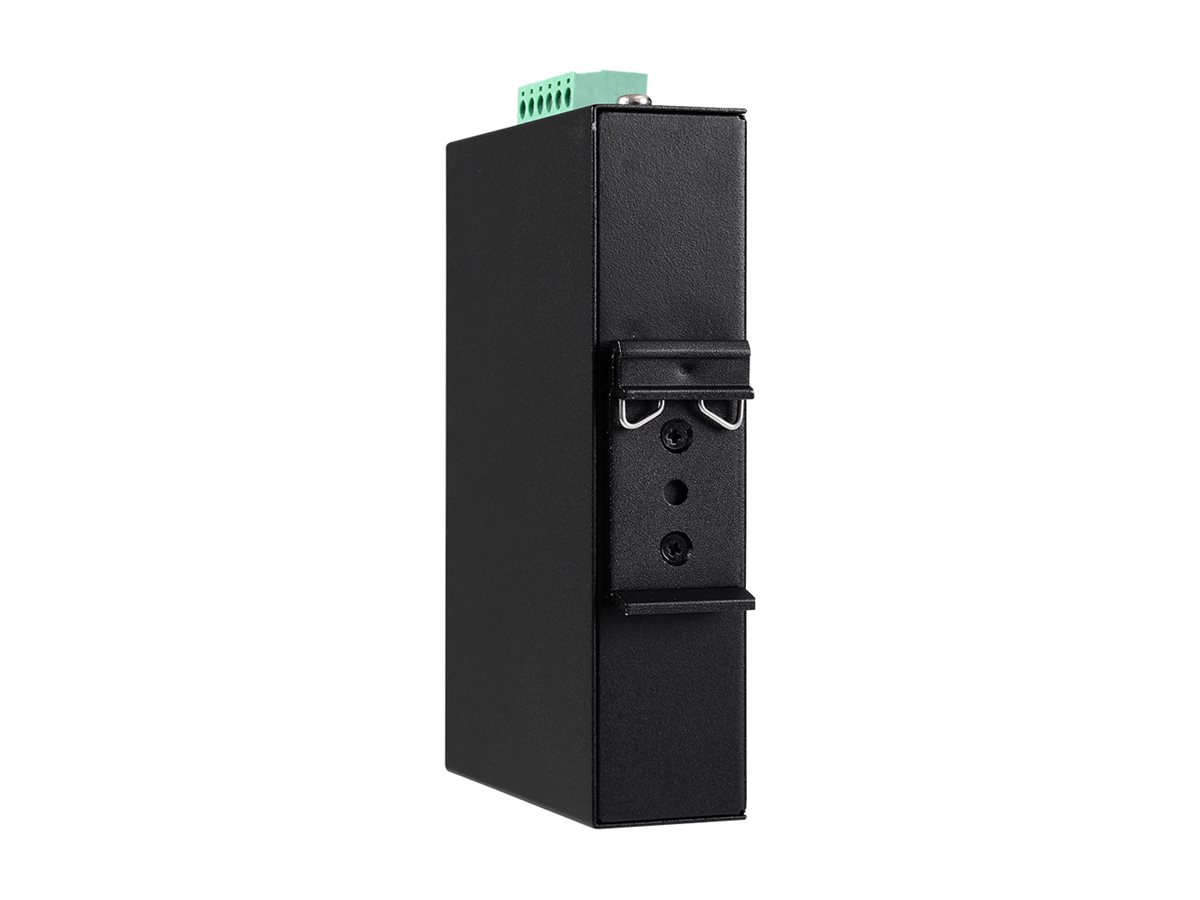

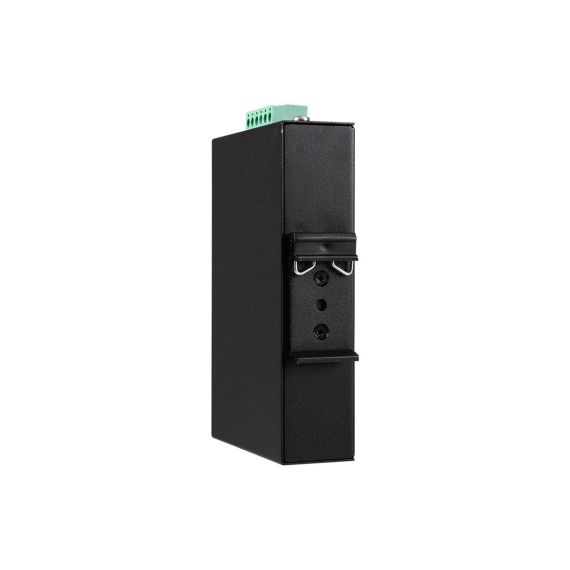

| Enclosure Type | DIN rail mountable, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 |
| Performance | Switching capacity: 10 Gbps <br /> Forwarding rate: 7.44 Mpps |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9KB |
| Features | 6KV Surge protection, QoS, fanless, rugged, metal housing, store and forward, 2MB packet buffer, reverse polarity protection, over-current protection, Energy Efficient Ethernet |
| Compliant Standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az |
| Status Indicators | Link/activity, power 1, power 2, fail |
| Expansion / Connectivity | |
| Interfaces | 5 x 1000Base-T RJ-45 |

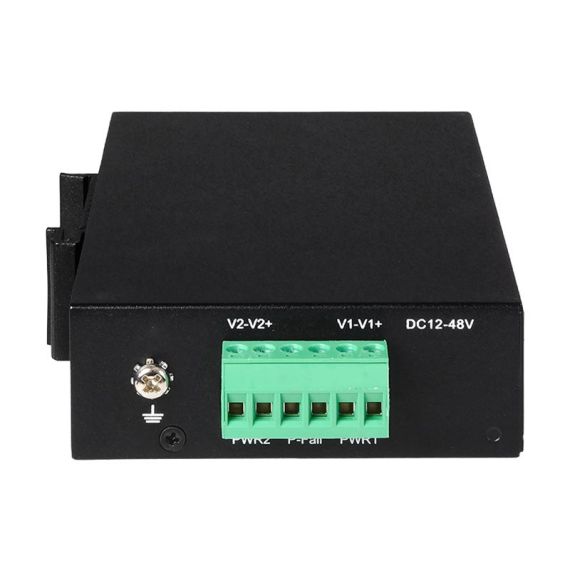

| Power | |
| Power Device | External power adapter |
| Power Redundancy | Yes |

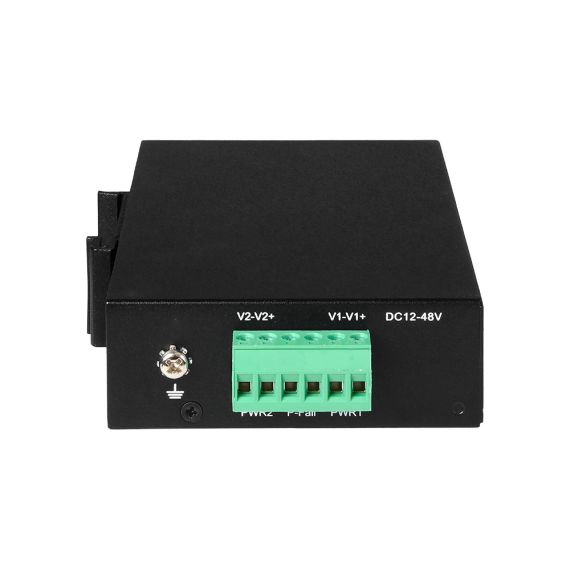

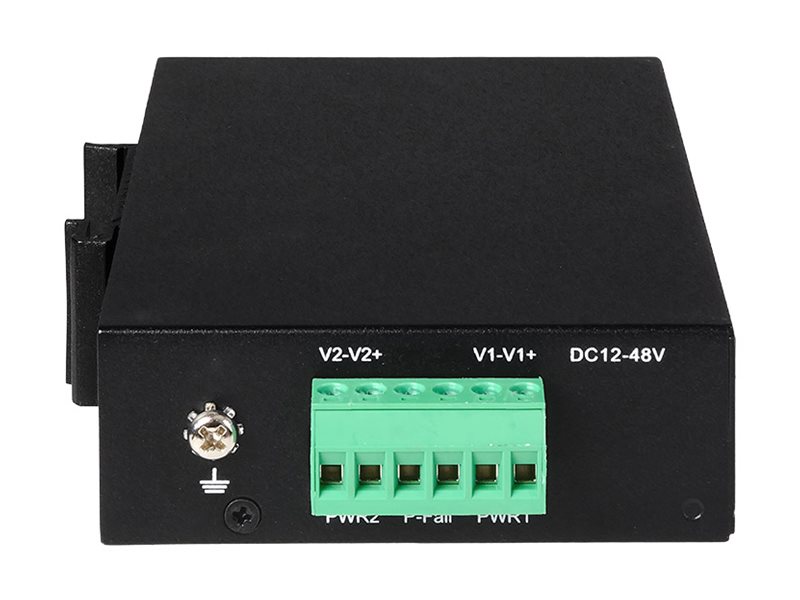

| Power Provided | 12 - 48 V - 2.5 A |
| Miscellaneous | |
| MTBF | 1,000,000 hours |
| Compliant Standards | IP30, FCC, BSMI |
| Dimensions & Weight | |
| Width | 8.36 cm |
| Depth | 3 cm |
| Height | 12.75 cm |
| Weight | 387 g |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Storage | 10 - 95% (non-condensing) |
Features - Edimax - IGS-1005
General
5-Port
More Details
Product Code
04:407500
EAN Code
4717964704672
Manufacturer
Edimax
