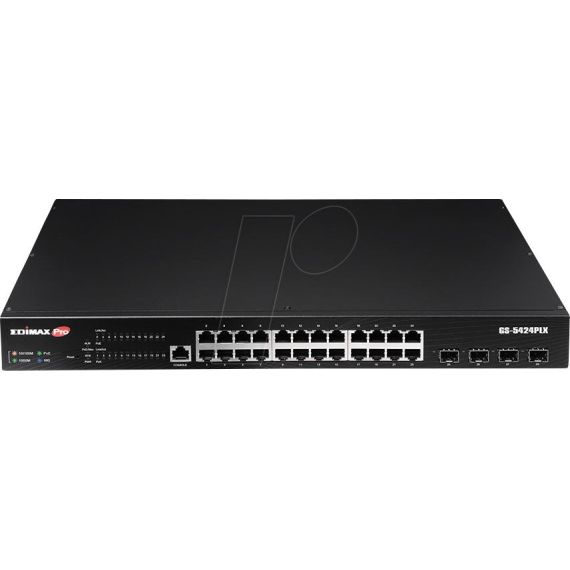

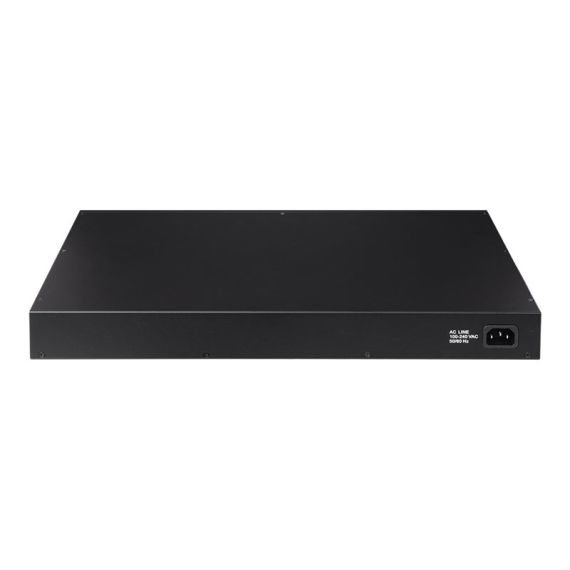

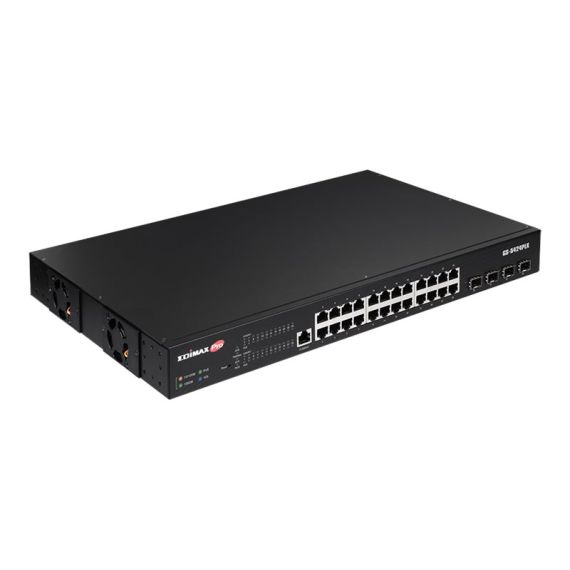

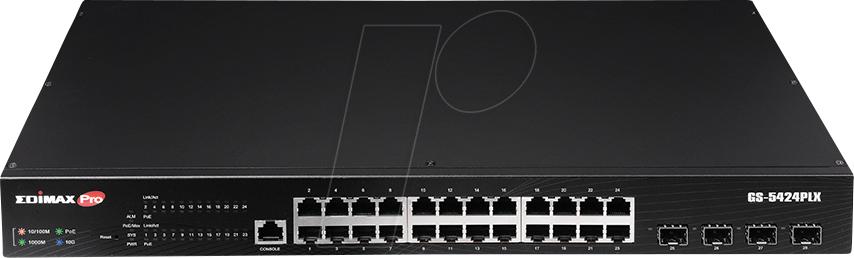

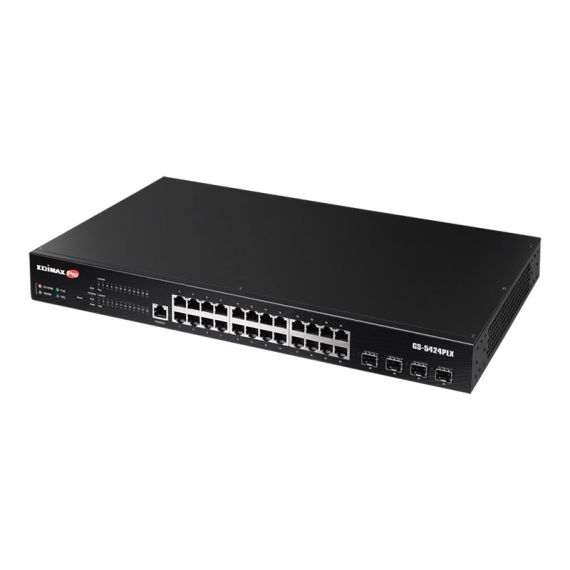

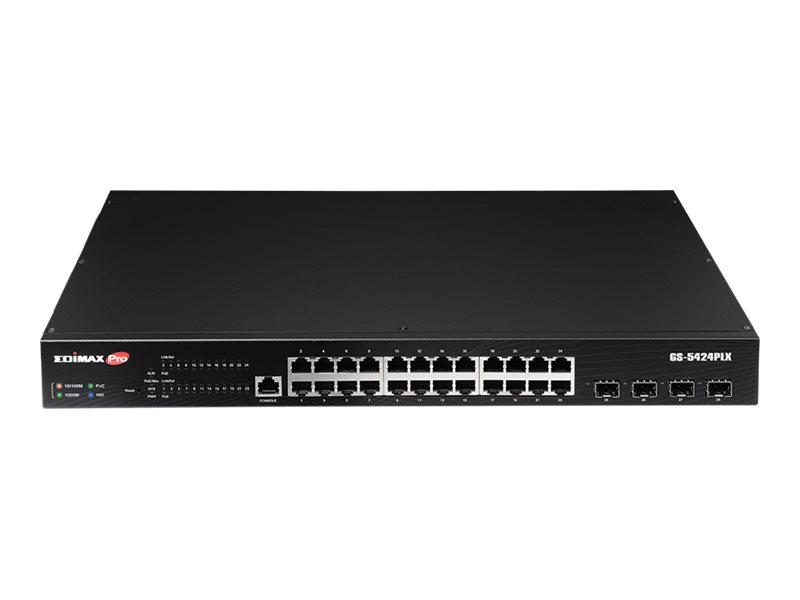

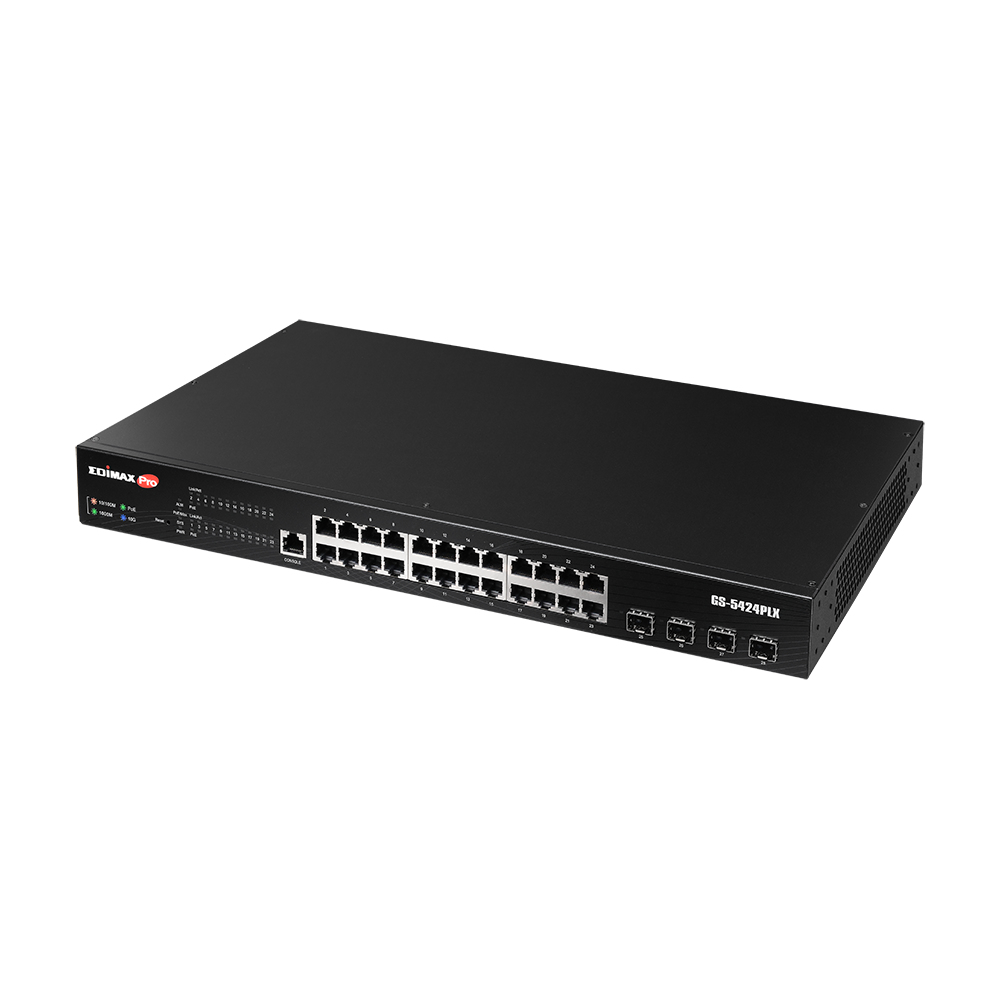

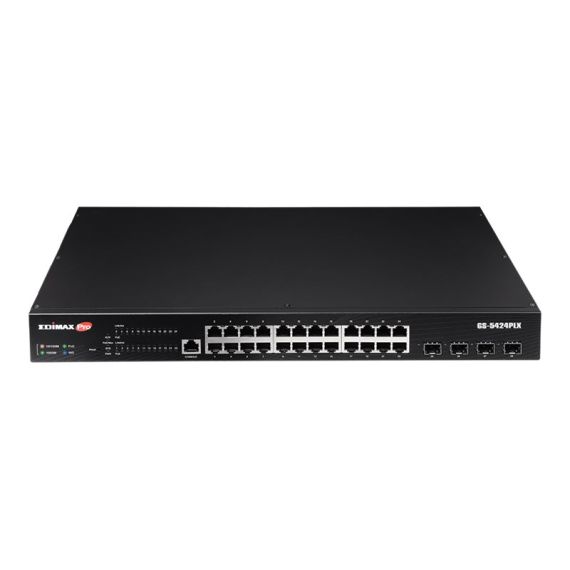

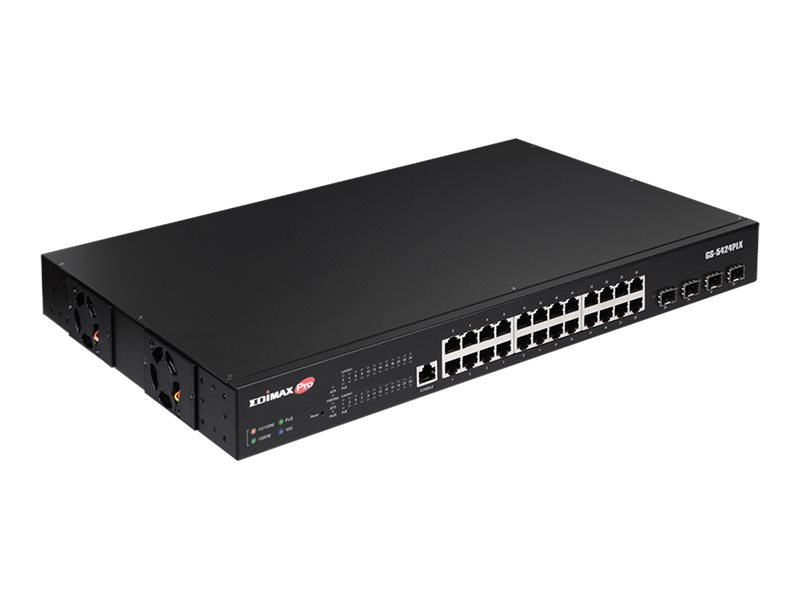

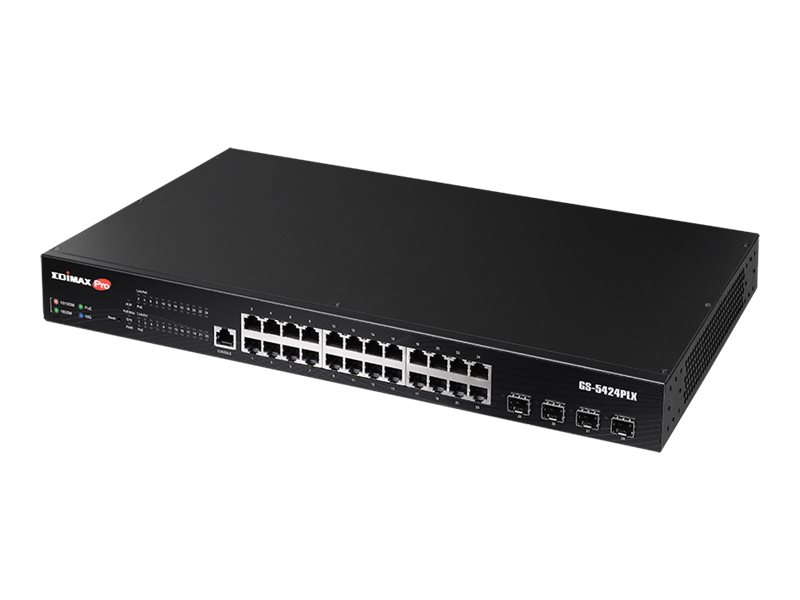

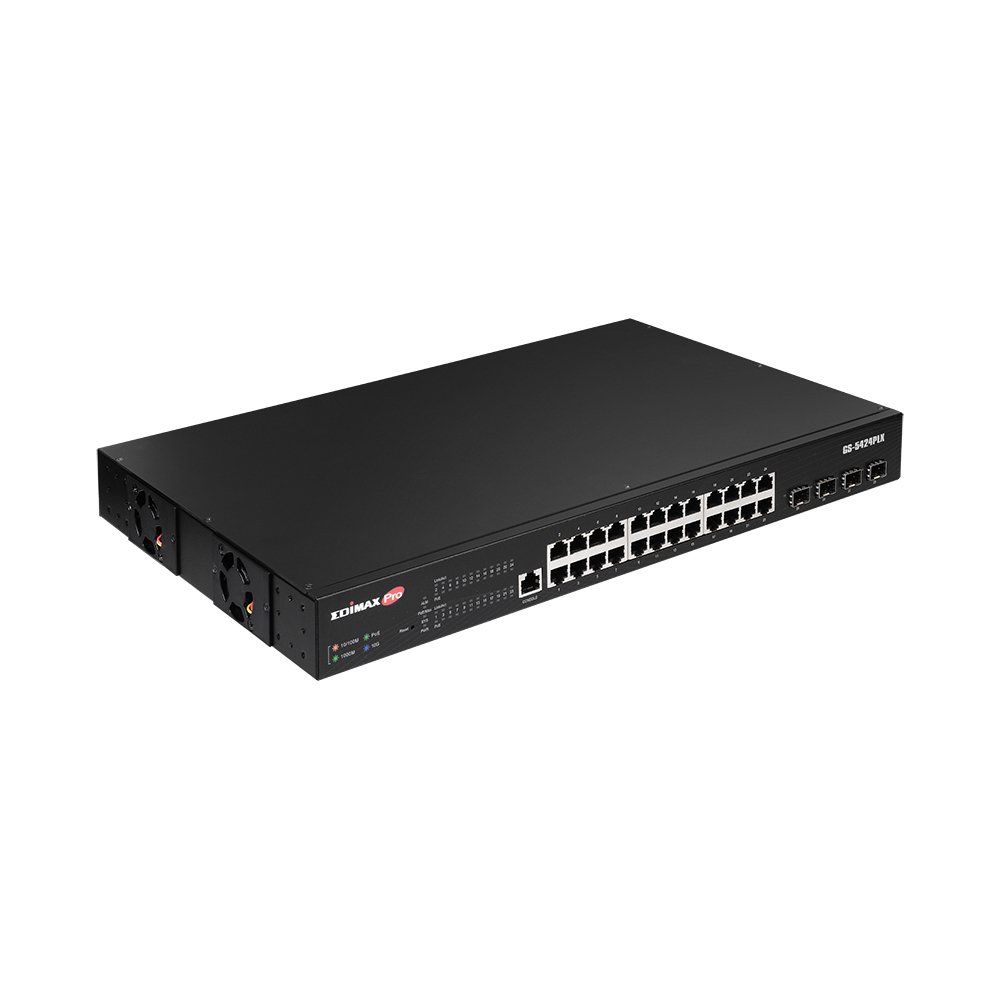

Edimax Pro GS-5424PLX / Switch / smart / 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) / rack-mountable / PoE+ (400 W) | GS-5424PLX

Product Features

• For quick install of security devices
  With ONVIF Profile Q standards, the GS-5424PLX provides system integrators easy setup, quick discovery, configuration, and control of ONVIF conformant products on the network. Just plug and play.
• Powerful 10GbE
  24 GbE ports for high-speed connections and up to 40 Gbps of fiber-optic uplinking capability allowing the GS-5424PLX to be easily deployed in multiple physical locations, such as branches, retails, or remote workgroup environment for larger network access.
• Let safety be known
  The built-in power backfeed protection / PoE detection function keeps the PoE network safe and efficient.
• Strong ability to proceed data
  With 128Gbps backplane bandwidth and a forwarding rate of 95.2Mpps, the GS-5424PLX provides maximum available bandwidth without delay.
• Robust failover mechanisms
  The GS-5424PLX has two firmware stored for backup. It can activate the backup firmware right away while the current one faces problems.
• Guaranteed 200 meters
  While general Ethernet switches have a distance restriction of 100 meters, the GS-5424PLX long-range mode provides extended power and data delivery distance to 200 meters at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations.
• Safe power backfeed protection
  Each port equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.

Special Fetures

• Gigabit Ethernet ports and 4x 10 Gigabit SFP+ ports
• Supports ONVIF Profile Q standard which is compatible with working ONVIF compliant profiles G/Q/S/A/C/T devices to provide fast and easy system settings, device discovery, and user authentication
• Guaranteed PoE long distance to 200 meters
• Dual firmware to reduce switch downtime
• 128 Gbps switch capacity, and Forwarding rate 95.2Mpps (64-byte package size)
• IEEE 802.3af/at PoE compliant
• IP Surveillance VLAN and Voice VLAN to enhance video and voice quality
• Auto-detection of powered devices (PD) and power consumption levels
• PoE powered devices (PD) alive check to enhance the reliability of the network
• Power backfeed protection to avoid damaging the PoE ports
• DHCP snooping to protect the integrity of the legitimate DHCP server and its operations
• Supports SNMP v3, Access Control List (ACL), QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunk, IGMP v1/v2/v3 Snooping and Mirror
• 16K MAC address table and jumbo frame support up to 12 KB
• Two fans with hot-swappable fan tray and 19-inch 1U rackmount design
