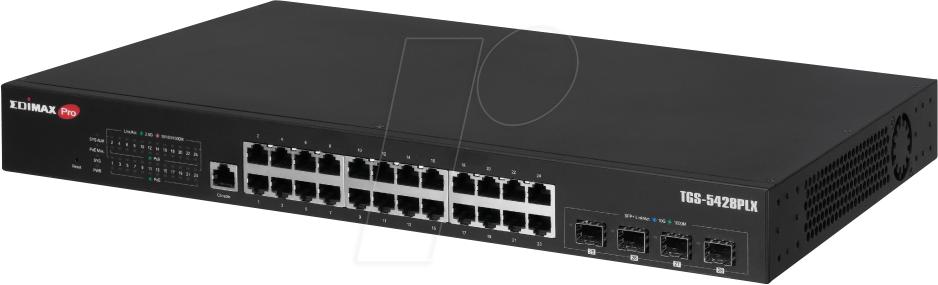

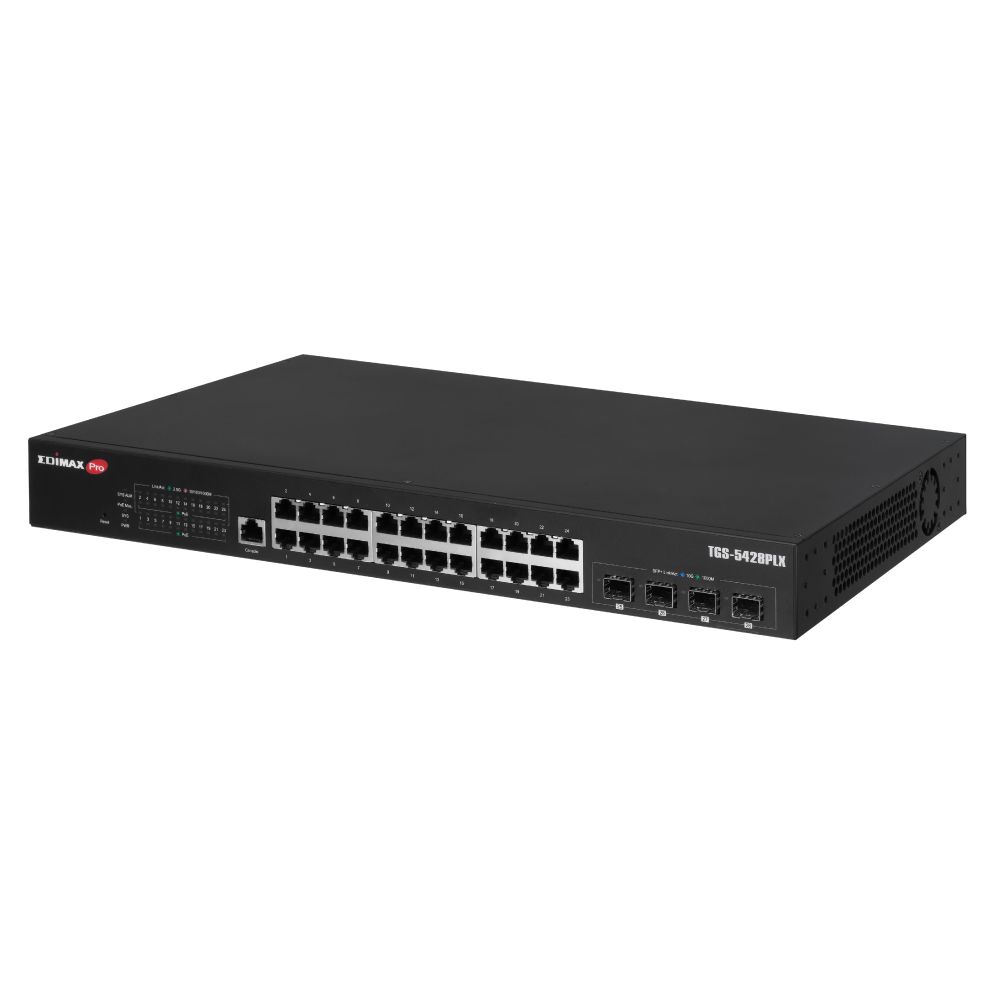

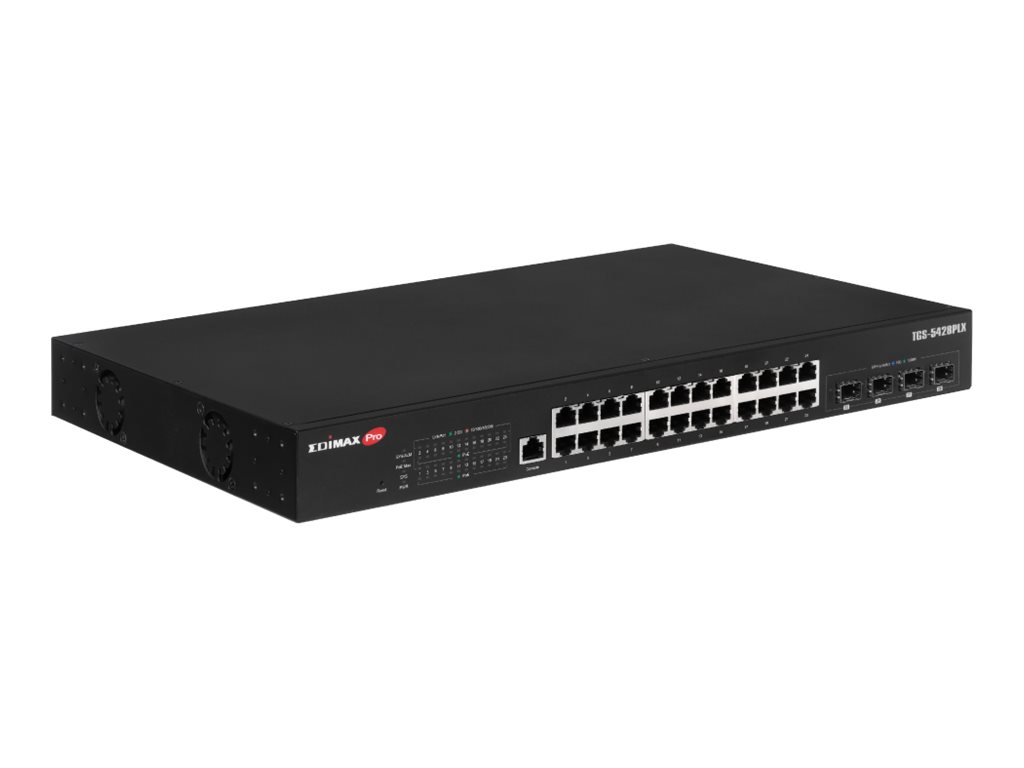

Edimax Pro TGS-5428PLX 28-Port PoE++ Switch
The Edimax Pro TGS-5428PLX is a 28-port network switch for environments that need fast access ports, 10G uplinks, and PoE++ power delivery. It combines 24 x 2.5GBase-T ports with 4 x 10G SFP+ uplink interfaces, supports up to 256 VLANs, and includes management and security features for controlled network operation. The metal housing, rack-mountable design, and internal power supply make it suitable for desktop or rack installation.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Switch - 28 ports |
| Interfaces | 24 x 2.5GBase-T 90 W | 1 x 10GBase-X SFP+ | 1 x console RJ-45 | 24 x 2.5GBase-T 90 W 1 x 10GBase-X SFP+ 1 x console RJ-45 |
| Ports | 24 x 2.5GBase-T + 4 x 10 Gigabit SFP+ (uplink) |
| Subtype | 10 Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Power over Ethernet | PoE++ |
| PoE Budget | 400 W |
| Switching Capacity | 200 Gbps |
| Forwarding Rate | 169.28 Mbps |
| Packet Buffer Size | 16 MB |
| VLAN Support | 256 VLANs |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 12KB |
| Routing Protocol | IGMP | IGMPv2 | IGMPv3 |
| Remote Management Protocol | IPv6 | ICMP | SNMP 1 | SNMP 2c | SNMP 3 |
| Authentication Method | RADIUS | TACACS+ |
| Features | Metal housing | 3 fans | long range PoE++ up to 200m | power backfeed protection | QoS | WRR | CoS | ToS | VLAN support | DSCP based CoS | GVRP | MAC based VLAN | port-based VLAN | Surveillance VLAN | Voice VLAN | NDP | port trunking | IGMP snooping | multicast traffic | port mirroring | DHCP snooping | BPDU Guard | Broadcast Storm Control | DoS protection | DAI | IP source guard | Port Security | protected ports | ACL support | CLI management |
| Compliant Standards | IEEE 802.3bt | IEEE 802.3at | IEEE 802.3af | IEEE 802.1p | IEEE 802.1D | IEEE 802.1s | IEEE 802.1w | IEEE 802.1Q | IEEE 802.3ad (LACP) | IEEE 802.3u | IEEE 802.3ab | IEEE 802.3bz | IEEE 802.3z | IEEE 802.3ae | IEEE 802.3x | IEEE 802.1x | IEEE 802.1ab (LLDP) | IEEE 802.3az |
| Status Indicators | Alarm | link/activity | PoE | power | system |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Enclosure Type | Desktop, rack-mountable |
| Package Contents | Rack mount kit |
| Cables Included | 1 x console cable |
| Width | 44.1 cm |
| Depth | 27 cm |
| Height | 4.4 cm |
| Weight | 4.45 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Designed For | Edimax TGS-3109PLX | TGS-3109XT | TGS-5428PLX |
| Power | Internal power supply |
| Management Protocol | IPv6, ICMP, SNMP 1, SNMP 2c, SNMP 3 |
| SKU / EAN | TGS-5428PLX | 4717964705402 |
SINGULAR RECOMMENDS
For who
For businesses, surveillance setups, and managed networks that need 2.5G access, 10G uplinks, and PoE++ power in one switch.
Real reason to buy it
It offers high-capacity switching with flexible PoE++ delivery, 10G uplinks, and a strong set of management and security features.
Know before
This is a desktop or rack-mountable switch with an internal power supply, ordered on demand, and it ships with a rack mount kit plus one console cable.
