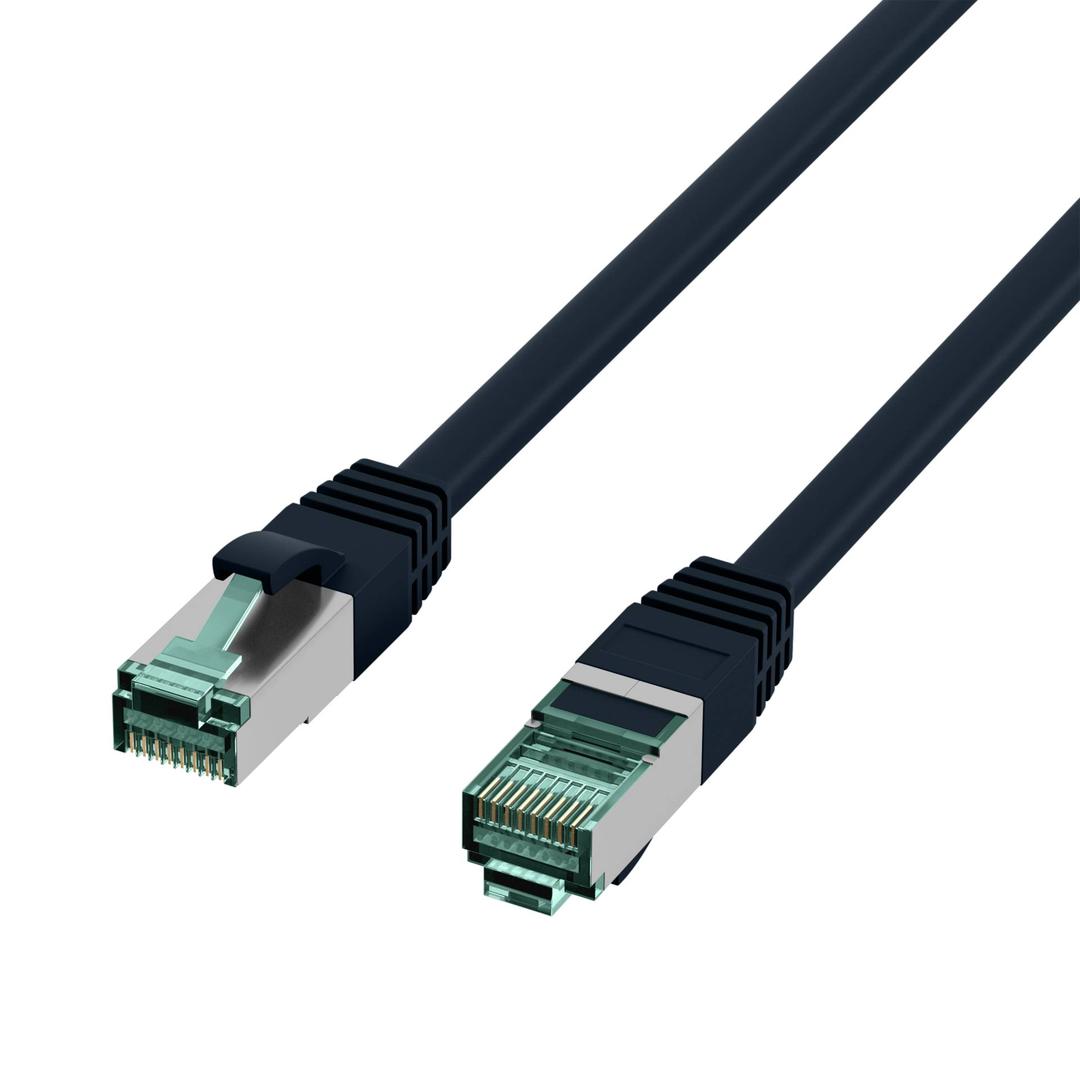

EFB-Elektronik / Patch cable / RJ-45 (M) to RJ-45 (M) / 15 cm / 6 mm / SFTP / CAT 6a / IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt / halogen-free, molded, snagless, silicone-free / black | MK6001.0,15B
Please sign in so that we can notify you about a reply
Product Specification
| Network Cable Type | Patch cable - CAT 6a - IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt |
| Technology | Shielded foiled twisted pair (SFTP) |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge (AWG) | 27/7 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Impedance | 100 Ohm |
| Plated Connector | Gold |
| Features | Halogen-free, molded, snagless, silicone-free, flame retardant, Anti-kink sleeve, shielded connectors, PoE+ Ready, PoE ready, copper conductors |
| Length | 15 cm |
| Diameter | 6 mm |
| Colour | Black |
| Connectivity | Connectivity |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Miscellaneous | Miscellaneous |
| Compliant Standards | ISO/IEC 11801, TIA/EIA-568-B, IEC 60603-7-51, ANSI/TIA-568-C.2 - up to 500 MHz |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
Features - EFB - MK6001.0,15B
Colour
black
General
CAT6a
More Details
Product Code
04:365997
EAN Code
4049759226190
Manufacturer
EFB
