EFB 19-inch 1U Cable Routing Panel with Removable Cover, Quick Fasteners, Sheet Steel, Jet Black RAL 9005
Brand:
EFB
EFB 19-inch 1U Cable Routing Panel with Removable Cover, Quick Fasteners, Sheet Steel, Jet Black RAL 9005
€19.08 inc. VAT
699999NTS.1
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

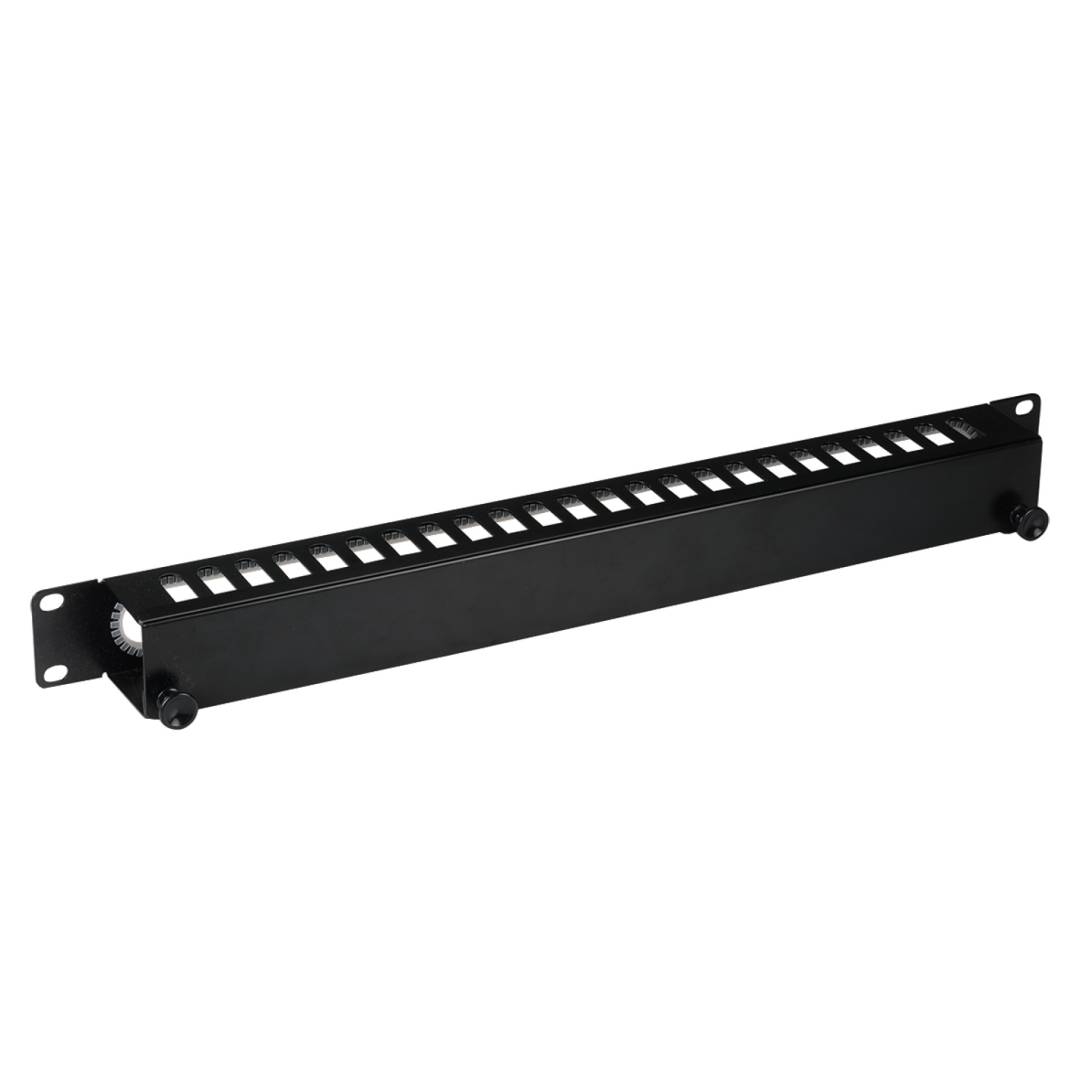

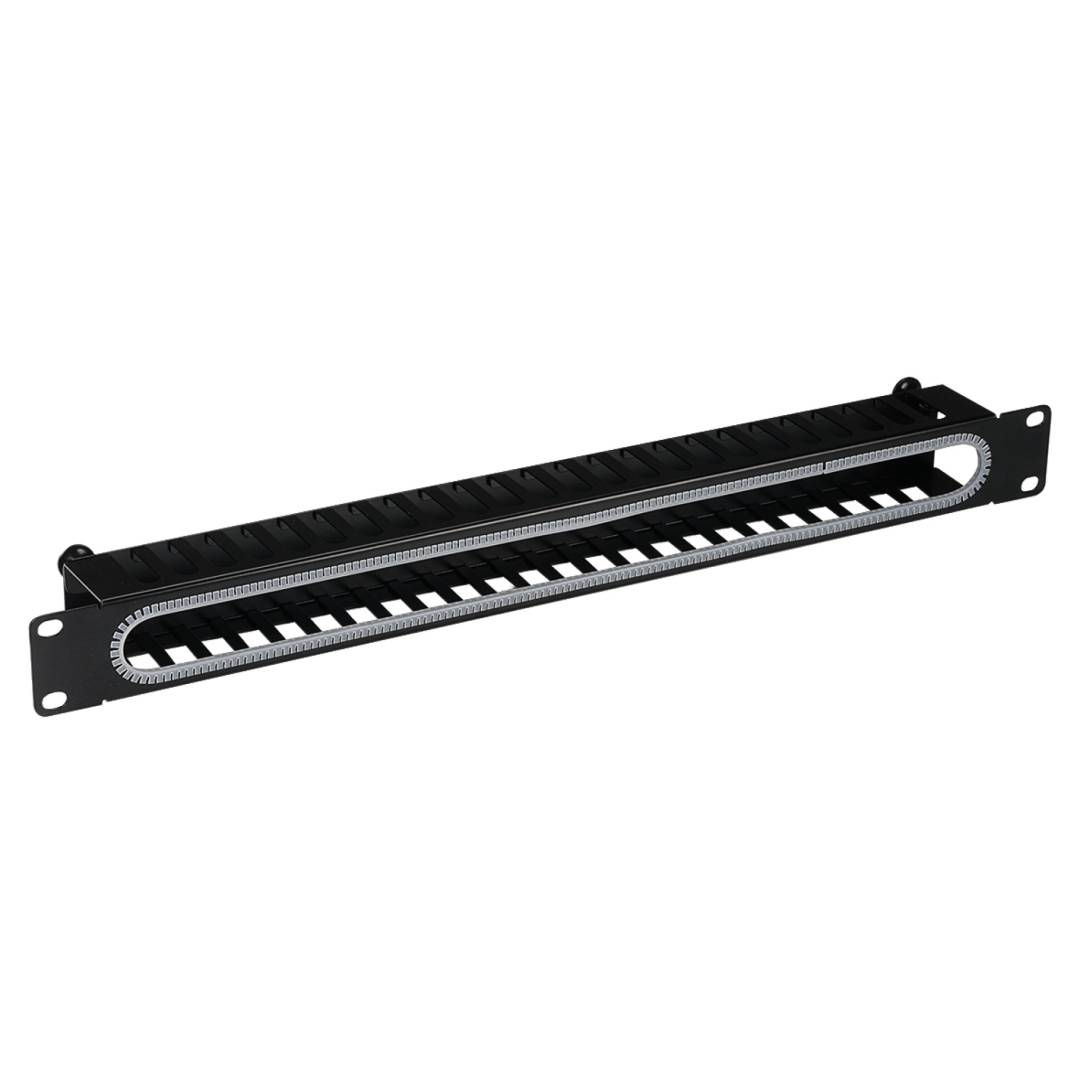

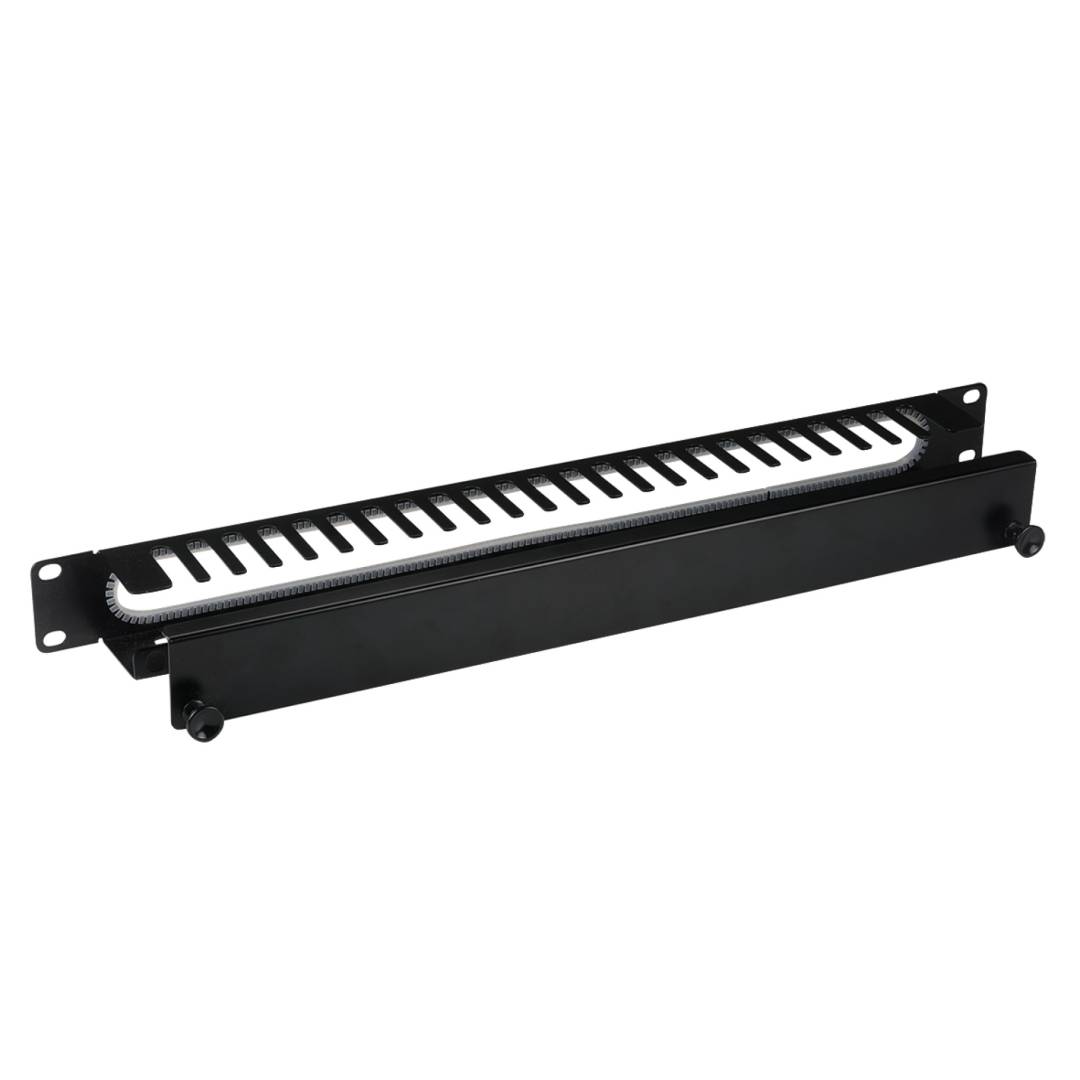

EFB 19" 1U Cable Routing Panel with Cover — tidy patch cords behind a clean front
1U · 19"Removable coverSheet steelRAL 9005 black
The EFB 699999NTS.1 is a 1U cable routing panel with a removable front cover, made from sheet steel in jet black RAL 9005, for anyone who wants patch cords routed neatly between a switch and a patch panel and hidden behind a flat front.
It occupies one rack unit on the 19-inch mounting level. Cables run through the brackets behind the cover; the cover is held by quick fasteners, so you can open it for moves and changes without unscrewing the panel from the rack. EFB also makes this panel in light grey RAL 7035 — this listing is the black one.
What's in the Box
- 1 × EFB 19" 1U cable routing panel with front cover (RAL 9005)
- EFB does not publish whether fixing screws or cage nuts are included — plan on using the M6 hardware of your rack
What It Means in Practice
- Place it between a patch panel and a switch: short patch cords loop through the brackets and the cover hides the slack, so the front of the rack looks finished.
- The quick-fastener cover opens by hand, so adding or tracing a cable does not mean taking the panel out.
- Approx. 60 mm depth with 50 mm brackets suits typical Cat6/Cat6A patch-cord bundles for one 24-port row.
- Black matches most black network cabinets and black switches; choose the grey RAL 7035 version for grey cabinets.
What Will Not Work
- It does not fit 10-inch racks — the width is 482.6 mm (19").
- It is a horizontal 1U panel, not a vertical cable manager for the side of the cabinet.
- It will not hold very large bundles; for 48 ports of thick Cat6A per unit, use a 2U panel or a deeper ring-type manager.
- No brush strip: it does not seal a pass-through to the rear of the cabinet.
Key Features
Removable front cover
Quick fasteners let you open and close the cover by hand for moves, adds and changes.
Clean 1U front
Patch-cord slack is hidden behind a flat black cover instead of hanging in front of the equipment.
Sheet-steel construction
Rigid steel body in RAL 9005 black, matching standard black 19-inch cabinets.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A covered 1U routing panel is the simplest way to make a small network cabinet look professional: every patch cord goes into the brackets and the cover hides the loops. Pair it with a patch panel above and a switch below, and use short 0.25–0.5 m patch cords so the cover closes easily. Browse our rack accessories for blanking panels and shelves to finish the rack.
✓ Buy it if you have a 19-inch cabinet with black equipment and want patch-cord slack hidden behind a clean cover.
✕ Skip it if you need vertical cable management, a brush pass-through to the rear, or a 10-inch rack.
→ Also consider EFB 699995TS.1 (open 5-bracket panel, no cover) if you prefer to see and reach cables directly.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - EFB - 699999NTS.1
Colour
black
More Details
Product Code
04:414923
EAN Code
4049759283933
Manufacturer
EFB
