EFB 691606VGR.50 19 Inch 6U Swiveling Wall Cabinet 2-Part 600x500 mm Glass Door Light Grey
Brand:
EFB
EFB 691606VGR.50 19 Inch 6U Swiveling Wall Cabinet 2-Part 600x500 mm Glass Door Light Grey
€294.36 inc. VAT
691606VGR.50
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Singular Selected
EFB 691606VGR.50 19" 6U Swiveling Wall Housing, 500 mm
Two-part wall cabinet whose front section swings open for easy rear access to patch panels and switches.
6U · 19 inch600 x 330 x 500 mm40 kg loadSwing frame · glass door
The EFB-Elektronik 691606VGR.50 is a 19-inch 6U wall housing in a two-part swiveling design, measuring 600 x 330 x 500 mm (W x H x D) with a 40 kg load rating, finished in RAL 7035 light grey. It is built for small offices, shops and branch sites that need a lockable home for a patch panel, switch and router on the wall.

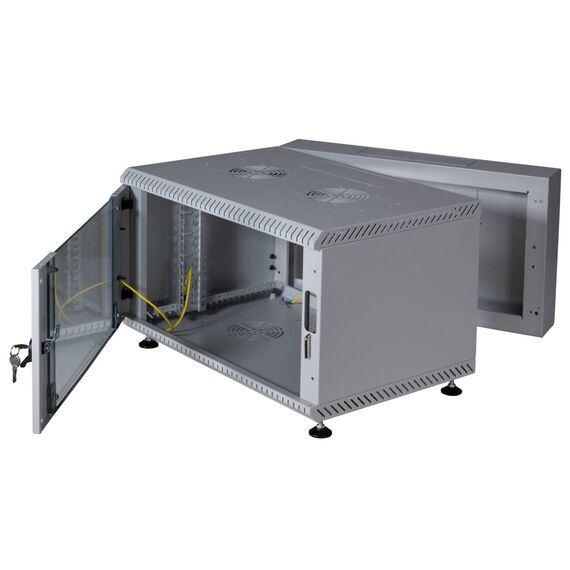

A rear swing frame lets the front part of the housing pivot away from the wall, so you can reach the back of the installed equipment without taking the cabinet down. It arrives pre-assembled with a welded steel frame.
The front door has a window of certified 4 mm safety glass, metal hinges and a latch lock, and the roof, base and rear wall have pre-punched cable entries.
Compatibility Note: The installation depth between the 19-inch profiles is up to 450 mm (depth-adjustable) — check your switch or device depth. Fan units, leveling feet and castors are sold separately (EFB 691656GR 2-fan unit fits this series).
Best For
✓ Small office network rack
✓ Retail and branch sites
✓ Wall-mounted patch panel + switch
✓ CCTV NVR and PoE switch
✓ Classrooms and labs
✓ Rear access without dismounting
Key Features
Swing frame for rear access
The two-part design lets the front section swivel away from the wall-mounted rear frame, giving direct access to the back of patch panels and switches during installation and service.

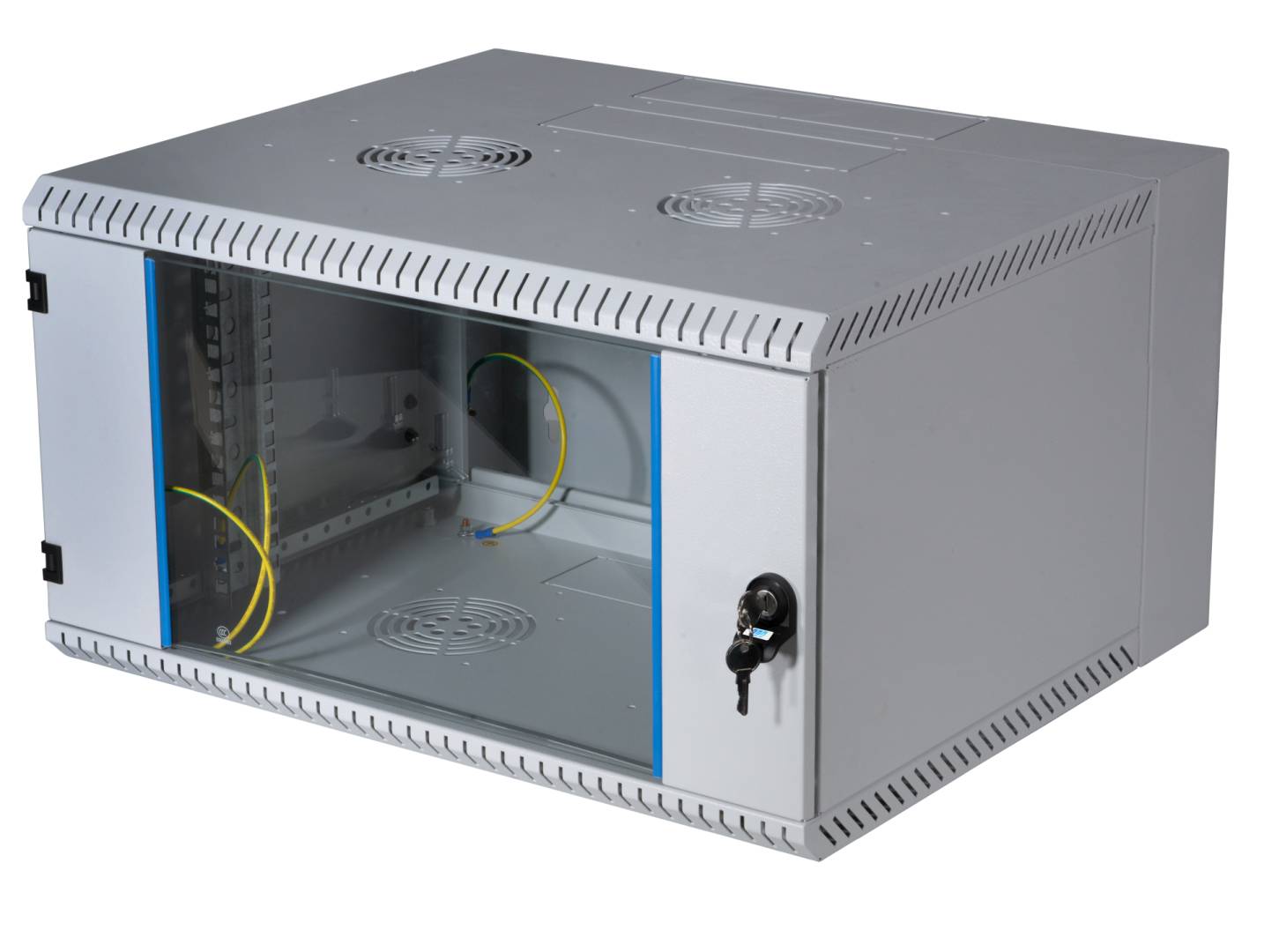

Lockable safety-glass door
The front door carries a certified 4 mm safety-glass window, metal hinges and a latch lock with two keys, so equipment stays visible but protected. The door hinge side can be reversed by rotating the housing 180°.
Ready for cables and cooling

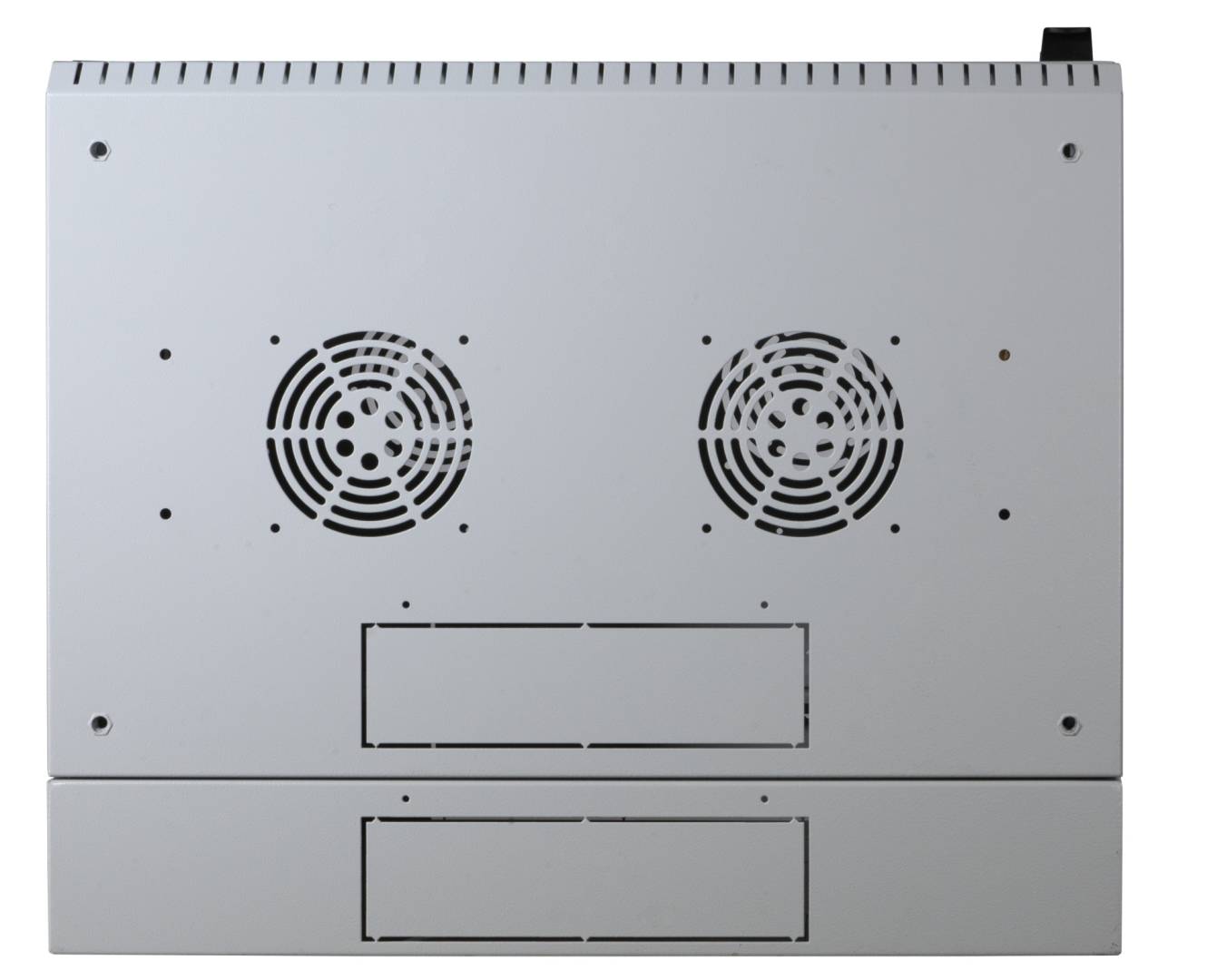

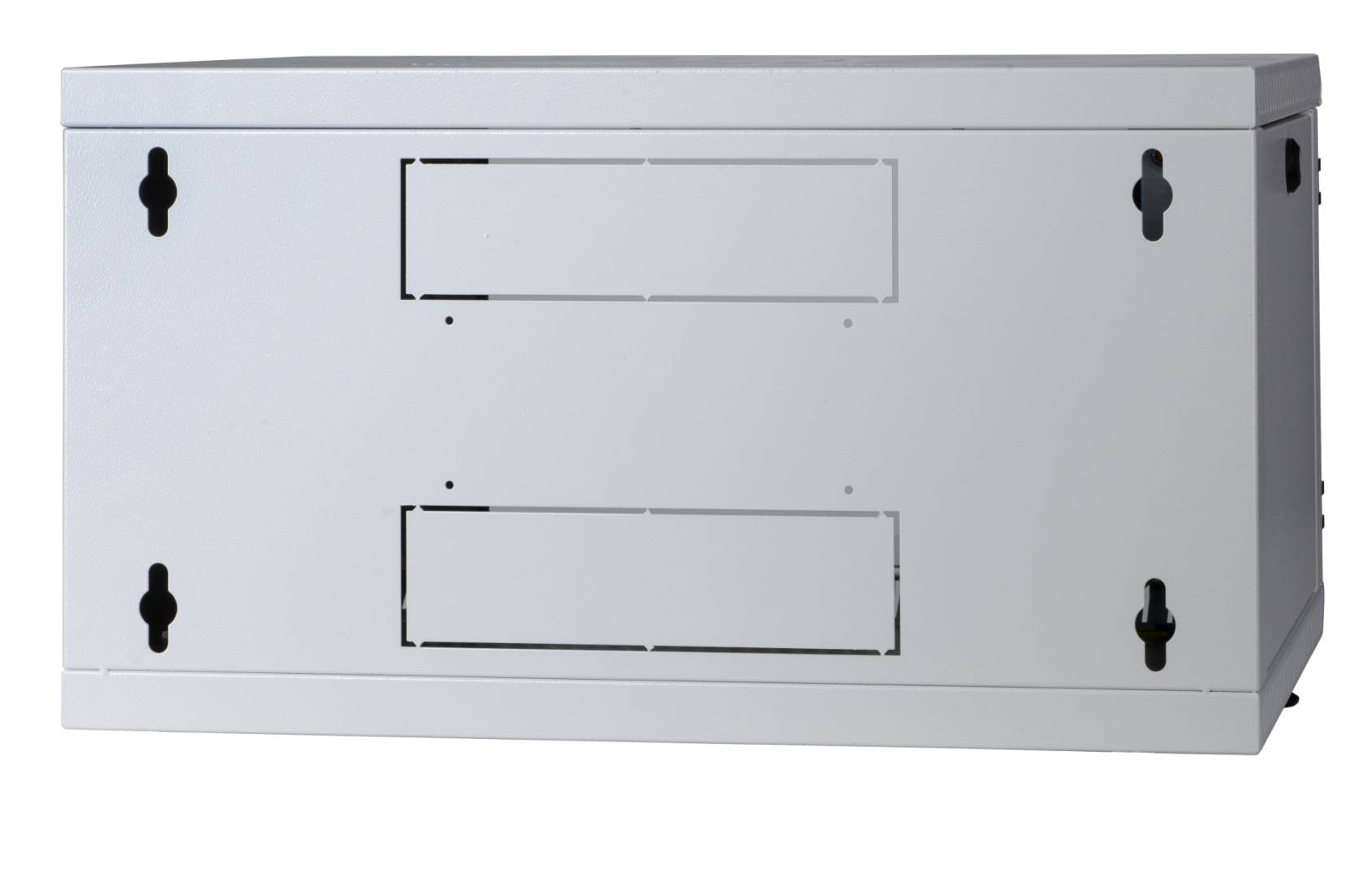

Roof, base and two rear openings of 250 x 70 mm each for cable entry, knock-outs for single fans in roof and base, and preparation for the EFB plug-and-play 2-fan unit.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The swing frame is the reason to choose this housing over a fixed wall cabinet: once the rear section is on the wall you can still reach the back of the patch panel and switch from the front. For a compact network corner with a patch panel, switch and router it is a well-sized, lockable solution.
✓ Buy it if you need a lockable 6U wall cabinet with easy rear access for a small office network.
✕ Skip it if you need to mount deep servers — the usable depth is up to 450 mm.
→ Also consider EFB 691656WS fan unit for wall housings and EFB 699980.1 cable routing panel for tidy patching.
Features - EFB - 691606VGR.50
Colour
grey
More Details
Product Code
04:370307
EAN Code
4049759212650
Manufacturer
EFB
