EFB-Elektronik Cat6A S/FTP Patch Cable RJ45 0.25m Red, Cat7 Raw Cable, LSZH
Brand:
EFB
EC020200163
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

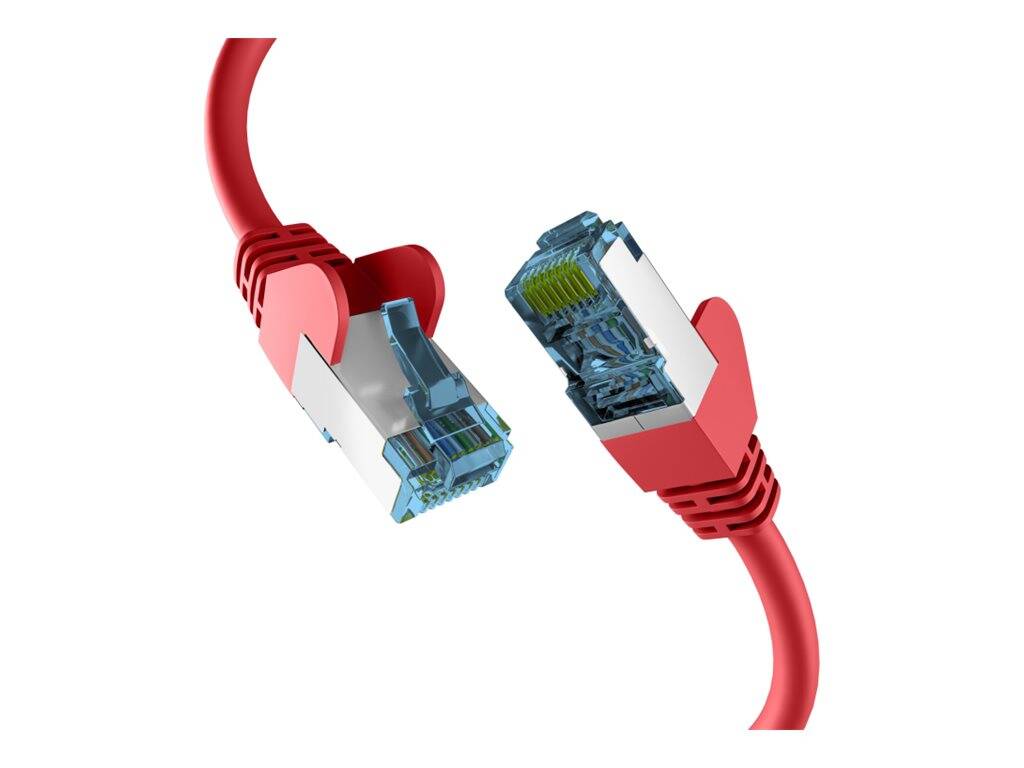

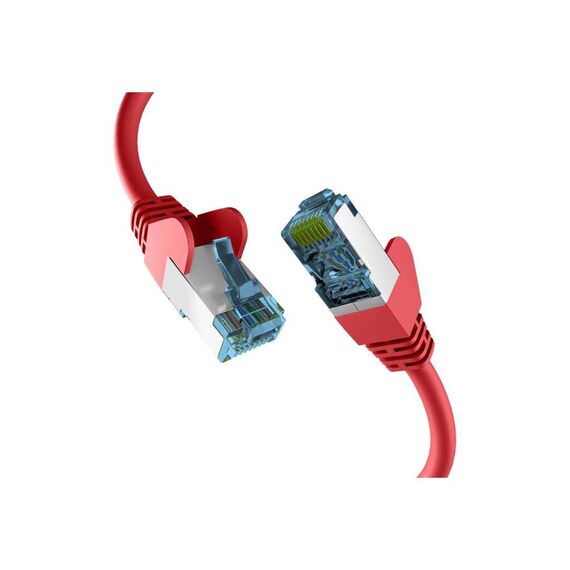

EFB-Elektronik EC020200163 Cat 7 S/FTP Patch Cable with Cat 6A Plugs, 0.25 m, Red
Cat 6A · 10 Gbit/s0.25 mS/FTP PiMFLSZH
The EFB-Elektronik EC020200163 is a 0.25 m red RJ45 patch cable that pairs Cat 7-grade S/FTP PiMF raw cable with Cat 6A connectors, made for 10 Gigabit short patching between patch panels, servers and network switches. Part number EC020200163 uses AWG 27/7 stranded copper in a 6 mm LSZH halogen-free jacket, gold-plated RJ45 plugs wired T568B 1:1, moulded anti-kink boots with locking-lug protection and a printed length imprint. Typically in stock with fast delivery across Cyprus.
Compatibility note: The raw cable is Cat 7 grade, but RJ45 connectors limit the finished link to Cat 6A (500 MHz, 10GBASE-T) — it does not turn a network into “Cat 7”. For the screen to work end-to-end, use shielded patch panels and switch ports. EFB does not publish a PoE class for this cord; for documented 802.3bt budgets choose a PoE-rated model.
Key Features
Double-screened PiMF construction
Each pair is individually foil-wrapped (PiMF) under an overall braid (S/FTP), giving strong crosstalk and EMI protection for 10 Gbit/s links in crowded racks.
Short rack-patching length
At 0.25 m it bridges adjacent patch-panel and switch ports without loops or slack, keeping 1U cable management tidy and airflow clear.
Locking-lug protected plugs
Moulded anti-kink boots guard the RJ45 latch against snagging and breaking, while the length imprint makes audits easy; colour red helps code uplinks and VLANs.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
EFB’s EC Cat 7-raw / Cat 6A-plug cords give premium double screening in a 6 mm LSZH cable at patch-cord prices. At 0.25 m the EC020200163 spans ports one rack unit apart; the same family comes in 0.15 m for directly stacked devices and 0.5 m for two-unit gaps. Use colours to separate roles — e.g. red for firewall/WAN. If you run unshielded equipment and want thinner cabling, a slim Cat 6A U/UTP cord such as Equip 626x is easier to route.
Buyer's Guide
Buy it if
You patch 10 Gbit/s switches, servers or storage in a shielded rack and want a short, robust LSZH cord.
Skip it if
Your ports are unshielded and space is tight — a 2.8 mm slim Cat 6A U/UTP cord routes more easily.
Also consider
EFB EC 0.15 m / 0.5 m versions, or Equip 626x slim Cat 6A U/UTP.
Features - EFB - EC020200163
Colour
red
Length
0.25m
Standard
CAT6a
More Details
Product Code
04:437665
EAN Code
4049759290115
Manufacturer
EFB
