EFB-Elektronik EC020200167 Cat 6A on Cat 7 Raw Cable S/FTP PiMF Patch Cable 2 m RJ45 LSZH 10 Gbps AWG 27/7 Length Imprint Red
Brand:
EFB
EFB-Elektronik EC020200167 Cat 6A on Cat 7 Raw Cable S/FTP PiMF Patch Cable 2 m RJ45 LSZH 10 Gbps AWG 27/7 Length Imprint Red
€4.75 inc. VAT
EC020200167
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
EFB EC020200167 Cat 6A S/FTP Patch Cable 2 m Red
Cat 6A · Cat 7 raw2 mS/FTP PiMFLSZH · Red

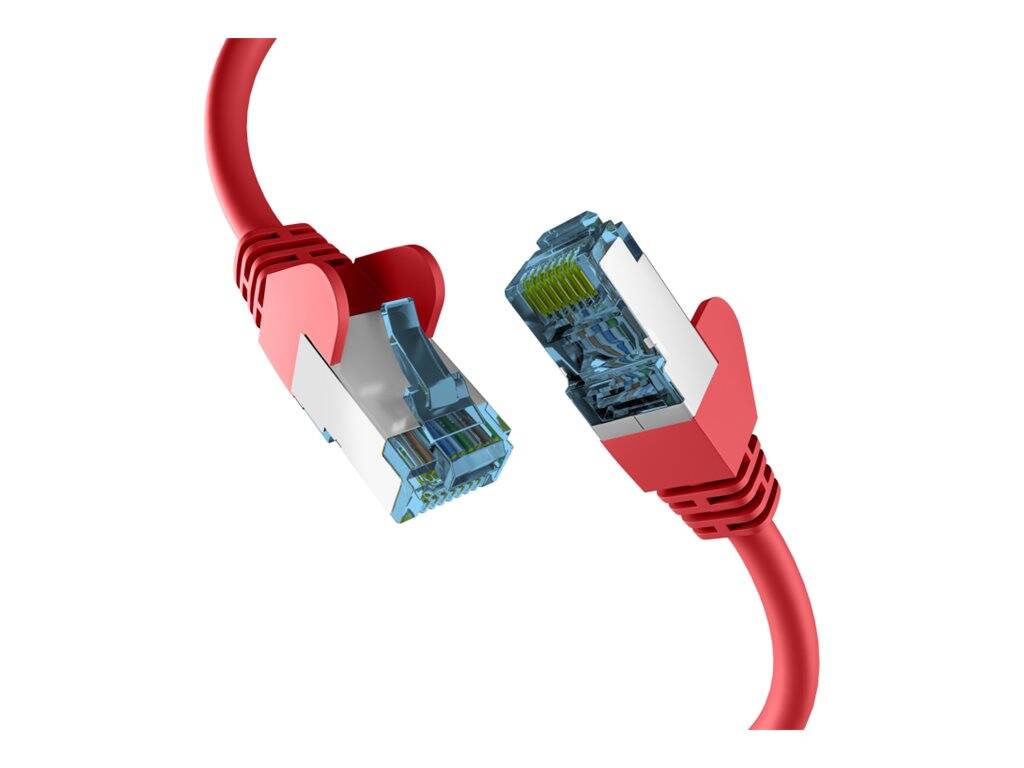

The EFB-Elektronik EC020200167 is a 2 m Cat 6A patch cable built on Cat 7 raw cable in red for 10GBASE-T links between switches, patch panels, servers and workstations. Part number EC020200167 combines 4x2 AWG 27/7 stranded copper with foil-per-pair plus braid shielding, a 6 mm halogen-free LSZH jacket and gold-plated RJ45 plugs wired 1:1 to T568B. Typically in stock with fast delivery across Cyprus.
Compatibility note: The RJ45 connectors set the link class at Cat 6A (10GBASE-T, 100 m channel); the Cat 7 raw cable adds headroom (tested to 600 MHz) but does not turn the cord into a Cat 7 link. Works with any Cat 5e/6/6A RJ45 port. EFB publishes no PoE class for this range — for IEEE 802.3bt 4PPoE loads choose EFB MK6001 or ECOLAN cords.
Key Features
10 Gbps Cat 6A
Supports 10GBASE-T over a full 100 m channel and is fully backward compatible with Gigabit and Fast Ethernet equipment.
S/FTP PiMF shielding
Each pair is foiled and the bundle is braided, giving strong alien-crosstalk and EMI rejection in busy racks and next to power cabling.
Length imprint + locking lug
Moulded anti-kink boots with a printed length marking and locking-lug protection keep the plug clip from snagging or breaking during moves.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
For a 2 m 10G rack or desk patch the EC020200167 is a solid, halogen-free S/FTP choice; pick the plain EC Cat 6a range if you do not need the length marking, or EFB MK6001 when the port feeds 802.3bt PoE devices. See all network cables to colour-code your patching.
Buyer's Guide
Buy it if
You need a 2 m shielded Cat 6A LSZH cord for 10GBASE-T switches, servers or patch panels.
Skip it if
You power 802.3bt 4PPoE devices and want a published PoE class.
Also consider
EFB MK6001 Cat 6A LSZH cords with 4PPoE support.
Features - EFB - EC020200167
Colour
red
Length
2m
Standard
CAT6a
More Details
Product Code
04:437669
EAN Code
4049759290153
Manufacturer
EFB
