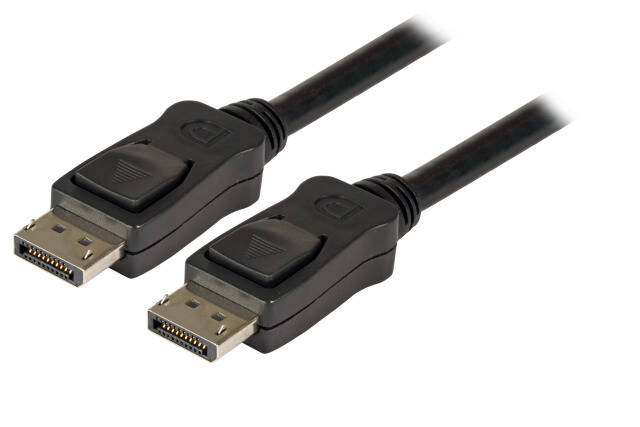

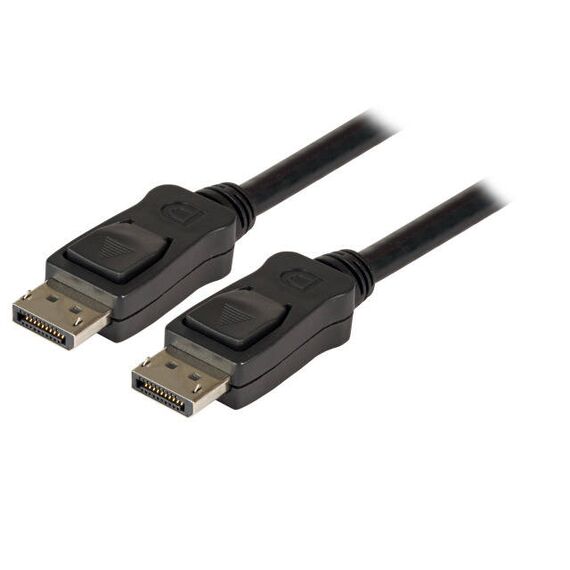

EFB-Elektronik K5567SW.5 DisplayPort 1.4 Cable 5 m 8K 60 Hz Black

Brand:
EFB
EFBElektronik DisplayPort cable DisplayPort (M) K5567SW.5
EFB-Elektronik K5567SW.5 DisplayPort 1.4 Cable 5 m 8K 60 Hz Black
€26.25 inc. VAT
Buy
K5567SW.5
€22.06
€26.25 inc. VAT
Ships from EU stock: 7 item(s)
+ −
Add to wish list Ask a question
Product Code
CQ17215
EAN Code
4049759233099
Manufacturer
EFB
Quick Specs
Type
DisplayPort 1.4 cable
Connectors
DP male ↔ DP male · latching
Key spec
8K 60 Hz · HDCP 2.2
Length
5 m · Black
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

EFB-Elektronik DisplayPort 1.4 Cable, 5 m

8K @ 60 HzDisplayPort 1.45 m · Black

The EFB-Elektronik K5567SW.5 is a 5 m DisplayPort 1.4 male-to-male cable for linking a PC or graphics card to a DisplayPort monitor at resolutions up to 8K (7680 × 4320) at 60 Hz. It uses bare copper conductors, triple shielding with 360° shielded moulded housings and latching gold-plated plugs; pin 20 (DP_PWR) is not connected, avoiding back-power issues.

Compatibility note: EFB does not list this cable as VESA certified. For guaranteed full-bandwidth HBR3 at 5 m, a VESA DP8K-certified cable such as Equip 119255 is the safer pick.

Technical Specifications

Identification
Part Number K5567SW.5
EAN / GTIN 4049759233099
MPN K5567SW.5
Brand EFB-Elektronik
Connection
Connectors DisplayPort male ↔ DisplayPort male (A–A), latching
Contacts Gold-plated
Pin 20 DP_PWR not connected
Standard DisplayPort 1.4
Video
Max resolution 7680 × 4320 (8K) at 60 Hz
Content protection HDCP 2.2
Cable
Length 5 m
Conductor Bare copper
Shielding Triple shielded, 360° shielded moulded housings
Jacket PVC
Diameter 6 mm (distributor data)
Colour Black
Compliance RoHS

Frequently Asked Questions

Which lengths does the EFB K5567SW series come in?
EFB offers the same black DP 1.4 cable in 1 m, 2 m, 3 m and 5 m (K5567SW.1 / .2 / .3 / .5). The 5 m version suits a PC under the desk or a display on the far side of a workstation.
Why is pin 20 not connected?
Pin 20 carries DP power. Leaving it unconnected prevents two devices from feeding power into each other, a known cause of boot or no-signal problems with some monitors.
Singular Expert Insight
A well-specified DP 1.4 cable at a useful length for workstations and wall screens. Its pin-20-free wiring is a plus for troublesome monitor/GPU combinations; the lack of VESA certification is the only reason to prefer a certified alternative for 4K high-refresh setups.
✓ Buy it if you need a 5 m DisplayPort 1.4 cable for a 4K or 8K-ready monitor.
✕ Skip it if you need VESA-certified HBR3 at 5 m for high-refresh 4K.
→ Also consider the certified Equip 119255 (5 m, DP8K) or other DisplayPort cables.
