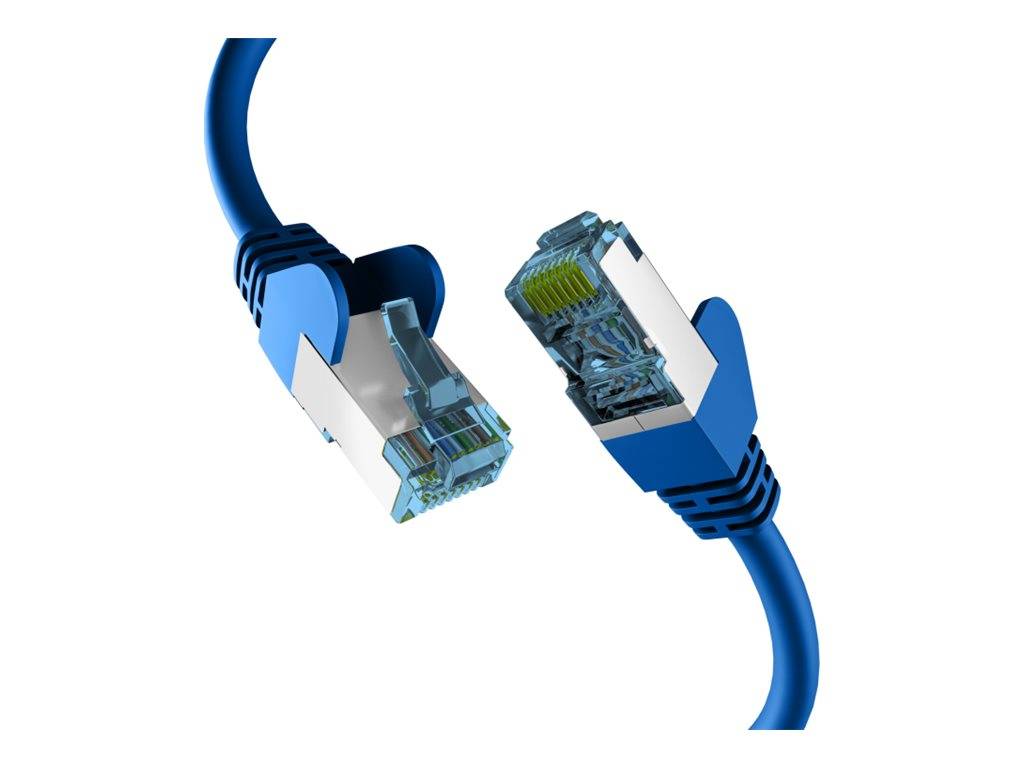

EFB-Elektronik EC020200205 Cat 7 S/FTP PiMF Patch Cable 0.25 m Blue Cat 6A RJ45 LSZH 10 Gigabit Locking Lug

Brand:
EFB

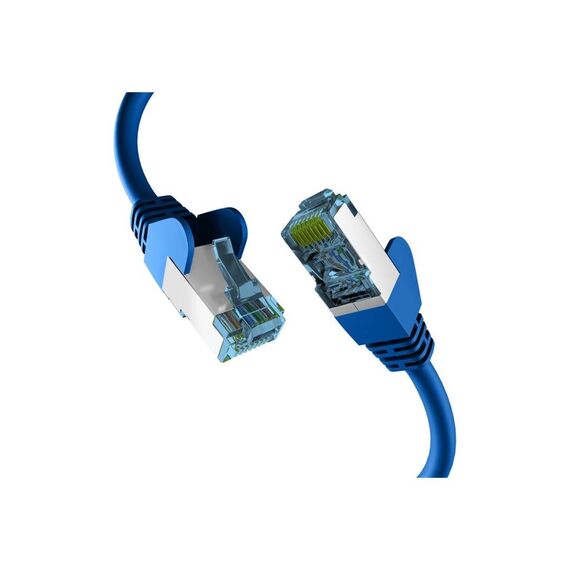

EFBElektronik Patch cable RJ45 (M) to RJ45 (M) EC020200205
EFB-Elektronik EC020200205 Cat 7 S/FTP PiMF Patch Cable 0.25 m Blue Cat 6A RJ45 LSZH 10 Gigabit Locking Lug
€3.26 inc. VAT
Buy
EC020200205
€2.74
€3.26 inc. VAT
Ships from EU stock: 360 item(s)
+ −
Add to wish list Ask a question
Product Code
04:437707
EAN Code
4049759290535
Manufacturer
EFB
Quick Specs
Rating
Cat 6A link · 500 MHz
Cable
Cat 7 S/FTP PiMF · AWG 27/7
Length / Colour
0.25 m · Blue
Jacket
LSZH · 6 mm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

EFB-Elektronik EC020200205 Cat 7 S/FTP Patch Cable with Cat 6A Plugs, 0.25 m, Blue

Cat 6A · 10 Gbit/s0.25 mS/FTP PiMFLSZH

The EFB-Elektronik EC020200205 is a 0.25 m blue RJ45 patch cable that pairs Cat 7-grade S/FTP PiMF raw cable with Cat 6A connectors, made for 10 Gigabit short patching between patch panels, servers and network switches. Part number EC020200205 uses AWG 27/7 stranded copper in a 6 mm LSZH halogen-free jacket, gold-plated RJ45 plugs wired T568B 1:1, moulded anti-kink boots with locking-lug protection and a printed length imprint. Typically in stock with fast delivery across Cyprus.

Compatibility note: The raw cable is Cat 7 grade, but RJ45 connectors limit the finished link to Cat 6A (500 MHz, 10GBASE-T) — it does not turn a network into “Cat 7”. For the screen to work end-to-end, use shielded patch panels and switch ports. EFB does not publish a PoE class for this cord; for documented 802.3bt budgets choose a PoE-rated model.

Key Features


Double-screened PiMF construction
Each pair is individually foil-wrapped (PiMF) under an overall braid (S/FTP), giving strong crosstalk and EMI protection for 10 Gbit/s links in crowded racks.

Short rack-patching length
At 0.25 m it bridges adjacent patch-panel and switch ports without loops or slack, keeping 1U cable management tidy and airflow clear.

Locking-lug protected plugs
Moulded anti-kink boots guard the RJ45 latch against snagging and breaking, while the length imprint makes audits easy; colour blue helps code uplinks and VLANs.

Technical Specifications

Identification
Part Number EC020200205
EAN / GTIN 4049759290535
MPN EC020200205
Brand EFB-Elektronik
Product Line EFB patch cable, Cat 7 raw cable / Cat 6A connectors
Performance
Link Category Cat 6A (RJ45 connectors) — 10GBASE-T capable
Raw Cable Grade Cat 7 per ANSI/TIA/EIA-568-C.2 — cable only; the finished link is Cat 6A
Bandwidth 500 MHz (Cat 6A link)
Data Rate Up to 10 Gbit/s
PoE No PoE class published by EFB
Cable
Shielding S/FTP PiMF — overall braid plus foil around each pair
Conductor AWG 27/7 stranded copper, 8 wires
Jacket LSZH — Low Smoke Zero Halogen, halogen-free
Diameter 6 mm
Connectors
Connectors 2x RJ45 male, gold-plated
Wiring T568B, pin assignment 1:1
Boot Moulded, anti-kink sleeve, locking-lug protection, length imprint
Physical
Length 0.25 m
Colour Blue
Protection Class IP20 — indoor use, no dust/water sealing
Compliance
Standards EN 50173-1, ISO/IEC 11801, TIA/EIA-568-B

Frequently Asked Questions

Does the EFB EC020200205 support 10 Gigabit Ethernet?
Yes. With Cat 6A-rated RJ45 plugs and Cat 7-grade S/FTP cable it supports 10GBASE-T, and naturally 1, 2.5 and 5 Gbit/s, between switches, servers, NAS units and patch panels.
What do I need to know before buying the EFB EC020200205?
It is only 0.25 m long, so it is meant for patching between neighbouring ports in a rack. It is fully shielded and LSZH; to benefit from the screen, connect it to shielded ports. No PoE class is published.
Singular Expert Insight
EFB’s EC Cat 7-raw / Cat 6A-plug cords give premium double screening in a 6 mm LSZH cable at patch-cord prices. At 0.25 m the EC020200205 spans ports one rack unit apart; the same family comes in 0.15 m for directly stacked devices and 0.5 m for two-unit gaps. Use colours to separate roles — e.g. blue for user access. If you run unshielded equipment and want thinner cabling, a slim Cat 6A U/UTP cord such as Equip 626x is easier to route.

Buyer's Guide

Buy it if
You patch 10 Gbit/s switches, servers or storage in a shielded rack and want a short, robust LSZH cord.
Skip it if
Your ports are unshielded and space is tight — a 2.8 mm slim Cat 6A U/UTP cord routes more easily.
Also consider
EFB EC 0.15 m / 0.5 m versions, or Equip 626x slim Cat 6A U/UTP.

Features - EFB - EC020200205

Colour
blue
Length
0.25m
Standard
CAT6a
More Details
Product Code
04:437707
EAN Code
4049759290535
Manufacturer
EFB
