EFB-Elektronik EC020200118 Cat 6A S/FTP PiMF Patch Cable RJ45 0.25 m Grey Cat 7 Raw Cable LSZH 600 MHz

Brand:
EFB
EFB-Elektronik - Patch cable - RJ-45 (M) to RJ-45 ( | EC020200118

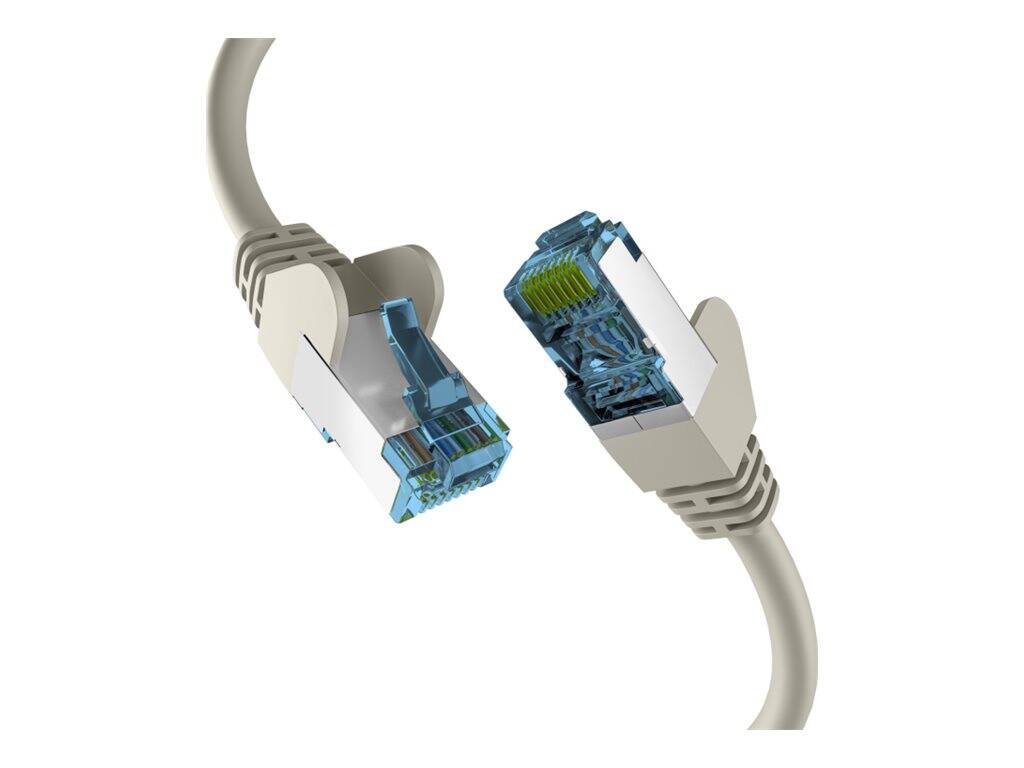

EFB-Elektronik EC020200118 Cat 6A S/FTP PiMF Patch Cable RJ45 0.25 m Grey Cat 7 Raw Cable LSZH 600 MHz
€3.45 inc. VAT
Buy
EC020200118
€2.90
€3.45 inc. VAT
Ships from EU stock: 500 item(s)
+ −
Add to wish list Ask a question
Product Code
04:437620
EAN Code
4049759289669
Manufacturer
EFB
Quick Specs
Category
Cat 6A (Cat 7 raw)
Length
0.25 m
Jacket
LSZH
Colour
Grey
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

EFB EC020200118 Cat 6A S/FTP Patch Cable — 0.25 m Grey

Cat 6A · 10 GbpsCat 7 raw cableS/FTP PiMF · LSZH0.25 m Grey
The EFB-Elektronik EC020200118 is a 0.25 m grey Cat 6A S/FTP PiMF RJ45 patch cable built on Cat 7 raw cable (tested to 600 MHz) with Cat 6A plugs, with a halogen-free LSZH jacket and moulded, anti-kink boots, designed for short 10 Gigabit jumpers between patch panels, switches and servers. Part number EC020200118 (EAN 4049759289669). Typically in stock with fast delivery across Cyprus.
Before you buy
At 0.25 m this jumper only reaches between directly adjacent devices — measure first. The channel class is Cat 6A (set by the RJ45 plugs); "Cat 7" describes the raw cable only. EFB publishes no PoE class for the EC range — for certified 802.3bt 4PPoE choose the EFB MK6001 / EC6000A cords.

Key Features


10G-ready Cat 6A
S/FTP PiMF construction for 10GBASE-T with low crosstalk, backward compatible with Cat 6 and Cat 5e.

Halogen-free LSZH jacket
Low-smoke zero-halogen 6 mm sheath with stranded AWG 27/7 copper conductors for flexible, fire-safer patching.

Locking-lug protection
Moulded boots with latch protection and a printed length marking make re-patching and identification easy.

Technical Specifications

Identification
Part Number EC020200118
EAN / GTIN 4049759289669
MPN EC020200118
Brand EFB-Elektronik
Product Line EFB EC patch cables — Cat 7 raw cable with Cat 6A plugs
Cable
Category Cat 6A — 10GBASE-T
Shielding S/FTP — overall braid screen plus foil around each pair (PiMF), best noise immunity
Raw Cable Cat 7 per ANSI/TIA/EIA 568-C.2 — tested up to 600 MHz
Channel Class Cat 6A 500 MHz (set by the RJ45 plugs)
Conductor Stranded copper, 8 wires
AWG 27/7 — stranded patch gauge
Outer Diameter 6 mm
Jacket LSZH — low smoke, zero halogen
Data Rate 10 Gbps (10GBASE-T)
PoE No PoE class published by EFB
Connectors
Connectors 2 × RJ45 (8P8C) male
Wiring 1:1 straight-through, T568B
Contacts Gold-plated
Boot Booted, moulded, anti-kink sleeve, latch protection
Physical
Length 0.25 m
Colour Grey
Protection IP20
Compliance
Standards EN 50173-1, ISO/IEC 11801, TIA/EIA-568-B, ANSI/TIA/EIA 568-C.2

Frequently Asked Questions

Does the EFB EC020200118 work with my switch, router or PC?
Yes. It is a standard RJ45-to-RJ45 Cat 6A patch cable wired 1:1, so it connects any Ethernet port — switch, router, patch panel, NAS, PC or access point — with no configuration. It is backward compatible with Cat 6 and Cat 5e ports.
Is the EC020200118 suitable for 10 Gigabit Ethernet between a patch panel and a switch?
Yes. It is a shielded Cat 6A cord for 10GBASE-T, and the 0.25 m length is intended for short in-rack jumpers between a panel and a switch or server.
What is the difference between the EC020200118 and the plain EFB EC Cat 6A cords?
Both are Cat 6A S/FTP LSZH patch cords with 10 Gbps performance; the EC020200118 uses Cat 7 raw cable tested to 600 MHz for extra headroom, while the plain EC cords use Cat 6A cable tested to 500 MHz. In a standard 10GBASE-T link both perform the same.
What do I need to know before buying the EC020200118?
Check the length first: this cable is 0.25 m end to end, including the plugs. Measure the port-to-port distance — 0.25 m is a short jumper. It is shielded, so shielded panels/ports give the full noise-rejection benefit, and no PoE class is declared.
Singular Expert Insight
EFB EC cords are our workhorse shielded Cat 6A jumpers: LSZH, correct 27/7 stranded copper and a wide colour range for patching servers and panels into your network switches. For declared 802.3bt PoE use EFB MK6001/EC6000A; for very dense panels a slim cord like DIGITUS DK-1632-A slim or Wantec Extraslim packs tighter.

Buyer's Guide

Buy it if
You need a short shielded, halogen-free Cat 6A jumper for 10G patching.
Skip it if
You need a declared PoE class or a much longer run.
Also consider
EFB EC in other lengths/colours, or DIGITUS DK-1644-A Cat 6A S/FTP.

Features - EFB - EC020200118

Colour
grey
Length
0.25m
Standard
CAT6a
More Details
Product Code
04:437620
EAN Code
4049759289669
Manufacturer
EFB
