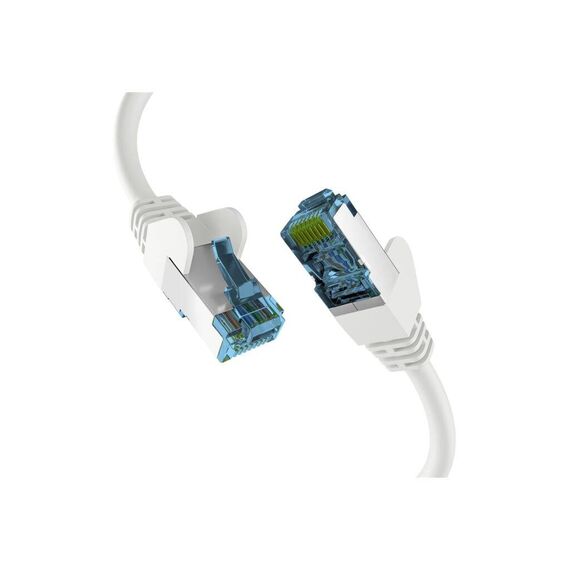

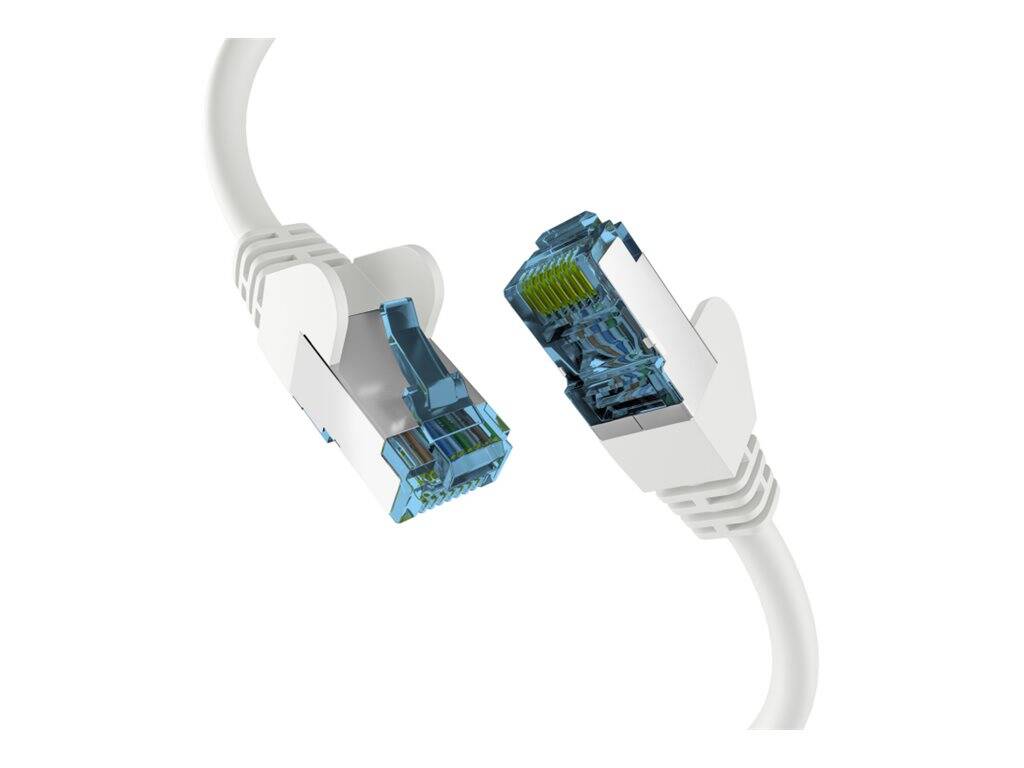

EFB-Elektronik EC020200134 Cat 6A S/FTP PiMF Patch Cable on Cat 7 Raw Cable 0.5 m White RJ45 10 Gbps LSZH AWG 27/7

Brand:
EFB
EFB-Elektronik - Patch cable - RJ-45 (M) to RJ-45 ( | EC020200134
EFB-Elektronik EC020200134 Cat 6A S/FTP PiMF Patch Cable on Cat 7 Raw Cable 0.5 m White RJ45 10 Gbps LSZH AWG 27/7
€3.74 inc. VAT
Buy
EC020200134
€3.14
€3.74 inc. VAT
Ships from EU stock: 500 item(s)
+ −
Add to wish list Ask a question
Product Code
04:437636
EAN Code
4049759289829
Manufacturer
EFB
Quick Specs
Standard
Cat 6A plugs · Cat 7 raw
Length
0.5 m · White
Speed
10 Gbps
Build
S/FTP PiMF · LSZH
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

EFB-Elektronik EC020200134 Cat 6A S/FTP Patch Cable on Cat 7 Raw Cable — 0.5 m, White

10 Gigabit EthernetCat 7 raw cableS/FTP PiMF · LSZH0.5 m White

The EFB-Elektronik EC020200134 is a 0.5 m white shielded patch cable that pairs Cat 7 raw cable with Cat 6A RJ45 connectors for 10 Gigabit Ethernet between patch panels, switches and servers. Part number EC020200134 uses S/FTP PiMF shielding, stranded copper AWG 27/7 conductors in a 6 mm halogen-free LSZH jacket, gold-plated contacts and locking-lug protection. Typically in stock with fast delivery across Cyprus.

Before you buy
The Cat 7 raw cable is tested up to 600 MHz, but an RJ45 link is always capped by its connectors — this cord performs as a Cat 6A / Class EA channel (500 MHz, 10 Gbps), exactly like any quality Cat 6A cord. EFB publishes no PoE class for this series; for IEEE 802.3bt devices choose EFB MK7001 or MK6001, which are 4PPoE-rated.

Key Features


Cat 7 raw cable inside
Four individually foiled pairs under an overall braid (S/FTP PiMF) with AWG 27/7 copper — strong crosstalk and EMI immunity for dense 10G racks.

Built for patching
Moulded booted plugs with anti-kink sleeve, locking-lug protection that stops latches snagging, length imprint on the jacket and 1:1 T568B wiring.

Halogen-free LSZH
A 6 mm low-smoke zero-halogen jacket suits server rooms, offices and public buildings where fire regulations apply.

Technical Specifications

Identification
Part Number EC020200134
EAN / GTIN 4049759289829
MPN EC020200134
Brand EFB-Elektronik
Performance
Channel Class Cat 6A / Class EA — 500 MHz, set by the RJ45 plugs
Raw Cable Grade Cat 7 per ANSI/TIA/EIA 568-C.2, tested up to 600 MHz
Data Rate 10 Gigabit Ethernet
PoE Not specified by EFB
Construction
Shielding S/FTP PiMF — foil per pair + overall braid
Conductor Stranded copper, AWG 27/7, 8 wires
Jacket LSZH — low smoke, zero halogen
Outer Diameter 6 mm
Connectors 2 × RJ45 male, gold-plated
Features Booted, moulded, anti-kink sleeve, locking-lug protection, length imprint
Wiring 1:1, T568B
Length 0.5 m
Colour White
Compliance
Standards EN 50173-1, ISO/IEC 11801, TIA/EIA-568-B, ANSI/TIA/EIA 568-C.2
Protection IP20 — indoor

Frequently Asked Questions

Is the EFB EC020200134 a Cat 7 cable?
Its raw cable is Cat 7 (600 MHz), but because it is terminated with RJ45 connectors it works as a Cat 6A channel — 500 MHz and 10 Gbps. That is the practical maximum for any RJ45 patch cord of this type.
Can I use the EFB EC020200134 for PoE?
EFB does not publish a PoE class for this series. For PoE+ or PoE++ (802.3bt) access points and cameras, EFB's MK7001 or MK6001 cords are explicitly 4PPoE-rated.
Singular Expert Insight
The EC Cat 7-raw cords are a solid choice for short 10G links between a patch panel and network switches: heavily shielded, halogen-free and easy to colour-code. If you also need guaranteed PoE++ support, EFB MK7001 is the better buy; for Gigabit desks a Cat 6 cord from our network cables range costs less.

Buyer's Guide

Buy it if
You patch 10G racks and want shielded, LSZH 0.5 m jumpers with latch protection in white.
Skip it if
You need a published PoE++ rating or a slimmer cable for very dense ports.
Also consider
EFB MK7001 (Cat 6A on Cat 7 raw, 4PPoE) or equip 606xxx Cat 6A S/FTP.

Features - EFB - EC020200134

Colour
white
Length
0.5m
Standard
CAT6a
More Details
Product Code
04:437636
EAN Code
4049759289829
Manufacturer
EFB
