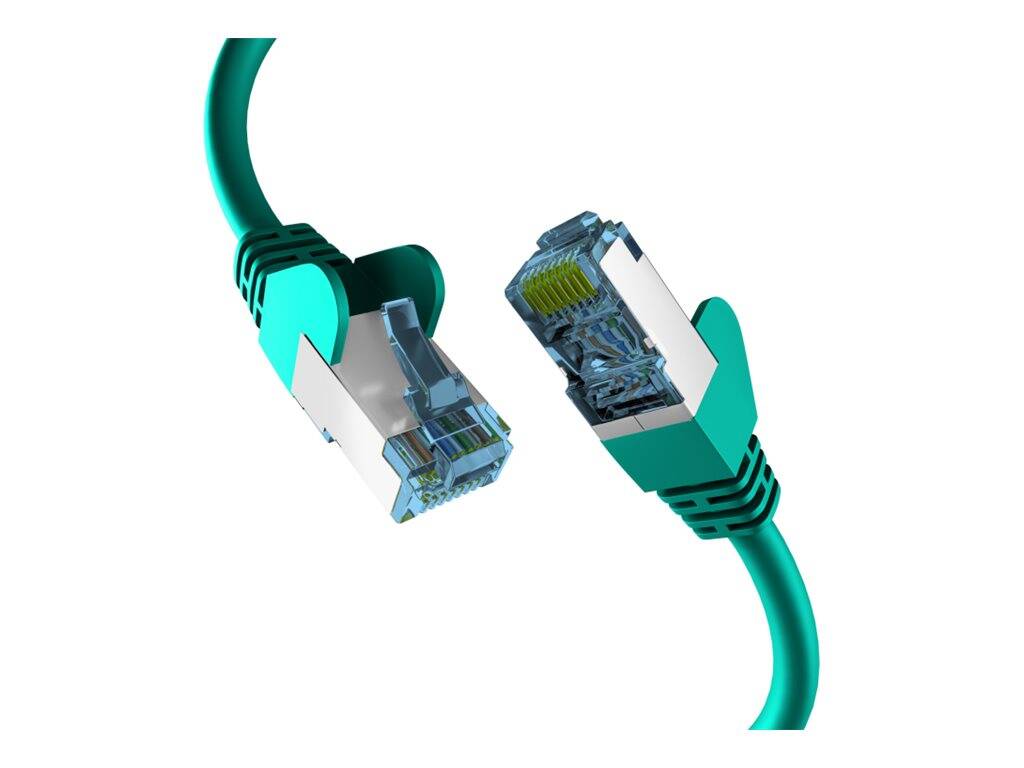

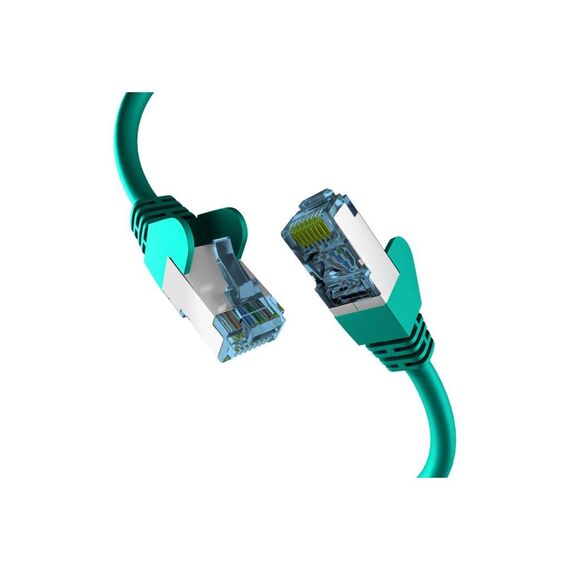

EFB-Elektronik EC020200192 Cat 7 S/FTP PiMF Patch Cable 0.5 m RJ45 with Cat 6A Connectors 10GbE LSZH Green

Brand:
EFB
EFB-Elektronik - Patch cable - RJ-45 (M) to RJ-45 ( | EC020200192
EFB-Elektronik EC020200192 Cat 7 S/FTP PiMF Patch Cable 0.5 m RJ45 with Cat 6A Connectors 10GbE LSZH Green
€3.49 inc. VAT
Buy
EC020200192
€2.93
€3.49 inc. VAT
Ships from EU stock: 136 item(s)
+ −
Add to wish list Ask a question
Product Code
04:437694
EAN Code
4049759290405
Manufacturer
EFB
Quick Specs
Category
Cat 7 raw · Cat 6A plugs
Shielding
S/FTP PiMF
Length
0.5 m
Jacket
LSZH · 6 mm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
EFB-Elektronik · Network Patch Cable

EFB EC020200192 Cat 7 S/FTP Patch Cable, 0.5 m Green

10GBASE-T ReadyCat 7 raw · Cat 6A plugsS/FTP PiMF0.5 m · Green

The EFB-Elektronik EC020200192 is a 0.5 m green RJ45 patch cable that pairs Cat 7 S/FTP PiMF raw cable (rated to 600 MHz) with Cat 6A connectors, built for short 10 Gigabit links in racks and between network equipment.

Part number EC020200192 uses 4 × 2 AWG 27/7 stranded copper pairs, each wrapped in its own foil plus an overall braid, inside a 6 mm halogen-free LSZH jacket with moulded anti-kink boots and a printed length marking. Typically in stock with fast delivery across Cyprus.

Compatibility Note
RJ45 connectors limit any link to Cat 6A (Class EA, 500 MHz) — the Cat 7 rating describes the raw cable only, so treat this as a very well-shielded Cat 6A cord. It works with every RJ45 Ethernet port (10/100/1000 Mbit/s and 2.5/5/10GBASE-T). For the shield to be effective, the equipment or patch panel at both ends should have shielded, earthed ports. EFB publishes no PoE class for this cord. Indoor use only (IP20).

Key Features


Cat 7 S/FTP PiMF raw cable
Every pair has its own foil screen and the bundle is covered by a copper braid — excellent immunity to crosstalk and electrical noise in crowded racks. The raw cable is rated to 600 MHz.

10 Gigabit-ready Cat 6A plugs
Gold-plated RJ45 plugs wired 1:1 to T568B support 10GBASE-T as well as 2.5G/5G and Gigabit links, so one cord type covers the whole cabinet.

LSZH jacket, moulded boots
Low-smoke, zero-halogen 6 mm jacket for offices and data rooms, with moulded anti-kink boots, locking-lug protection and a length imprint for quick identification.

Technical Specifications

Identification
Brand EFB-Elektronik
Part Number EC020200192
EAN / GTIN 4049759290405
MPN EC020200192
Product Line EC020200 patch cords, Cat 7 raw cable with Cat 6A RJ45 plugs
Performance
Link category Cat 6A (Class EA) — the RJ45 plugs set the link rating
Raw cable bandwidth 600 MHz (Cat 7 raw cable)
Network speed Up to 10 Gbit/s (10GBASE-T)
PoE No PoE class published by EFB
Construction
Shielding S/FTP PiMF — pairs in metal foil plus overall braid
Conductors 4 × 2 AWG 27/7 stranded copper
Jacket LSZH — low smoke, zero halogen
Outer diameter 6 mm
Contacts Gold-plated
Wiring T568B, 1:1
Features Moulded anti-kink boots, locking-lug protection, length imprint
Physical
Length 0.5 m
Colour Green
Connectors 2 × RJ45 (8P8C) male
Protection IP20 — indoor use
Standards
Compliance EN 50173-1, ISO/IEC 11801, TIA/EIA-568-B

Frequently Asked Questions

Is the EFB EC020200192 a Cat 7 or a Cat 6A cable?
Both, in a sense: the raw cable is Cat 7 S/FTP (600 MHz), but RJ45 plugs are only standardised up to Cat 6A, so the finished cord performs as a Cat 6A patch cable. That comfortably supports 10GBASE-T over the full 100 m channel.
Will the EC020200192 work with my Gigabit switch or router?
Yes. It is a standard RJ45-to-RJ45 cord wired 1:1 (T568B) and works with any 10/100/1000 Mbit/s or multi-gig Ethernet port. The shielding needs shielded ports to add benefit, but causes no problems on unshielded ones.
What length and colour options are there?
This is the 0.5 m green version. The same EC020200 Cat 7 raw cord is available in other colours (for example green, red and blue at 50 cm) and in longer lengths, so you can colour-code uplinks, servers and PoE devices.
Singular Expert Insight
We recommend the EFB EC020200192 for short 10G patching where noise immunity matters — top-of-rack links, server-to-switch jumpers and patch-panel runs next to power cabling. At 0.5 m, it keeps cabinets tidy between the panel and your network switches. If you only need Gigabit, a Cat 6 U/UTP cord such as the DIGITUS DK-1617 series is cheaper and thinner; for very dense panels, a slim Cat 6A cord like the equip 626702 saves space.

Buyer's Guide

Buy it if
You need a shielded 10G patch cord for a rack, you want LSZH, and your panel or switch ports are shielded.
Skip it if
You need PoE with a published class, outdoor use, or a very thin cord for high-density panels.
Also consider
EFB EC0202000xx plain Cat 6A cords, DIGITUS DK-1644-A Cat 6A S/FTP, or equip 626702 slim Cat 6A U/UTP.
