EFB-Elektronik 691826TS Distribution Panel 10 Inch 1U 12-Port Keystone Metal Unloaded with Cable Bracket Black

Brand:
EFB
EFB 691826TS 10in 12-Port Keystone Panel Black
EFB-Elektronik 691826TS Distribution Panel 10 Inch 1U 12-Port Keystone Metal Unloaded with Cable Bracket Black
€25.44 inc. VAT
Buy
691826TS
€21.38
€25.44 inc. VAT
Ships from EU stock: 9 item(s)
+ −
Add to wish list Ask a question
Product Code
04:263964
EAN Code
4049759190637
Manufacturer
EFB

Quick Specs

Ports
12 keystone slots
Rack
10-inch · 1U
Shielding
Not published by EFB
Modules
Not included — empty frame
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

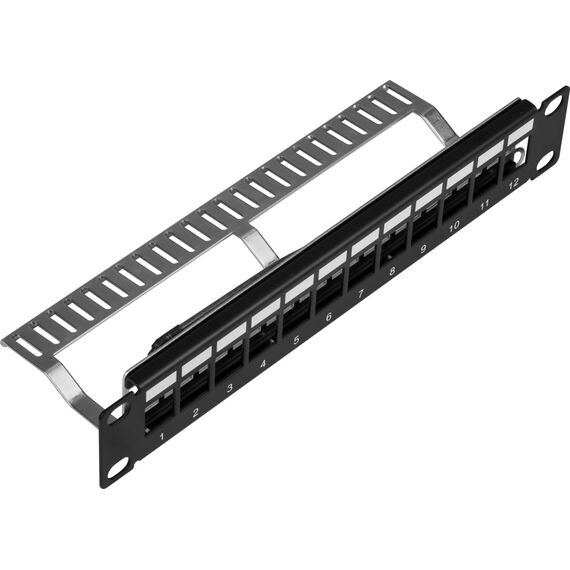

EFB-Elektronik 691826TS — 10-inch Keystone Distribution Panel, 12 Ports, Black

12 keystone ports10-inch 1URear cable bracketModules not included

The EFB-Elektronik 691826TS is a 12-port keystone distribution panel for 10-inch cabinets: a 1U steel-sheet frame in black RAL 9005 with a rear cable bracket, delivered unloaded. It arrives empty: you snap in the keystone jacks or couplers you choose, so the same frame can carry Cat 6 or Cat 6A copper and other keystone inserts. In practice it is the patch field for a small network in a 10-inch wall or desk cabinet, with the bracket at the back holding the incoming cables. Terminate each installation cable on its own keystone jack, click the jacks into the panel from the front, and tie the cables to the rear bracket so the jacks are never pulled.

Compatibility — check before buying:
No keystone modules are included — order 12 jacks (or fewer, with blanks) separately. EFB does not publish shielding or earthing details, so treat it as a frame for unshielded installations unless we confirm otherwise. It fits 10-inch racks only, not 19-inch. Not sure which jacks or cabinet you need? Tell us the cable and cabinet model and we check it.

Best For

✓ Compact 10-inch network and wall cabinets
✓ Office floor distributors and comms rooms
✓ Keystone installs in Cat 6 or Cat 6A
✓ Re-patching without re-terminating cable
✓ Mixing RJ45 with other keystone couplers
✓ Neat, labelled patch fields

Key Features


Made for 10-inch cabinets
A 1U panel for the compact 10-inch racks used in small offices, shops and homes.

Keystone flexibility
Twelve keystone openings for the RJ45 jacks or other couplers you choose.

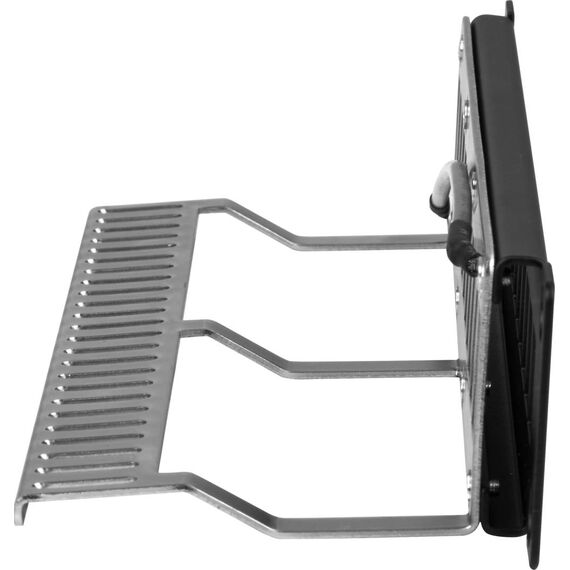

Rear cable bracket
A bracket at the back holds the incoming cables and relieves strain on the jacks.

Steel-sheet frame
Sturdy steel sheet in black RAL 9005.

Technical Specifications

Identification
Brand EFB-Elektronik
Product Distribution panel 10″ 1U 12-port, metal, black RAL9005
Part Number 691826TS
EAN / GTIN 4049759190637
Colour Black RAL 9005
Panel
Ports 12 keystone openings
Rack Format 10-inch, 1U
Material Steel sheet
Cable Management Rear cable bracket
Delivery Unloaded — no keystones
Planning Your Install
What Else You Need Keystone jacks for every port you use (matching the cable category), a punch-down tool or tool-free jacks, and patch cords to the switch
Rack Space One rack unit, plus room behind the panel for the incoming installation cables
Typical Layout Switch directly above or below the panel, linked with short patch cords of 0.25–0.5 m
Labelling Number each port to match the wall outlet it serves, so faults are traced in minutes
Testing Test every link after termination; the rated category is only reached when jacks, cable and cords all match
In the Box
Included The distribution panel, delivered unloaded
Not Included Keystone modules; EFB does not list screws or cage nuts
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term EFB-Elektronik does not state a warranty term for this product on its official product page or datasheet. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Are keystone modules included?
No. The 691826TS is an empty frame for 12 keystone modules; EFB-Elektronik supplies it without jacks. Order 12 keystone jacks (or fewer, and blank the rest) of the category your cable needs. Tell us the cable and we put the right jacks on the same order.
Which keystone jacks fit?
EFB describes it as a keystone panel but does not publish which keystone formats fit or whether shielded jacks are supported. Standard-size keystone jacks usually fit; tell us the jack model and we check it.
Does the frame decide Cat 6 or Cat 6A?
No. The frame only holds the modules. The link performance comes from the keystone jacks and the cable you fit, so a Cat 6A installation needs Cat 6A jacks and Cat 6A cable throughout.
Is there a grey version?
Yes. EFB sells the same 10-inch 12-port panel in grey RAL 7035 as 691826. The TS version is black; colour is the only difference.
Singular Expert Insight
We suggest the 691826TS for black 10-inch cabinets where a sturdy steel panel with a rear cable bracket is wanted. For grey cabinets, EFB’s 691826 is the same panel in RAL 7035. If you are planning a new 10-inch cabinet, tell us how many outlets you have and we suggest the matching jacks, switch and patch cords. Every order comes with Singular’s local support in Cyprus — see our network switches and network cables.

Buyer’s Guide

Buy it if

You have a black 10-inch cabinet and need a frame for up to 12 keystone jacks with a cable bracket.

Skip it if

Your rack is 19-inch, or you need a documented shielded frame with earthing.

Also consider

EFB-Elektronik 691826, the grey version.
