EFB-Elektronik O0330.2 Duplex Fiber Patch Cable LC-LC OM1 62.5/125 Multimode 2m LSZH 2mm Orange with Test Report

Brand:
EFB
EFB O0330.2 Fiber Patch Cable LC-LC OM1 Duplex 2m
EFB-Elektronik O0330.2 Duplex Fiber Patch Cable LC-LC OM1 62.5/125 Multimode 2m LSZH 2mm Orange with Test Report
€7.49 inc. VAT
Buy
O0330.2
€6.29
€7.49 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
CL12633
EAN Code
4049759022754
Manufacturer
EFB

Quick Specs

Fiber
OM1 multimode 62.5/125
Connectors
LC-LC duplex (UPC)
Length
2 m
Insertion Loss
≤0.25 dB @ 850 nm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

EFB-Elektronik O0330.2 — Duplex Fiber Patch Cable LC-LC, OM1, 2 m

OM1 62.5/125LC-LC duplex2 mTested, with report

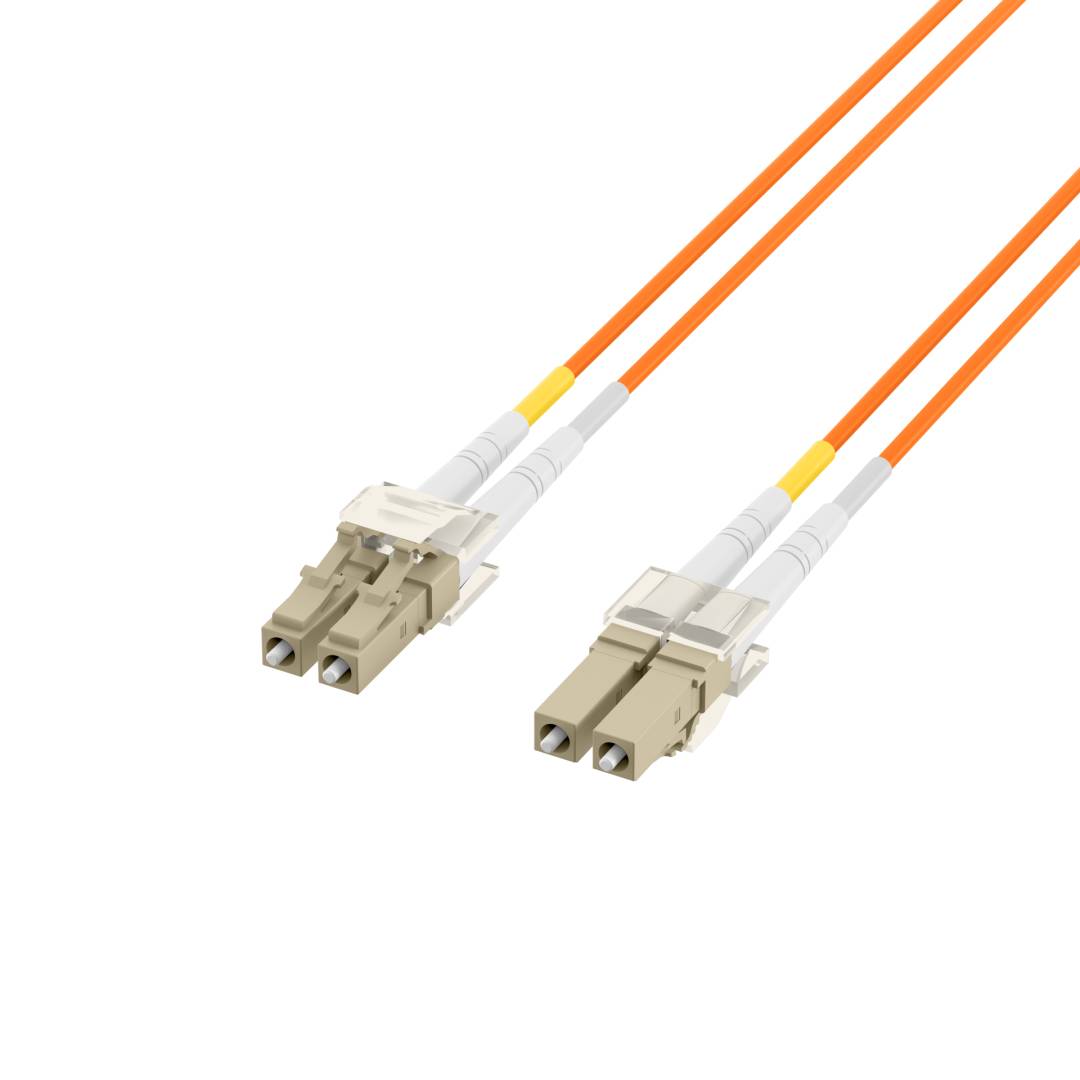

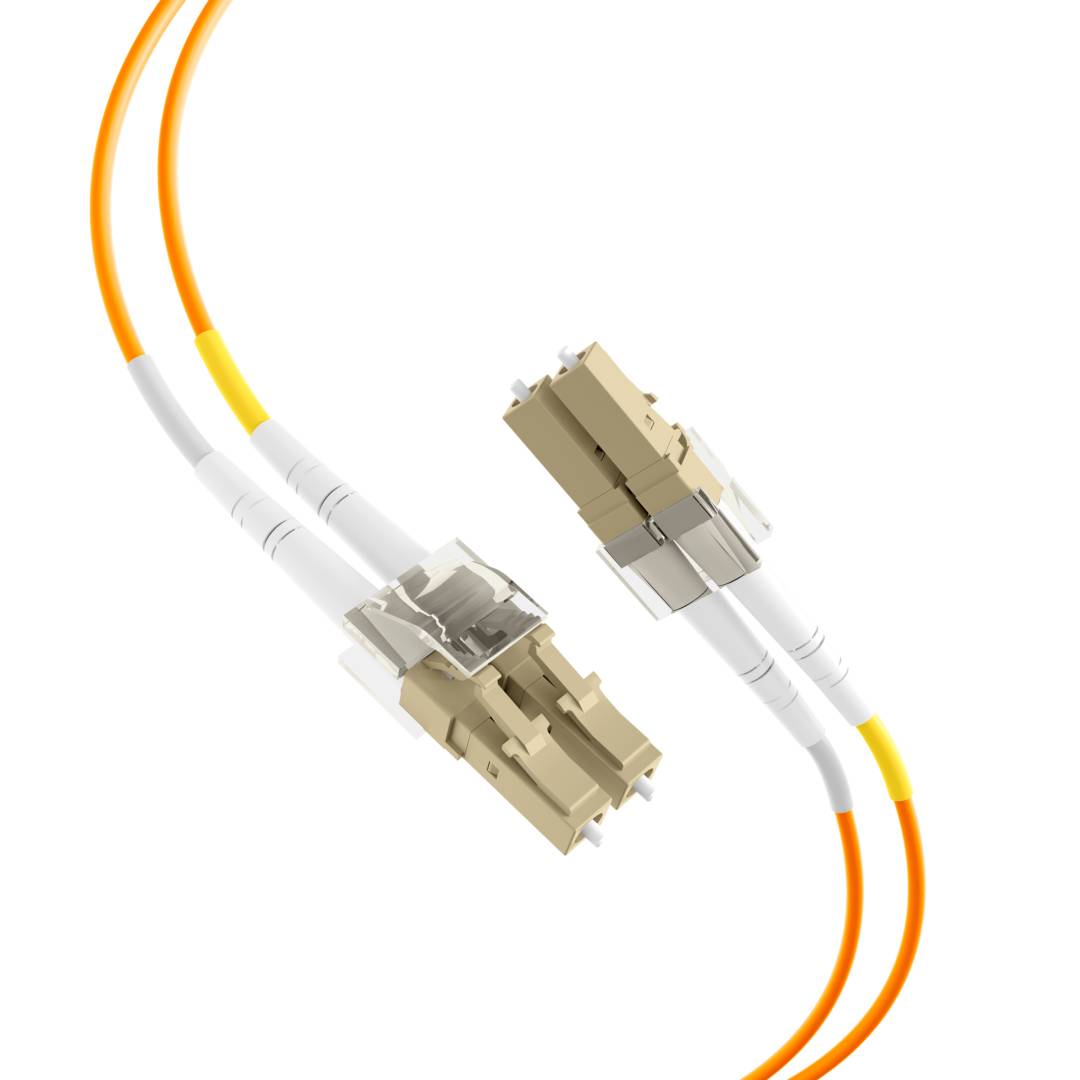

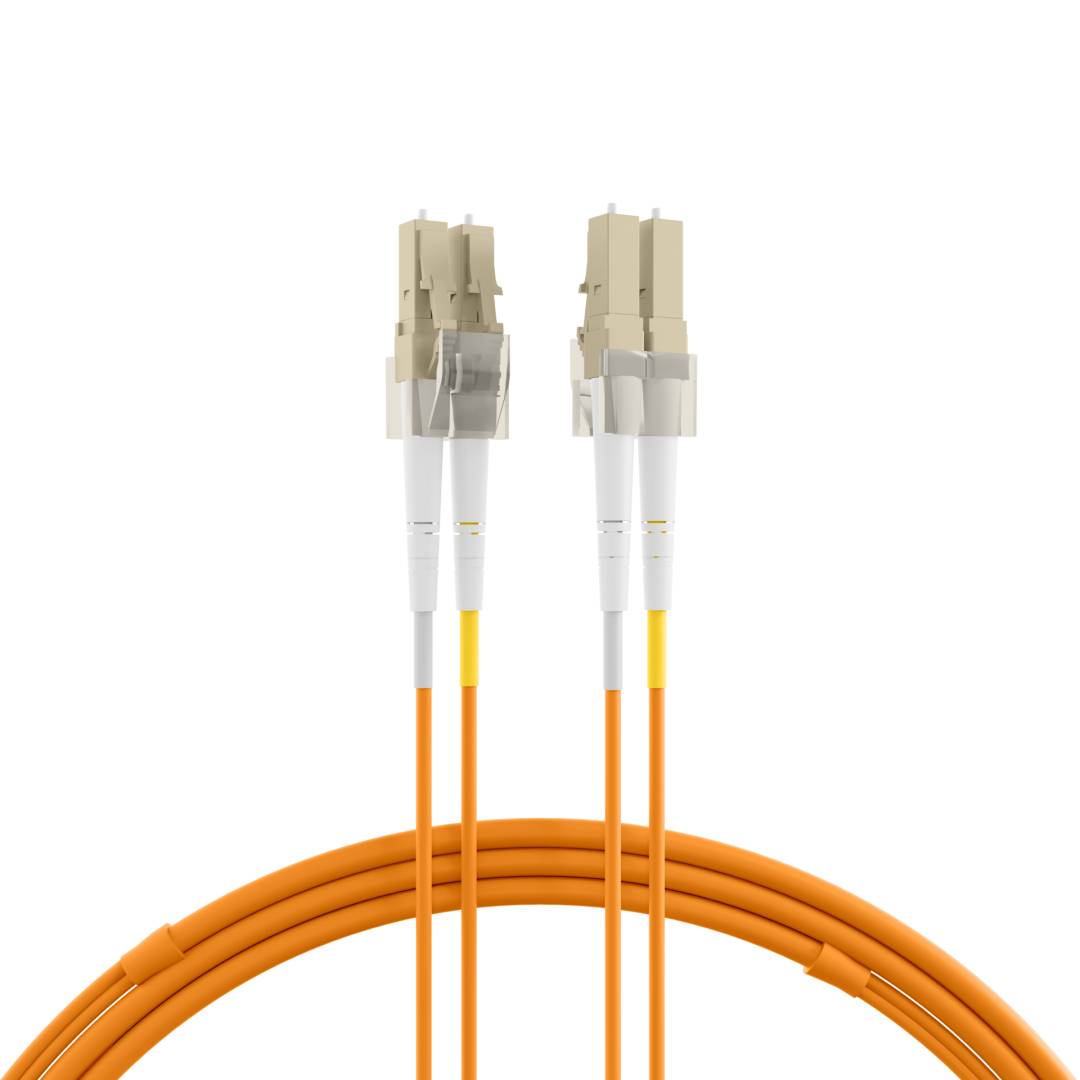

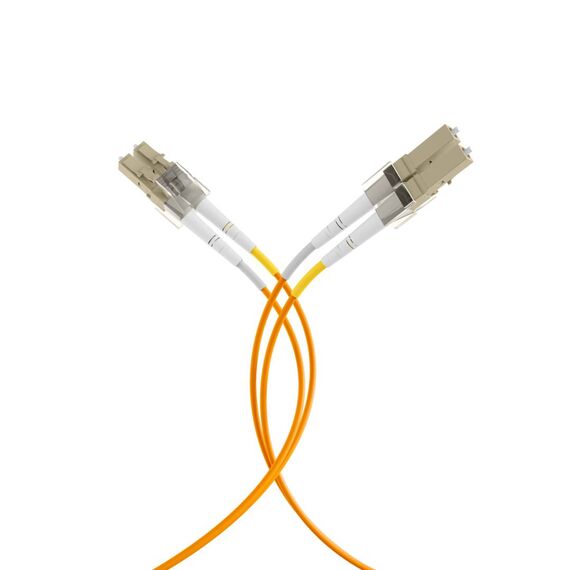

The EFB-Elektronik O0330.2 is a 2 m duplex fiber-optic patch cable with LC connectors on both ends and OM1 multimode fiber (62.5/125 µm). It connects a fiber patch panel to a switch, or two network devices directly, in installations that already use OM1 — typically older multimode backbones in office buildings and campuses. The cable has a 2 mm halogen-free LSZH jacket in orange, aramid-yarn strain relief and push-on boots. EFB tests every cable 100% and ships it with an individual measurement report; insertion loss is at most 0.25 dB and return loss at least 35 dB at 850 nm.

Compatibility — check before buying:
Match the fiber type. OM1 (62.5/125) must not be mixed with OM2/OM3/OM4 (50/125) or singlemode (OS2) in the same link — the core sizes differ and the link will lose signal. Check the label on your patch panel or installation cable first. Match the connector: this is LC on both ends; SC, ST or E2000 ports need a different cable. Your switch needs multimode transceivers (typically 850 nm). OM1 is an older grade; for new 10 Gbit links OM3 or OM4 is normally used. Send us the transceiver or panel details and we confirm.

Best For

✓ Existing OM1 multimode installations
✓ Fiber patch panel to switch
✓ SFP transceivers with LC ports
✓ Campus and building backbones
✓ Replacing damaged OM1 patch cords
✓ Server-room fiber patching

Key Features


OM1 62.5/125 multimode
The legacy multimode grade still found in many office and campus backbones.

LC-LC duplex
Two fibers with LC connectors and duplex clips, UPC polish, Grade B/2 per IEC 61753.

Low loss, tested
Insertion loss ≤0.25 dB, return loss ≥35 dB at 850 nm; every cable with its own test report.

LSZH, aramid strain relief
2 mm halogen-free, flame-retardant jacket; aramid yarn protects the fibers from pulling.

Technical Specifications

Identification
Brand EFB-Elektronik
Product Duplex patch cable LC-LC OM1 62.5/125, 2 m, LSZH, 2 mm, orange
Part Number O0330.2
EAN / GTIN 4049759022754
Length 2 m (tolerance ±5%)
Colour Orange
Optical
Fiber Type Multimode 62.5/125 µm
Category OM1
Number of Fibers 2 (duplex)
Insertion Loss (850 nm) ≤0.25 dB
Return Loss (850 nm) ≥35 dB
Polish / Grade UPC; Grade B/2 (IEC 61753-1 / IEC 61753-122-2)
Cable
Construction Duplex, I-V(ZN)H
Diameter 2 mm
Jacket LSZH, orange
Strain Relief Aramid yarn
Bend Radius 20× OD dynamic / 10× OD static
Boots Push-on
Connectors
Connector 1 LC (duplex)
Connector 2 LC (duplex)
Duplex Clips 2 included
Safety & Environment
Flame Retardant IEC 60332-1-2
Low Smoke IEC 61034
Halogen-Free IEC 62821
Operating Temperature −20 to 60 °C
Storage Temperature −20 to 70 °C
In the Box
Included 1× patch cable, 2× duplex clips, 1× individual measurement report, 1× information sheet
Not Included SFP transceivers, fiber patch panel, couplers
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term EFB-Elektronik does not publish a warranty term for this article on its product page. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Can I use it with OM3 or OM4 cabling?
No. OM1 has a 62.5 µm core and OM3/OM4 have 50 µm. Mixing them causes high loss. Use the same fiber grade as your installation.
Does it work with singlemode SFPs?
No. It is multimode fiber. Singlemode (OS2) transceivers need a singlemode cable.
Is it tested?
Yes. EFB tests every cable and includes an individual measurement report in the bag.
Can I swap the two fibers?
Yes. The LC duplex clips can be opened to change the polarity if transmit and receive are crossed.
Singular Expert Insight
We suggest the O0330.2 for maintaining or extending an existing OM1 installation — replacing a damaged patch cord or adding a switch to an OM1 patch panel. If you are planning a new fiber link, ask us about OM3/OM4 or singlemode instead. Browse our fiber optic products and network switches. Local support in Cyprus comes with every order.

Buyer’s Guide

Buy it if

Your existing fiber installation is OM1 (62.5/125) with LC ports.

Skip it if

Your cabling is OM3/OM4 (50/125) or singlemode, or your ports are SC/ST.

Also consider

An OM3 or OM4 LC-LC patch cable for new 10 Gbit multimode links — ask us.
