EFB-Elektronik WGB-1006GR.30-SET1 10 Inch 6U Wall Cabinet Network Set with 8-Port Gigabit Switch Keystone Panel Patch Cables Grey

Brand:
EFB
EFB WGB-1006GR.30-SET1 10" 6U Network Cabinet Set Grey
EFB-Elektronik WGB-1006GR.30-SET1 10 Inch 6U Wall Cabinet Network Set with 8-Port Gigabit Switch Keystone Panel Patch Cables Grey
€297.57 inc. VAT
Buy
WGB-1006GR.30-SET1
€250.06
€297.57 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:523597
EAN Code
4049759322335
Manufacturer
EFB

Quick Specs

Rack Size
6U · 10″
Switch
LevelOne GES-2208, 8-port Gigabit
Patching
12-port keystone panel, Cat.6A
External Size
312 × 304 × 300 mm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

EFB-Elektronik WGB-1006GR.30-SET1 — 10″ 6U Wall Cabinet Network Set, Grey

6U · 10″8-port Gigabit switch12 × Cat.6A keystonesComplete kit

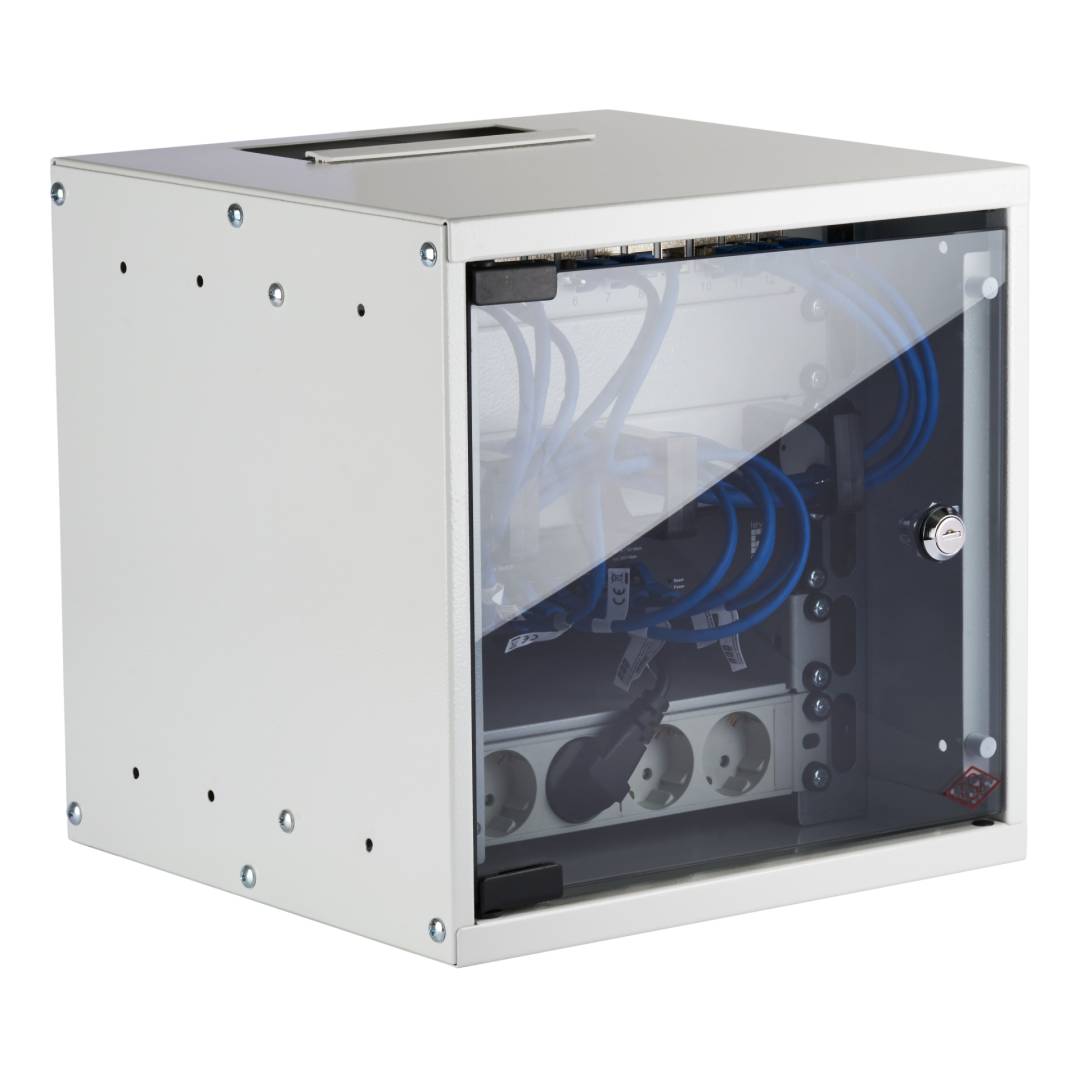

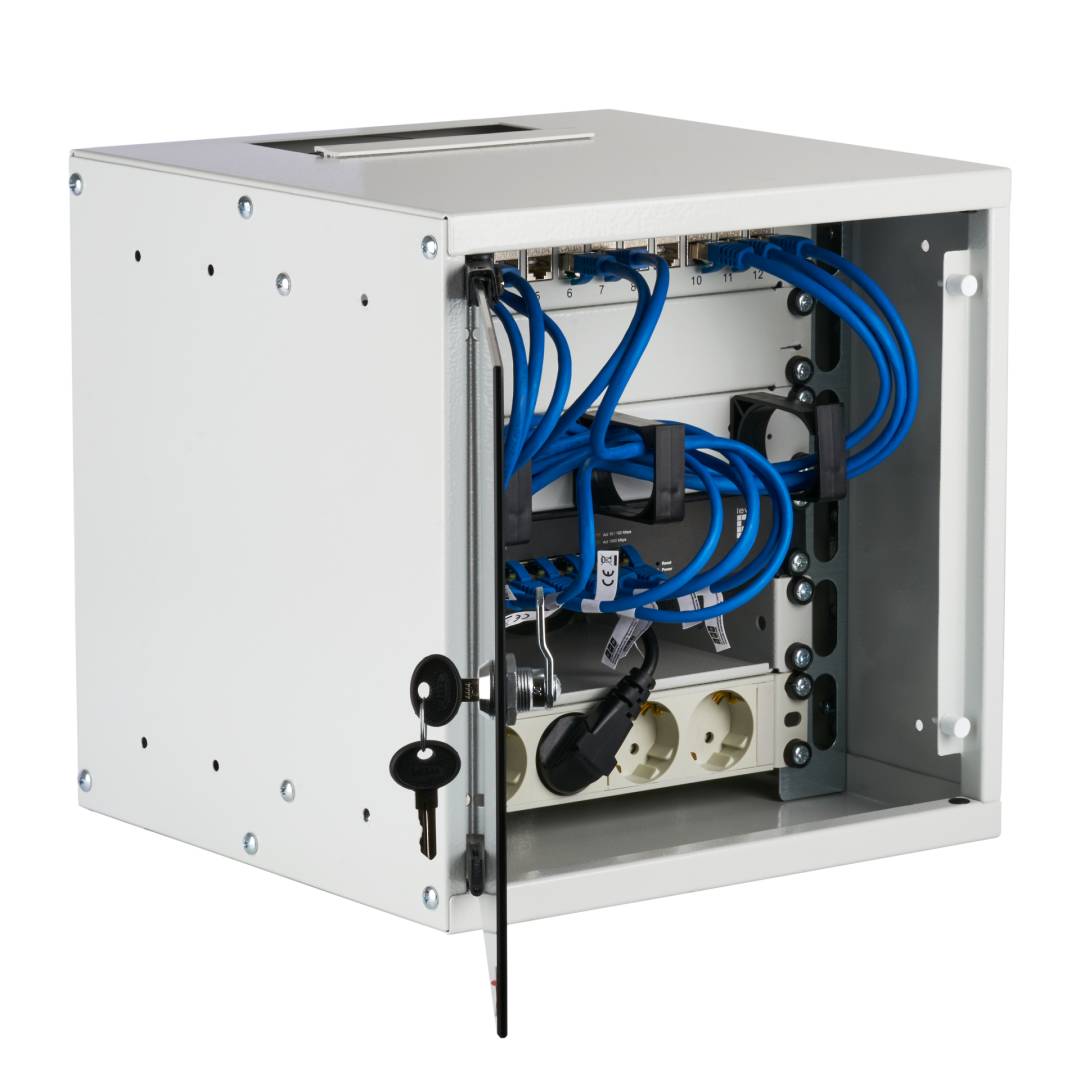

The EFB-Elektronik WGB-1006GR.30-SET1 is a complete 10″ network kit for self-assembly in a home or small office. At its heart is a 6U, 10″ wall housing (WGB-1006GR.30) in light grey (RAL 7035), 312 mm wide, 304 mm high and 300 mm deep, with a lockable full-glass door of 4 mm smoked safety glass that opens 120°. EFB adds everything needed to build a small structured network: a LevelOne GES-2208 managed 8-port Gigabit switch, a 12-port keystone patch panel with 12 slimline Cat.6A keystone modules (10 Gbit/s, GHMT certified), ten 0.5 m blue Cat.6A patch cords, a 10″ shelf, two blank panels, a 10″ power strip with switch, a power cable and a set of 20 cage nuts. The pre-assembled housing carries up to 30 kg, offers 68–248 mm of mounting depth, and takes cables through 145 × 70 mm openings in the roof and base. It is rated IP20.

Compatibility — check before buying:
Power plug: check before you order. EFB lists a power cable with a CEE 7/7 (Schuko) plug to an angled IEC C13 connector, and the power strip is EFB’s DE version (EK631DE.11GR). Cyprus wall sockets are the UK type, so you will need a C13 cable with a UK plug — ask us and we add one. It is a 10″ system: 19″ equipment will not fit. Mounting depth is 68–248 mm, and the side walls are fixed. Wall plugs and screws for the wall are not listed. Tell us your room and cable count and we check the set fits your plan.

Best For

✓ Home networks with structured cabling
✓ Small offices and practices
✓ Up to 8 wired Gigabit devices
✓ Installers who want one order
✓ Cat.6A-ready cabling
✓ Compact wall installations

Key Features


Complete in one box
Cabinet, managed switch, keystone panel, modules, patch cords, shelf, blanks, power strip and cage nuts.

Managed Gigabit switch
A LevelOne GES-2208 8-port Gigabit switch in 10″ format.

Cat.6A keystone patching
12-port panel with 12 slimline Cat.6A modules, 10 Gbit/s and GHMT certified.

Lockable glass door
4 mm smoked safety glass, lockable, 120° opening, hinge side reversible.

Technical Specifications

Identification
Brand EFB-Elektronik
Product EFB-Elektronik Set: 10″ 6U wall housing, grey RAL 7035, with accessories for self-assembly
Part Number WGB-1006GR.30-SET1
EAN / GTIN 4049759322335
Series 10″ wall housing BASIC, SET
Colour Light grey (RAL 7035)

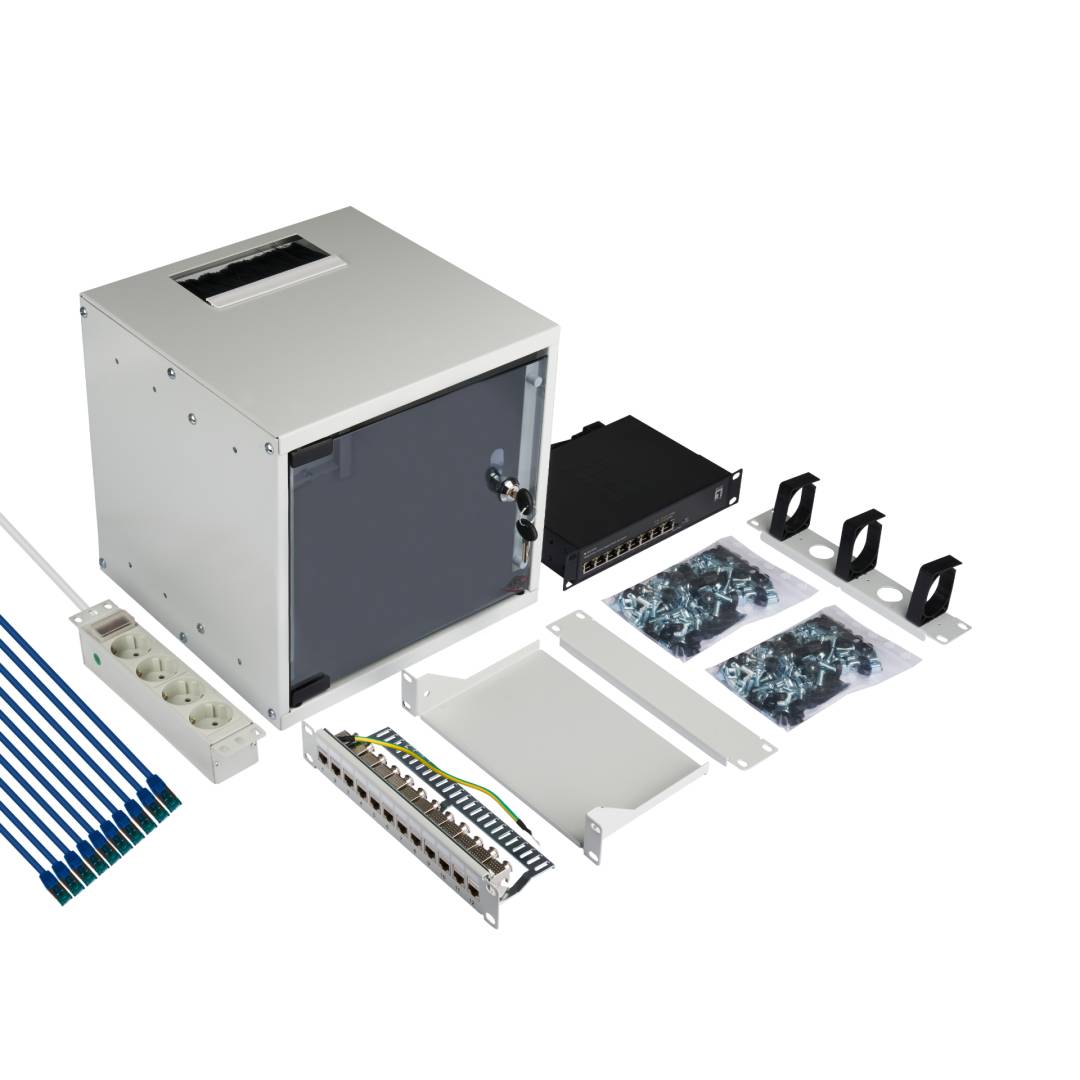

Set Contents
Wall Housing 1 × 10″ 6U, RAL 7035 (WGB-1006GR.30)
Switch 1 × LevelOne GES-2208, managed, 8-port Gigabit, 10″
Patch Panel 1 × 10″ keystone panel, 12-port (691826)
Keystone Modules 12 × RJ45 Cat.6A slimline, 10 Gbit/s, GHMT certified (E-200100)
Patch Cords 10 × Cat.6A, 0.5 m, blue
Mechanics 1 × 10″ shelf, 2 × 10″ blank panels, 20 cage nuts
Power 1 × 10″ power strip with switch (EK631DE.11GR), 1 × CEE 7/7 to angled IEC C13 cable, 2 m
Cabinet Dimensions
Rack Size 6U, 10″ (254 mm)
External Size (W × H × D) 312 × 304 × 300 mm
Mounting Depth 68–248 mm
Max. Load 30 kg
Door & Housing
Front Door Full glass, 4 mm safety glass, smoked, lockable, 120°
Side Walls Fitted, not openable
Frame Screwed, pre-assembled, can be dismantled
Colour Light grey (RAL 7035)
Protection Class IP20
Cable Management
Cable Entry Roof and base, 145 × 70 mm each, brush strip and plastic cover
In the Box
Included Everything in Set Contents above, plus brush strip, plastic cover, mounting material and 2 keys for the cabinet
Not Included Wall plugs and wall screws (not listed), UK-plug power cable, installation cable for the keystones
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term EFB-Elektronik does not publish a warranty term for this product on its product page or data sheet. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Does the set work with Cyprus sockets?
The supplied power cable has a CEE 7/7 (Schuko) plug. Cyprus uses UK-type sockets, so add a C13 cable with a UK plug — we can supply it.
What switch is included?
A LevelOne GES-2208 managed 8-port Gigabit switch in 10″ format.
Is the installation cable included?
No. The set includes 12 Cat.6A keystone modules and ten 0.5 m patch cords; the cable runs to the rooms are not included.
Can I fit 19-inch equipment?
No. Everything in the set is 10″; 19″ devices will not fit.
Singular Expert Insight
We suggest the WGB-1006GR.30-SET1 when you want to build a small structured network in one order: cabinet, switch, patching and power, all matched in 10″. Add a UK-plug power cable and the installation cable for your rooms. Every order comes with Singular’s local support in Cyprus. See our patch panels and network switches, or browse all racks and cabinets.

Buyer’s Guide

Buy it if

You want a complete 10″ wall network kit with a managed 8-port Gigabit switch and Cat.6A patching.

Skip it if

You need more than 8 switch ports, 19″ equipment, or already own a switch.

Also consider

Intellinet 711692, a 6U 10″ wall cabinet on its own.
