EFB-Elektronik Plug and Play 2-Fan Unit with Thermostat for EFB Wall Cabinets, 320 m³/h, 230 V, Light Grey RAL 7035
Brand:
EFB
EFB-Elektronik Plug and Play 2-Fan Unit with Thermostat for EFB Wall Cabinets, 320 m³/h, 230 V, Light Grey RAL 7035
€127.58 inc. VAT
691656GR
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
EFB-Elektronik Plug & Play 2-Fan Unit for Wall Cabinets — Light Grey
2 fans · 320 m³/hThermostat included230 V · 42 WRAL 7035
The EFB-Elektronik 691656GR is a plug-and-play 2-fan ventilation unit with thermostat for EFB 19-inch wall cabinets, moving up to 320 m³/h of air, for anyone whose wall-mounted network cabinet gets warm with switches, routers and PoE equipment inside.

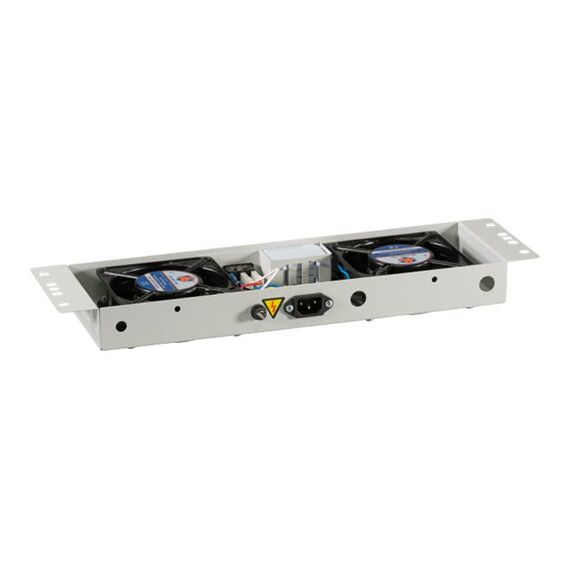

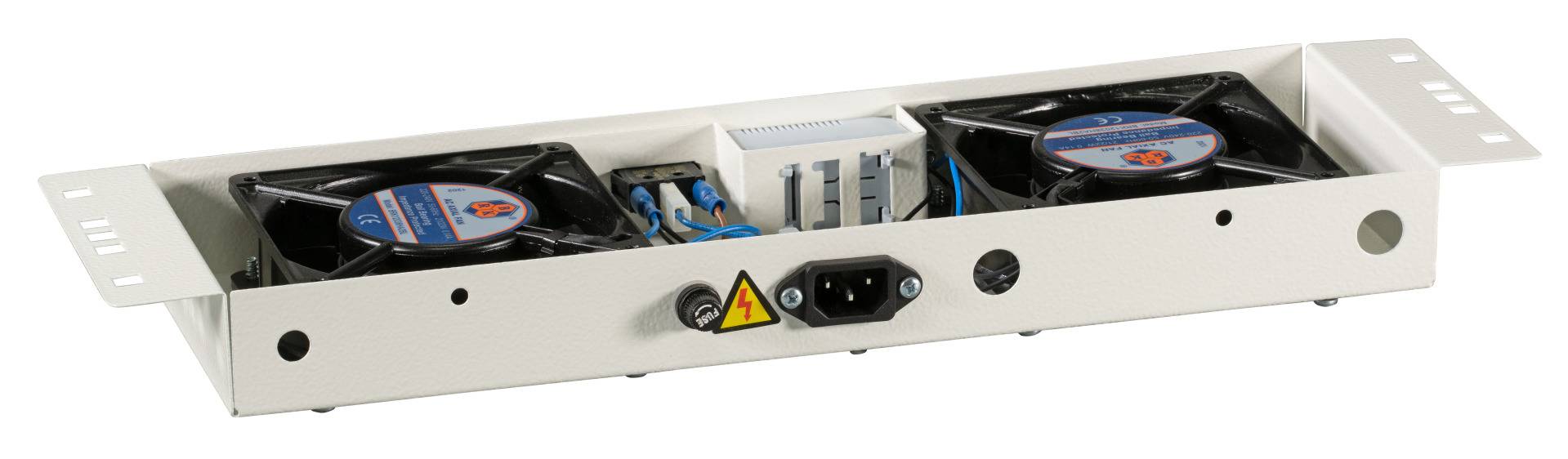

It mounts inside the cabinet, hanging under the roof, where warm air collects. An illuminated on/off switch and the included thermostat control the fans, and power connects through a standard IEC C14 inlet at the rear.
Before you order: EFB lists this unit for its own wall cabinet series (one-part and two-part, FLAT PACK, IP55 and BASIC). The mains power cable is not included — you need an IEC C13 cable (the common PC/monitor type) to connect it.
What's in the Box
- 1 × 2-fan unit (light grey, RAL 7035)
- Thermostat
- Mounting material
- No power cable — IEC C13 cable required separately
What It Means in Practice
- Mounted under the roof, it does not use any 19-inch rack units.
- 320 m³/h free-blowing airflow is ample for a typical wall cabinet with a few switches and a router.
- 47 dB(A) is similar to normal office background noise.
- The thermostat keeps the fans off when the cabinet is cool, saving wear and noise.
- Protected sheet steel housing, IP20 once mounted — for indoor dry locations.
What Will Not Work
- Cabinets from other brands unless the roof fixing matches — compatibility is published only for EFB wall cabinet series.
- Floor-standing cabinets and open frames — this unit is designed for EFB wall cabinets.
- Plugging in without a separate IEC C13 power cable.
- Outdoor or wet locations — the unit is IP20 when mounted.
Key Features
Plug and play
Mounts in minutes and connects via a standard IEC C14 inlet.
Thermostat included
Automatic switching based on cabinet temperature.

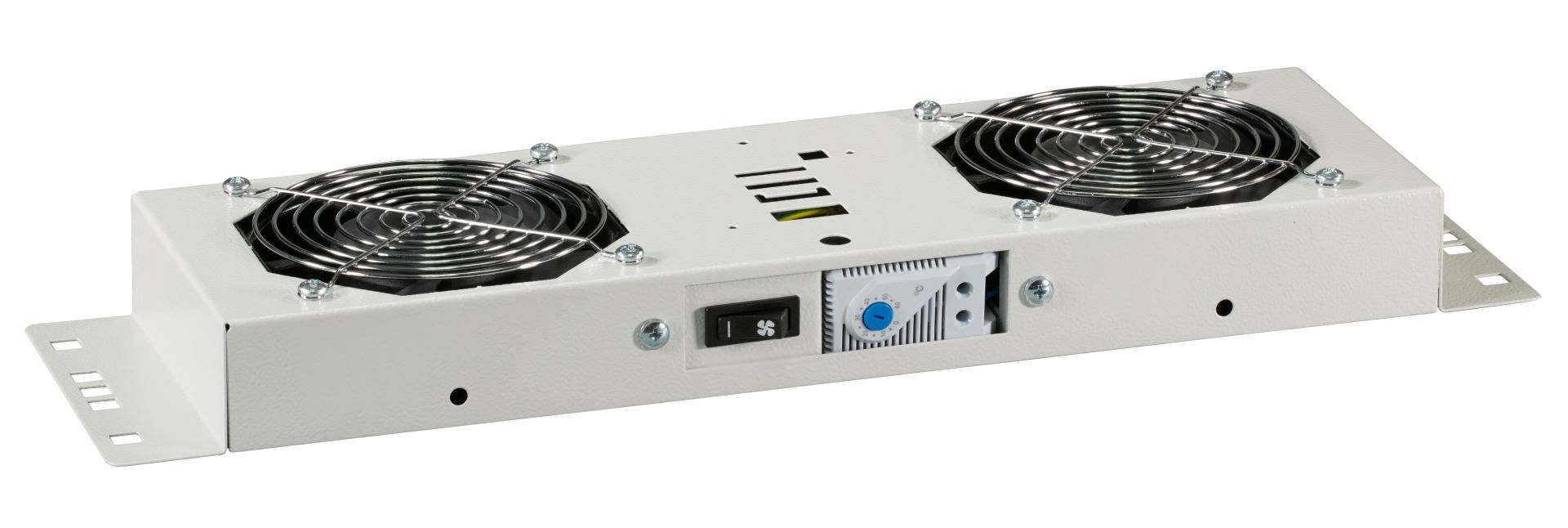

Illuminated switch
Clear on/off status at a glance.
Zero rack space
Hangs under the roof, leaving all U free.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Wall cabinets heat up quickly because they are small and often closed. A roof fan unit is the simplest cure, and this one is sized for EFB wall cabinets. Remember the IEC C13 cable and a free outlet on your power strip. For fan panels that fit any 19-inch rack, see our rack accessories.
✓ Buy it if you have an EFB wall cabinet that runs warm and want thermostat-controlled cooling.
✕ Skip it if your cabinet is another brand without a matching roof fixing, or a floor-standing cabinet.
→ Also consider the white ral 9010 version to match your cabinet colour, or a 1U rail-mounted fan panel for other racks.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - EFB - 691656GR
Colour
grey
More Details
Product Code
04:301633
EAN Code
4049759211011
Manufacturer
EFB
