EFB-Elektronik 691703V 19 Inch Wall Housing 8U 3U Vertical plus 5U Horizontal 537x475 mm 150 mm Slim 30 kg Light grey RAL 7035

Brand:
EFB
EFB 691703V 19" Wall Housing 3U Vertical + 5U Grey
EFB-Elektronik 691703V 19 Inch Wall Housing 8U 3U Vertical plus 5U Horizontal 537x475 mm 150 mm Slim 30 kg Light grey RAL 7035
€237.3 inc. VAT
Buy
691703V
€199.41
€237.30 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
04:264519
EAN Code
4049759160722
Manufacturer
EFB

Quick Specs

Rack Size
8U: 3U vertical + 5U horizontal
External Size
537 × 475 × 146 mm
Equipment Depth
3U: 360/340/300 mm · 5U: 80 mm
Lid & Load
Lockable lid · 30 kg
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

EFB-Elektronik 691703V — 19″ Wall Housing, 3U Vertical + 5U Horizontal, Light grey

3U vertical + 5U horizontalOnly 150 mm deepLockable window lidPre-assembled

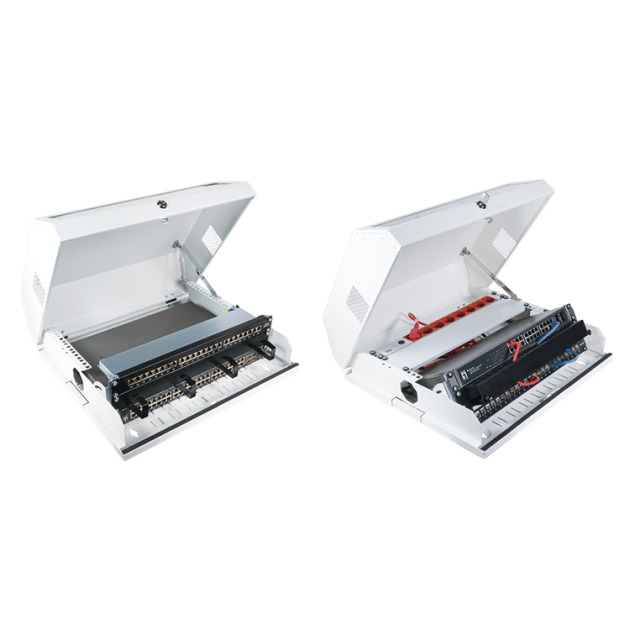

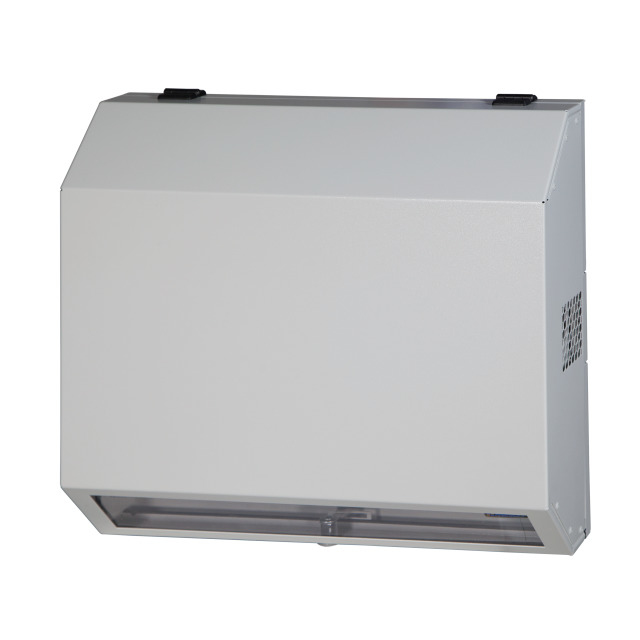

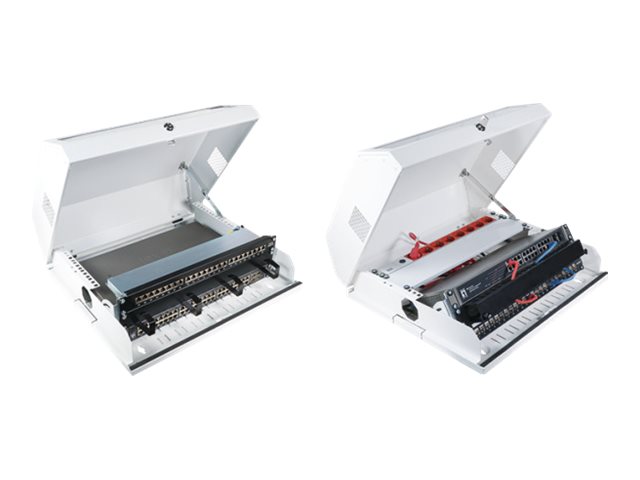

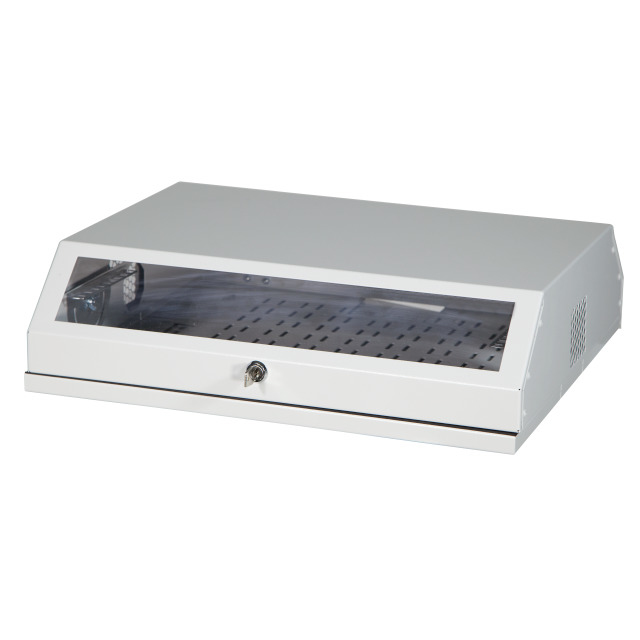

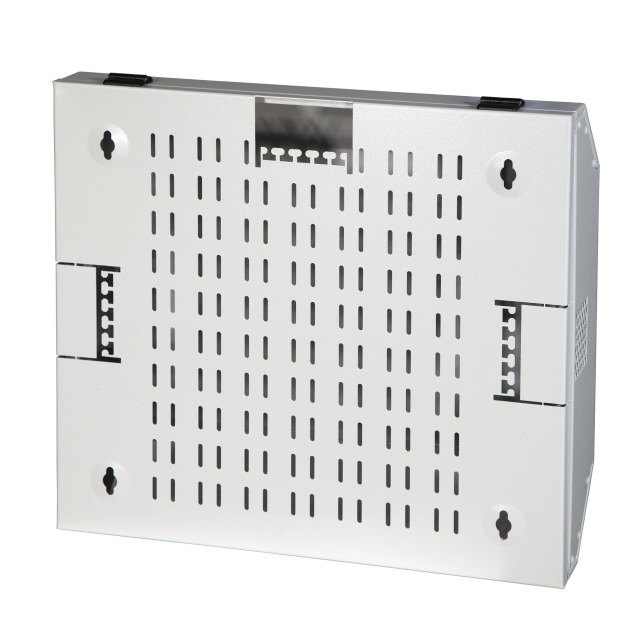

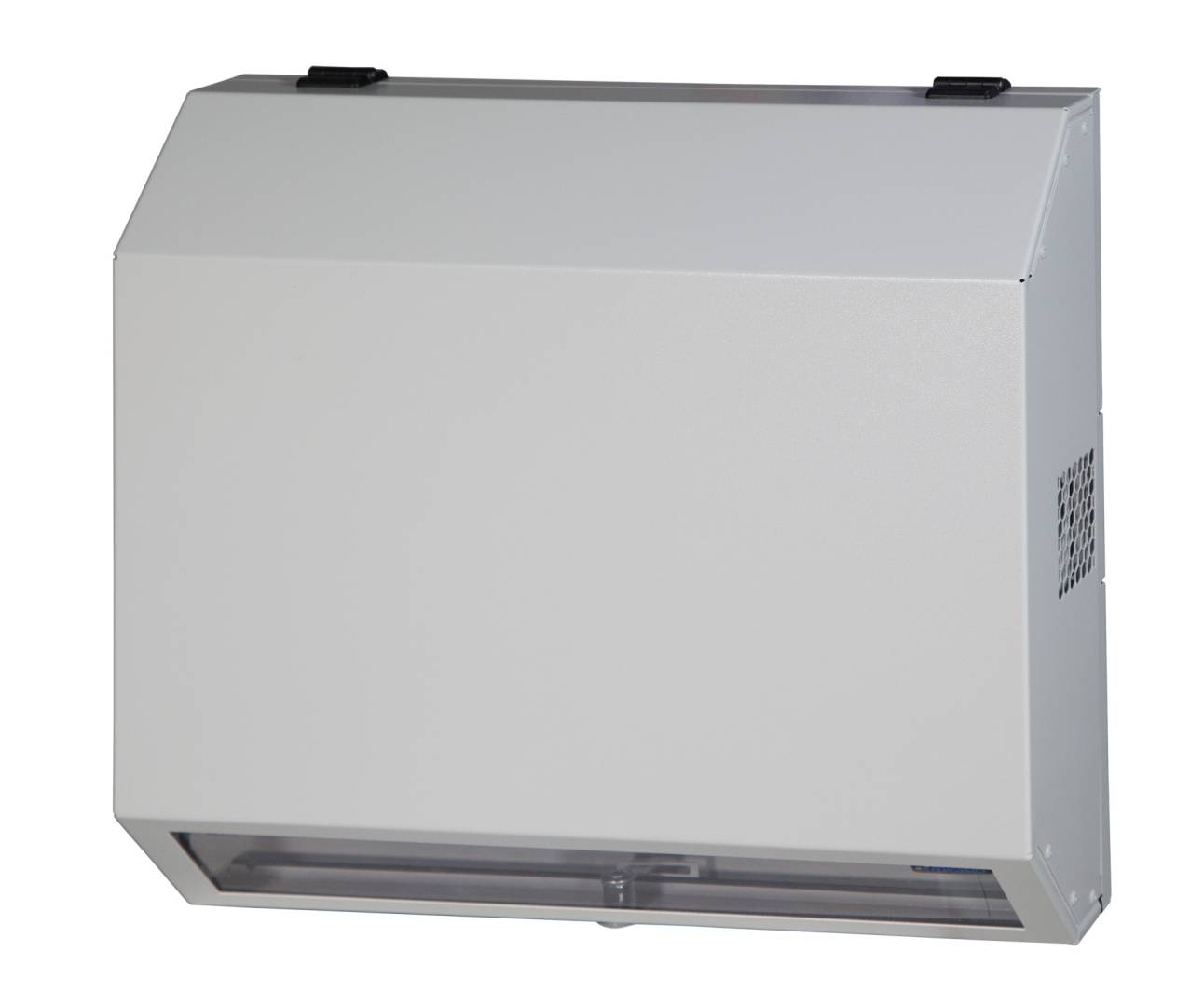

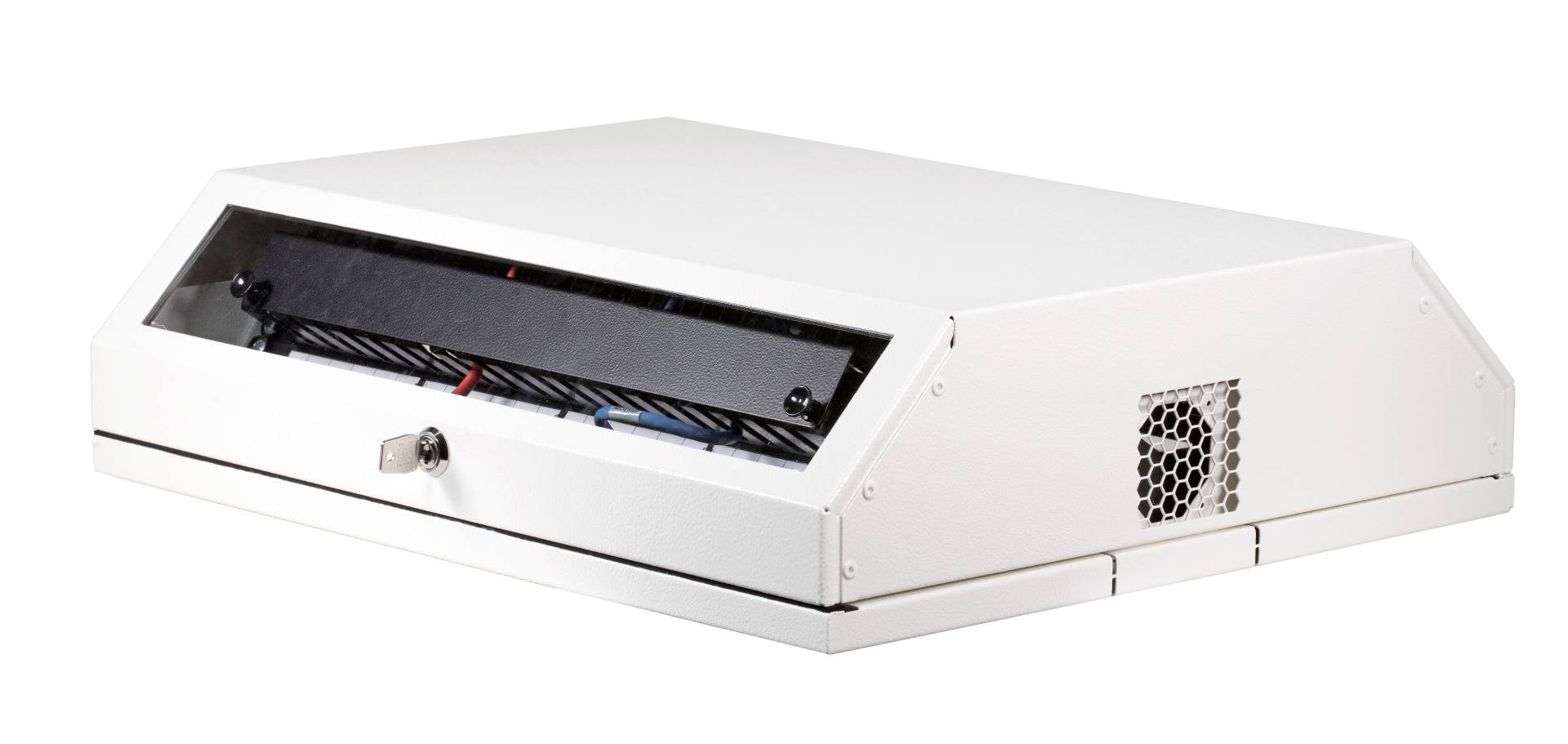

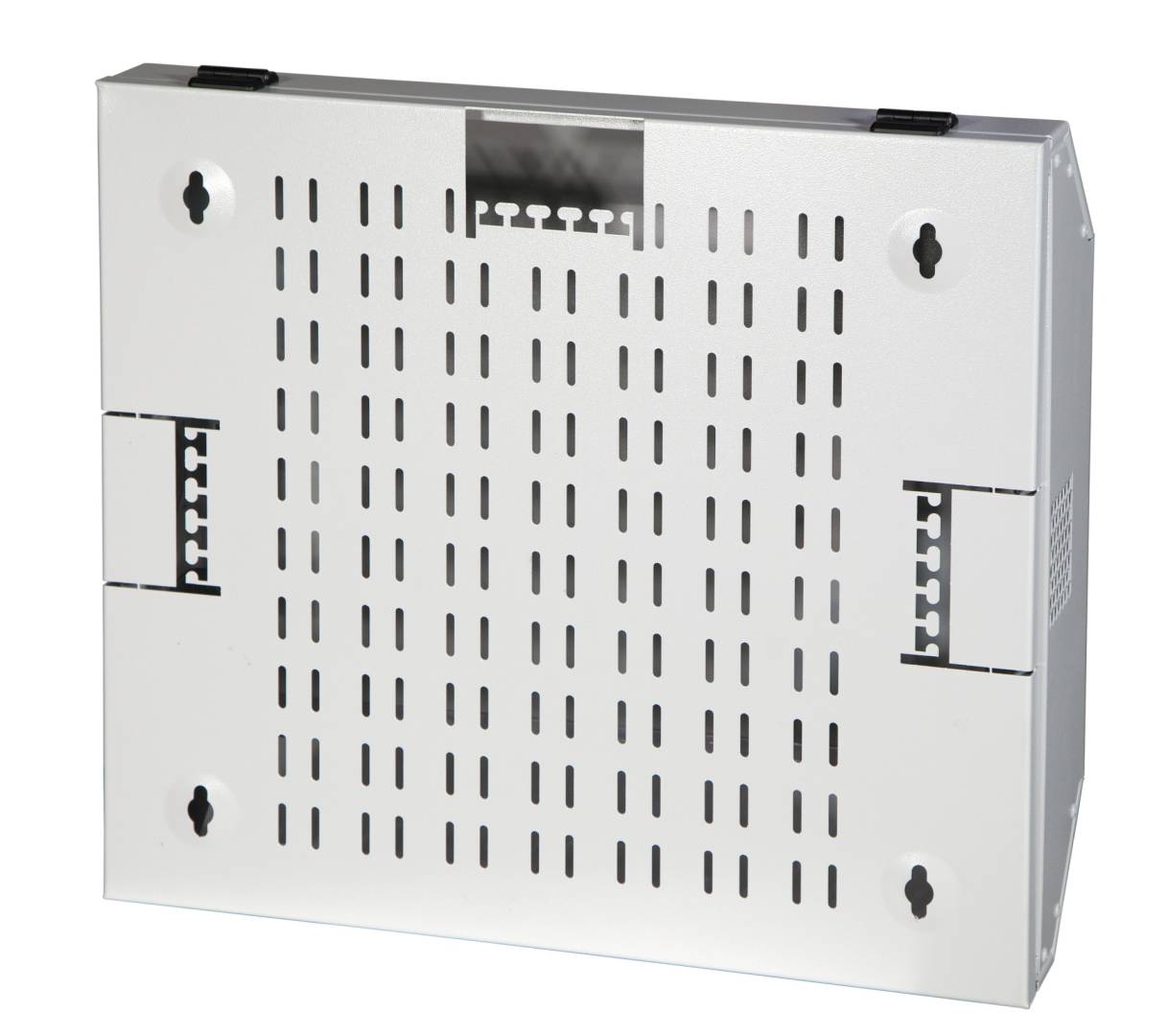

The EFB-Elektronik 691703V is a very slim 19″ steel wall housing in light grey (RAL 7035), 537 mm wide and 475 mm high, that projects only about 150 mm from the wall. EFB splits it into two zones: a 3U section for vertical mounting of 19″ devices, with maximum depths of 360, 340 and 300 mm for one device each, and a 5U section for horizontal mounting of flat 19″ components up to 80 mm deep, such as patch panels. The 3U level swings through 180°, which gives access to the rear of the equipment. The housing cover has a viewing window and flips up, latches and locks. Pre-punched ventilation openings allow passive cooling, and pre-punched cable guides in the back plus entries at the top and sides bring the cabling in. It comes fully pre-assembled, carries up to 30 kg, is earthed and rated IP20.

Compatibility — check before buying:
This is a slim wall housing, not a standard cabinet. The 5U horizontal section takes components only up to 80 mm deep (patch panels and similar), and switches or routers go in the 3U vertical section, limited to one device each at 360, 340 and 300 mm depth. Check that your switch can be mounted vertically and fits those depths. Load is 30 kg. EFB lists one key in the box; wall plugs and screws are not listed. This is the light grey RAL 7035 version; 691703VWS is the same housing in pure white RAL 9010. Send us the models you plan to install and we check the fit.

Best For

✓ Home and apartment networks
✓ Hallways and utility rooms
✓ Patch panels plus a small switch
✓ Shops with little wall depth
✓ Installers who need rear access
✓ Tidy, slim installations

Key Features


Only 150 mm off the wall
A slim steel housing that keeps corridors and small rooms clear.

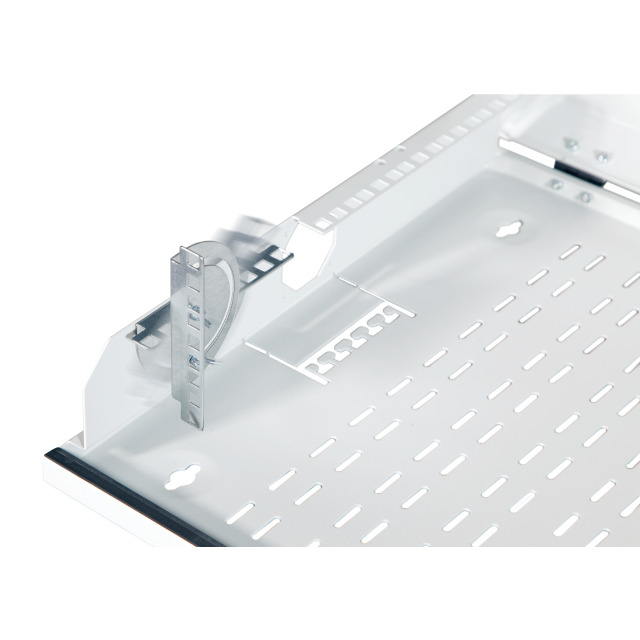

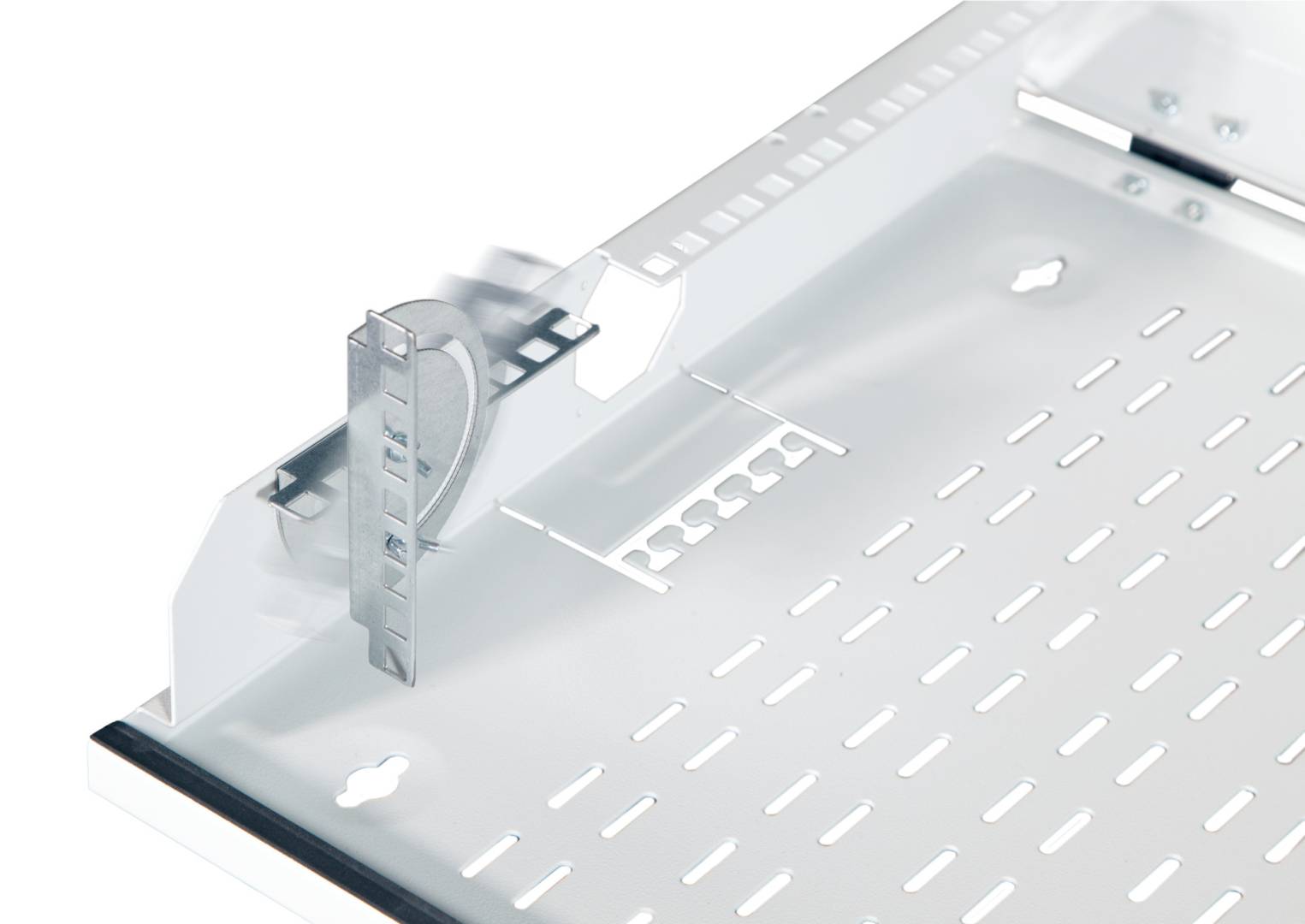

Swing-out 3U level
The vertical 3U level pivots 180° for access to the rear of the equipment.

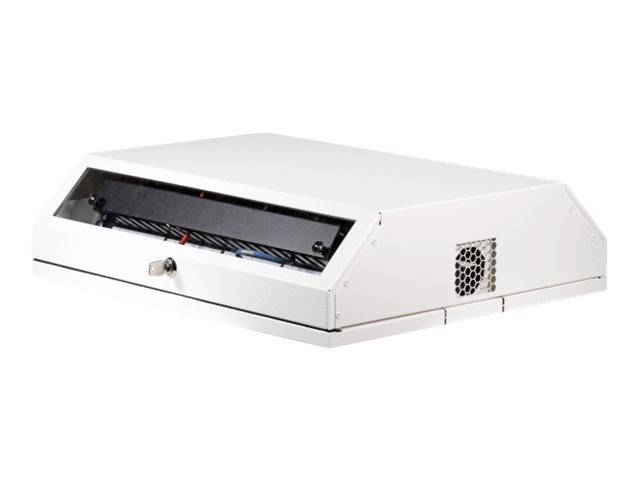

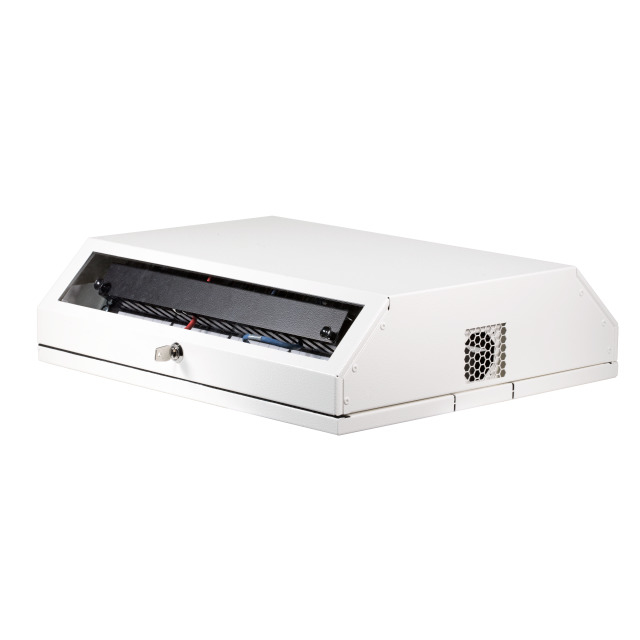

Lockable window lid
The cover has a viewing window, flips up, latches and locks.

Pre-assembled
Delivered fully assembled, with pre-punched ventilation and cable openings.

Technical Specifications

Identification
Brand EFB-Elektronik
Product EFB-Elektronik 19″ wall housing, 3U vertical + 5U horizontal, Light grey
Part Number 691703V
EAN / GTIN 4049759160722
Colour Light grey (RAL 7035)
Dimensions & Capacity
Rack Size 8U in total: 3U vertical + 5U horizontal, 19″
External Size (W × H × D) 537 × 475 × 146 mm (about 150 mm wall projection)
Equipment Depth 3U vertical: 1 × 360 / 340 / 300 mm; 5U horizontal: 80 mm
Max. Load 30 kg
Housing
Cover Viewing window, flips up, latches and locks
Material Sheet steel, powder-coated
Colour Light grey (RAL 7035)
Earthing Yes
Protection Class IP20
Mounting & Cabling
Installation Wall mounting
Delivery Fully pre-assembled
Swing Level 3U level pivots 180°

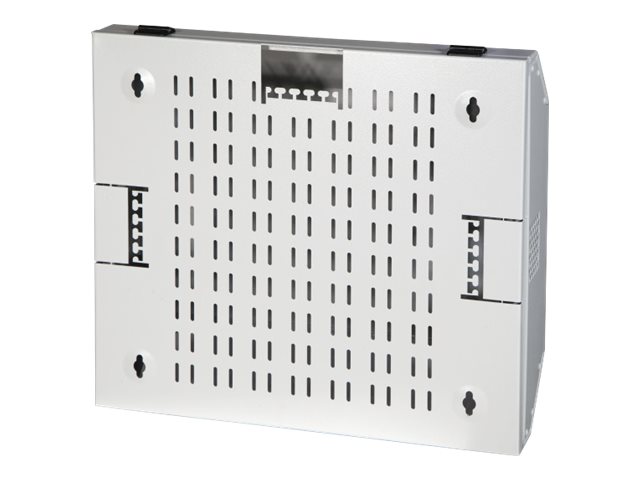

Cable Entry 3 × rear, 1 × 50 × 100 mm top, 2 × 70 × 100 mm left/right
Ventilation Passive, pre-punched openings
In the Box
Included Wall housing (assembled), 1 key
Not Included Wall plugs and wall screws (not listed), patch panels, switch
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term EFB-Elektronik does not publish a warranty term for this product on its product page or data sheet. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Will a normal 19-inch switch fit?
Only in the 3U vertical section, mounted on its side, and only if it is no deeper than 360, 340 or 300 mm depending on the slot. The 5U horizontal section is for components up to 80 mm deep.
Is it assembled?
Yes. EFB delivers it fully pre-assembled.
Does it lock?
Yes. The cover with the viewing window latches and locks; EFB lists one key.
How far does it stick out from the wall?
About 150 mm, which is why it suits hallways and small rooms.
Singular Expert Insight

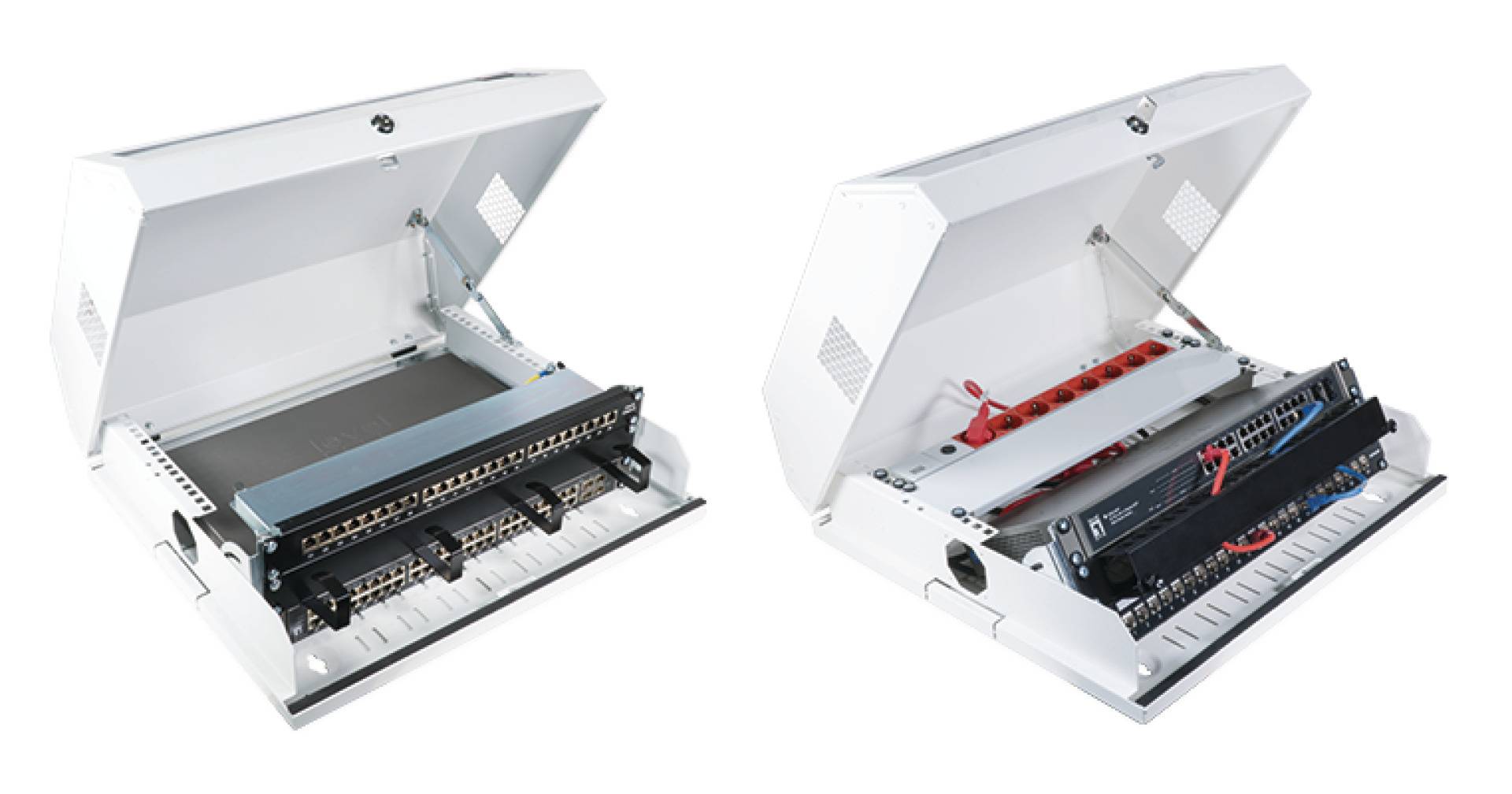

We suggest the 691703V where a normal wall cabinet would stick out too far: a patch panel in the 5U section and a compact switch in the swing-out 3U level make a neat home or small-office network point. Check the device depths with us first. Every order comes with Singular’s local support in Cyprus. See our patch panels and network switches, or browse all racks and cabinets.

Buyer’s Guide

Buy it if

You need a slim, lockable wall housing for patch panels and a compact switch.

Skip it if

Your equipment is deeper than 360 mm or cannot be mounted vertically.

Also consider

EFB-Elektronik 691703VWS, the same housing in white.
