EFB-Elektronik Cat.6 Connecting Module for Installation Cable, 250 MHz, Shielded, Tool-Free IDC Terminals, Silver
Brand:
EFB
EFB-Elektronik Cat.6 Connecting Module for Installation Cable, 250 MHz, Shielded, Tool-Free IDC Terminals, Silver
€5.18 inc. VAT
37596.2
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

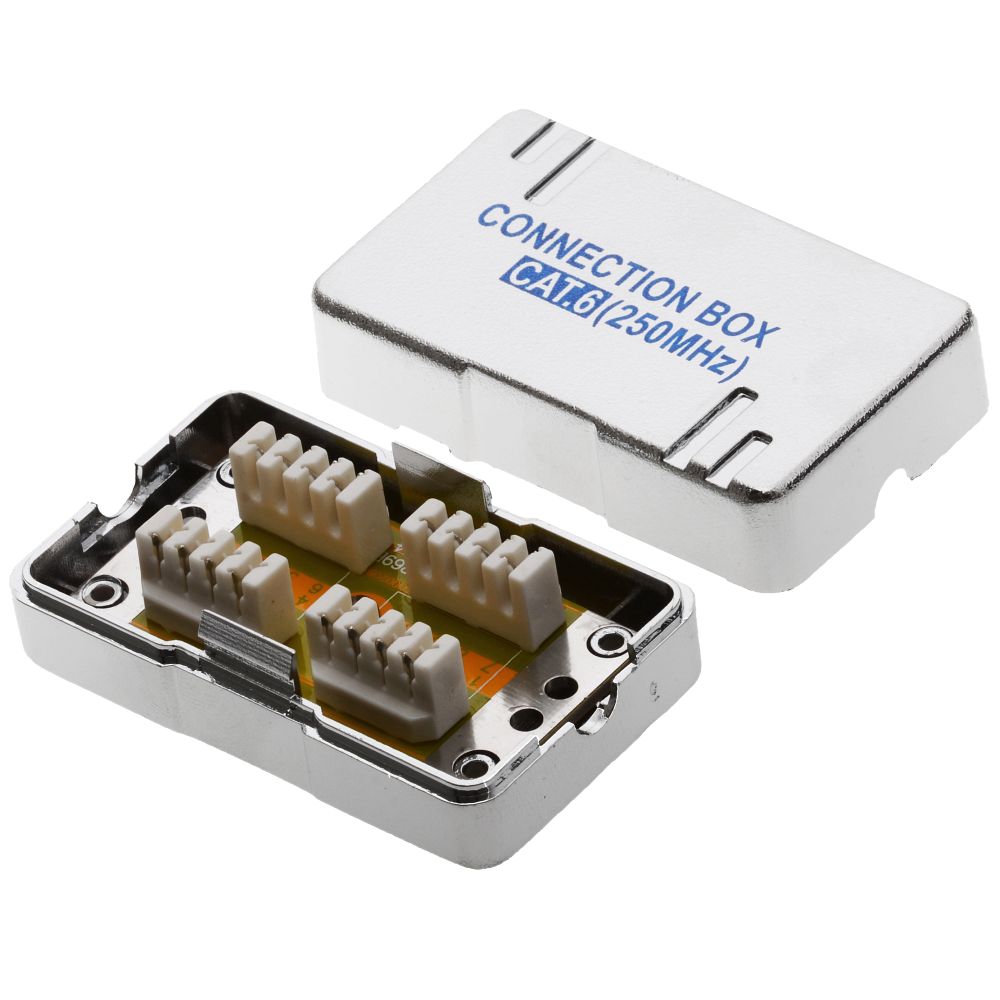

EFB-Elektronik 37596.2 Connecting Module Cat.6, 250 MHz, with IDC Terminals
Cat.6 / 250 MHzShieldedIDC both sidesNo special tool
The EFB-Elektronik 37596.2 is a Cat.6 connecting module that joins two lengths of network installation cable: each cable end is terminated on insulation-displacement (IDC) terminals inside a small shielded housing. It is the tool for extending a cable that is too short, or repairing a damaged one, without pulling a complete new cable segment.
EFB rates it up to 250 MHz with a 360° shield contact, screw-type strain relief and adhesive pads for fixing the module in a ceiling, trunking or floor box. It takes solid-core round cable from 26 to 22 AWG, and EFB states that no special tool is needed.
Before you order: It is a cable-to-cable splice for installation cable, not an RJ45 coupler: patch cords with plugs cannot be connected to it.
What's in the Box
- 1 x EFB-Elektronik 37596.2 Cat.6 connecting module, silver
- Screw-type strain relief (M3 x 12)
- Adhesive pads for fixing
What It Means in Practice
- Repair a cut or damaged cable run in a ceiling or trunking without replacing it end to end.
- Extend a cable that comes up short of the patch panel or outlet.
- Shield continuity is kept through the 360° shield contact when you join shielded cable.
What Will Not Work
- It does not accept RJ45 plugs or patch cables.
- It is not for stranded (litz) or flat cable; EFB lists solid-core round cable.
- It is rated Cat.6 / 250 MHz, not Cat.6A / 10 Gigabit over full length.
- IP20 only: it is not suitable for wet or outdoor locations.
Key Features
Cable repair
Joins installation cable without a new segment.
360° shield contact
Keeps shielding continuous across the joint.
Strain relief
Screw-type strain relief and four cable inlets.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A connecting module is the clean way to rescue a damaged installation cable: the joint stays inside a shielded housing instead of being twisted and taped. For the patch side of the network use network patch cables.
✓ Buy it if you need to extend or repair a Cat.6 installation cable in place.
✕ Skip it if you want to join two patch cords with RJ45 plugs.
→ Also consider Lanberg AD-RJ45-RJ45-OU6 Cat.6 inline coupler for patch cords.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - EFB - 37596.2
Colour
silver
More Details
Product Code
04:261492
EAN Code
4049759069421
Manufacturer
EFB
