EFB-Elektronik Surface-Mount Frame 80 x 80 mm for Data Outlets and Keystone Frame Sets, ABS, Pure White RAL 9010
Brand:
EFB
EFB-Elektronik Surface-Mount Frame 80 x 80 mm for Data Outlets and Keystone Frame Sets, ABS, Pure White RAL 9010
€3.86 inc. VAT
ET-25084V3
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
EFB-Elektronik Surface-Mount Frame 80 x 80 mm — Pure White RAL 9010
80 x 80 x 40 mmSurface mountABS, RAL 9010For data outlets

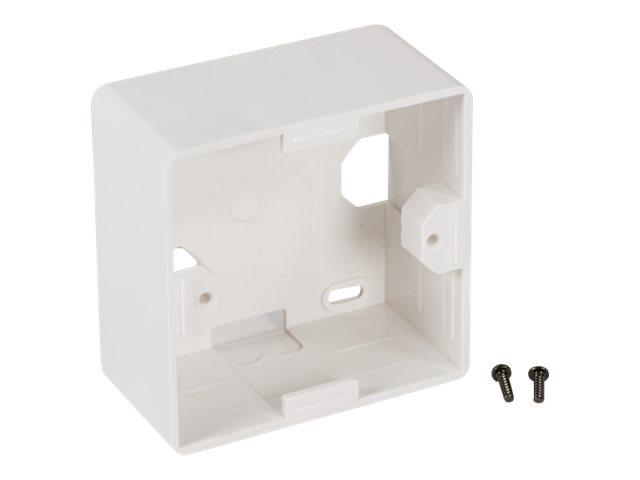

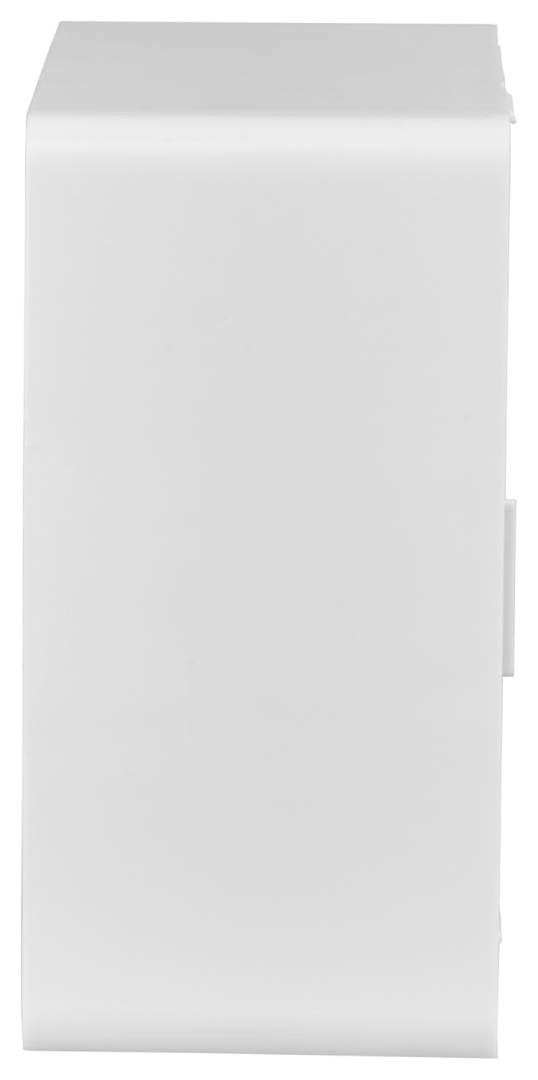

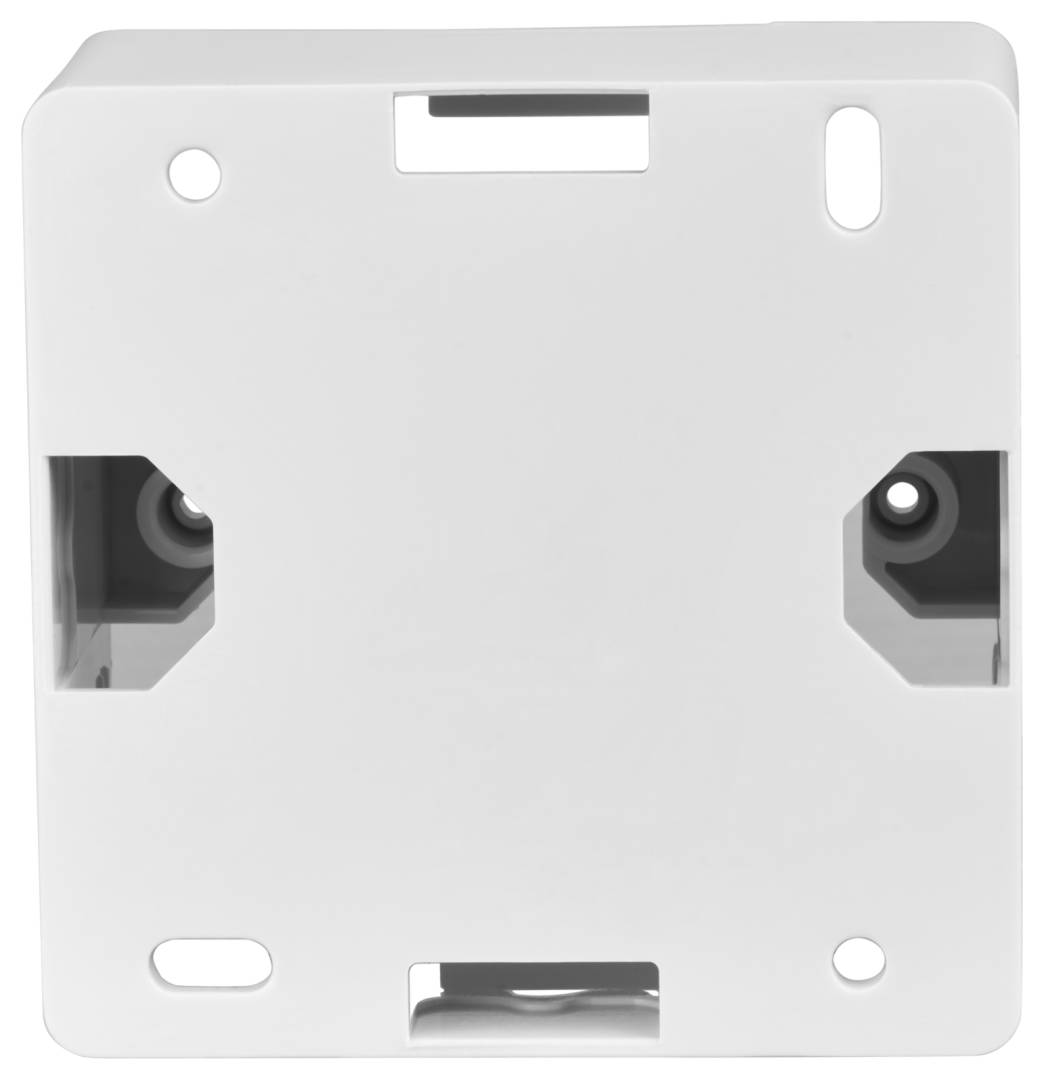

The EFB-Elektronik ET-25084V3 is an 80 x 80 x 40 mm surface-mount frame in pure white ABS (RAL 9010) that turns a flush-type data outlet or a keystone frame set into a surface-mounted outlet — on brick, concrete or plasterboard walls where you cannot or do not want to cut a back box into the wall.
It is an empty housing: you fit your own data outlet insert or keystone frame set inside, and finish it with the matching cover plate. EFB supplies two 3 x 10 mm threaded screws for fixing the insert.
Before you order: This is only the frame: it contains no jacks, keystones or couplers and no cover plate. The matching EFB cover plate is ET-25081. Check that your outlet insert or keystone frame set is designed for 80 x 80 mm surface-mount frames — send us the insert part number and we will confirm.
What's in the Box
- 1 × EFB surface-mount frame, 80 x 80 x 40 mm, white RAL 9010

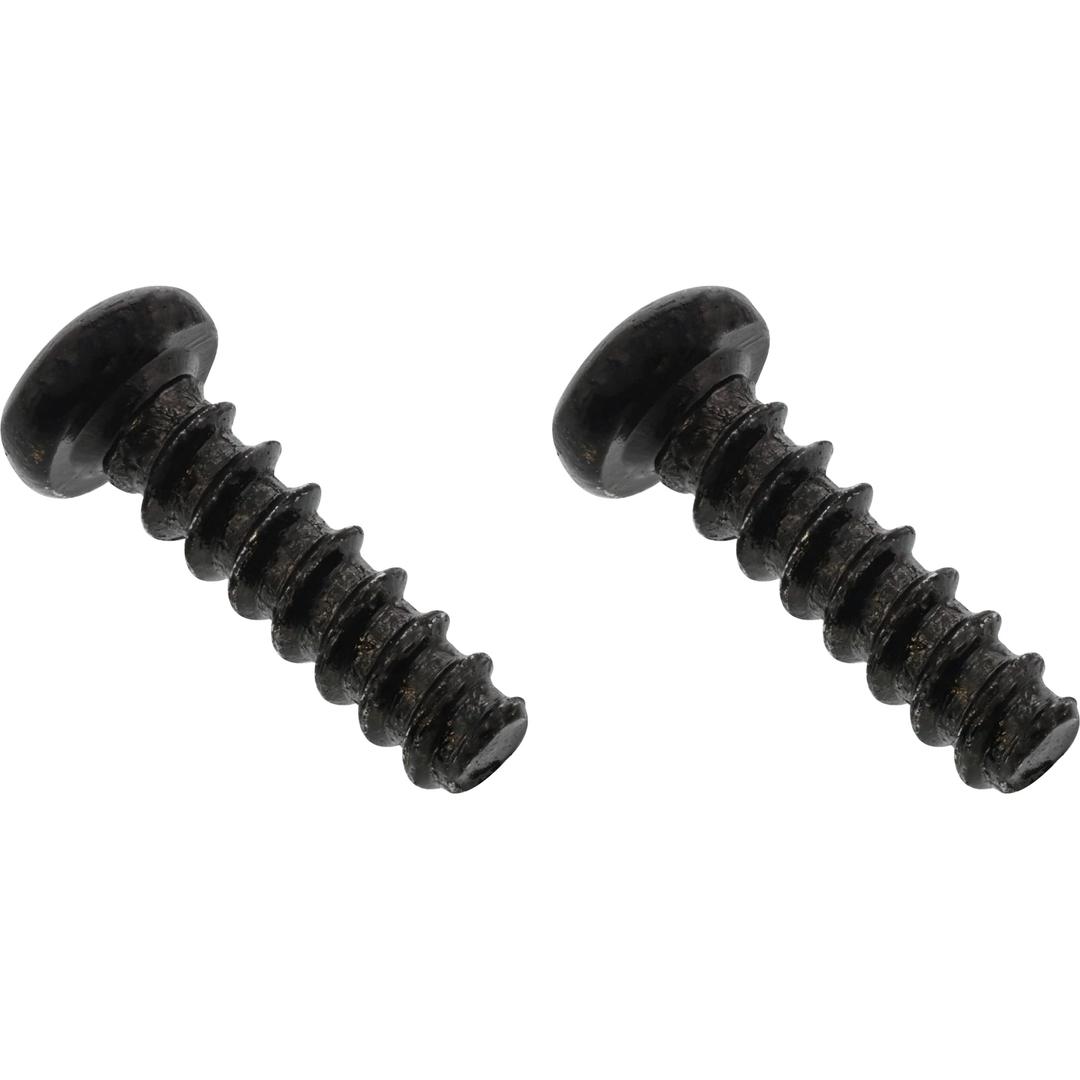

- 2 × threaded screws 3 x 10 mm
- No cover plate, jacks or keystone modules
What It Means in Practice
- Lets you add a network outlet on the wall surface without chasing the wall or fitting a flush box.
- 40 mm depth leaves room behind the insert for the cable bend of Cat6/Cat6A installation cable.
- Pure white RAL 9010 matches common switch and socket ranges.
- Number of ports depends on the outlet insert or keystone frame set you fit — the frame itself does not set it.
What Will Not Work
- Use on its own — you also need an outlet insert or keystone frame set and the cover plate (ET-25081).
- Snapping keystone modules directly into the frame — keystones go into a keystone frame set, which then sits in this housing.
- Outdoor or wet locations — it is an indoor ABS housing without a published IP rating.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Surface-mount frames are the quickest way to add a network point in an existing office without breaking the wall. Order it as a set — frame, outlet insert or keystone frame set, keystones and cover plate — so everything fits on the day. For patch cords to connect the new outlet, see our network cables.
✓ Buy it if you are adding a data outlet on a wall surface and use an outlet insert or keystone frame set made for 80 x 80 mm frames.
✕ Skip it if you expected a complete outlet with jacks — this is the empty housing only.
→ Also consider the EFB cover plate ET-25081 and a matching outlet insert or keystone frame set.
Building a surface-mount outlet? Send us the insert or keystone part numbers and we will check that frame, insert and cover plate fit together.
Features - EFB - ET-25084V3
Colour
white
More Details
Product Code
04:263881
EAN Code
4049759186067
Manufacturer
EFB
