EFB-Elektronik ET-25133AV5-R Cat.6A 500 MHz Shielded 2-Port RJ45 Surface Data Outlet, LSA, White RAL 9010

Brand:
EFB

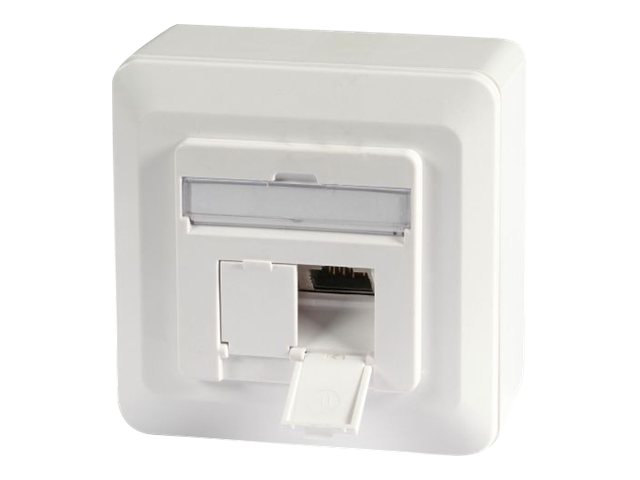

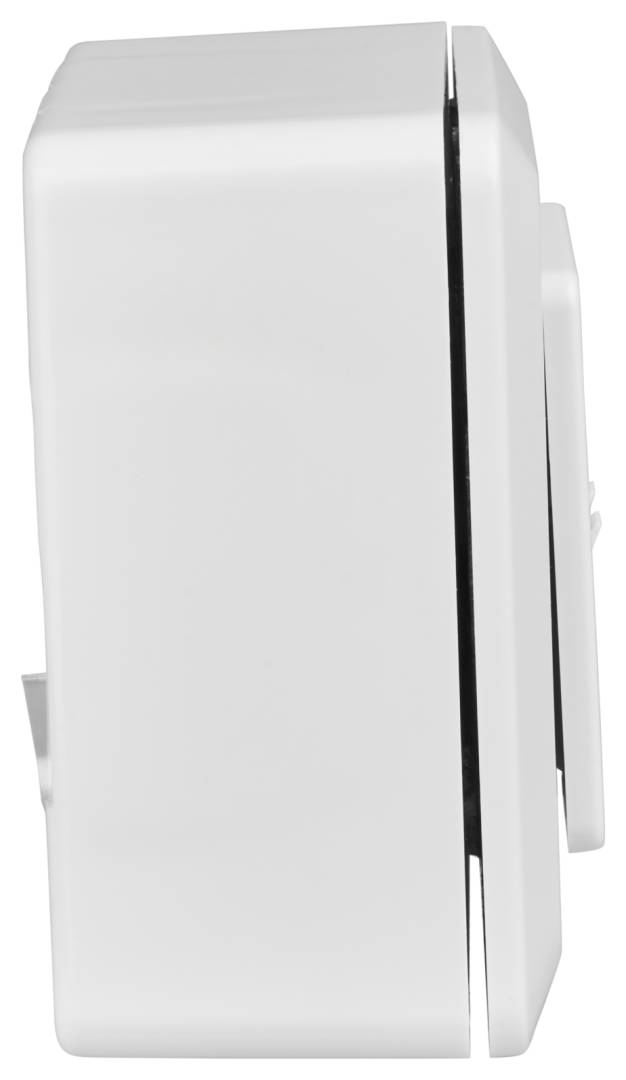

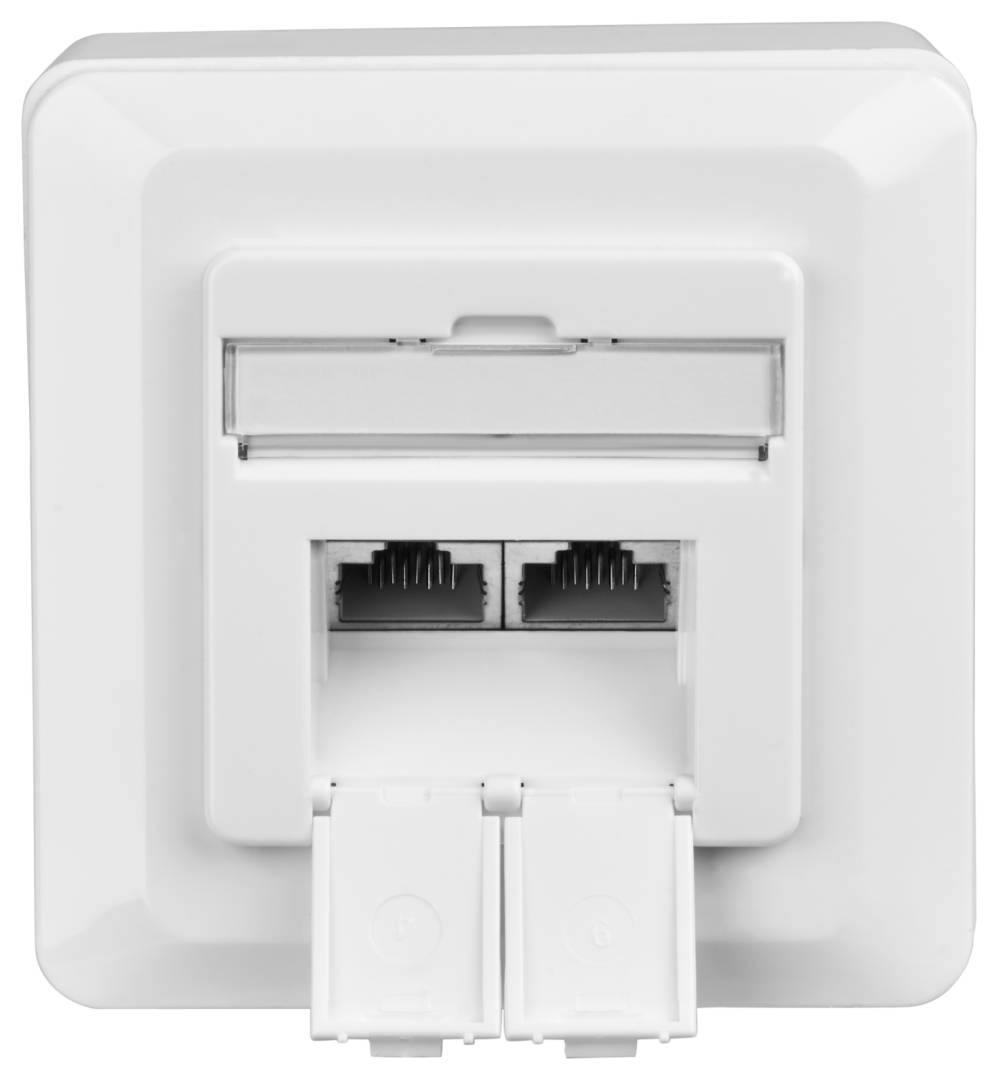

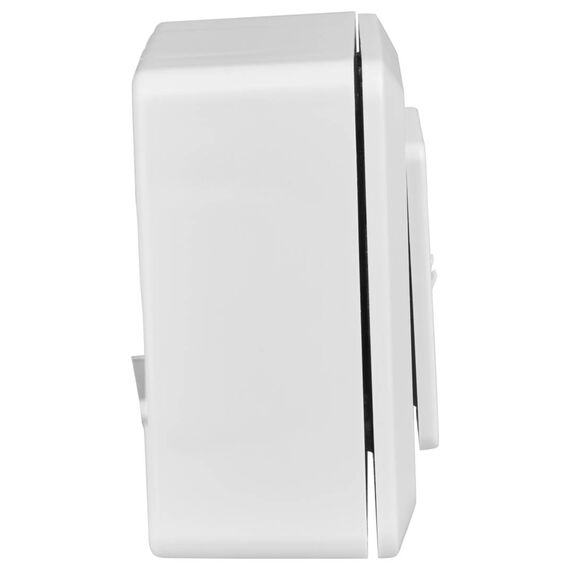

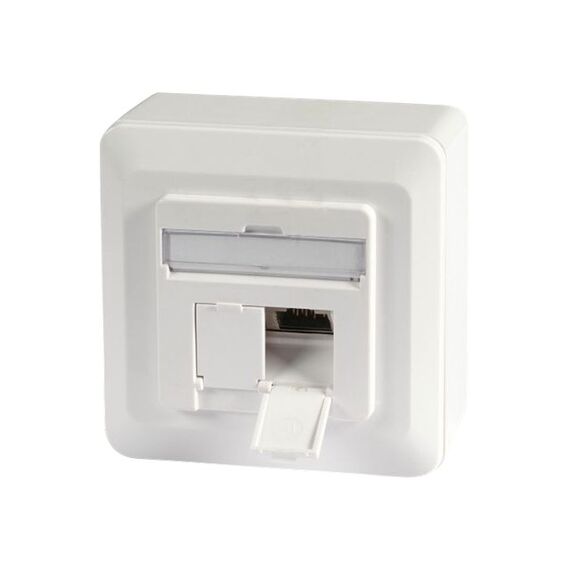

EFB-Elektronik ET-25133AV5-R Surface Outlet and Brand Images
EFB-Elektronik ET-25133AV5-R Cat.6A 500 MHz Shielded 2-Port RJ45 Surface Data Outlet, LSA, White RAL 9010
€20.29 inc. VAT
Buy
ET-25133AV5-R
€17.05
€20.29 inc. VAT
Ships from EU stock: 22 item(s)
+ −
Add to wish list Ask a question
Product Code
04:263887
EAN Code
4049759107420
Manufacturer
EFB

Quick Specs

Ports / Category
2 × RJ45 / Cat.6A, 500 MHz
Termination / Shielding
LSA IDC / fully shielded
Surface Frame
80 × 80 × 40 mm, RAL 9010
Network Applications
1 / 2.5 / 5 / 10 Gbit; PoE+
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Bring two shielded network ports to the wall

2 × RJ45Cat.6A / 500 MHzLSA IDCSurface frame

The EFB ET-25133AV5-R combines two shielded RJ45 connections with an included white surface frame. LSA IDC terminals connect the installation cable, while angled outlets guide the patch leads away from the wall. It is a passive Cat.6A outlet for structured cabling, including manufacturer-listed Ethernet and PoE+ applications.

Compatibility — check before buying:
The supplied assembly includes a surface frame; it is not an empty keystone faceplate or a network switch. Use an appropriate LSA insertion tool and check the installation cable and mounting requirements. The manufacturer’s description and property table disagree on universal switch-programme and underfloor suitability, so those broad compatibility claims are not promised here.

Key Features


Shielding and cable retention
The die-cast aluminium housing, shielded sockets, clamp connection and separate strain relief support an organised termination. A separate earthing connection is provided.

Angled outlets and identification
The 40° outlets, dust covers and covered label field help with patch-lead placement and identifying the two connections.

Surface assembly included
The 80 × 80 × 40 mm surface frame is explicitly included. The base mechanism’s dimensions are listed separately, rather than being presented as the overall frame size.

Technical Specifications

Identity and Performance
Model EFB-Elektronik ET-25133AV5-R
EAN 4049759107420
Category / Bandwidth Cat.6A (TIA) / 500 MHz
Connectors 2 × RJ45, 2×8(8)
Transmission Applications 1 / 2.5 / 5 / 10 Gbit; complete-link dependent
PoE Standard PoE+
Termination and Shielding
Cable Termination LSA IDC terminals, colour coding, up/down cable entry
Outlet Angle 40°, inclined
Shielding Shielded RJ45 sockets and aluminium die-cast housing
Shield Connection Clamp
Separate Earthing 6.3 mm earthing connection
Strain Relief Separate cable strain relief
Installation and Physical Details
Supplied Surface Frame 80 × 80 × 40 mm
Device Dimensions (W × H × D) 50 × 50 × 48 mm (manufacturer variant fields)
Mounting Options Listed Surface, flush mounting and duct installation; screw fastening
Floor Box / Sub-Floor Mounting No, according to the technical property table
Centre Plate / Frame DIN 49075 centre plate, metal frame, cover frame
Labelling / Dust Covers Label field with transparent cover; dust covers
Colour Pure white, RAL 9010
Protection Rating IP20
Operating Temperature −10 to 60 °C

Frequently Asked Questions

Does it need a punch-down tool?
Yes. Cable termination uses LSA IDC terminals, and the manufacturer lists LSA insertion tools separately. It is not a tool-free keystone assembly.
Does PoE+ support mean it supplies power?
No. This is a passive outlet for a compatible PoE+ cable link. A suitable injector or PoE switch and the rest of the connection are separate equipment.
Can the two ports share one network connection?
The outlet has two RJ45 connectors and no switching function. Plan the cabling for each connection; use a network switch when you need to distribute an active network connection.
Singular Expert Insight
Choose this outlet when you want an included surface frame and LSA termination. Check cable entry direction, shielding continuity and mounting space before installation. For a modular keystone system, compare a faceplate and matching jacks instead of assuming this fixed outlet accepts them. Compare network outlets and keystone accessories

Buyer’s Guide

Buy it if

You need a white shielded two-port Cat.6A outlet with surface frame, LSA termination and documented PoE+ applications.

Skip it if

You need an active switch, tool-free jacks, an outdoor enclosure or guaranteed compatibility with a specific decorative switch range.

Also consider

A modular keystone faceplate and separately selected jacks when interchangeable modules are important.

Features - EFB - ET-25133AV5-R

Colour
white
Standard
CAT6a
More Details
Product Code
04:263887
EAN Code
4049759107420
Manufacturer
EFB
