EFB-Elektronik 88035AV.1 Cat.6A/Class EA Shielded RJ45 Field-Termination Plug, IDC, 6–9 mm Cable, Silver

Brand:
EFB
EFB-Elektronik 88035AV.1 Shielded Cat6A RJ45 Field-Termination Plug, Silver
EFB-Elektronik 88035AV.1 Cat.6A/Class EA Shielded RJ45 Field-Termination Plug, IDC, 6–9 mm Cable, Silver
€12.13 inc. VAT
Buy
88035AV.1
€10.19
€12.13 inc. VAT
Ships from EU stock: 22 item(s)
+ −
Add to wish list Ask a question
Product Code
04:263888
EAN Code
4049759155063
Manufacturer
EFB

Quick Specs

Category / shielding
Cat.6A / 360° shield contact
Cable fit
Round, Ø 6–9 mm
Conductor fit
Solid AWG22–26; stranded AWG22–27
Termination
IDC, no special tool required
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Terminate shielded Cat.6A cabling in the field

Cat.6A / Class EA6–9 mmIDC4PPoE

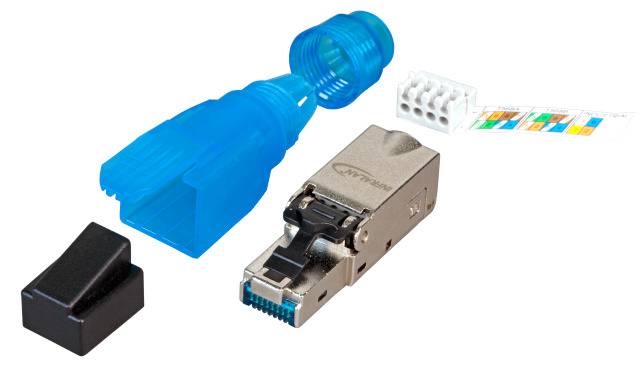

The EFB-Elektronik 88035AV.1 uses IDC termination and a shielded zinc die-cast housing for on-site RJ45 assembly. It accepts defined solid and stranded conductor ranges in 6–9 mm round cable, with screw-gland strain relief and 360° shield contact.

Key Features


Defined conductor range
Fits solid AWG22/1–26/1 and stranded AWG22/7–27/7 cable.

Shielded field construction
A zinc die-cast housing and screw cable gland support the shield connection and cable retention.

Repeatable termination
The manufacturer allows up to five reterminations at the same gauge, limited to two repeats for AWG27/7.

Technical Specifications

Model / EAN 88035AV.1 / 4049759155063
Connector / category RJ45 male 8(8), Cat.6A/Class EA; ISO/IEC11801 and IEC60603-7-51
Cable / conductors Round Ø 6–9 mm; solid AWG22/1–26/1; stranded AWG22/7–27/7; not for flat cable
Termination / wiring IDC; T568A/B colour codes and Industrial Profinet pins 1-2-3-6
Housing / colour Fully shielded zinc die-cast / silver
Shield / strain relief 360° shield contact; screw cable gland, boot and release-assist lever; shield and strain relief not separate
Dust protection / latch Dust cap with integrated shutter / snap latch
PoE / flammability / ingress 4PPoE certified / UL94 V-0 / IP20
Contact / insulation resistance Less than 20 mΩ / ≥500 MΩ
Contact coating / current 50 µin / 1.5 A
Dielectric test / temperature 1000 V DC / −10°C to +60°C
Mating / retermination ≥750 mating cycles; retermination up to 5 times with same gauge, AWG27/7 max 2 repeats
Assembly tools No special tool required; guide uses pliers to seat wiring cap and flat screwdriver for reopening

Frequently Asked Questions

Does no special tool mean no tools at all?
No. The official guide uses ordinary pliers to seat the wiring cap and a flat screwdriver for reopening.
Can I use flat cable or cable below 6 mm diameter?
No. The specified application is round cable from 6 to 9 mm diameter.
Is it suitable for outdoor sealing?
Its stated protection rating is IP20; it is not presented as a sealed outdoor plug.
Singular Expert Insight
Check the solid and stranded AWG ranges separately. Follow the wiring label and ensure the drain wire contacts the grounding clip before tightening the cable gland. Compare RJ45 termination accessories

Buyer’s Guide

Buy it if

You need a shielded Cat.6A field plug within the stated cable and conductor limits.

Skip it if

You need a flat-cable plug, sealed outdoor connector or a different AWG range.

Also consider

Check cable OD, conductor construction and the assembly guide before fitting.

Features - EFB - 88035AV.1

Colour
silver
Interface
  • Ethernet
Standard
CAT6a
More Details
Product Code
04:263888
EAN Code
4049759155063
Manufacturer
EFB
