EFB-Elektronik ET-25174.1 Keystone Distribution Box Surface Mount for 6 or 12 Keystones White RAL 9010 ABS Empty

Brand:
EFB
EFB ET-25174.1 Keystone Box Surface Mount 6/12 Ports
EFB-Elektronik ET-25174.1 Keystone Distribution Box Surface Mount for 6 or 12 Keystones White RAL 9010 ABS Empty
€13.55 inc. VAT
Buy
ET-25174.1
€11.39
€13.55 inc. VAT
Ships from EU stock: 10 item(s)
+ −
Add to wish list Ask a question
Product Code
04:262248
EAN Code
4049759111489
Manufacturer
EFB

Quick Specs

Type
Keystone distribution box
Ports
6 rear / 12 max side entry
Size
170 × 110 × 40 mm
Material
ABS, white RAL 9010
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

EFB-Elektronik ET-25174.1 — Keystone Distribution Box, Surface Mount, 6/12 Keystones

6 or 12 keystonesSurface mountABS, RAL 9010Supplied empty

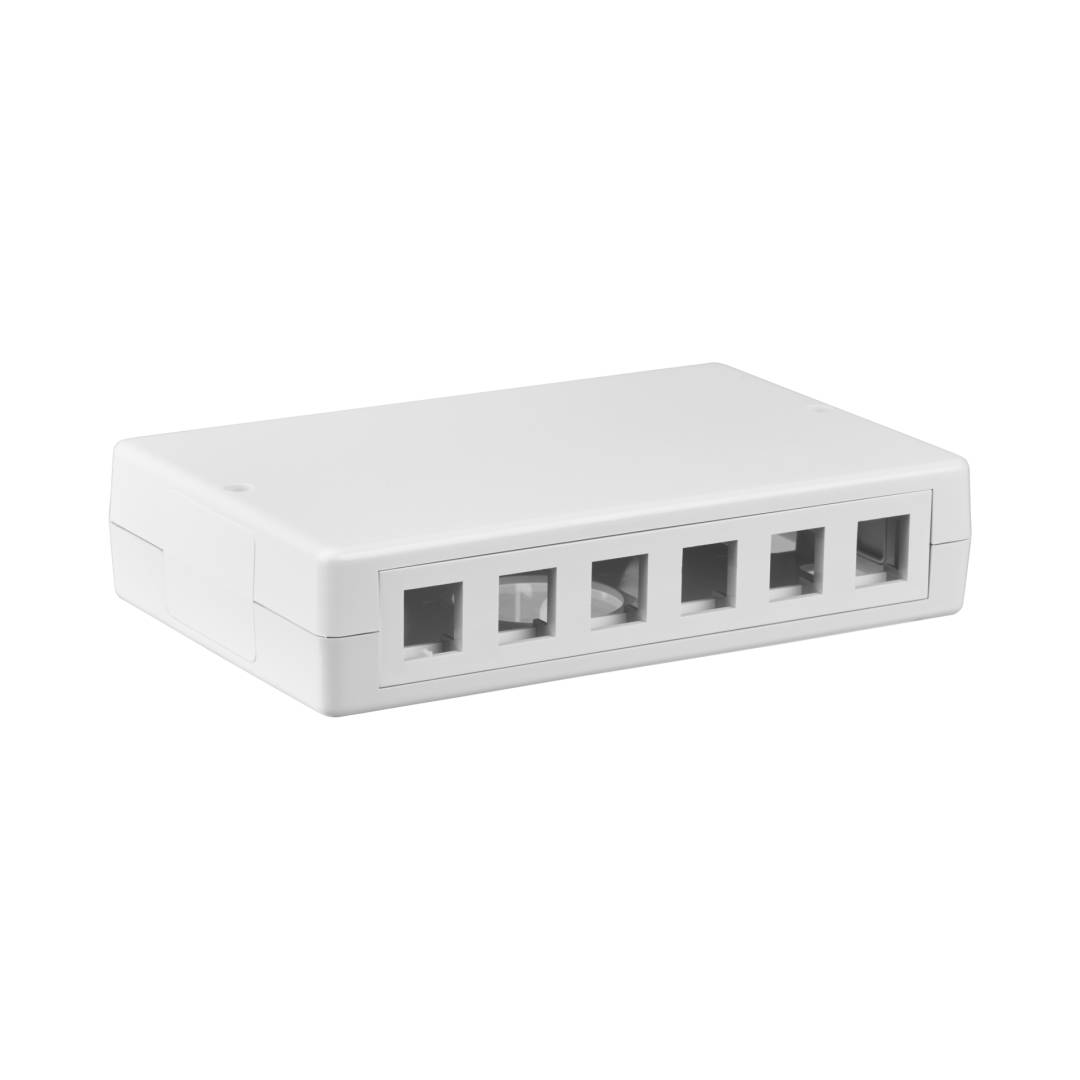

The EFB-Elektronik ET-25174.1 is a compact white plastic distribution box for keystone modules, made for collecting points at desks, in suspended ceilings or in underfloor systems, and also suitable for wall mounting. It takes 6 keystone modules when the cables enter from the rear, or up to 12 when you use the cable entries on both sides, thanks to two adapter inserts for six keystones each and an insert for six cable entries. It measures 170 × 110 × 40 mm and is supplied empty. In practice it gathers several network, phone or AV points in one place — under a desk group, in a ceiling void for access points and cameras, or at the end of a cable run.

Compatibility — check before buying:
The box is supplied without modules — order the keystone jacks you need separately. The number of ports depends on how the cables come in: 6 with rear cable entry, 12 maximum with side entries — plan the cable route before choosing. EFB designs it for keystone modules from its own range; other standard keystones usually fit, but send us the module model if you want it checked. EFB does not list screws or wall plugs in the box. Not sure how many ports you need? Tell us the room plan and we suggest a layout.

Best For

✓ Desk groups and workstations
✓ Suspended ceilings for APs and cameras
✓ Underfloor systems
✓ Consolidation points
✓ Small offices and shops
✓ Mixed data and AV outlets

Key Features


6 or 12 keystones
Six modules with rear entry, up to twelve using both side entries.

Flexible inserts
Two adapter inserts for six keystones each, one insert for six cable entries and two side covers.

Mount it anywhere
Desks, ceiling voids, floor systems or directly on a wall.

Compact ABS case
170 × 110 × 40 mm in pure white RAL 9010.

Technical Specifications

Identification
Brand EFB-Elektronik
Product Keystone distribution box surface mounting 6/12 Keystones
Part Number ET-25174.1
EAN / GTIN 4049759111489
Colour Pure white (RAL 9010)
Capacity
Rear Cable Entry 6 keystone modules
Side Cable Entries Up to 12 keystone modules
Modules Keystones from the EFB-Elektronik range
Physical
Dimensions (L × W × D) 170 × 110 × 40 mm
Material ABS
Mounting Surface, desk, ceiling, underfloor or wall
In the Box
Included Upper and lower housing shell, 2 × adapter inserts for 6 keystones, 1 × insert for 6 cable entries, 2 × side covers
Not Included Keystone modules, cables, screws and wall plugs
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term EFB-Elektronik does not state a warranty term for this product on its product page. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Are keystone jacks included?
No. The box is supplied empty. Order the keystone modules in the category you need — Cat.6, Cat.6A, shielded or unshielded — separately.
Is it 6 or 12 ports?
Both. With the cables coming in from the rear, it holds 6 keystones; with cable entries on both sides, up to 12.
Can it go in a ceiling?
Yes. EFB-Elektronik lists desks, intermediate (suspended) ceilings and underfloor systems, as well as wall mounting.
Will other keystones fit?
EFB designs it for its own keystone range. Most standard keystones share the same size, but send us the model and we confirm before you order.
Singular Expert Insight
We suggest the ET-25174.1 as a consolidation point where several cables meet — a desk group, a ceiling void with access points and cameras, or a floor box in an open office. Decide on rear or side entry first, then order the keystones. Every order comes with Singular’s local support in Cyprus. See our patch panels and keystone parts or access points to connect.

Buyer’s Guide

Buy it if

You need 6 to 12 keystone ports in one surface box at a desk, ceiling or floor point.

Skip it if

You only need one or two ports, or you want jacks already fitted.

Also consider

DIGITUS DN-9006-N, a ready-made 2-port Cat.6 shielded surface outlet.
