EFB 60319.1 IEC-Lock+ C13 Rewireable Connector, 10 A, 250 V, LSZH

Brand:
EFB
EFB-Elektronik 60319.1 10 A, 250 V, LSZH power connection
EFB 60319.1 IEC-Lock+ C13 Rewireable Connector, 10 A, 250 V, LSZH
€12.58 inc. VAT
Buy
60319.1
€10.57
€12.58 inc. VAT
Ships from EU stock: 26 item(s)
+ −
Add to wish list Ask a question
Product Code
04:264088
EAN Code
5055287048561
Manufacturer
EFB

Quick Specs

Connector
Locking C13 female
Rating
10 A / 250 V
Assembly
Rewireable
Cable compatibility
3 × 0.75–1.50 mm²
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

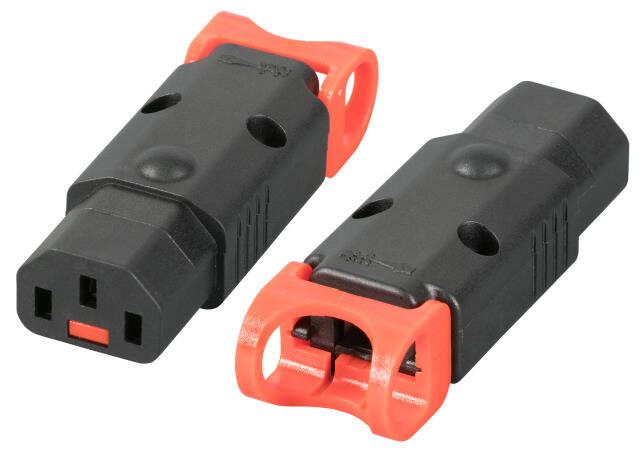

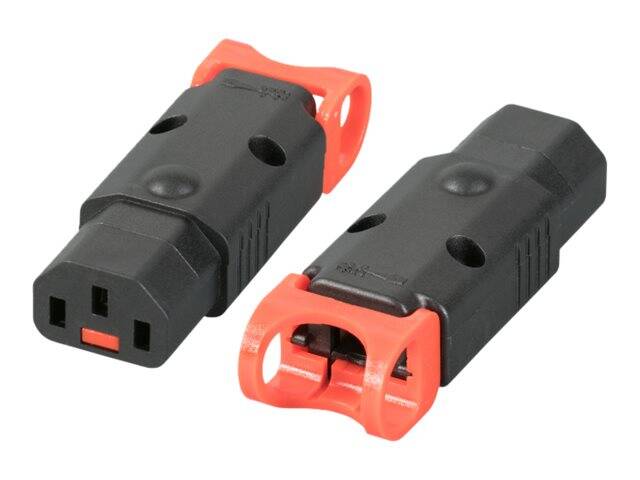

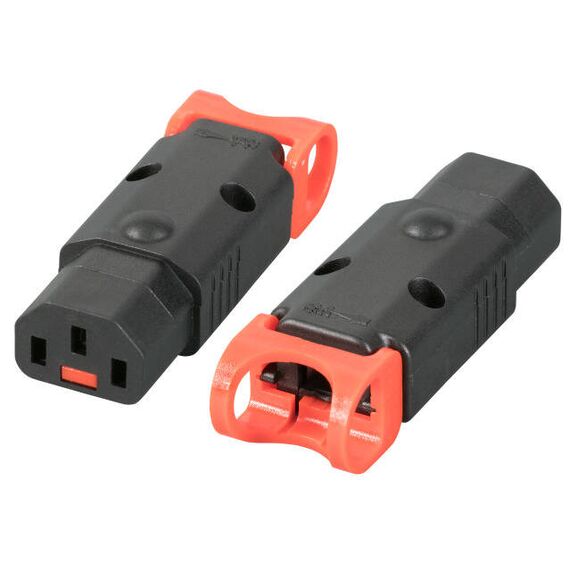

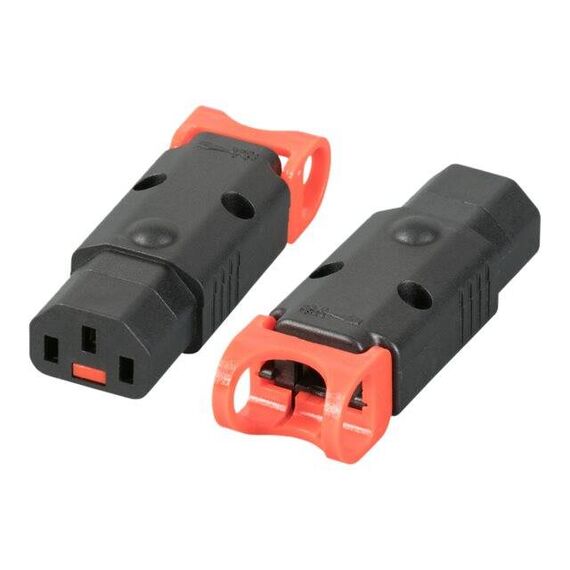

EFB 60319.1 IEC-Lock+ C13 Rewireable Connector

Locking C13 female10 A / 250 VRewireable

The EFB 60319.1 is an IEC-Lock+ C13 connector for assembling or retrofitting a power cable. Its locking mechanism works with a standard C14 inlet and helps prevent accidental disconnection caused by pulling or vibration.

Compatibility — check before buying:
Connector only: no complete cable is supplied. Cable termination requires a competent installer and a suitable three-core cable. Respect the 10 A / 250 V rating.

Key Features


Specific power connection
Locking C13 female

Verified configuration
10 A, 250 V, LSZH

Choose for your equipment
Connector only: no complete cable is supplied. Cable termination requires a competent installer and a suitable three-core cable. Respect the 10 A / 250 V rating.

Technical Specifications

Brand EFB-Elektronik
Model / MPN 60319.1
EAN / GTIN 5055287048561
Connector type IEC-Lock+ C13 female
Mating inlet Standard IEC C14
Rated current 10 A
Rated voltage 250 V
Cable assembly Rewireable; suitable for retrofitting
Housing characteristic Low smoke zero halogen (LSZH)
Supported cable sizes 3 × 0.75 / 1.00 / 1.25 / 1.50 mm² (1.50 maximum)
Supported AWG sizes 3 × 14–18 AWG
Test bodies KEMA, UL
Test standards KEMA-KEUR; EN 60320-1:2001+A1:2007; UL 60320-1 / CSA C22.2 No 60320-1
Overall length 74.5 mm / 78.5 mm when retracted
Body width (drawing) 23.6 mm
Locking mechanism Resists accidental pull-out and vibration; pull release

What's in the Box

1x IEC-Lock+ C13 rewireable connector

What Will Not Work

Connector only: no complete cable is supplied. Cable termination requires a competent installer and a suitable three-core cable. Respect the 10 A / 250 V rating.

Frequently Asked Questions

What should I check before buying?
Connector only: no complete cable is supplied. Cable termination requires a competent installer and a suitable three-core cable. Respect the 10 A / 250 V rating.
What is included?
1x IEC-Lock+ C13 rewireable connector
Singular Expert Insight
Check the connector at each end and allow enough routing space. Match the permitted load to the cable, power source and connected equipment. Ask Singular about your setup

Buyer’s Guide

Buy it if

You need this connector arrangement and the stated length.

Skip it if

Your equipment needs another connector or exceeds the specified limits.

Also consider

Another length or connector orientation for your installation.
