EFB 19-inch 1U Cable Routing Panel with 5 Steel Brackets, 60 mm Bracket Length, Sheet Steel, Black RAL 9005
Brand:
EFB
EFB 19-inch 1U Cable Routing Panel with 5 Steel Brackets, 60 mm Bracket Length, Sheet Steel, Black RAL 9005
€20.86 inc. VAT
699995TS.1
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
EFB 19" 1U Cable Routing Panel with 5 Brackets — open routing for patch cords
1U · 19"5 steel bracketsApprox. 70 mm deepRAL 9005 black

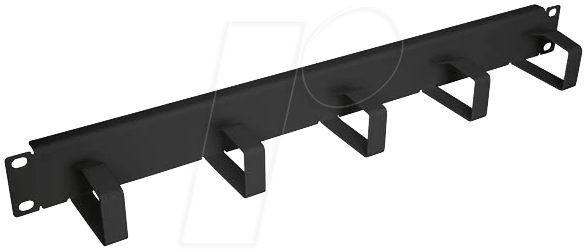

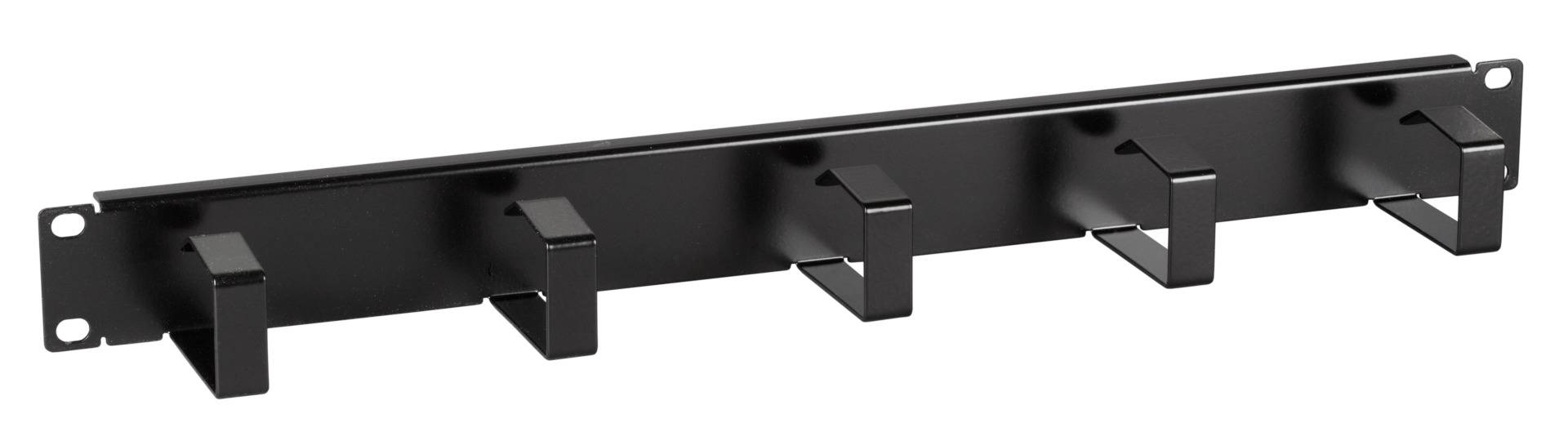

The EFB 699995TS.1 is a 1U, 19-inch cable routing panel with five steel brackets, made from sheet steel in black RAL 9005, for installers who want patch cords guided sideways between a patch panel and a switch with every cable visible and reachable.
The five brackets are 60 mm long and the panel is about 70 mm deep overall. There is no cover: cables stay in view, which makes tracing and re-patching quick in racks that change often.
What's in the Box
- 1 × EFB 19" 1U cable routing panel with 5 brackets (RAL 9005)
- EFB does not publish whether fixing screws or cage nuts are included — plan on using the M6 hardware of your rack
What It Means in Practice
- Five brackets split a 24-port row into groups of about five cables each, so each cable drops straight to its switch port.
- Open brackets mean no cover to remove: you can lift a cable out, re-patch and drop it back in seconds.
- 60 mm brackets hold a comfortable bundle of standard patch cords; the panel stays within 1U of height.
- Black suits black cabinets and switches. EFB sells the same panel in light grey RAL 7035 as 699995.1.
What Will Not Work
- It does not fit 10-inch racks — the width is 482.6 mm (19").
- There is no cover, so cables stay visible; choose EFB 699999NTS.1 if you want them hidden.
- It is not a vertical cable manager for the cabinet sides.
- Do not order 699995TS (without .1) or 699995.1 expecting this item — those are different EFB versions or colours.
Key Features
Five steel brackets
Guide patch cords in groups so each cable reaches its port without crossing the whole rack.
Open front
No cover to open — quick to trace, lift and re-patch cables.
Sheet steel, RAL 9005
Rigid black steel body to match black 19-inch cabinets.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Open 5-bracket panels are the practical choice for racks that are re-patched often, such as office floors and labs: every cable is visible and nothing needs to be unscrewed. Put one between each patch panel and switch pair and keep patch cords short. See our rack accessories for covered panels, brush panels and blanking plates.
✓ Buy it if you want open, visible cable routing in a black 19-inch rack with frequent re-patching.
✕ Skip it if you want cables hidden behind a cover or need a grey panel.
→ Also consider EFB 699999NTS.1 (1U routing panel with removable cover) for a cleaner front.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - EFB - 699995TS.1
Colour
black
More Details
Product Code
04:261549
EAN Code
4049759097677
Manufacturer
EFB
