EFB-Elektronik 19-inch 1U Cable Routing Panel with 4 Brackets, Sheet Steel, Black RAL 9005
Brand:
EFB
EFB-Elektronik 19-inch 1U Cable Routing Panel with 4 Brackets, Sheet Steel, Black RAL 9005
€17.77 inc. VAT
699995TS
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

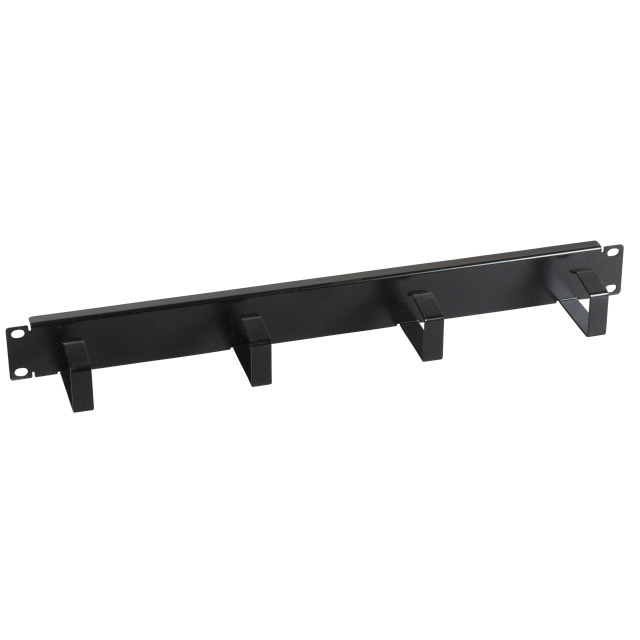

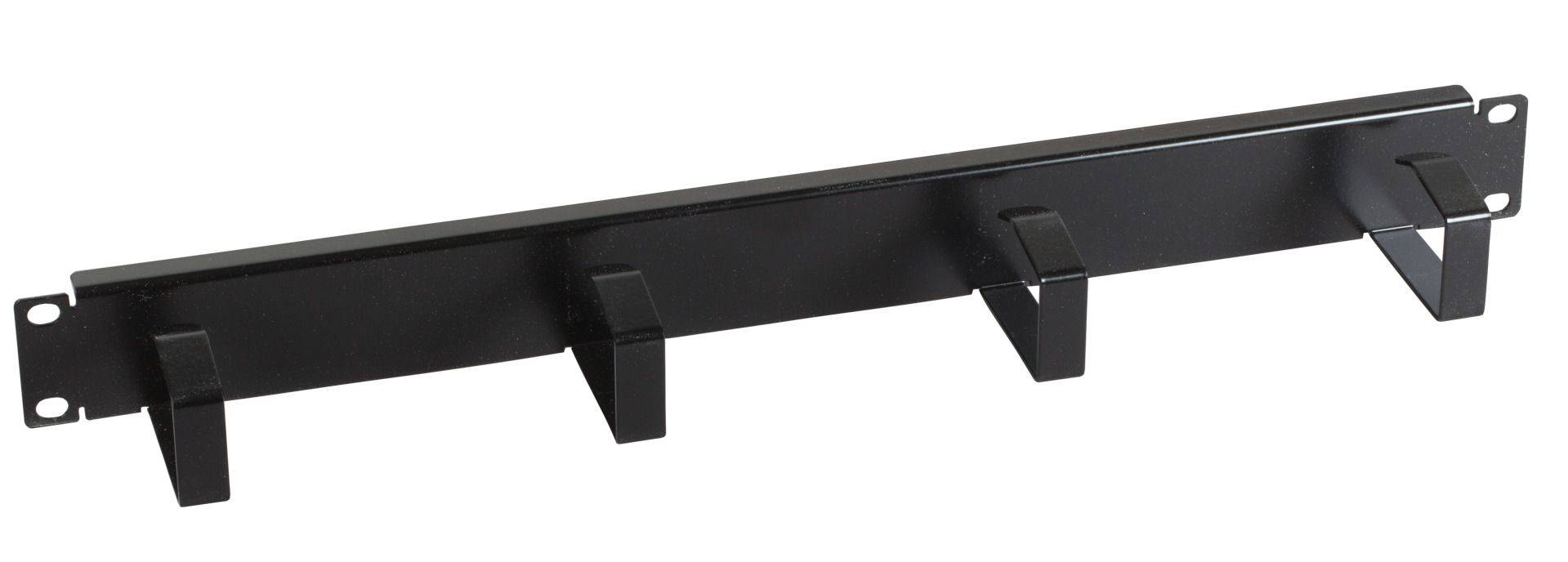

EFB-Elektronik 699995TS — 19" 1U Cable Routing Panel with 4 Brackets, Black
19" racks1U4 routing bracketsBlack RAL 9005
The EFB-Elektronik 699995TS is a 1U cable routing panel for 19-inch racks, with four steel brackets that hold patch cords horizontally across the front of the rack. It is made of sheet steel in black RAL 9005 and is intended for patch fields where cords run between a patch panel and a switch.
Each bracket is 60 mm long, and the panel is about 70 mm deep overall. That gives the cords a defined path without bending them tightly around device ears.
Before you order: This panel needs 19-inch rails and roughly 70 mm of clear space in front of them. In shallow wall cabinets, check that the front door still closes.
What's in the Box
- 1 × EFB 19" 1U cable routing panel with 4 brackets, black RAL 9005
- EFB does not list mounting screws. Use 4 × M6 screws and cage nuts from your rack kit or a fixing set.
What It Means in Practice
- A typical layout is patch panel – routing panel – switch. Each group of 6 to 12 cords drops into its nearest bracket.
- The four brackets divide the 19" width into sections, so each port group stays separate and easy to trace.
- The open bracket design means cords are laid in from the front. Nothing needs to be threaded through, so moves and changes are quick.
- The RAL 9005 finish matches black cabinets and EFB patch panels.
What Will Not Work
- 10-inch racks. The panel is 482.6 mm wide.
- Passing cables to the rear. There is no brush or opening, so the cables stay at the front.
- Cabinets with less than about 70 mm between the rails and the door.
- Bearing load. It is not a shelf.
Key Features
Four open brackets
Cords lay in from the front, so changes are fast.
60 mm bracket length
Room for a sizeable bundle per bracket.
Steel construction
Sheet steel in RAL 9005.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Bracket panels are the workhorse of structured cabling. They cost little, fit every 19" rack and make any patch cord traceable at a glance. Four brackets suit 24-port and 48-port fields well. For the rest of the rack fit-out see our rack accessories range.
✓ Buy it if you run a 19" patch field and want cords to stay organised across the front of the rack.
✕ Skip it if you have a 10" rack, a shallow cabinet door, or you want the cables hidden behind a cover.
→ Also consider the EFB 699999N.1 1U routing panel with cover for a closed front.
Send us the cabinet model and the door depth and we will check the 70 mm clearance before you order.
Features - EFB - 699995TS
Colour
black
More Details
Product Code
04:261548
EAN Code
4049759097660
Manufacturer
EFB
