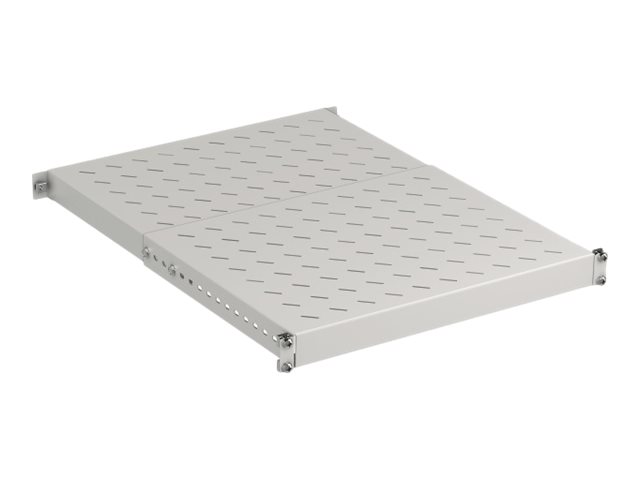

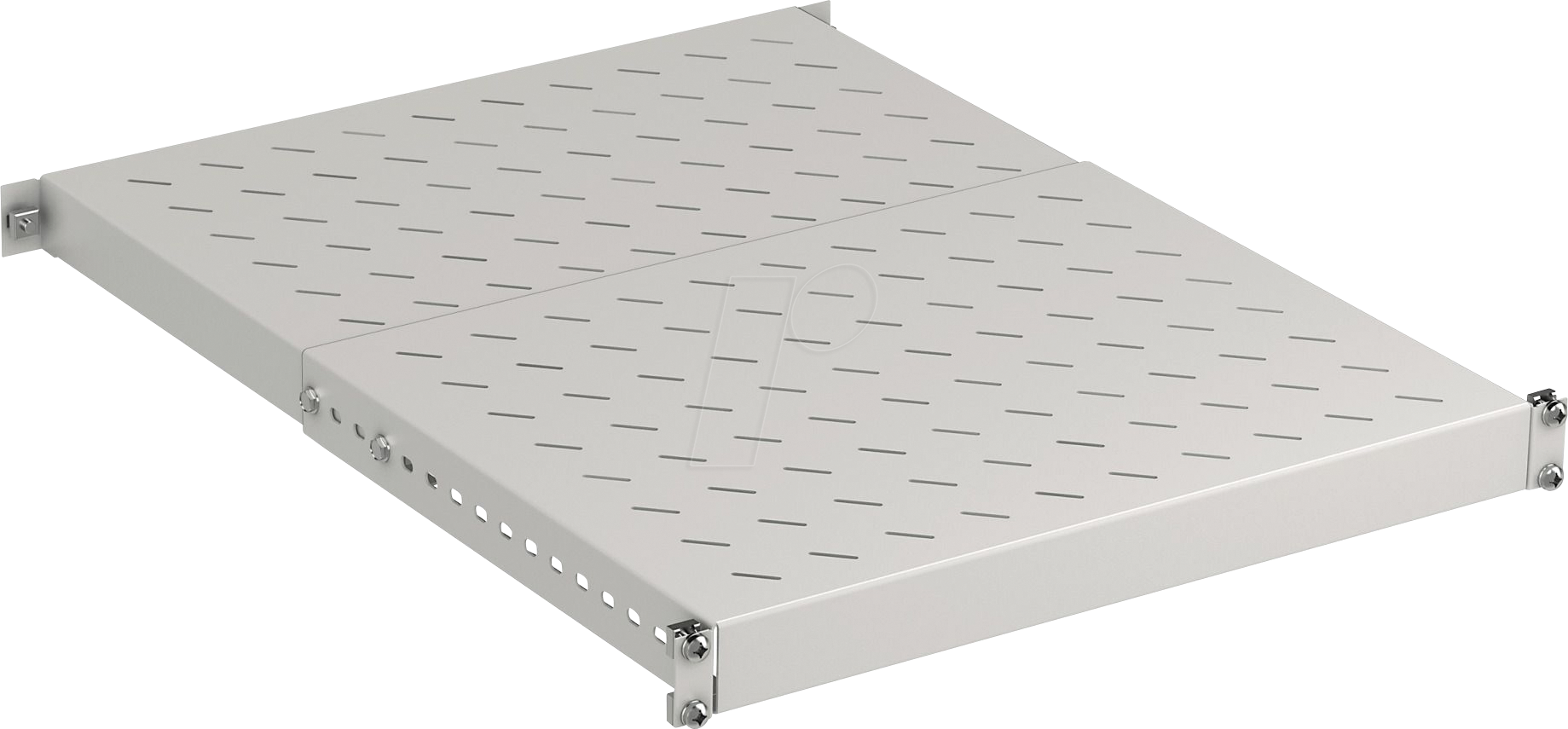

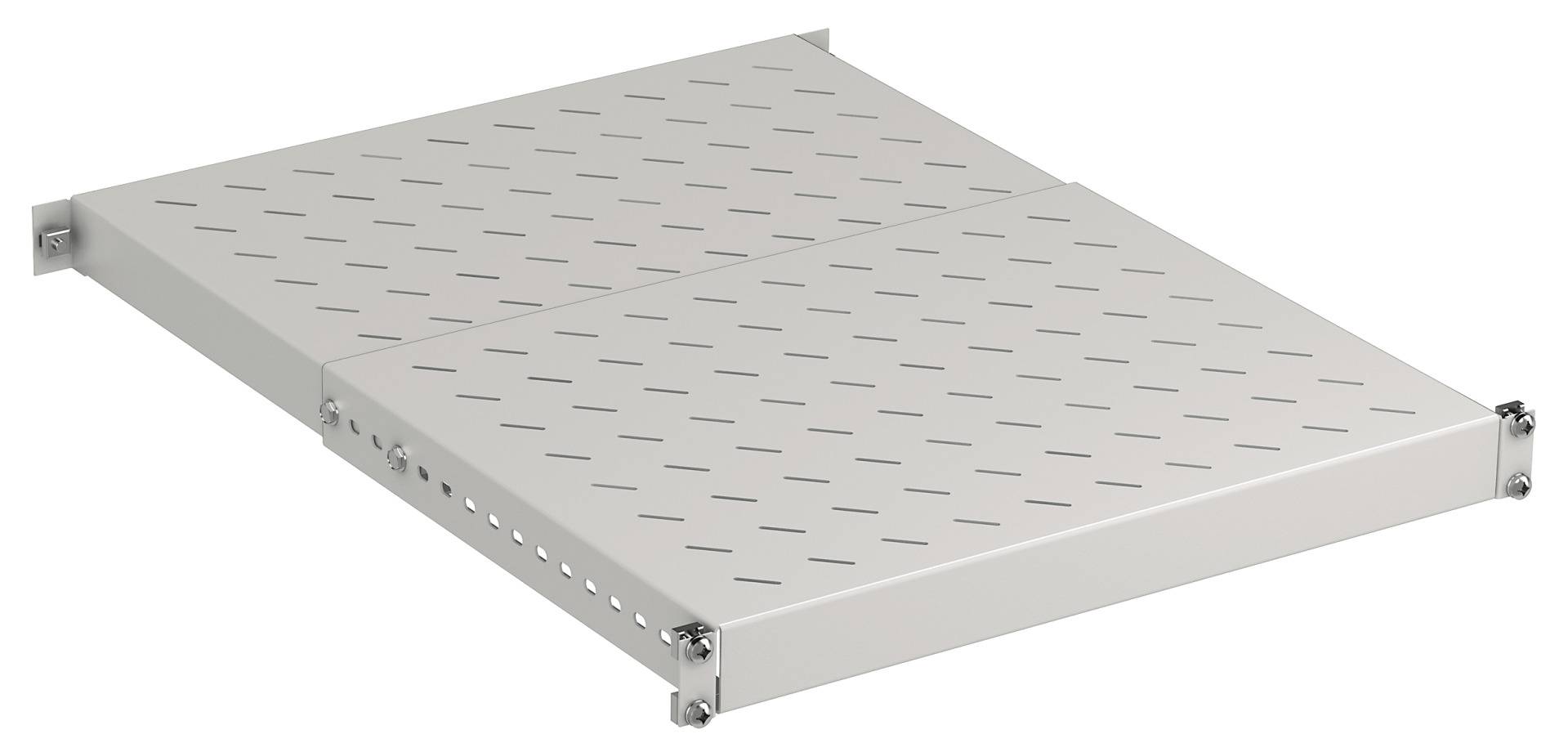

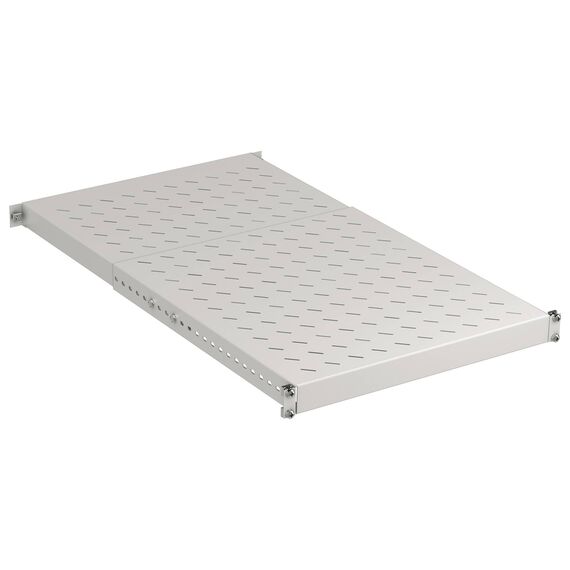

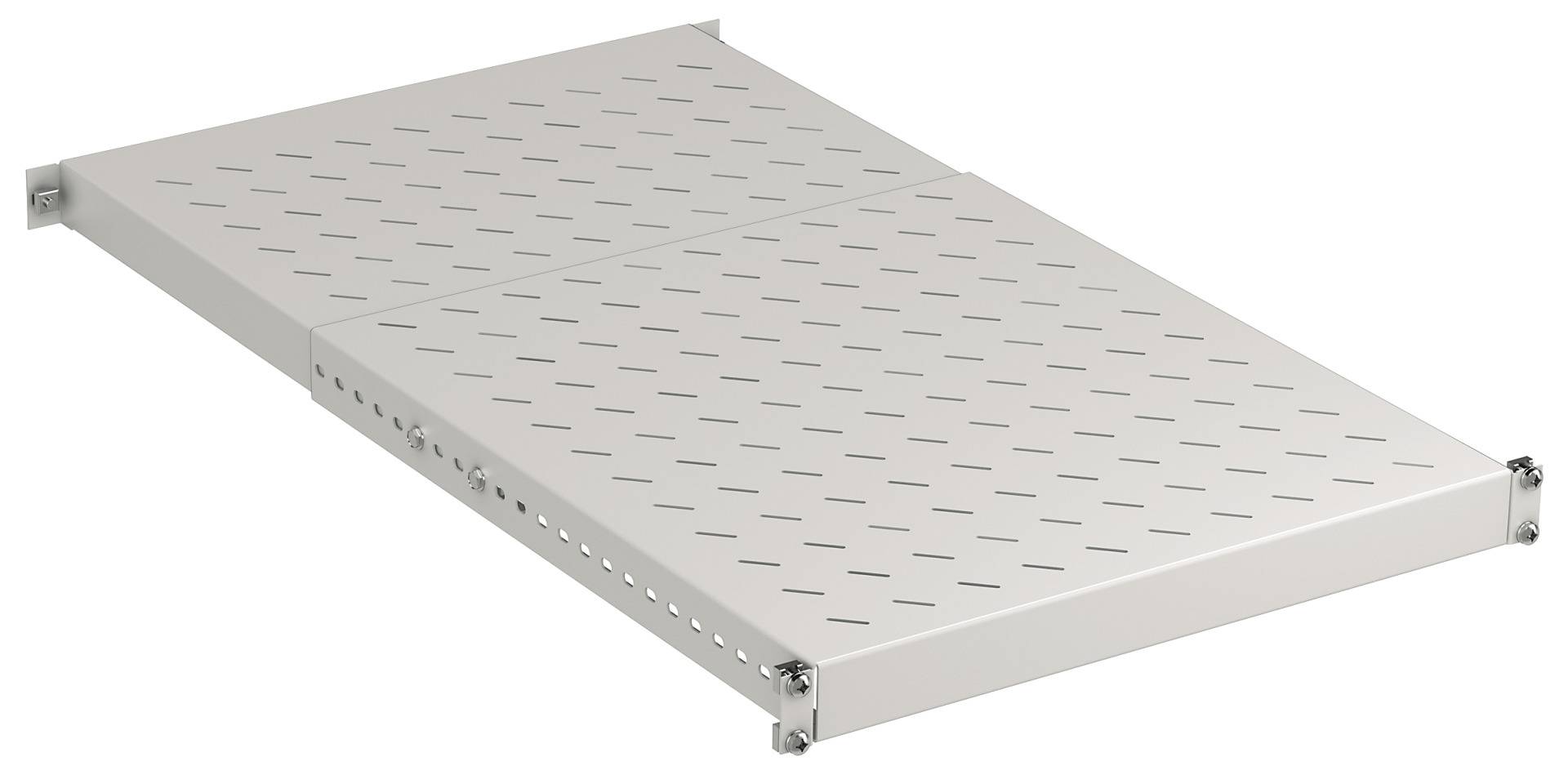

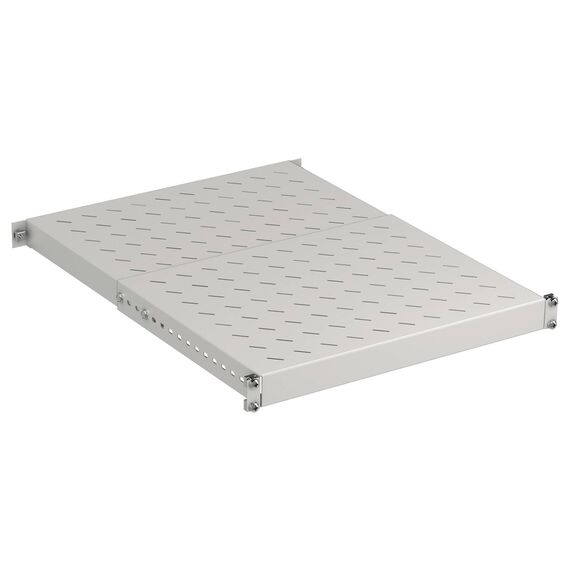

EFB-Elektronik 1U Heavy-Duty Shelf — 150 kg, 600 mm Cabinets
1U · 19"150 kg loadDepth adjustableRAL 7035 grey
The EFB-Elektronik 691653GR.6 is a 19-inch 1U heavy-duty shelf that fixes to the front and rear rails of a 600 mm deep network or server cabinet and carries up to 150 kg, for anyone who needs to support a UPS, battery pack, tower server or other heavy equipment inside a cabinet.
Standard cantilever shelves are rated at 20–30 kg. This shelf is built for six times that, because it is carried at all four corners by the cabinet frame. Its depth adjusts between 350 and 600 mm so it lines up with the rear rails wherever they are set.
Before you order: this version is for 600 mm deep cabinets (depth adjustment 350–600 mm). For 800 or 1000 mm cabinets EFB makes a longer version with a different part number — tell us your cabinet and we will match it.
What's in the Box
- 1 × 1U heavy-duty shelf (light grey RAL 7035)
- Mounting material
What It Means in Practice
- Four-point fixing on front and rear 19-inch profiles is what allows the 150 kg rating.
- Place it low in the cabinet when carrying UPS or battery units — heavy loads belong at the bottom for stability.
- The depth is set with self-tapping screws once you have measured the distance between your front and rear rails.
- Takes only 1U of height, leaving the maximum space for the equipment on top.
What Will Not Work
- 2-post open frames and wall brackets with no rear rails — the shelf must be fixed at all four corners.
- Cabinets deeper than 600 mm where the rear rails sit beyond the 600 mm adjustment limit.
- Black cabinets where the colour must match — the black variant is a separate part number.
- Pull-out access — this is a fixed shelf, not an extendible one.
Key Features
150 kg capacity
Heavy-duty construction for UPS units, batteries and tower servers.
Depth adjustable
Adjusts from 350 to 600 mm to meet the rear rails of 600 mm cabinets.
Four-point fixing
Load is shared by the front and rear 19-inch profiles.
Low profile
Only 1U high, 482.6 mm wide to the 19-inch standard.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Choose this shelf when weight, not access, is the issue: batteries, a tower server or a UPS without its own rails. For light desktop devices a cantilever shelf is cheaper; for pull-out access an extendible shelf is better. The most common mistake is buying the wrong depth version, so measure rail to rail first. More options in our rack accessories.
✓ Buy it if you need to carry heavy equipment up to 150 kg in a 600 mm deep 19-inch cabinet with front and rear rails.
✕ Skip it if your cabinet is 800 or 1000 mm deep, has no rear rails, or you need a pull-out shelf.
→ Also consider the EFB heavy-duty version for 800–1000 mm cabinets, or UPS support rails if your UPS supports them.
Send us your cabinet model and rail-to-rail depth and we will confirm the right shelf before you order.
Features - EFB - 691653GR.6
Colour
grey
More Details
Product Code
04:405264
EAN Code
4049759252670
Manufacturer
EFB
