EFB HDMI-20-00010 Active Optical HDMI 2.0 Cable AOC 50 m 4K 60Hz 18 Gbit/s Black

Brand:
EFB
EFB HDMI-20-00010 AOC HDMI 2.0 Cable 50 m 4K60 Black
EFB HDMI-20-00010 Active Optical HDMI 2.0 Cable AOC 50 m 4K 60Hz 18 Gbit/s Black
€90.18 inc. VAT
Buy
HDMI-20-00010
€75.78
€90.18 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
Product Code
04:545393
EAN Code
4049759324933
Manufacturer
EFB

Quick Specs

Type
Active optical HDMI cable (AOC)
Connectors
HDMI Type A male to male
Performance
4K@60Hz · 18 Gbit/s · HDMI 2.0
Length
50 m · black PVC
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

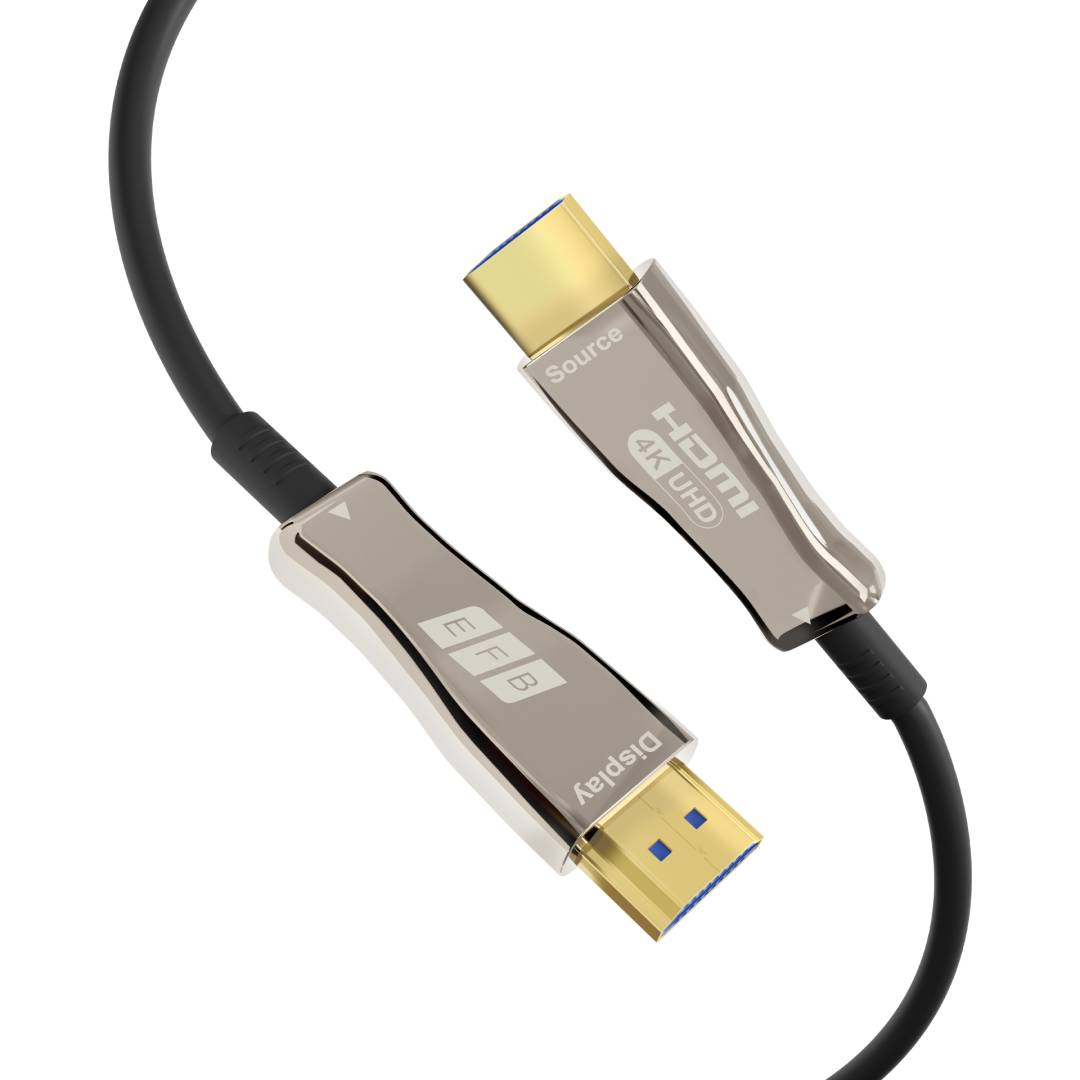

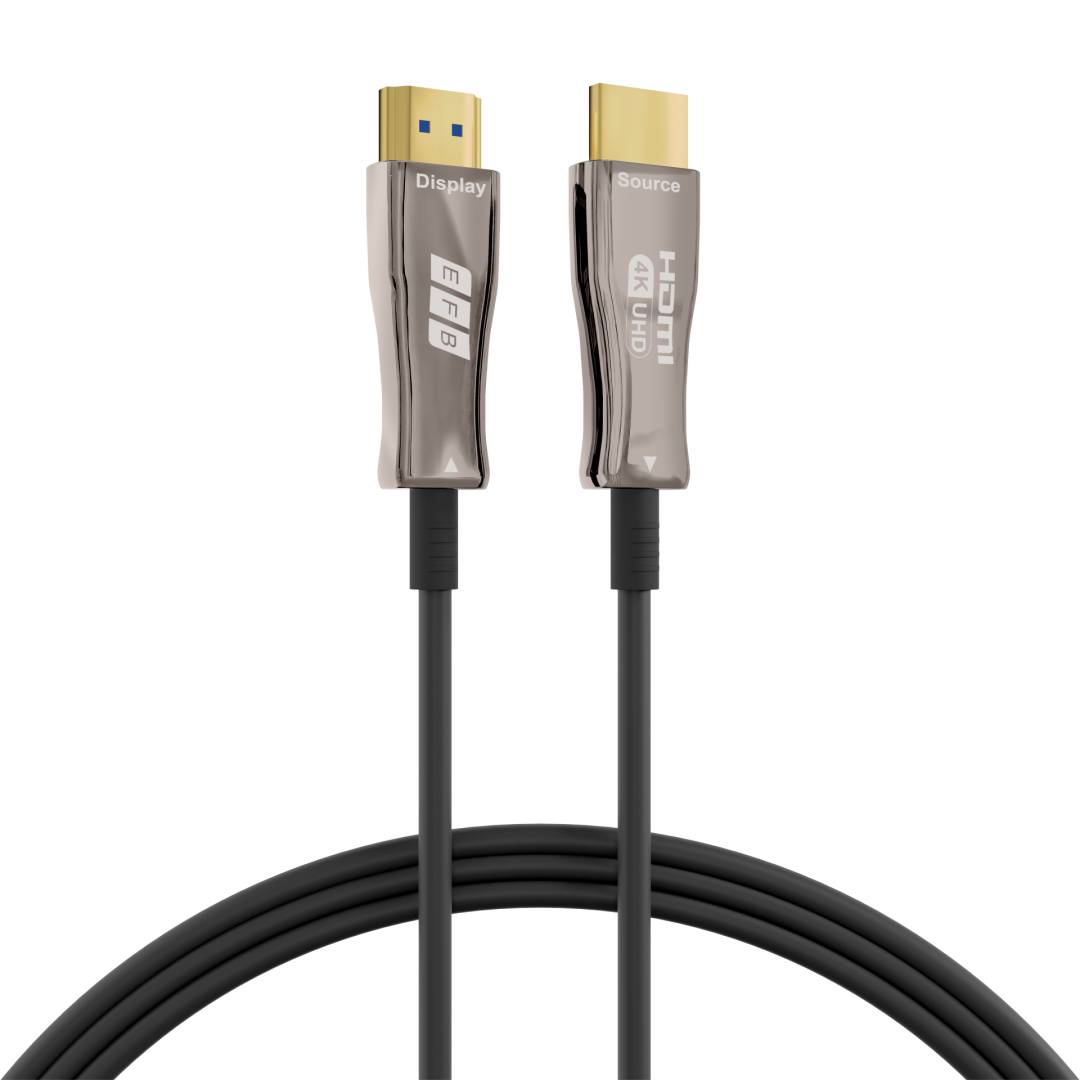

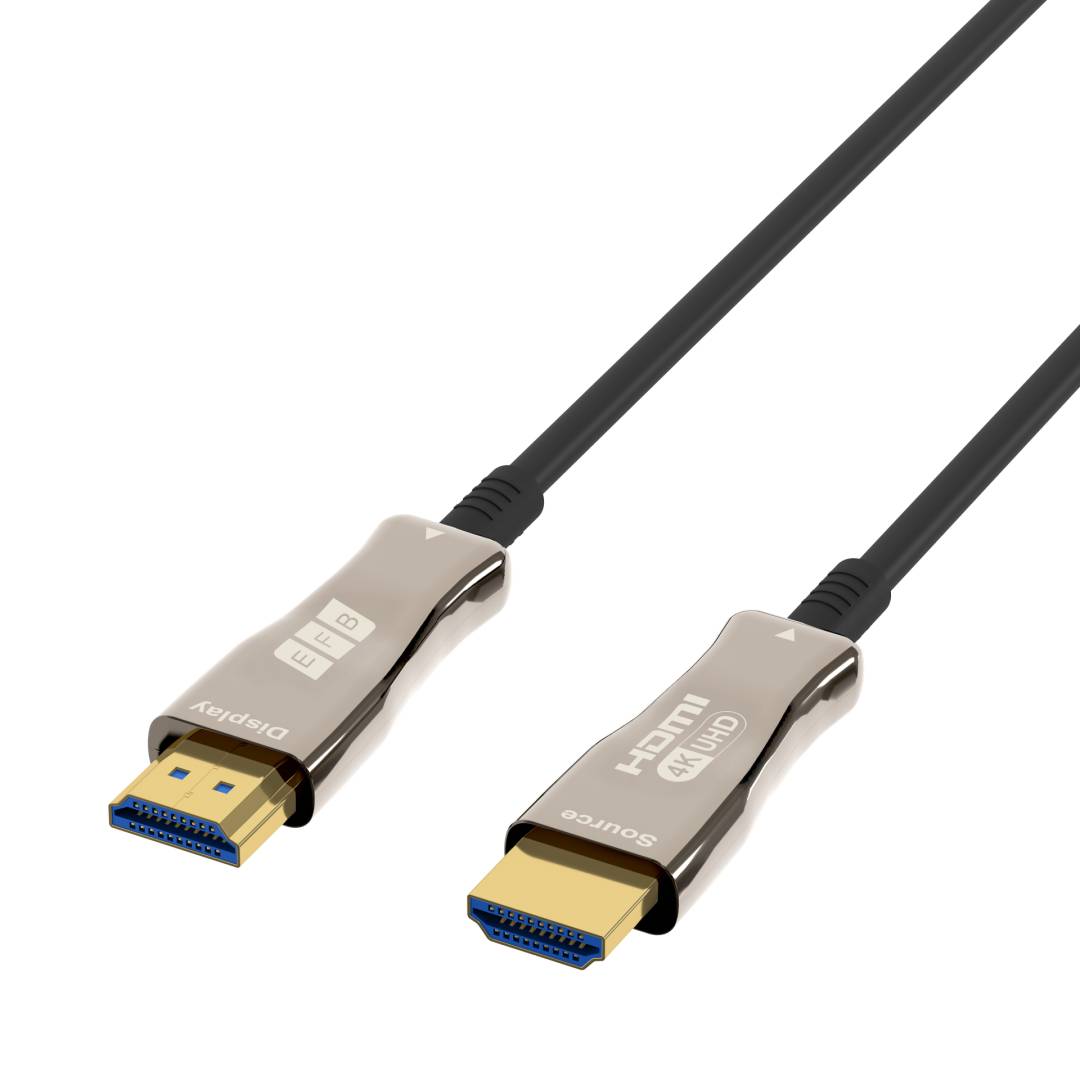

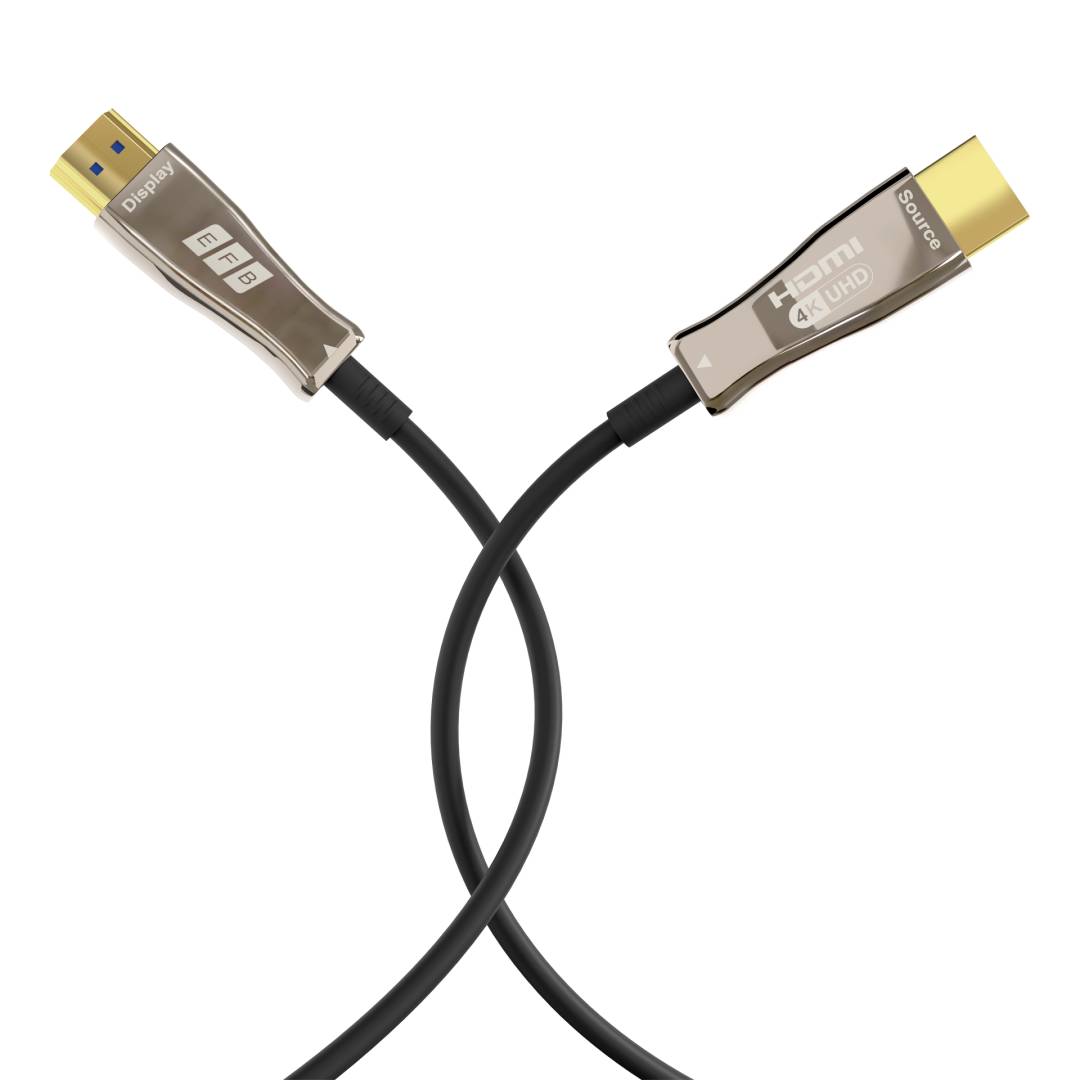

EFB HDMI-20-00010 Active Optical HDMI Cable, 50 m

Fibre-optic HDMI 2.0 cable that carries uncompressed 4K at 60 Hz over 50 m without signal loss or interference.
4K@60Hz · 18 Gbit/s50 m AOCHDMI 2.0 · HDCP 2.2HDR · 12-bit Deep Color

The EFB-Elektronik HDMI-20-00010 is a 50 m active optical HDMI cable (AOC) for HDMI 2.0 sources and displays, transmitting 4K at 60 Hz with up to 18 Gbit/s bandwidth over fibre instead of copper. It is built for AV installers, conference rooms, digital signage and home cinemas where a normal copper HDMI cable cannot reach reliably.

An integrated signal-conversion chip in the plugs turns the HDMI signal into light and back, so the picture stays stable over the full length and is immune to electrical interference. The plugs have zinc alloy shells with gold-plated contacts and are laser-marked Source and Display.

Supported features listed by EFB include HDCP 2.2, HDR, 12-bit Deep Color, 3D, ARC and CEC, and the cable ships in plastic-free cardboard packaging.

Compatibility Note: This AOC is directional: connect the end marked Source to the player/PC and the end marked Display to the TV or projector — reversed, there is no picture. It is HDMI 2.0 (4K@60Hz, 18 Gbit/s) and does not support 4K@120Hz, 8K or eARC.

Key Features


Long reach without signal loss
Fibre carries the signal optically over 50 m, avoiding the attenuation and dropouts of long passive copper HDMI runs.

Thin, interference-free run
Optical transmission is immune to electromagnetic interference from power cables and lighting, making it well suited to ceilings, conduits and rental setups.

Robust connectors
Zinc alloy plug housings with gold-plated contacts are rated for up to 5,000 mating cycles, with kink protection and a flame-retardant PVC jacket.

Technical Specifications

Identification
Part Number HDMI-20-00010
EAN / GTIN 4049759324933
MPN HDMI-20-00010
Brand EFB-Elektronik
Performance
HDMI version HDMI 2.0, backwards compatible
Max. resolution 4K@60Hz
Bandwidth 18 Gbit/s
Colour / HDR 12-bit Deep Color, HDR
Copy protection HDCP 2.2
Features (per EFB) 3D, ARC, CEC
Audio Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos pass-through
Cable
Type Active optical cable (AOC), directional Source/Display
Length 50 m
Jacket PVC, flame-retardant, black
Bending radius 40 mm
Tensile strength 98.1 N
Connectors
Connectors 2x HDMI Type A male (19-pin), straight
Plug housing Zinc alloy, gold-plated contacts
Plug dimensions 18.6 x 8.4 x 53.4 mm
Mating cycles Up to 5,000
Environment & warranty
Operating temperature -5 – 45 °C
Storage temperature -20 – 70 °C
Warranty 36 months (EFB)
Packaging Plastic-free cardboard box

Frequently Asked Questions

Does the HDMI-20-00010 need an external power supply?
EFB lists it as powered from the HDMI port, and no separate power adapter is included. The active chip draws its power from the source device.
Can I plug either end into the TV?
No. Active optical HDMI cables work in one direction only. The plug marked Source goes to the player, PC or AV receiver output and the plug marked Display goes to the TV, projector or monitor.
Is the HDMI-20-00010 suitable for 4K 120Hz gaming or 8K?
No. It is an HDMI 2.0 cable rated for 4K at 60 Hz and 18 Gbit/s. For 4K@120Hz or 8K you need an Ultra High Speed (48 Gbit/s) HDMI 2.1 cable.
Singular Expert Insight
Over about 10–15 m, passive copper HDMI becomes unreliable at 4K, and an AOC like this is the standard fix for projectors, ceiling installs and signage. Order a little extra length rather than too little — you cannot join two AOCs reliably — and remember the Source/Display direction when pulling it through conduit.
✓ Buy it if you need stable 4K@60Hz over 50 m to a projector, TV or display.
✕ Skip it if you need 4K@120Hz, 8K or eARC — choose an HDMI 2.1 cable.
→ Also consider EFB HDMI-20-00008 (20 m) if your run is shorter — the same series in a more manageable length.
