EFB-Elektronik EK504.1V2 — Power Cord Schuko 90° to C13, 1.0 m, Black
1.0 mSchuko 90° angledC13 with earth250 V / 10 A

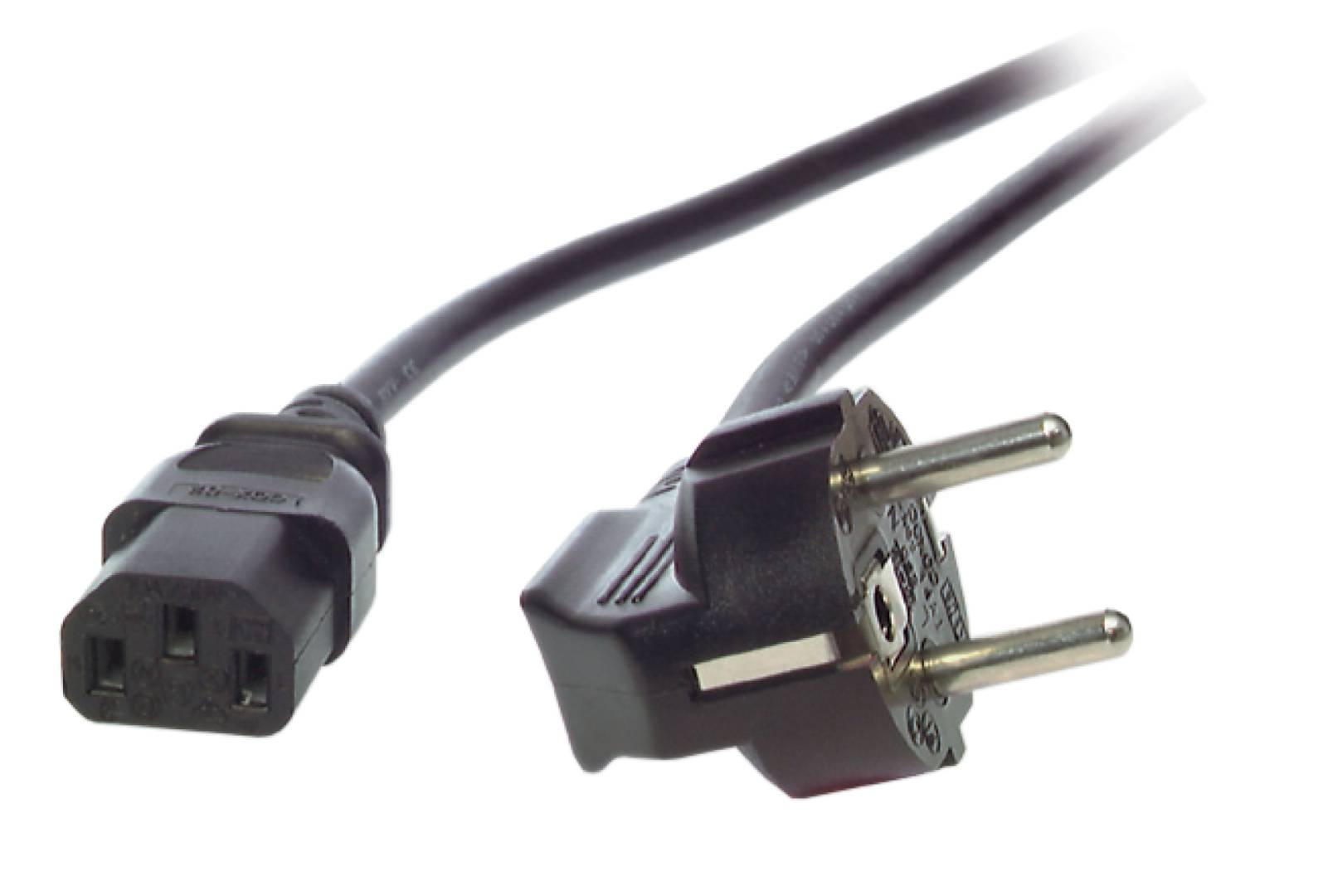

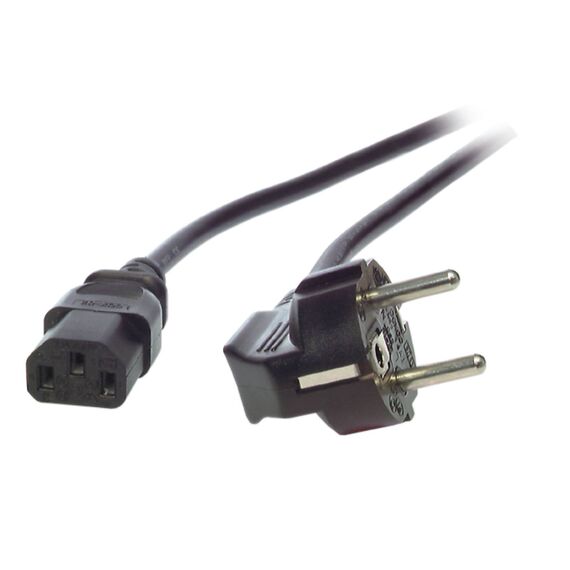

The EFB-Elektronik EK504.1V2 is a 1 m black mains cable with a right-angled Schuko plug (CEE 7/7, Type F) on one end and a straight C13 kettle-type connector on the other. EFB-Elektronik, the German cabling manufacturer, builds it as a 1.0 m cord with a black PVC jacket, VDE-marked plug and connector, and a rating of 250 V / 10 A. C13 is the standard three-pin device connector on desktop PCs, monitors, printers, switches, servers and UPS units. The cord has three conductors of 0.75 mm², including the protective earth, and the angled plug sits flat against the wall or power strip so furniture can be pushed close. It is a plain, honest spare: the kind of cable you keep in the drawer for the day a device arrives without one, the old cord is too short, or a rack needs a neater run. Every order is supported locally by Singular in Cyprus.
Compatibility — check before buying:
Plug type: this is the continental European version. Wall sockets in Cyprus are the UK type (BS 1363, Type G), so the Schuko (Type F) plug does not fit a Cypriot wall socket directly — it needs a Schuko-to-UK adapter, or it plugs into a Schuko socket on a PDU, UPS or European power strip. Device end: straight C13 connector for a C14 inlet. The C13 connector fits the three-pin C14 inlet found on desktop PCs, monitors, printers, servers, network switches and UPS units. It does not fit the notched C15 inlet on kettles and some hot equipment, the C19/C20 inlets of large servers, or the figure-8 (C7) and cloverleaf (C5) inlets of smaller devices. Tell us the device and we confirm the right cord before you order.
Best For
✓ Desktop PCs and workstations
✓ Monitors and printers
✓ Network switches and NAS units
✓ Servers and UPS units with Schuko outlets
✓ Racks and PDUs with Schuko sockets
✓ Replacing a lost or damaged kettle-type cord
Key Features
Short 1 m run
One metre keeps cable clutter down on a desk, in a rack or from a UPS to the equipment next to it.
Angled Schuko plug
The 90° plug sits flat against the socket or power strip, saving space behind furniture and in tight racks.
C13 with earth
A straight IEC C13 connector with protective earth for PCs, monitors, printers and network gear with a C14 inlet.
VDE-marked build
H05VV-F 3G0.75 cable with VDE-marked plug, rated 250 V / 10 A, in a black PVC jacket.
Technical Specifications
| Identification |
| Brand |
EFB-Elektronik |
| Product |
Power cord Schuko 90° to C13 180°, black, 1.0 m, 3 × 0.75 mm² |
| Part Number |
EK504.1V2 |
| EAN / GTIN |
4049759210403 |
| Product Type |
Power cord |
| Length |
1.0 m |
| Connectors |
| Plug (mains end) |
Schuko CEE 7/7 (Type E/F), angled 90° |
| Connector (device end) |
IEC 60320 C13 (kettle-type), 3-pole |
| Plug Angle |
90° (right-angled) |
| Connector Angle |
180° (straight) |
| Electrical |
| Rated Voltage |
250 V |
| Rated Current |
10 A |
| Conductors |
3 × 0.75 mm² (H05VV-F 3G0.75) |
| Protective Earth |
Yes |
| Safety Mark |
VDE |
| Cable Marking |
VDE H05VV-F 3G0.75 mm² |
| Cable |
| Length |
1.0 m |
| Jacket Material |
PVC (polyvinyl chloride) |
| Jacket Colour |
Black |
| Halogen-free |
No |
| Ingress Protection |
IP20 (indoor use) |
| Market |
Europe (EU plug) |
| In the Box |
| Included |
1 × power cord (1.0 m) |
| Not Included |
UK plug adapter, device, fuse |
| Warranty |
| Warranty |
1-Year Warranty (Singular) |
| Manufacturer Term |
EFB-Elektronik publishes a 24-month warranty on this power cord on its product page. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration. |
Frequently Asked Questions
Will it plug into a wall socket in Cyprus?
Not directly. Cypriot sockets are the UK three-pin type and this cord has a Schuko plug. It plugs straight into Schuko outlets on UPS units, PDUs and European power strips; for a UK wall socket you need a Schuko-to-UK adapter or a UK-plug cord.
Which devices take a C13 cord?
Anything with the common three-pin C14 inlet: desktop PCs, most monitors, laser and inkjet printers, network switches, NAS units, servers and many UPS units. Look for the three rectangular pins in a recessed inlet.
Is 1 m long enough?
For a PC or monitor next to a power strip or UPS, usually yes. If the socket is on the other side of the desk or under the floor, the same cord comes in longer lengths — the 5 m EK504.5V2 is the long option.
Why is the plug angled?
The 90° plug keeps the cable flat against the socket, so a desk, cabinet or rack door can close right up to it without bending the cable.
Singular Expert Insight
We suggest the EK504.1V2 for short, tidy runs from a UPS or a Schuko power strip to the PC, monitor or switch next to it — the angled plug is the detail that helps in cramped spaces. Browse our
computer power cables for other lengths and connector types, or send us the model of the device and we pick the cord for you.
Buyer’s Guide
Buy it if
You need a short C13 cord from a Schuko outlet on a UPS, PDU or power strip.
Skip it if
You want to plug straight into a UK wall socket, or your device has a C15, C19 or figure-8 inlet.
Also consider
EFB-Elektronik EK504.5V2, the same cord in 5 m.
