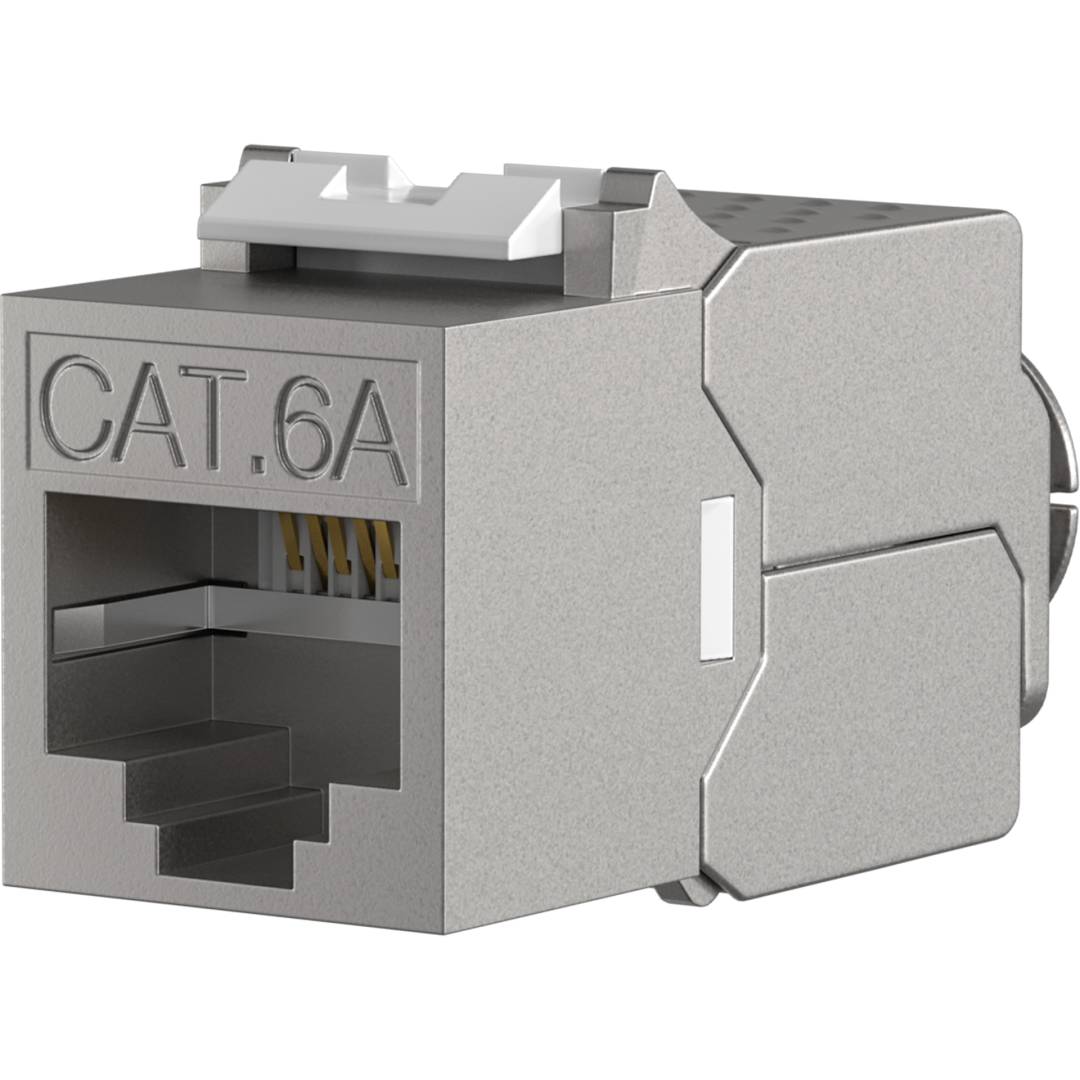

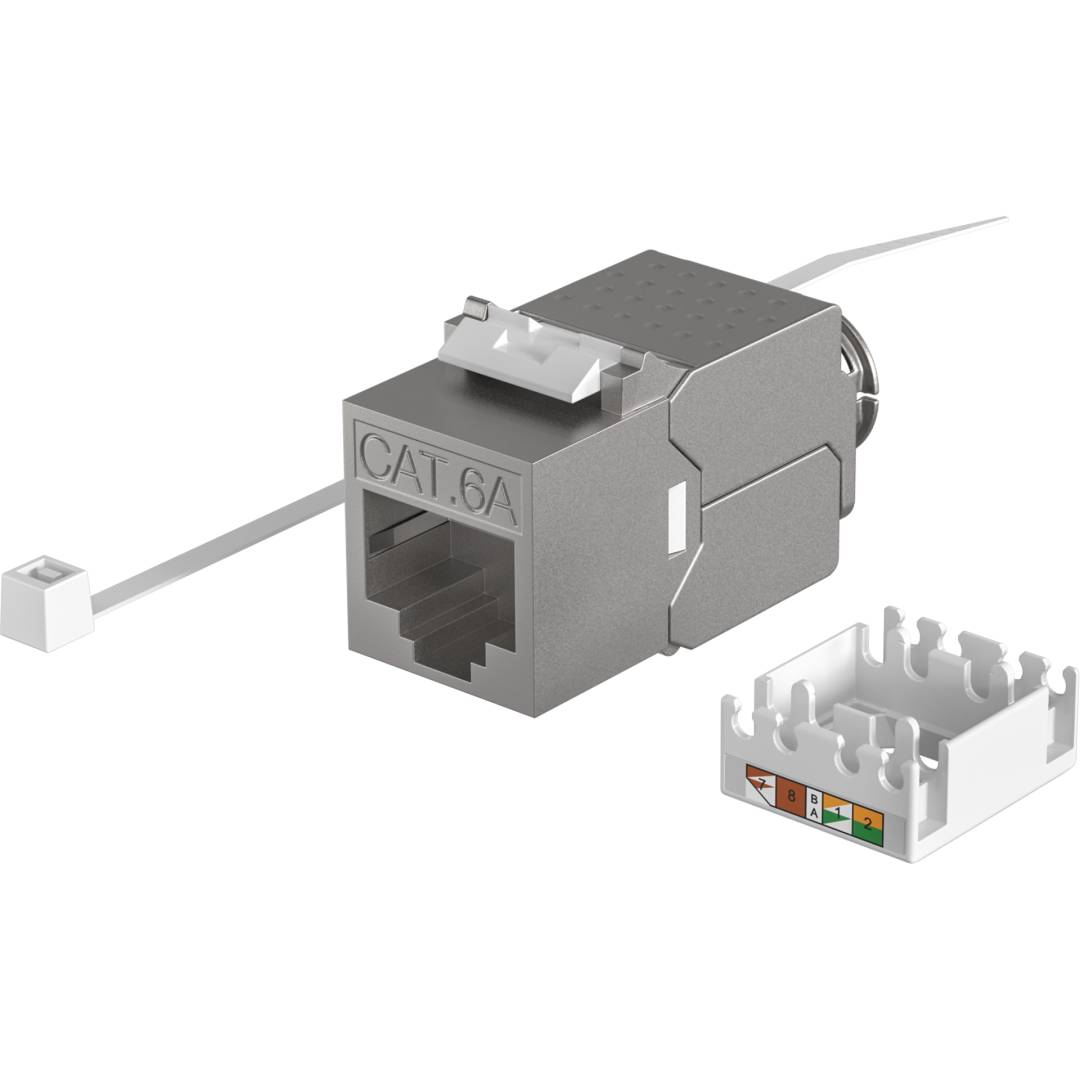

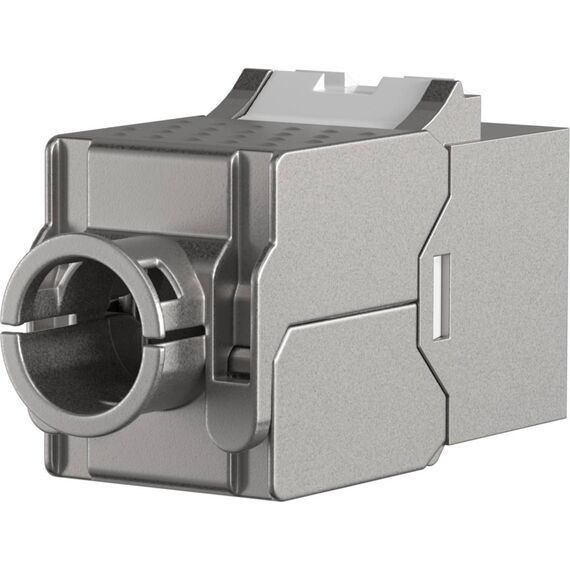

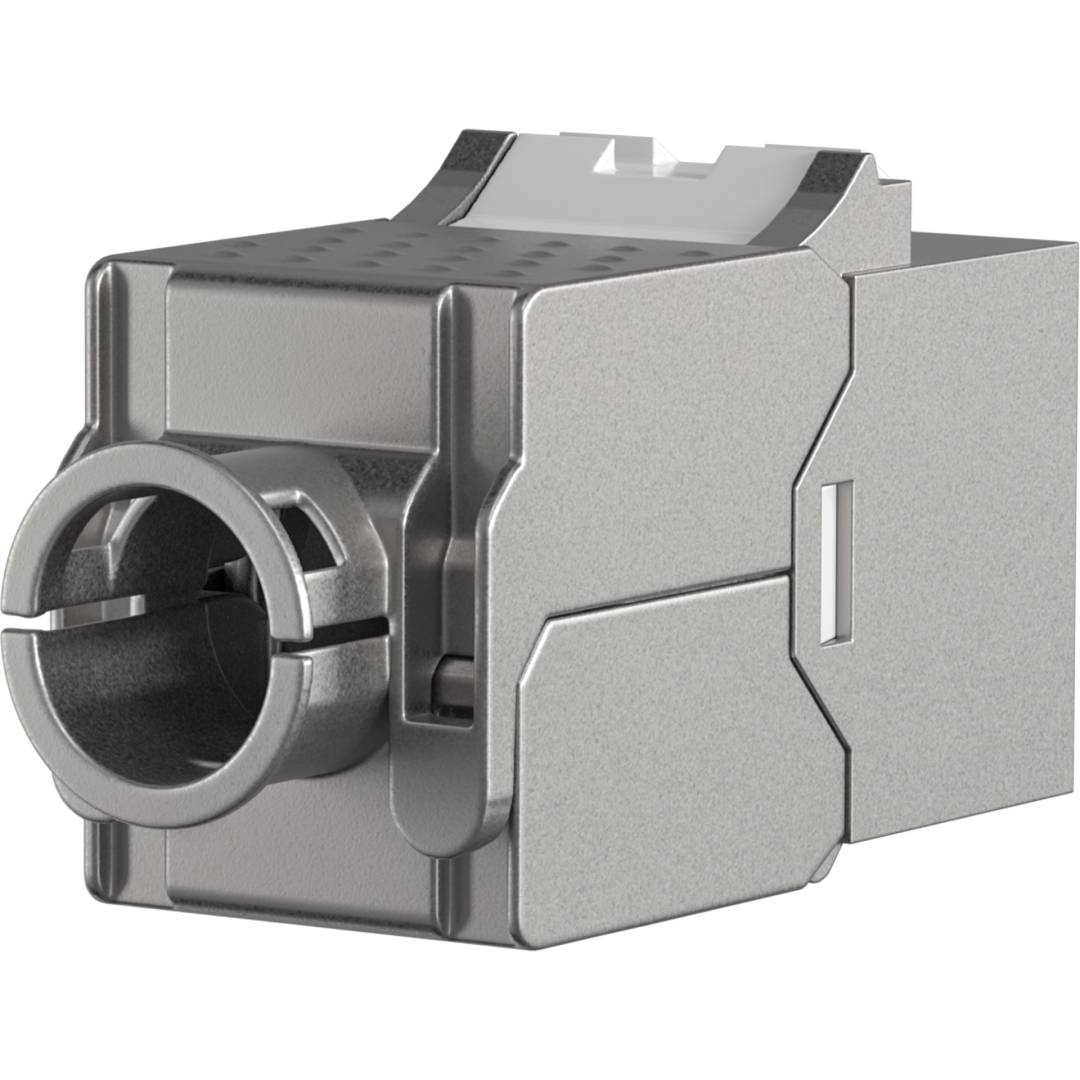

EFB-Elektronik E-200100 — RJ45 Keystone Slimline, Cat.6A, Zinc Alloy
Cat.6A 500 MHz10GESlimlineTool-free
The EFB-Elektronik E-200100 is a slim, fully shielded RJ45 keystone jack for Cat.6A installations. You terminate the installation cable on its IDC contacts without a punch-down tool, then snap the module into a keystone patch panel, wall outlet or floor box. The die-cast zinc body gives 360° shielding and a robust housing, and the Slimline design keeps the module narrow so it suits panels and boxes where space is tight. EFB rates it for 500 MHz and 10 Gigabit Ethernet, with GHMT type approval, and for PoE and PoE+ (IEEE 802.3af/at). The IDC accepts solid conductors AWG 24–22 and stranded AWG 26–22, with an outer cable diameter up to 8.5 mm.
Compatibility — check before buying:
Check the cable: conductors AWG 24–22 (solid) or AWG 26–22 (stranded) and an outer diameter up to 8.5 mm. It fits standard keystone openings in panels and outlets; EFB does not publish exact width figures, so for very dense or unusual frames send us the panel model and we confirm. It is a shielded jack — for the full benefit use shielded cable and a grounded panel. PoE is rated to PoE+ (802.3at). For standard-body jacks with component certification see the EFB E-20070.
Best For
✓ Cat.6A keystone patch panels
✓ Wall and floor outlets
✓ 10 Gbit office cabling
✓ PoE+ access points and cameras
✓ Dense panels and slim boxes
✓ Shielded installations
Key Features
Cat.6A, 10GE
500 MHz and 10 Gigabit Ethernet with GHMT type approval.
Slimline zinc body
Narrow, die-cast zinc housing with full 360° shielding.

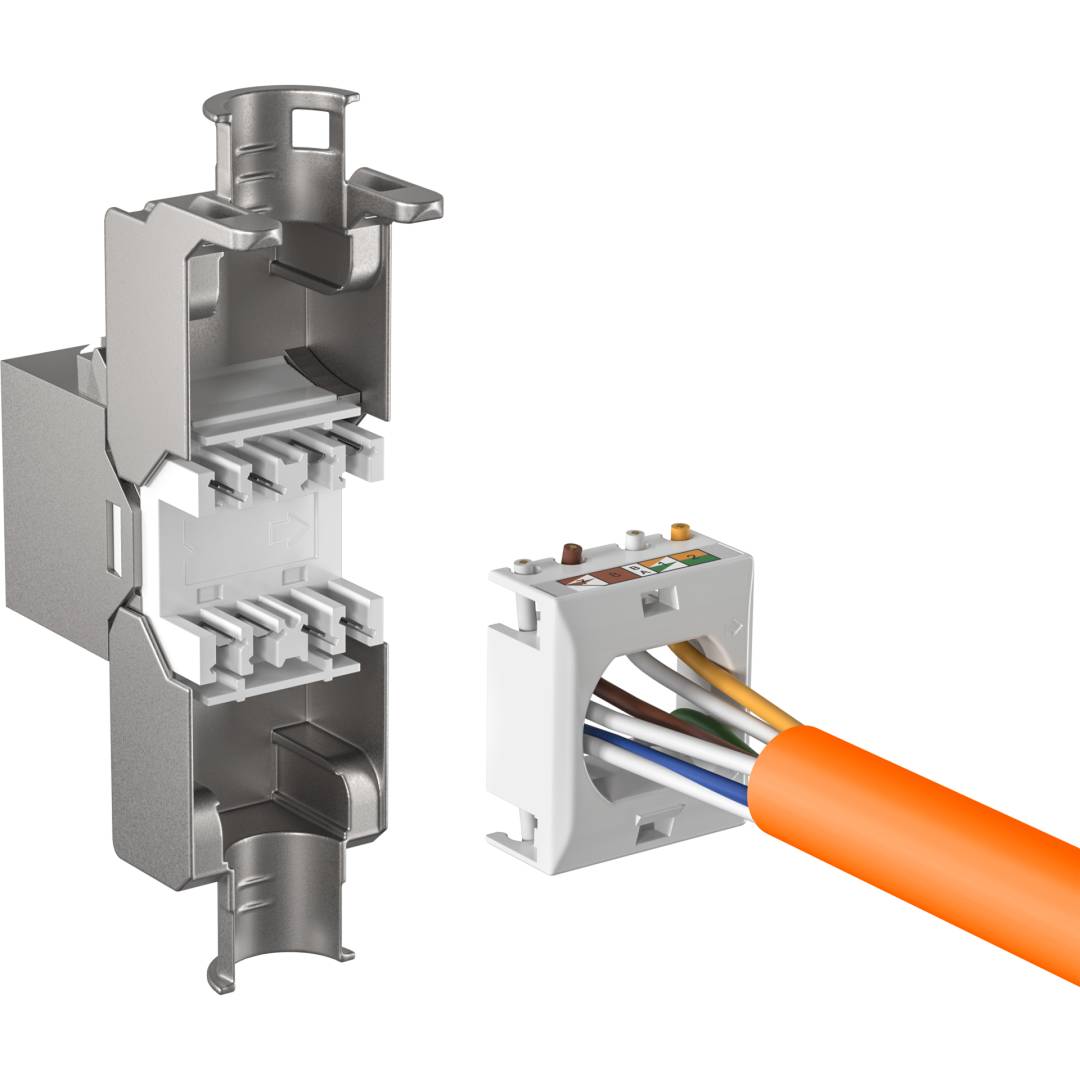

Tool-free IDC
Terminate on site without a punch-down tool; T568A/B.
PoE and PoE+
Rated for IEEE 802.3af and 802.3at.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We suggest the E-200100 for Cat.6A projects where panels or outlets are tight and every millimetre counts — the slim zinc body fits dense keystone panels and shallow boxes. Order a few spares per project. Browse our patch panels and networking accessories. Local support in Cyprus comes with every order.
Buyer’s Guide
Buy it if
You terminate Cat.6A installation cable in keystone panels or outlets and need a slim, shielded jack.
Skip it if
Your cable uses conductors outside AWG 26–22, or you need component certification on the jack.
Also consider
EFB E-20070 — Cat.6A STP keystone, component certified.
Features - EFB - E-200100
Colour
silver
Port Speed
- 10 Gbps
More Details
Product Code
04:298900
EAN Code
4049759186647
Manufacturer
EFB
