EFB K5511.0,15 Cat 6 S/FTP LSZH RJ45 Patch Cable 0.15 m Yellow

Brand:
EFB
EFB K5511.0,15 Cat 6 S/FTP LSZH Patch Cable 0.15 m Yellow
EFB K5511.0,15 Cat 6 S/FTP LSZH RJ45 Patch Cable 0.15 m Yellow
€3.49 inc. VAT
Buy
K5511.0,15
€2.93
€3.49 inc. VAT
Ships from EU stock: 42 item(s)
+ −
Add to wish list Ask a question
Product Code
04:575708
EAN Code
4049759095505
Manufacturer
EFB

Quick Specs

Category & shielding
Cat 6 · S/FTP (PiMF)
Length
0.15 m
Conductor
Copper · AWG 27/7
Jacket
LSZH · Ø 6.2 mm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

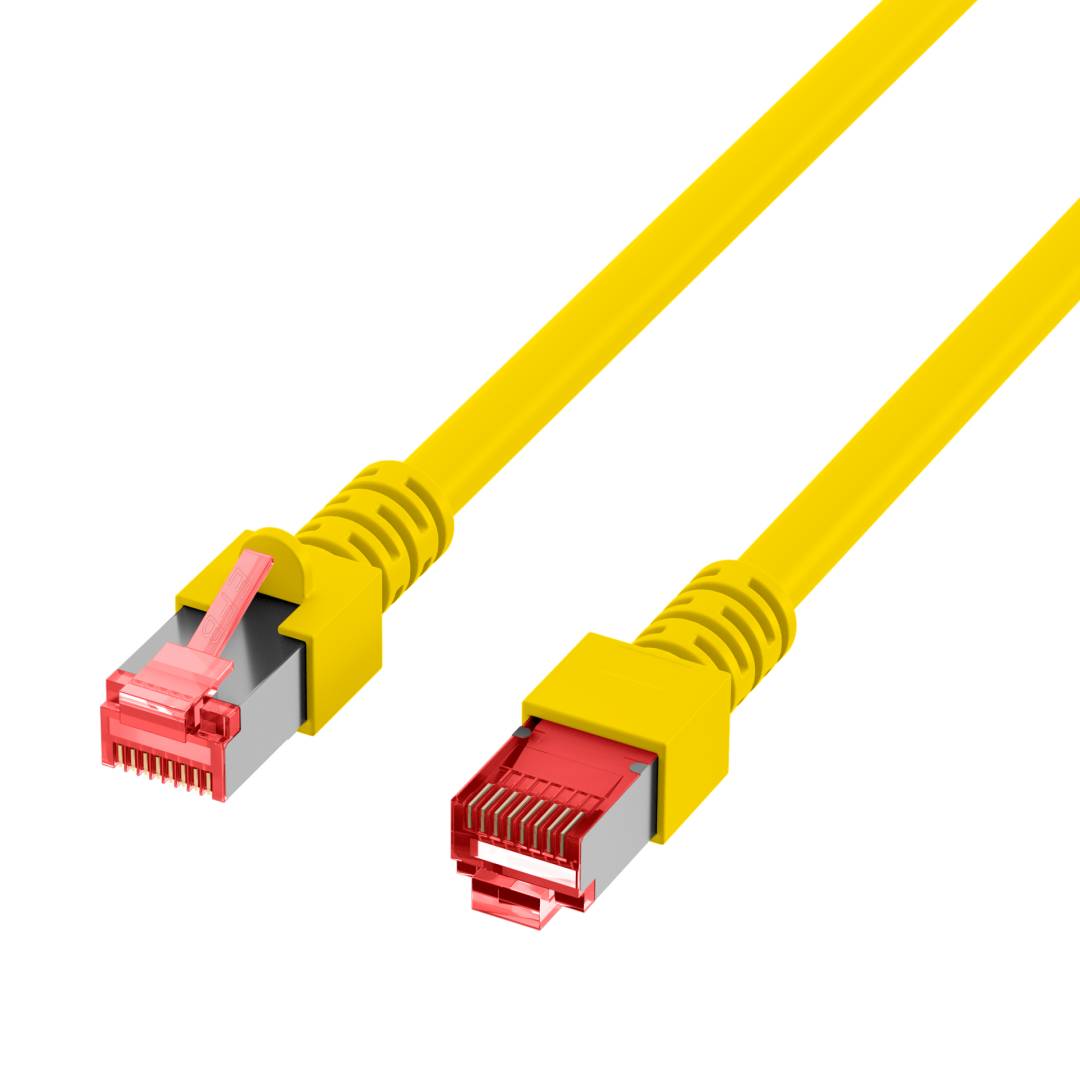

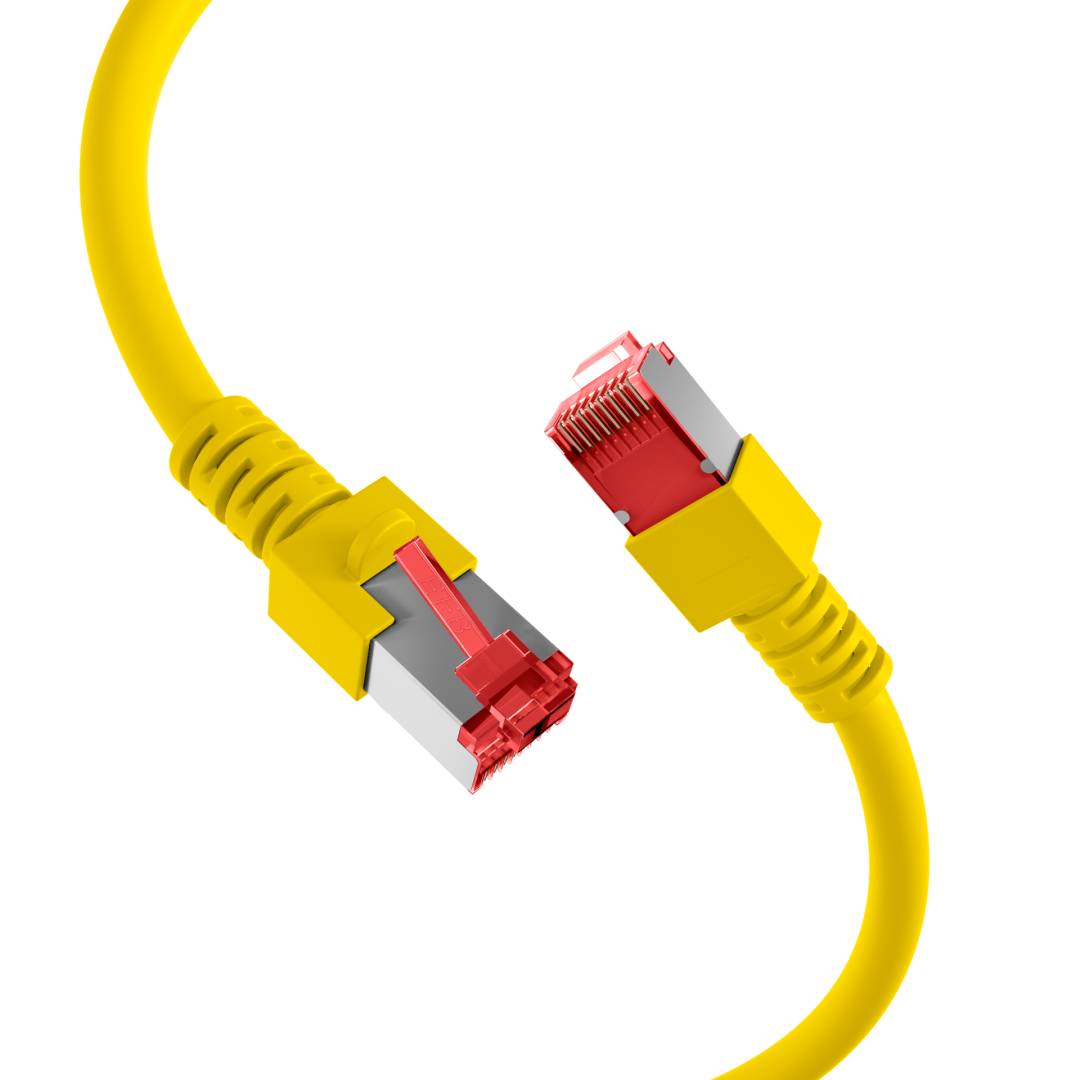

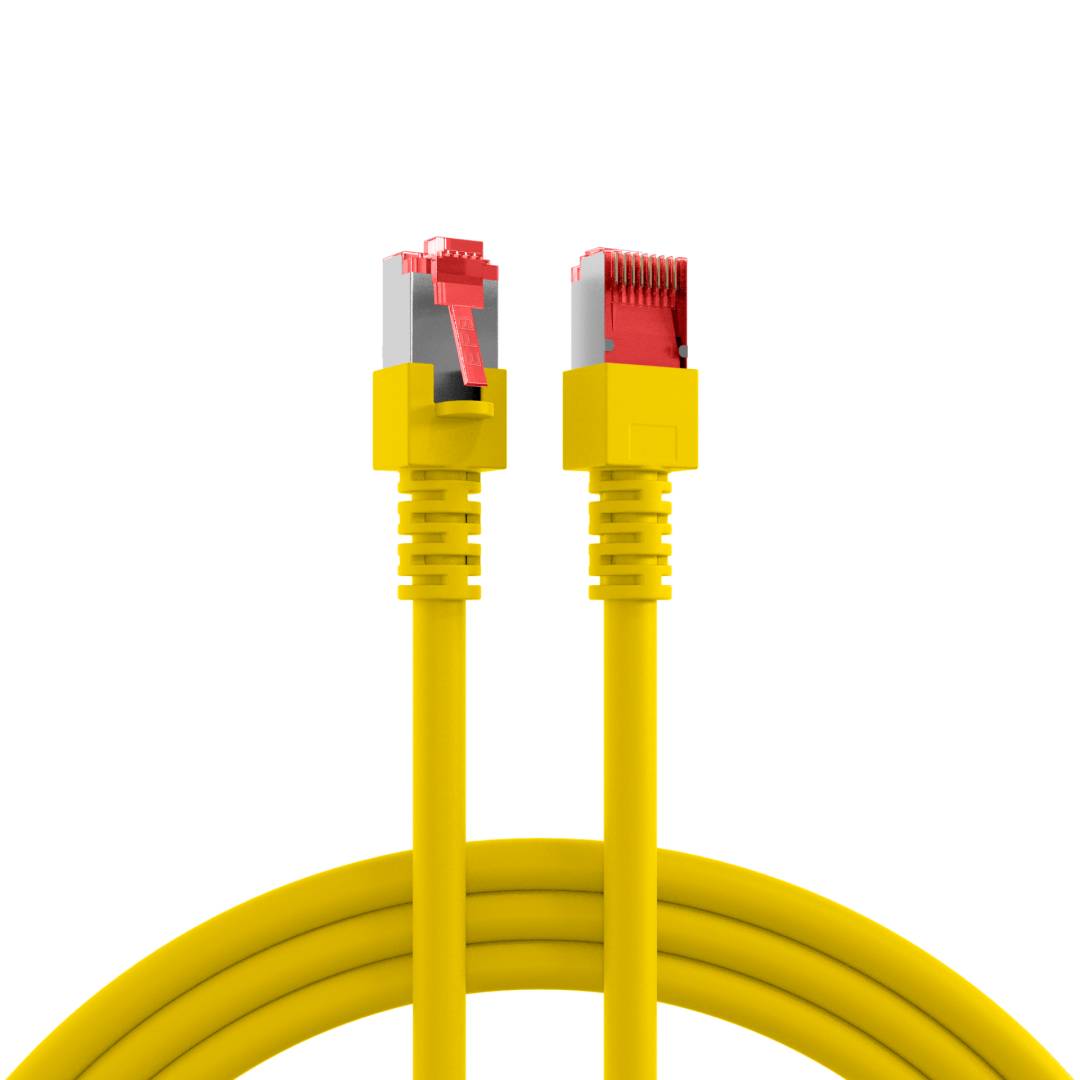

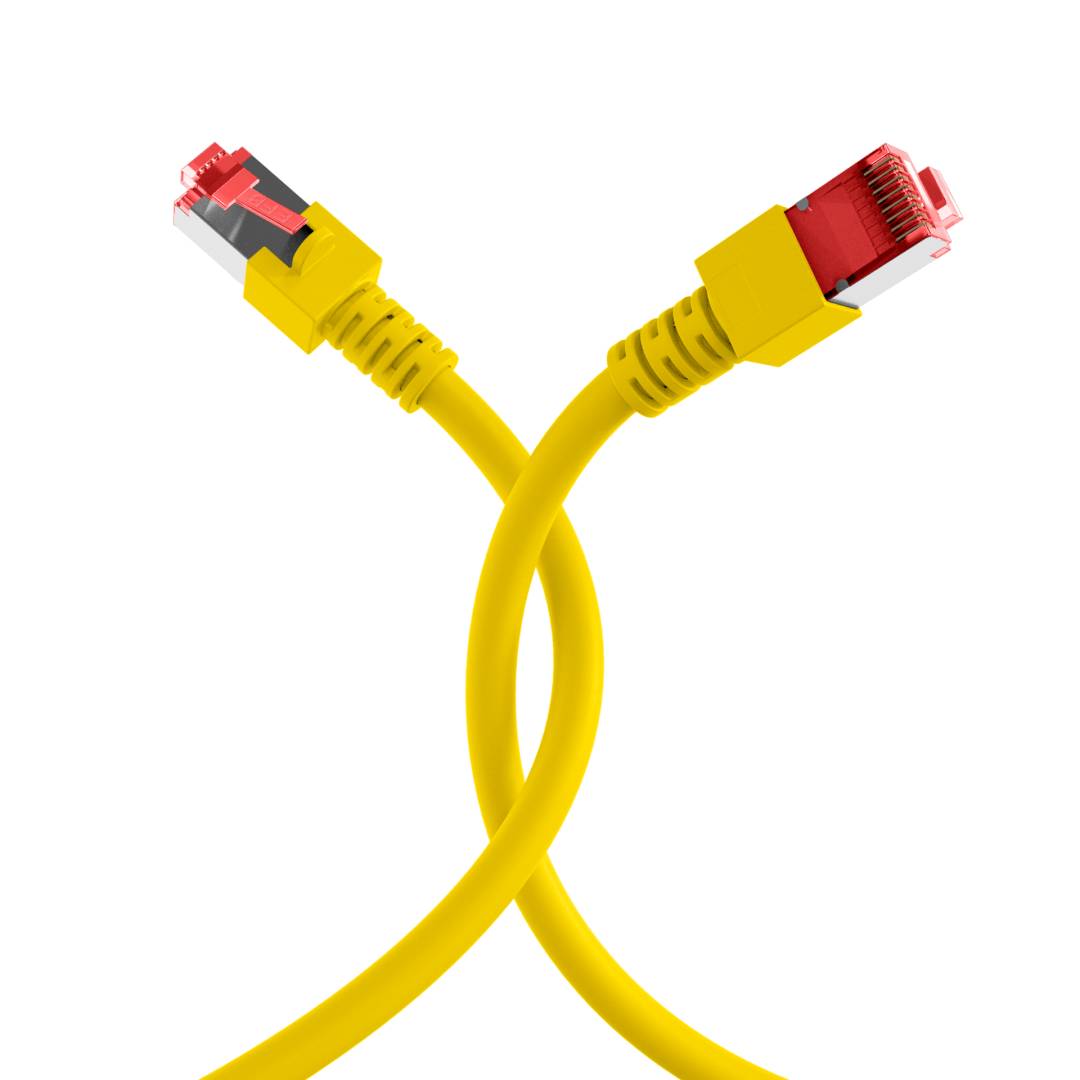

EFB K5511.0,15 Cat 6 S/FTP LSZH Patch Cable 0.15 m Yellow

Fully shielded, halogen-free Cat 6 copper patch cord for 1 to 5 Gigabit links and PoE devices.
Cat 6 S/FTP0.15 m yellow5 Gbit · 250 MHzLSZH · PoE to 802.3bt

The EFB-Elektronik K5511.0,15 is a 0.15 m yellow Cat 6 S/FTP patch cable with solid RJ45 plugs, stranded AWG 27/7 copper pairs and a halogen-free LSZH jacket, made for racks, data centres and structured cabling. EFB rates it for 250 MHz and 5 Gbit/s, and lists PoE (802.3af), PoE+ (802.3at) and 4PPoE (802.3bt) support, so one cord can carry data and power to cameras, access points and phones.

Compatibility Note: At 0.15 m this cord is intended for bridging adjacent ports, for example a patch panel and the switch directly above or below it in the rack. Check the port spacing before ordering.

Technical Specifications

Identification
Part Number K5511.0,15
EAN / GTIN 4049759095505
Brand EFB-Elektronik
Colour Yellow (jacket and anti-kink boot)
Cable
Category Cat 6 · 250 MHz
Transmission 5 Gbit/s (per EFB)
Shielding S/FTP (PiMF) — foil around each pair + overall braid
Construction 4 × 2 × AWG 27/7 stranded, round
Conductor Copper
DC / loop resistance 185 Ω/km / 370 Ω/km
Impedance 100 Ω
Jacket LSZH — halogen-free to IEC 60754-2, low-smoke to IEC 61034, flame-retardant to IEC 60332-1
Outer diameter 6.2 mm
Bending radius >31 mm
Length 0.15 m
Connectors & PoE
Type RJ45 8(8) male to RJ45 8(8) male, IEC 60603-7-5
Contacts Gold-plated, 30 mΩ contact resistance
Wiring 1:1 to TIA/EIA 568B
Design Selected shield contact, moulded anti-kink boot, locking-lever protection, length imprint
Mating cycles ≥750
PoE PoE 802.3af, PoE+ 802.3at, 4PPoE 802.3bt (EFB: bt only up to certain cable lengths)
Electrical & Environment
Current / voltage Max. 1 A · max. 50 V DC
Operating temperature -20 to 60 °C
Protection IP20 · silicone-free · not UV, oil or ozone resistant
Standards ANSI/TIA-568, EN 50173, ISO/IEC 11801 · EN 50575 (CPR)
Applications Data centre, structured cabling, Industrial Ethernet

Frequently Asked Questions

Can the EFB K5511.0,15 power PoE cameras and access points?
Yes. EFB lists PoE (IEEE 802.3af), PoE+ (802.3at) and 4PPoE (802.3bt) for this copper Cat 6 cord. EFB notes that 4PPoE is only supported up to certain cable lengths, so for high-power 802.3bt devices keep runs short and within your switch vendor's guidance.
Is the K5511.0,15 suitable for 10 Gigabit Ethernet?
EFB rates this Cat 6 cord for 5 Gbit/s at 250 MHz, which covers 1G, 2.5G and 5GBASE-T. For guaranteed 10GBASE-T links, choose a Cat 6A cord such as the EFB MK6001 series.
Singular Expert Insight
The ECOLAN K551x range is the cord we recommend when a network cable has to do more than carry data: solid copper pairs, full S/FTP shielding and an LSZH jacket make it safe for racks, offices and public spaces, and it handles PoE devices properly. Compared with EFB's cheaper K545x Cat 5e cords (CCA, PVC), it is the better long-term choice; see all network cables.
✓ Buy it if you want a shielded, halogen-free copper cord for multi-gig switches, servers or PoE devices.
✕ Skip it if you need certified 10GBASE-T performance — a Cat 6A cord is the right tool.
→ Also consider EFB MK6001 Cat 6A S/FTP LSZH cords for 10 Gbit, or EFB K545x Cat 5e cords for low-cost data-only desk links.

Features - EFB - K5511.0,15

Colour
yellow
Standard
CAT6
Port Speed
  • 5 Gbps
More Details
Product Code
04:575708
EAN Code
4049759095505
Manufacturer
EFB
