EFB-Elektronik 88035P8.1 RJ45 Premium Field Plug Cat.6A STP Tool-Free Full Metal 9 Cable Entry Positions 10 Gbit 4PPoE

Brand:
EFB

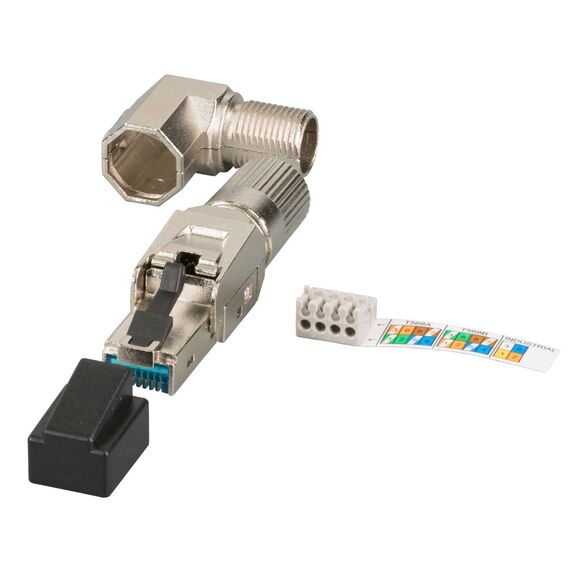

EFB 88035P8.1 RJ45 Field Plug Cat.6A Shielded Metal
EFB-Elektronik 88035P8.1 RJ45 Premium Field Plug Cat.6A STP Tool-Free Full Metal 9 Cable Entry Positions 10 Gbit 4PPoE
€14.76 inc. VAT
Buy
88035P8.1
€12.40
€14.76 inc. VAT
Ships from EU stock: 10 item(s)
+ −
Add to wish list Ask a question
Product Code
CL12790
EAN Code
4049759205027
Manufacturer
EFB

Quick Specs

Category
Cat.6A / Class EA, 10 Gbit/s
Termination
Tool-free IDC
Cable
Ø 6.0–9.0 mm, AWG 22–26
Cable Entry
9 positions (8 angled + straight)
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

EFB-Elektronik 88035P8.1 — RJ45 Premium Field Plug Cat.6A STP

Cat.6A / Class EATool-free9 cable entry anglesZinc die-cast

The EFB-Elektronik 88035P8.1 is a field-terminable RJ45 plug for Cat.6A/Class EA links: you fit it directly onto installation cable on site, without a crimping tool, and plug the cable straight into a device. Its full-metal zinc die-cast body makes it very robust, and its variable cable entry is unusual — nine positions, eight at different angles plus one straight at 180°, so the cable can leave the plug in the direction the space allows. The conical metal gland takes cables from 6.0 to 9.0 mm, the IDC contacts accept AWG 22–26 solid or 22–27 stranded conductors, and the plug supports 10 Gbit Ethernet and 4-pair PoE. Typical uses are direct-attach links to access points, IP cameras and industrial devices, where a wall outlet and patch cable are not practical.

Compatibility — check before buying:
Check the cable: outer diameter 6.0–9.0 mm and conductors AWG 22–26 (solid) or 22–27 (stranded); thin slim patch cable below 6 mm will not be clamped properly. It is a shielded plug — with shielded installation cable, fold the braid/foil onto the 360° shield contact. No special tool is needed, but a good cable stripper and side cutters help. It is IP20, for indoor use. Unsure your cable fits? Send us the cable type and we confirm.

Best For

✓ Direct-attach links to access points
✓ IP cameras on installation cable
✓ Industrial and machine connections
✓ Tight spaces needing an angled exit
✓ Repairs on site without crimp tools
✓ Cat.6A 10 Gbit links

Key Features


9 cable entry positions
Eight angled and one straight exit to suit ceilings, cabinets and tight corners.

Tool-free IDC
Terminates on site without a crimping tool; suits solid and stranded conductors.

Full metal, 360° shielding
Zinc die-cast body with 360° shield contact for Cat.6A/Class EA.

10 Gbit and 4PPoE
Supports 10 Gbit Ethernet and is 4-pair PoE certified; 2 A current rating.

Technical Specifications

Identification
Brand EFB-Elektronik
Product RJ45 Premium plug STP, Cat.6A/Class EA, field-terminable, full metal
Part Number 88035P8.1
EAN / GTIN 4049759205027
Termination Field-terminable, IDC, tool-free
Performance
Category Cat.6A (IEC) / Class EA
Ethernet Up to 10 Gbit/s
PoE 4PPoE certified
Current Rating 2 A
Contact Resistance <20 mΩ
Insulation Resistance ≥500 MΩ
Termination
Method IDC (insulation displacement), tool-free
Solid Conductors AWG 22–26
Stranded Conductors AWG 22–27
Cable Diameter 6.0–9.0 mm (conical metal gland)

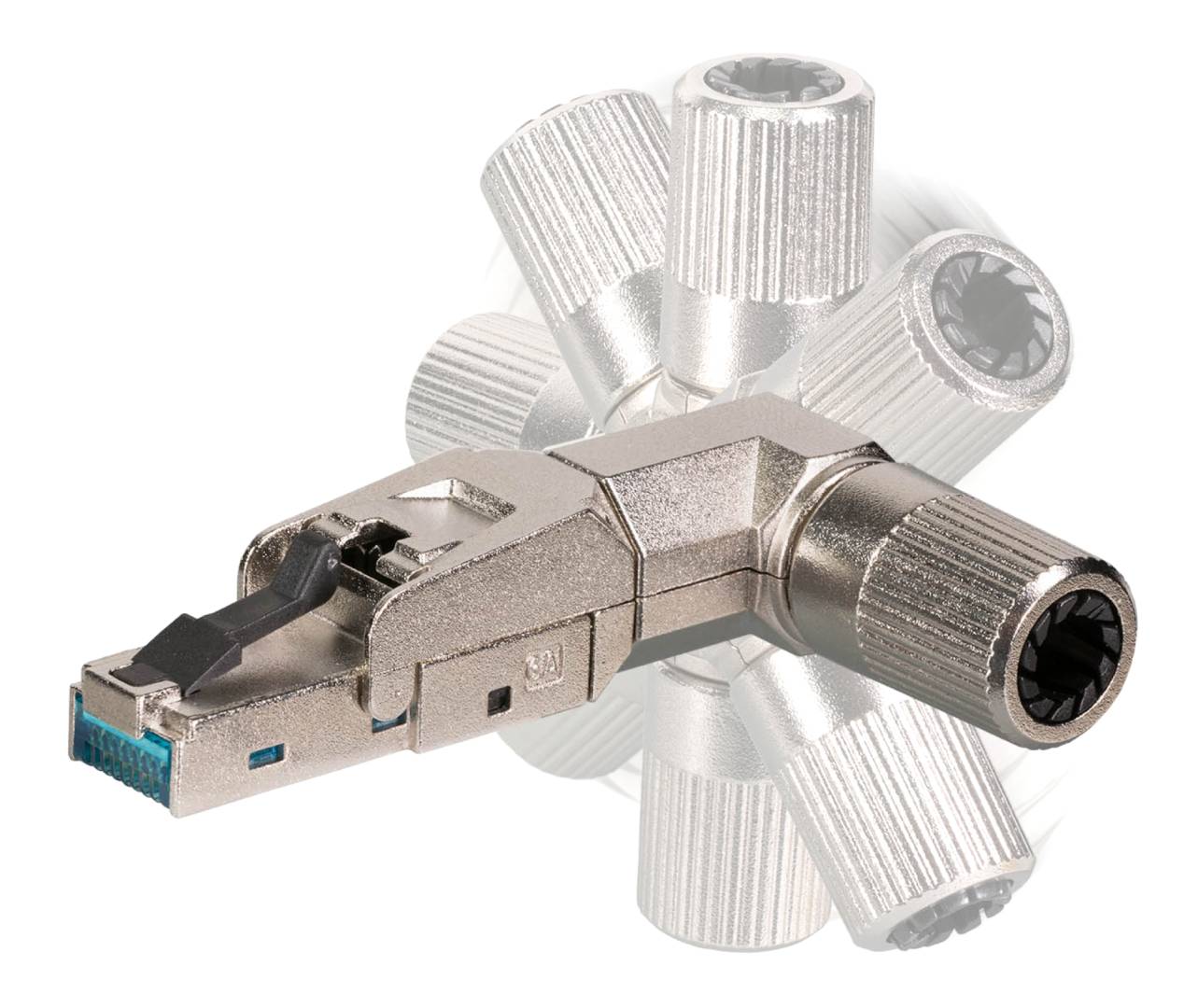

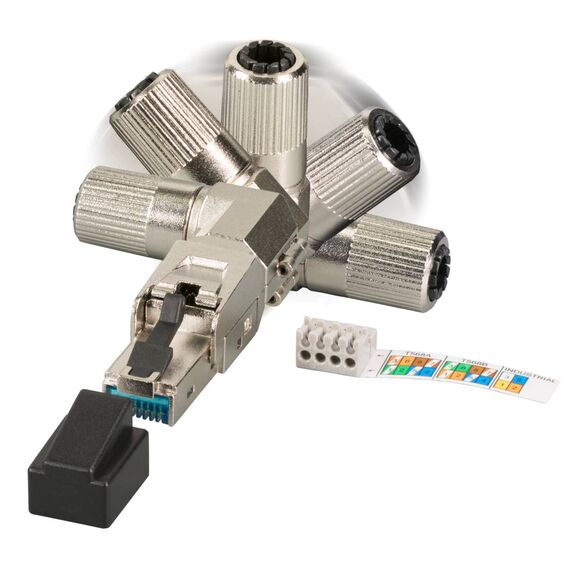

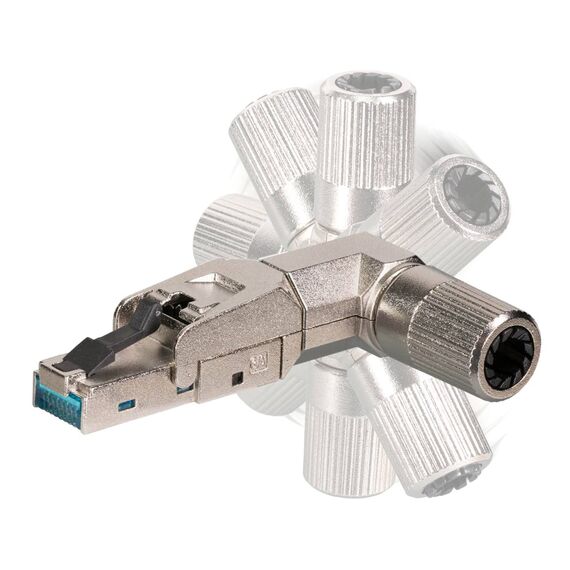

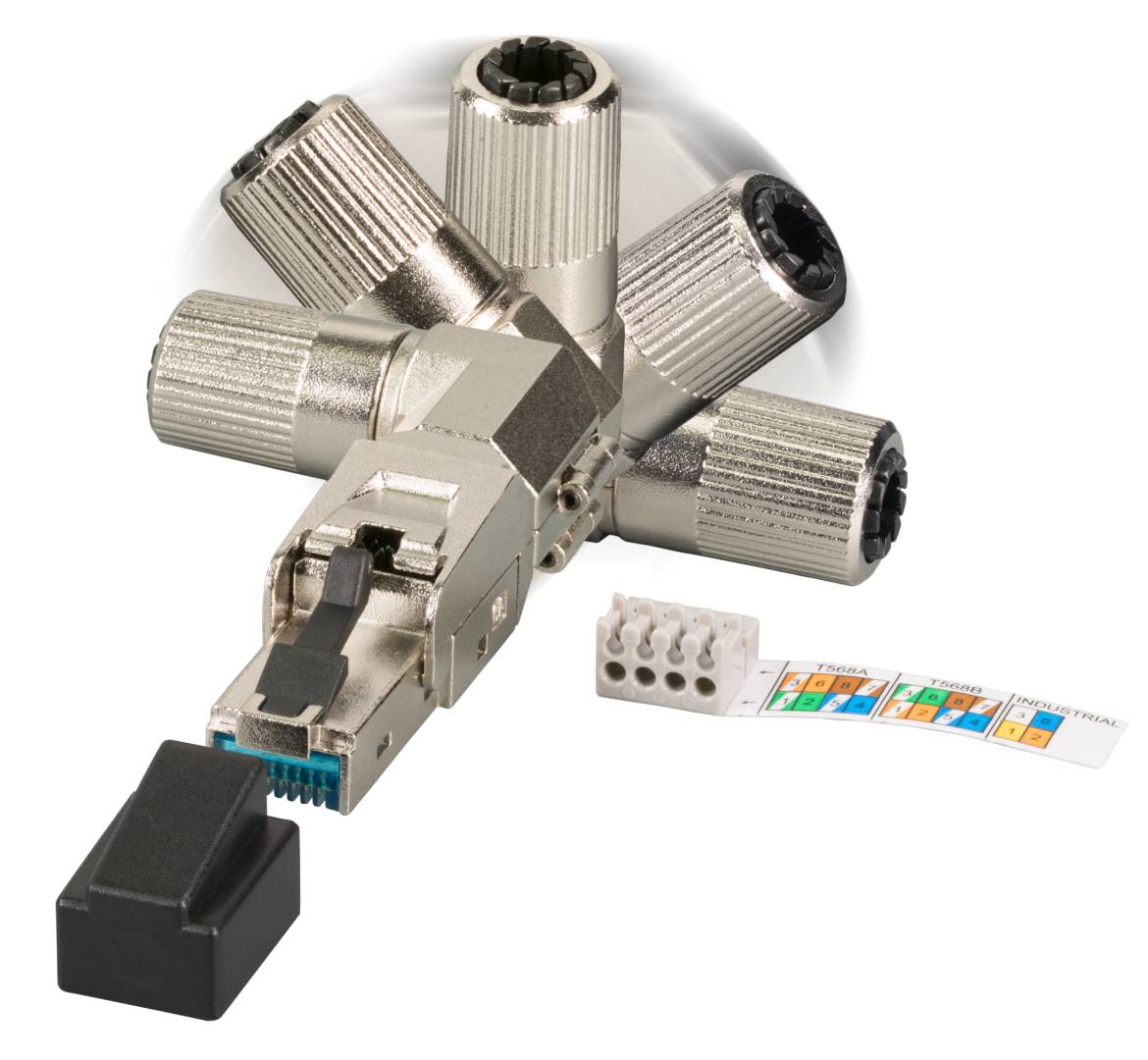

Cable Entry 9 positions: 8 angled, 1 straight (180°)
Suitable For Round cable; not flat cable
Mechanical
Connector RJ45 8P8C plug
Housing Zinc die-cast, full metal
Shielding 360° shield contact
Locking Latch
Dust Cap Yes
Mating Cycles ≥750
Environment
Protection IP20
Operating Temperature −10 to 60 °C
Flammability UL94 V-0
Contact Plating 50 µin
In the Box
Included RJ45 Premium field-terminable plug with dust cap
Not Included Installation cable, stripping tool
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term EFB-Elektronik does not publish a warranty term for this article on its product page. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Do I need a crimping tool?
No. The plug is tool-free: the IDC contacts terminate the conductors when you close it. A cable stripper and side cutters make the job easier.
What cable does it take?
Round cable with 6.0–9.0 mm outer diameter and AWG 22–26 solid or 22–27 stranded conductors.
Can the cable leave at an angle?
Yes. There are nine entry positions — eight angled and one straight — chosen when you assemble the plug.
Is it suitable for PoE?
Yes. EFB lists it as 4-pair PoE certified with a 2 A current rating.
Singular Expert Insight
We suggest the 88035P8.1 where a device should connect straight to the installation cable — a ceiling access point, a camera on a pole cabinet or a machine — and the angled exit keeps the cable from bending hard. For standard desk and rack ports, a keystone jack and patch cable remain the neater solution. Browse our cable accessories and network cables. Local support in Cyprus comes with every order.

Buyer’s Guide

Buy it if

You terminate Cat.6A installation cable directly with a plug, often in tight spaces.

Skip it if

Your cable is thinner than 6 mm, or you need an outdoor-rated (IP67) connector.

Also consider

EFB E-20092 — Cat.8.1 keystone jack for panel and outlet terminations.
