EFB 691100F.VZ Captive Nut Set 50 x M6, Complete with M6 Pan-Head Screws and Plastic Washers, Zinc-Plated
Brand:
EFB
EFB 691100F.VZ Captive Nut Set 50 x M6, Complete with M6 Pan-Head Screws and Plastic Washers, Zinc-Plated
€21.4 inc. VAT
691100F.VZ
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

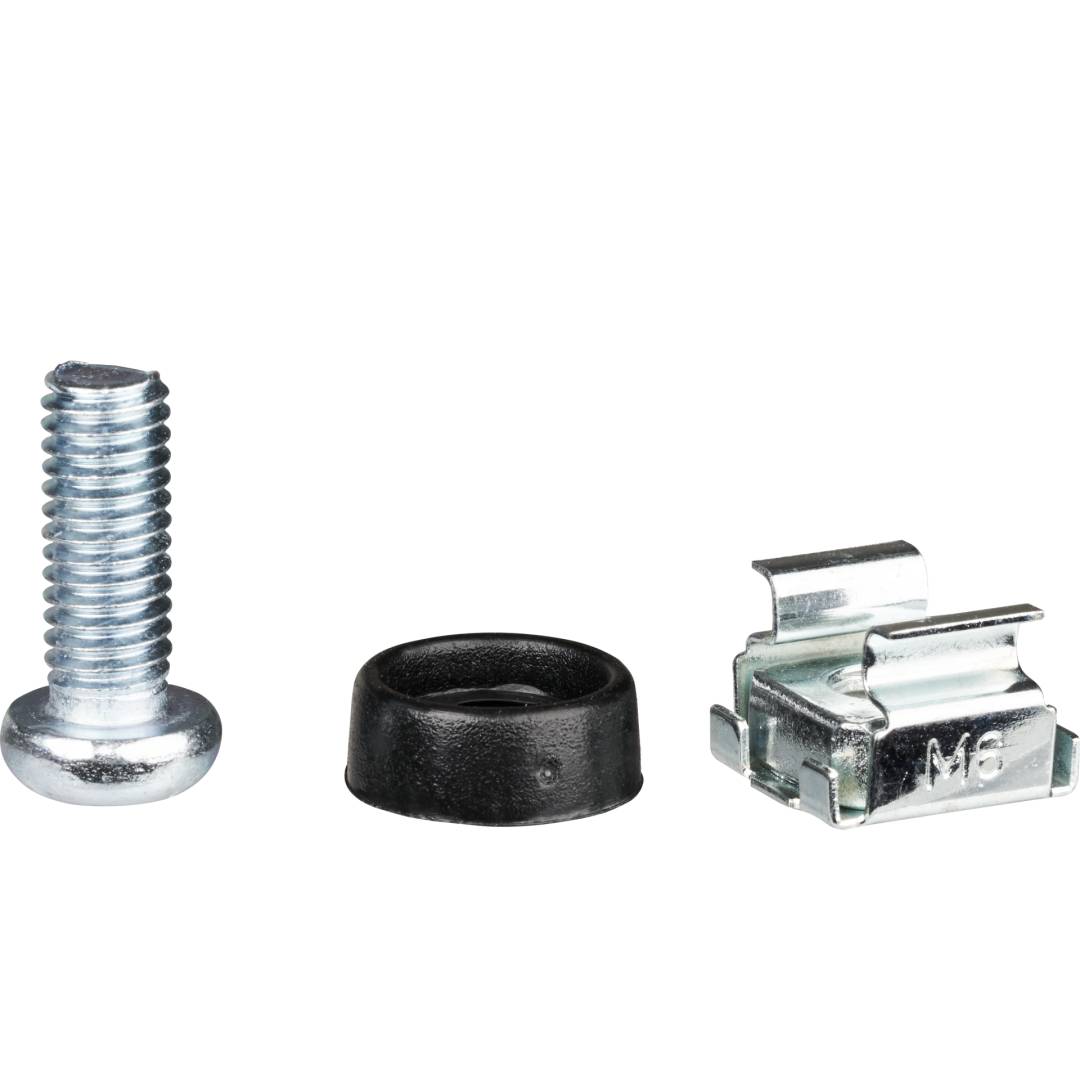

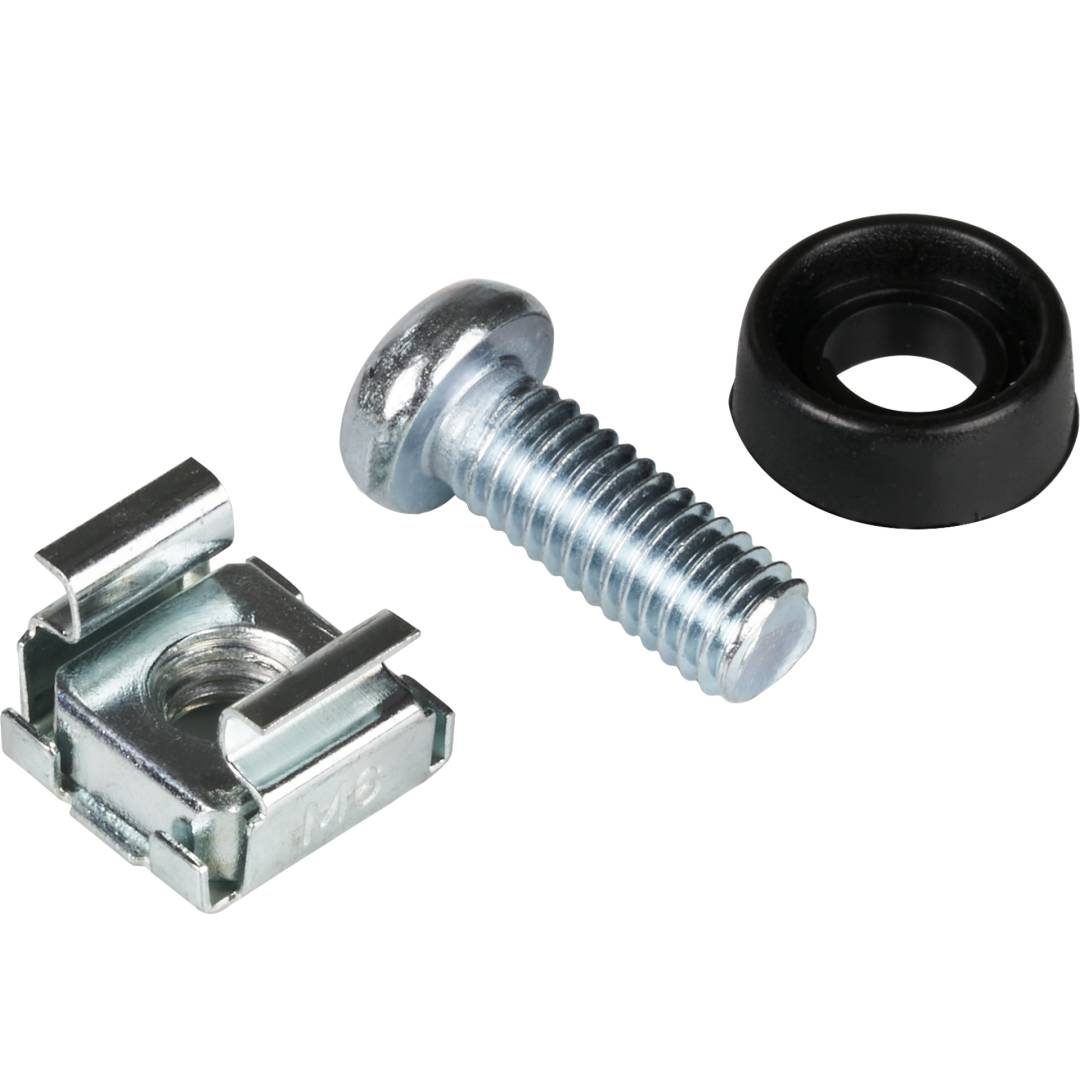

EFB 691100F.VZ — 50 complete M6 captive-nut sets
M650 setsZinc-platedPH3 screws
The EFB 691100F.VZ is a complete set of 50 M6 captive (cage) nuts with 50 M6 pan-head screws and 50 plastic washers, zinc-plated, for mounting patch panels, switches, shelves and blanking plates in 19-inch network and server cabinets with square-hole rails.
The screws have a 16 mm thread, 20 mm total length and a PH3 cross drive. Each nut comes with its own screw and washer, so one set equals one mounting point.
Before you order: captive nuts fit square-hole rails only. Racks with round or pre-threaded holes, or rails built for M5, need different hardware.
What's in the Box
- 50 × M6 captive nuts
- 50 × M6 pan-head screws (16 mm thread, 20 mm total, PH3)
- 50 × plastic washers M6
What It Means in Practice
- 50 mounting points — about 12 devices at 4 points or 25 at 2 points.
- Plastic washers protect the paint of rack ears and panels.
- PH3 drive: use a size 3 Phillips screwdriver for a firm fit without cam-out.
- Zinc plating resists corrosion in normal indoor cabinets.
What Will Not Work
- It will not work in round-hole or threaded rails.
- It is not M5 hardware.
- No insertion tool is included.
Key Features
Complete sets
Nut, screw and washer for each mounting point.
Zinc-plated
Corrosion-resistant finish.
M6 x 20 mm, PH3
Standard rack screw size.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Keep a jar of complete M6 sets in every cabinet — it makes adding a switch or shelf a five-minute job. Check first that your rails are square-hole M6. See more rack accessories.
✓ Buy it if your cabinet has square-hole M6 rails and you need mounting hardware.
✕ Skip it if your rack uses round, threaded or M5 holes.
→ Also consider Intellinet 711081 M6 cage nut set (50 pack in a storage jar, lifetime warranty).
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - EFB - 691100F.VZ
Colour
silver
More Details
Product Code
04:598370
EAN Code
4049759337506
Manufacturer
EFB
